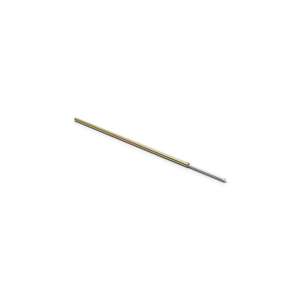

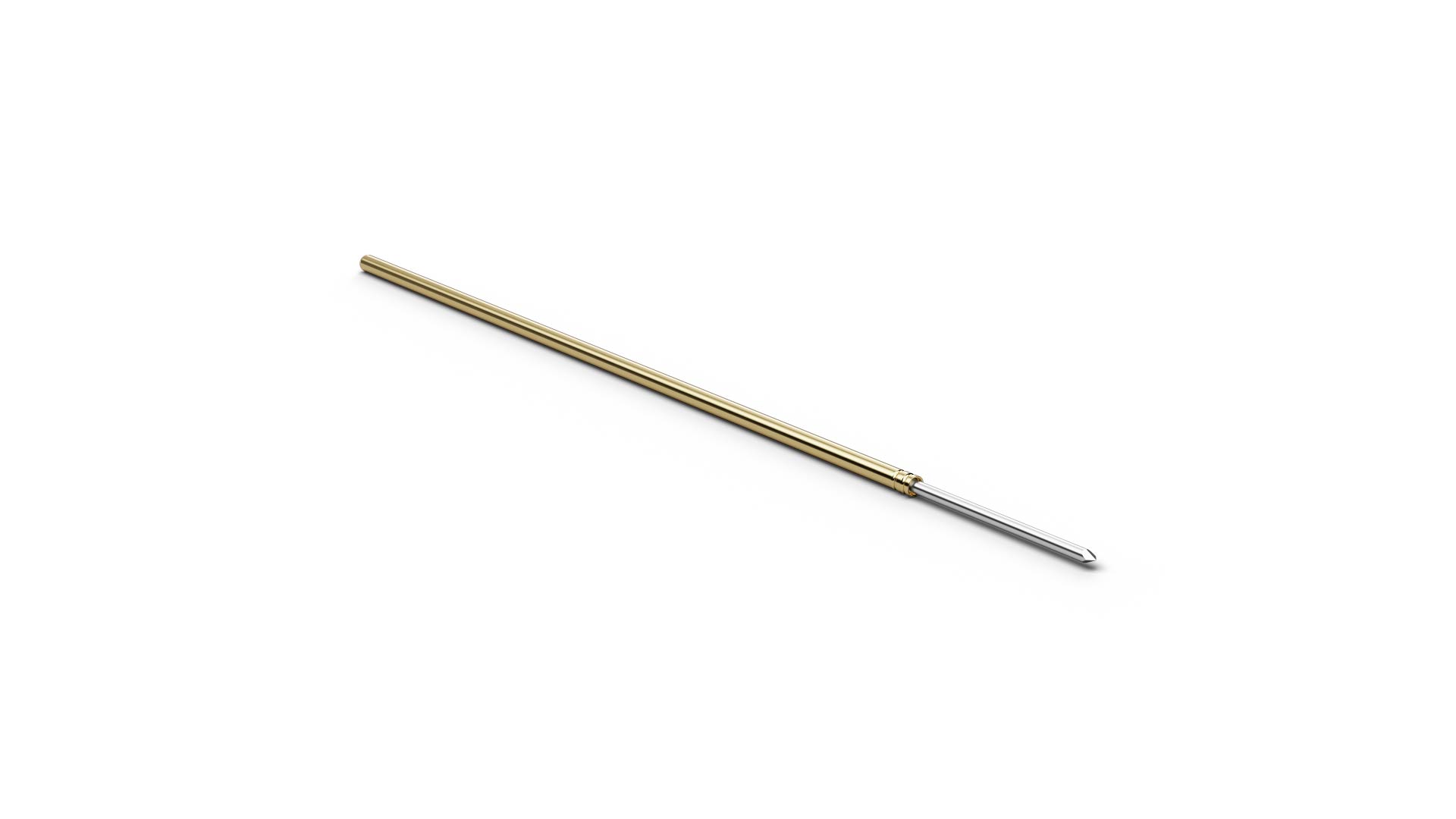

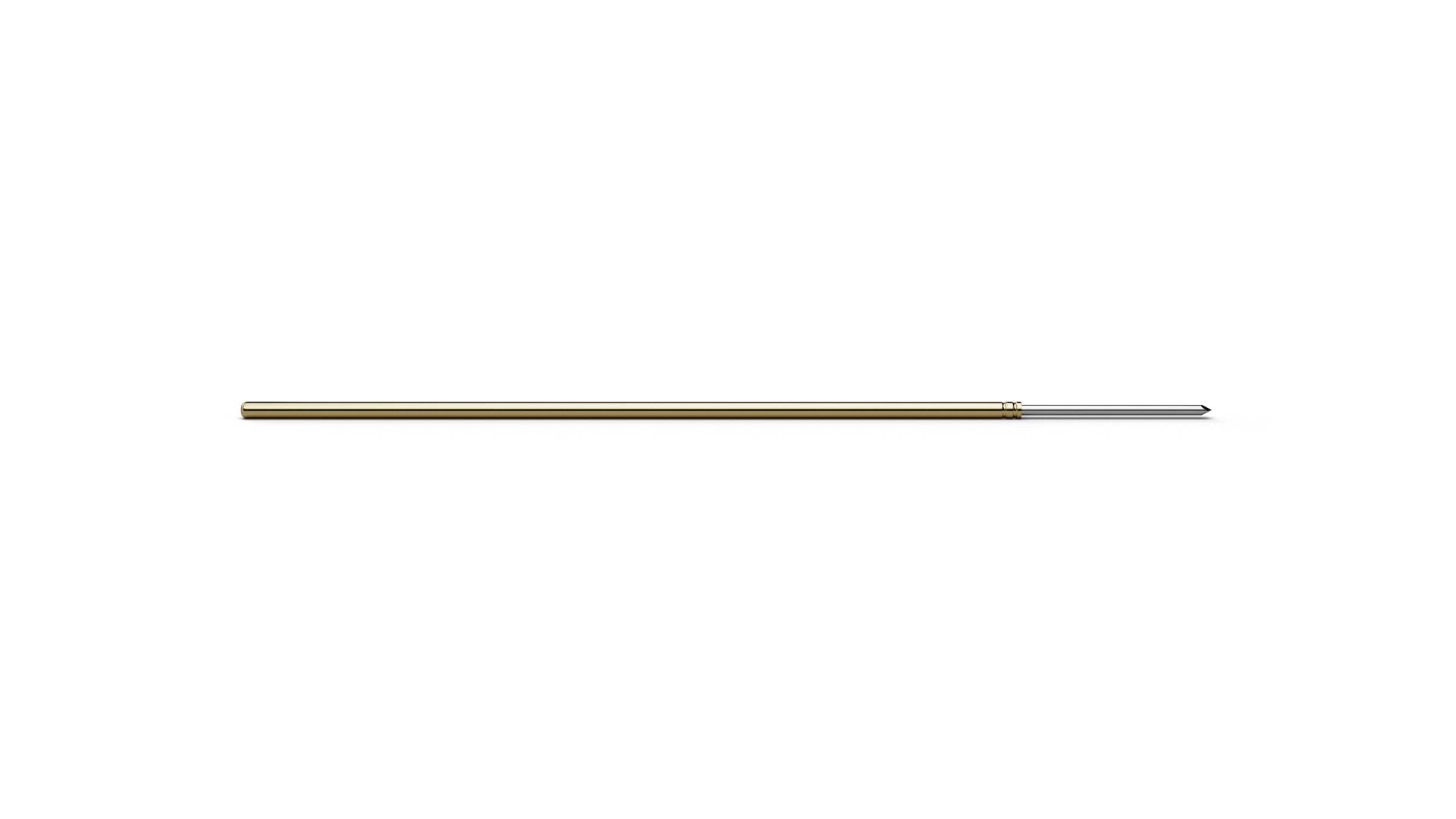

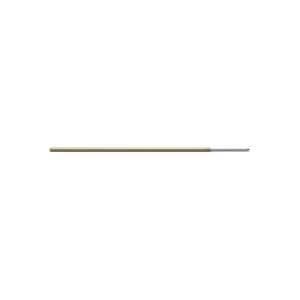

F05043S050P200HPL (item number 1026814) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 43 (Square lance 90°), F05043S050P200HPL combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F05043S050P200HPL combines a pitch of 1.27 mm / 50 mil with tip style 43 (Square lance 90°) and a tip diameter of 0.5 mm. For F05043S050P200HPL, spring force is 200 cN at a nominal travel of 4.3 mm. F05043S050P200HPL is rated for 3 A continuous current with a typical contact resistance of 40 mΩ. Two features address difficult surface conditions on F05043S050P200HPL: Progressive Coating reduces contamination sensitivity, while the HP spring provides increased preload at the start of the contact stroke.
