Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F588 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Additional definition | S |
| Dimensions | |
|---|---|
| Total length (mm) | 37.3 |
| Protrusion height (mm) | 12.4 |
| Tip style diameter (mm) | 1.5 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 15 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 25 |
| Spring force (cN) | 80 |
| Nominal travel (mm) | 7.6 |
| Maximum travel (mm) | 10 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 30 |
Graphics
Beschreibung des Produkts

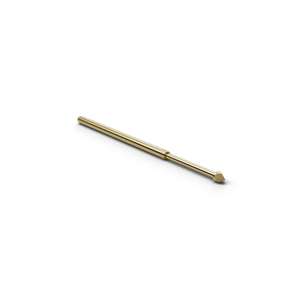

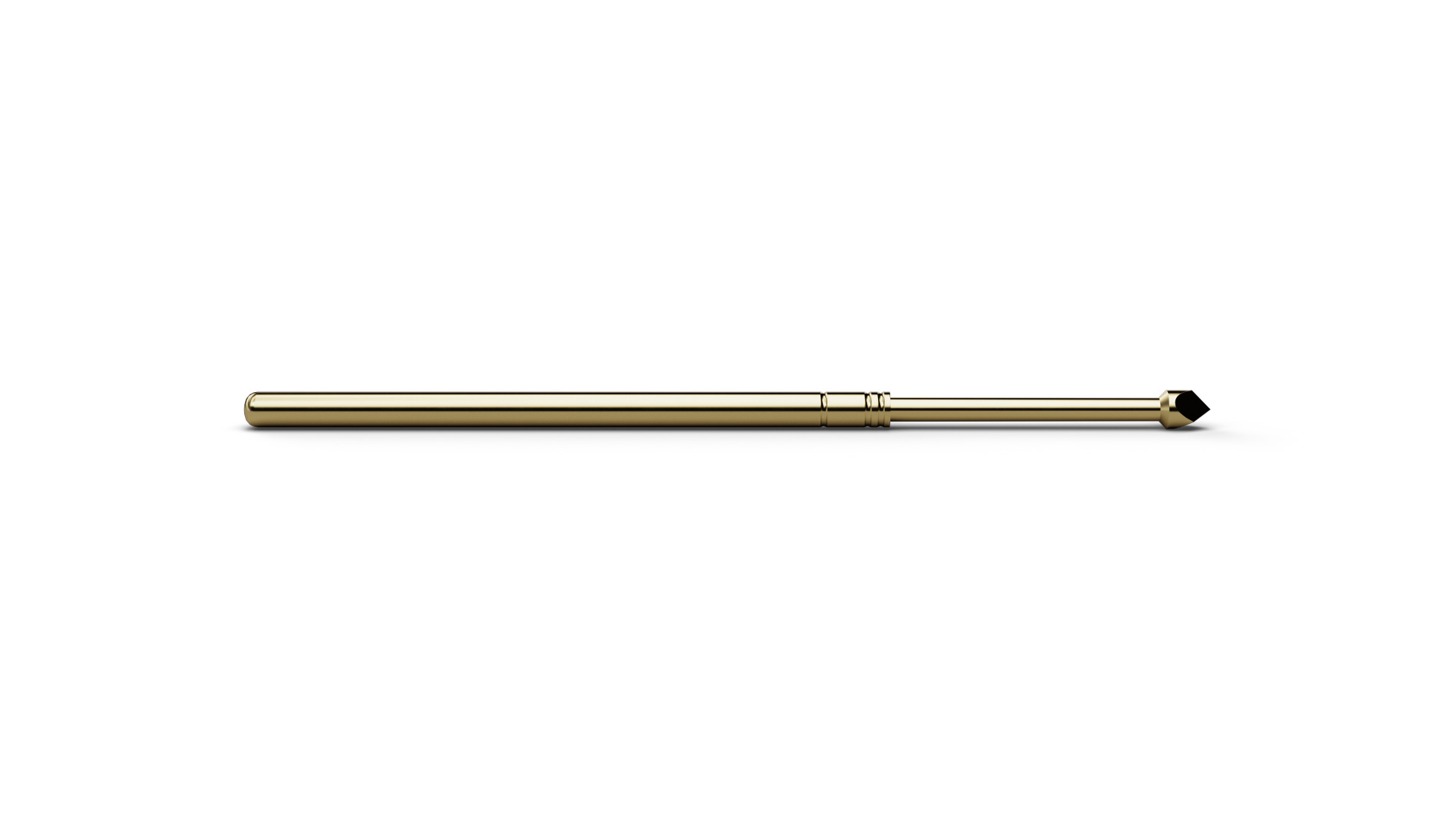

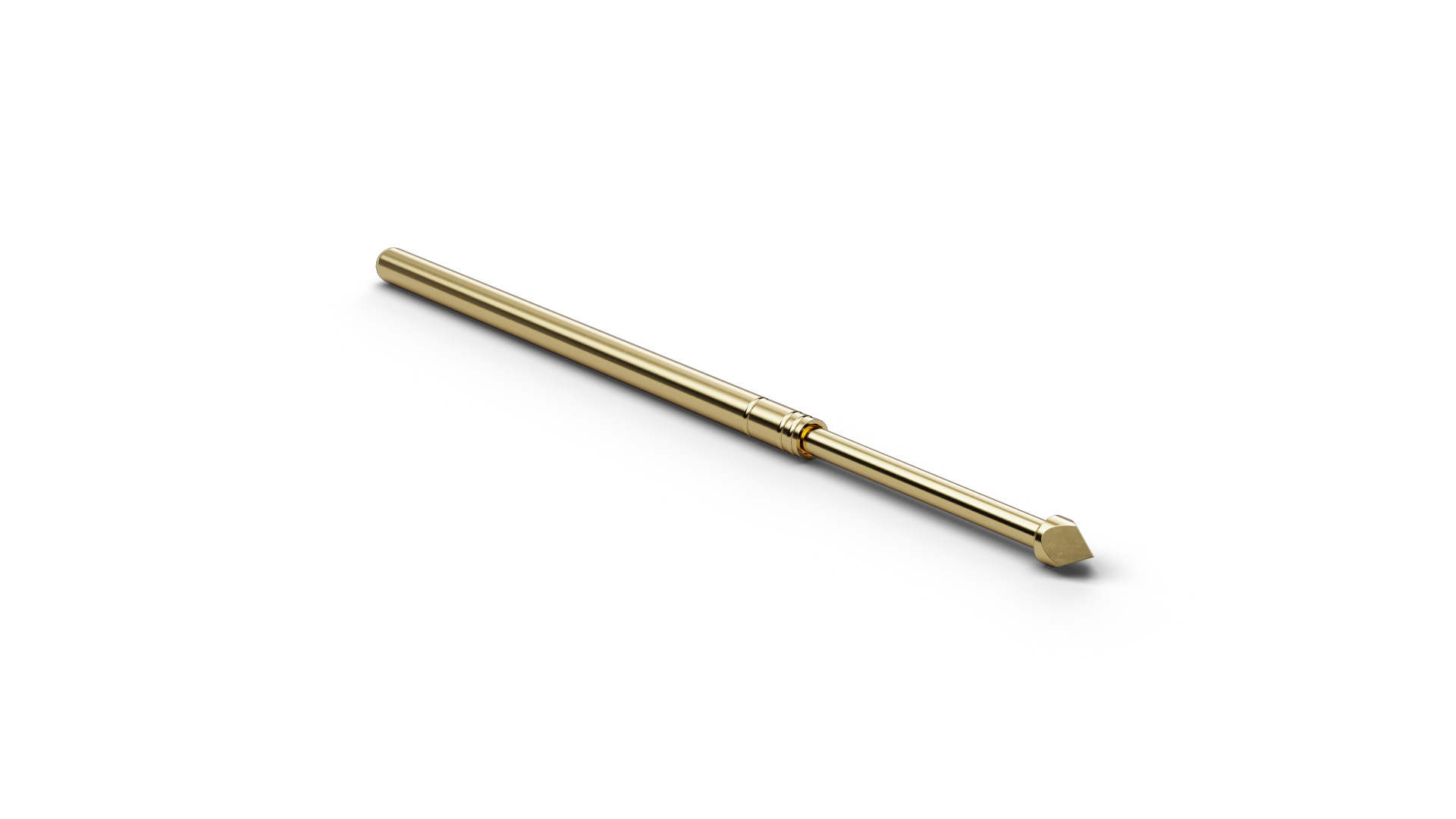

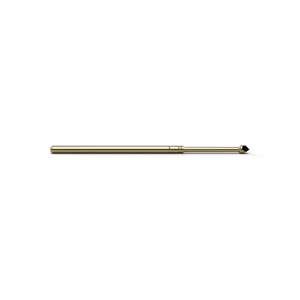

The Basic Contact Probe F58815B150G080S (item number 1170076) is designed for repeated contacting of test points in electronic test fixtures. With tip style 15 (Triangular 45° stepped), F58815B150G080S combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. F58815B150G080S combines a pitch of 2.54 mm / 100 mil with tip style 15 (Triangular 45° stepped) and a tip diameter of 1.5 mm. Spring force is 80 cN at a nominal travel of 7.6 mm. The continuous-current rating of F58815B150G080S is 5 A.
