Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F588 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Additional definition | HPRP |
| Dimensions | |
|---|---|
| Total length (mm) | 39 |
| Protrusion height (mm) | 14.1 |
| Tip style diameter (mm) | 0.6 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 10 |
| Plunger material | Steel |
| Plunger plating | Progressive |
| Barrel material | Nickel silver |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 110 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 7.6 |
| Maximum travel (mm) | 8.8 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 60 |

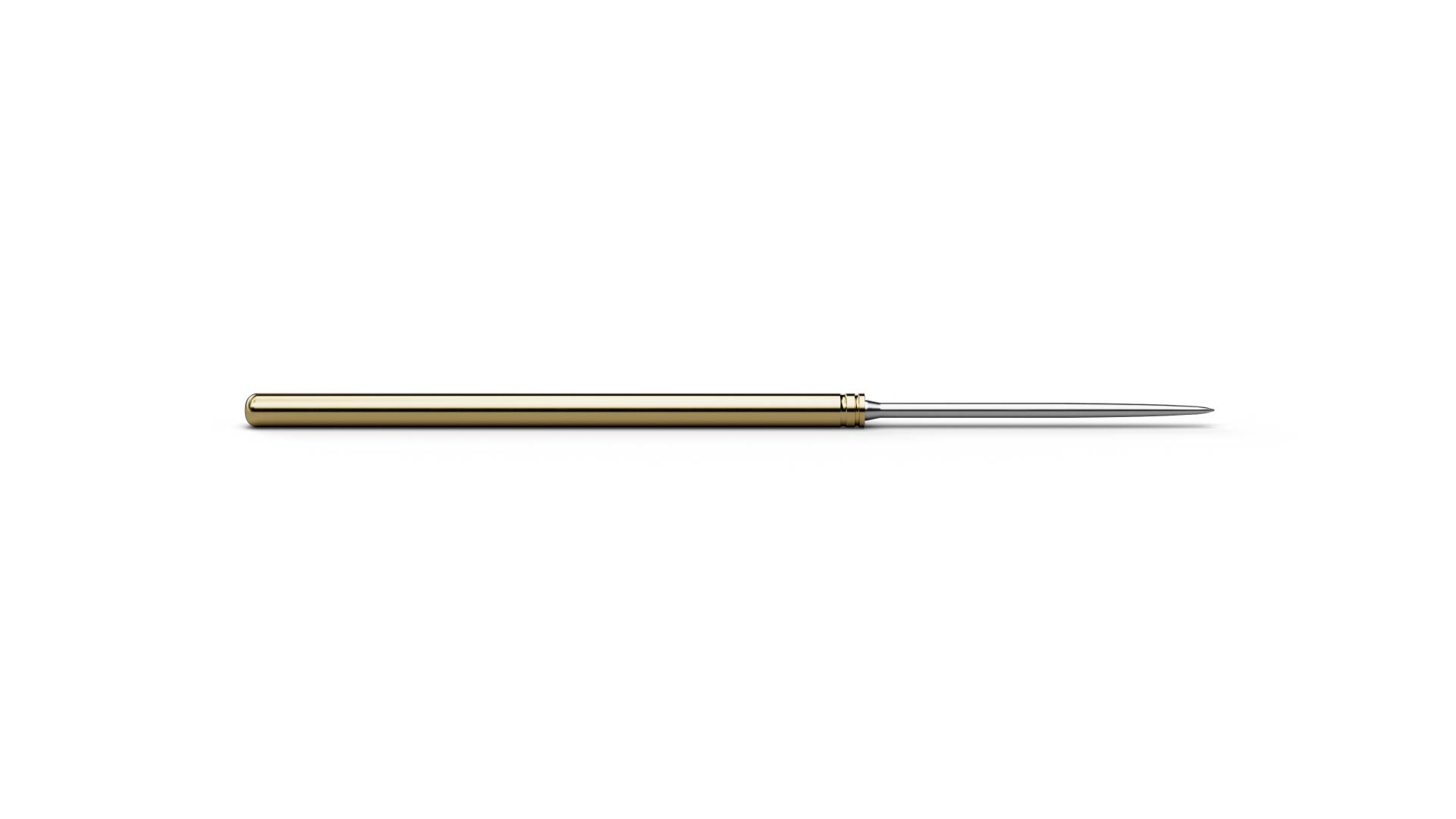

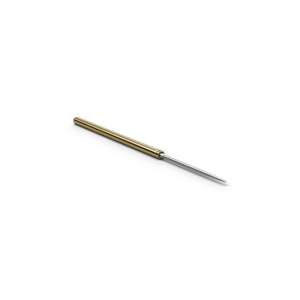

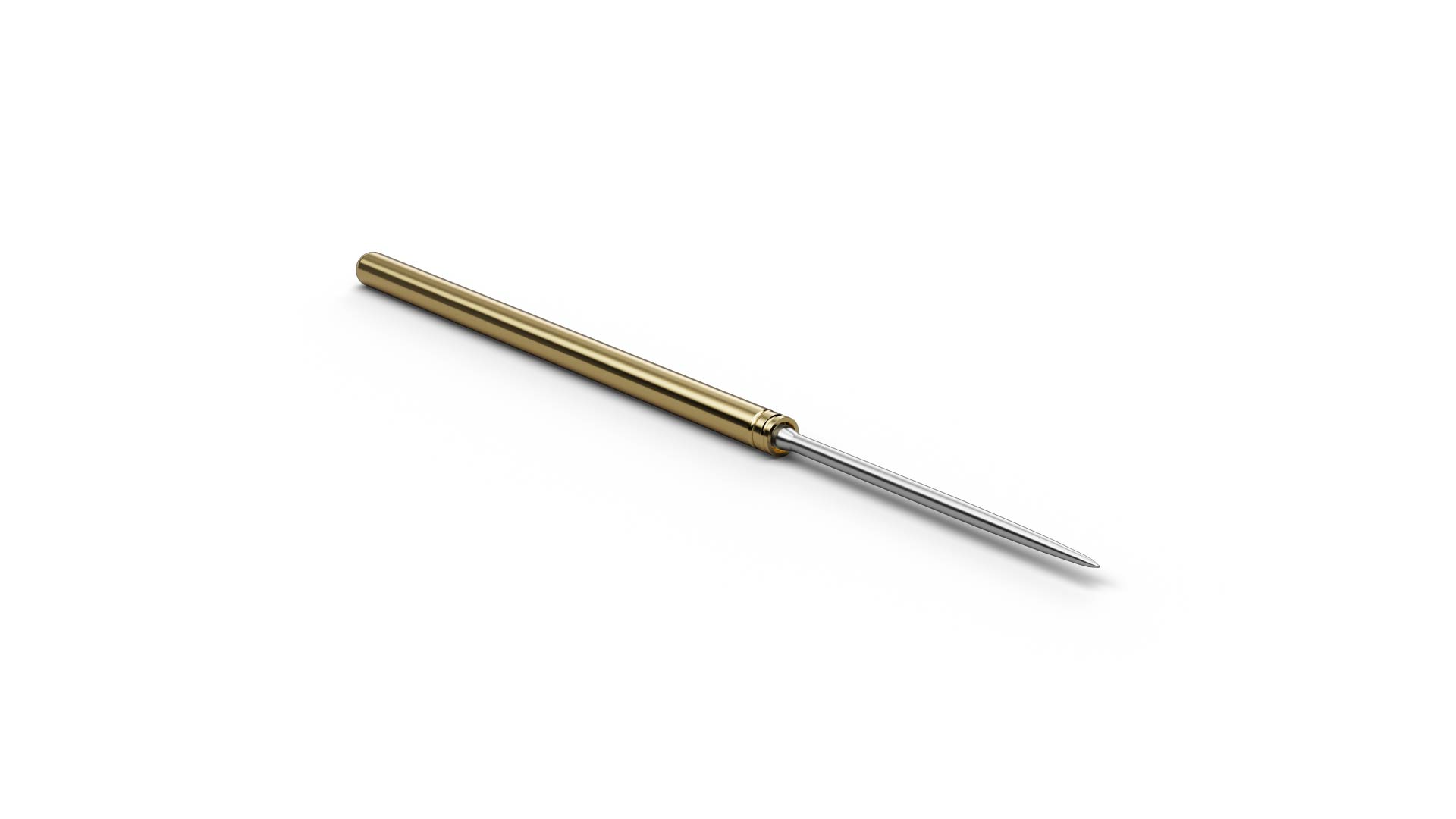

Graphics
Beschreibung des Produkts
The Basic Contact Probe F58810S060P150HPRP (item number 1035800) is a spring-loaded probe for temporary electrical contact with test points. With tip style 10 (Flexible needle), F58810S060P150HPRP combines ICT/FCT use with a geometry intended for solder pads and vias. F58810S060P150HPRP combines a pitch of 2.54 mm / 100 mil with tip style 10 (Flexible needle) and a tip diameter of 0.6 mm. For F58810S060P150HPRP, spring force is 150 cN at a nominal travel of 7.6 mm. F58810S060P150HPRP is rated for 5 A continuous current with a typical contact resistance of 60 mΩ. The plunger in F58810S060P150HPRP is made of steel and uses Progressive Coating.
