技术数据
| 一般信息 | |
|---|---|
| 结构 | Basic Contact Probe |
| 类型/系列 | 1860 |
| 间距（mm/mil） | 3,5 / 137,8 |
| 温度 | -45°C...+200°C |
| 附加定义 | 23,3 |
| 尺寸 | |
|---|---|
| 总长度 (mm) | 37.5 |
| 针头直径 (mm) | 3.1 |
| 针管直径 (mm) | 2.6 |
| 领圈直径 (mm) | 3 |
| 材料和表面 | |
|---|---|
| 针头材料 | Bronze |
| 针头镀层 | Nickel |
| 柱塞材料 | Brass |
| 柱塞镀层 | Silver |
| 电气规格 | |
|---|---|
| 电流 (A) | 10 |
| 接触电阻（mOhm) | 5 |
图形
Beschreibung des Produkts

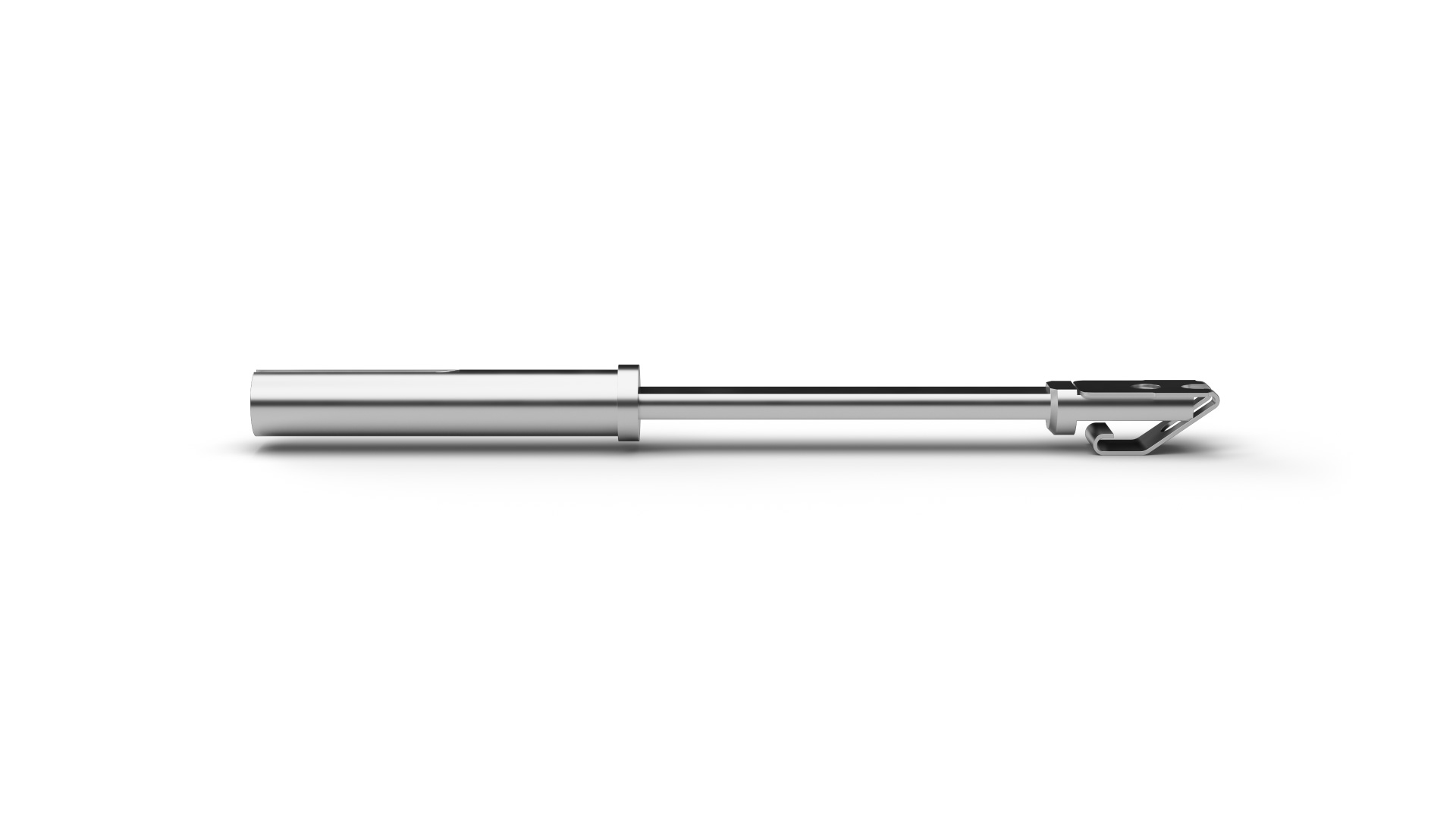

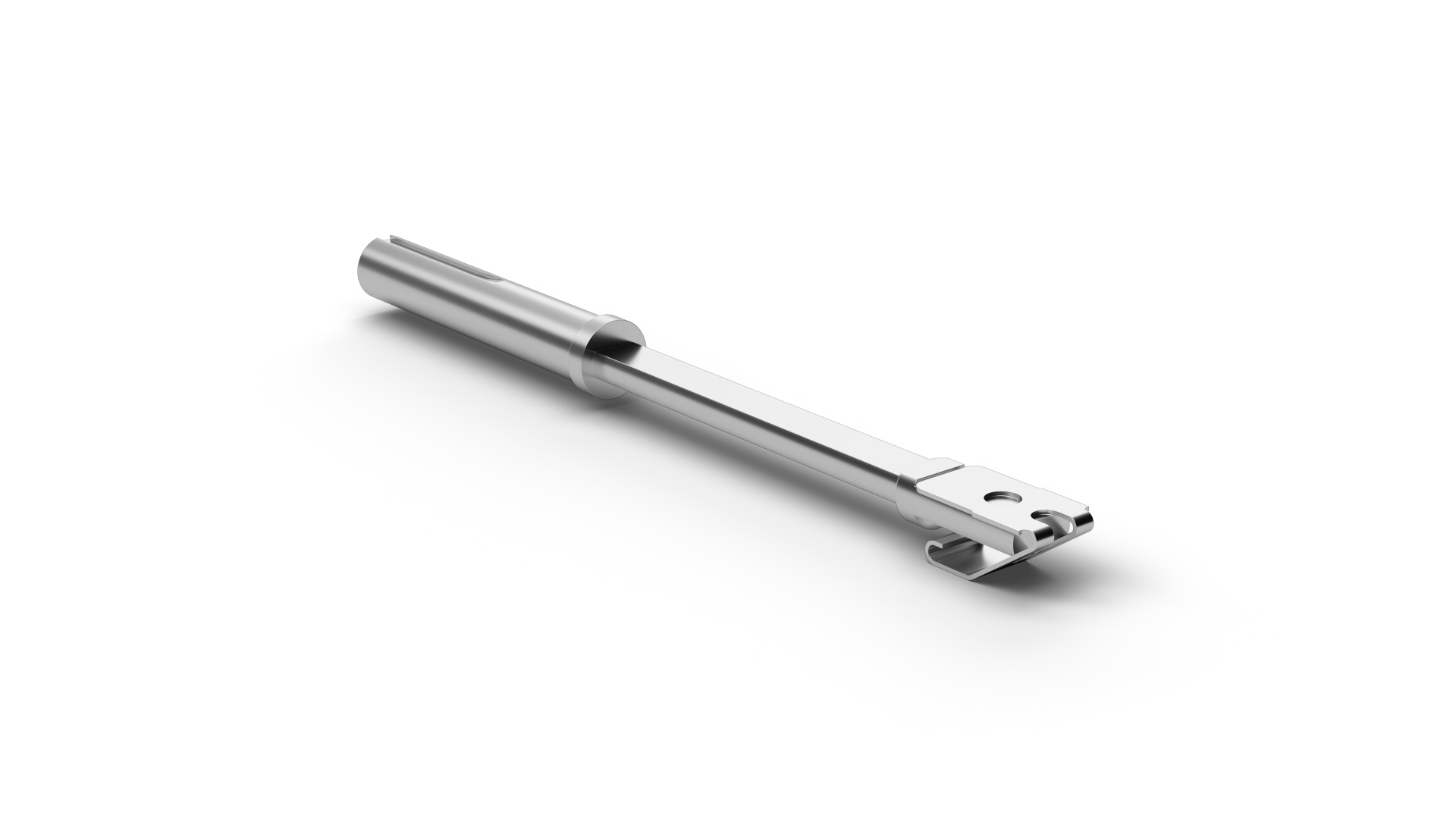

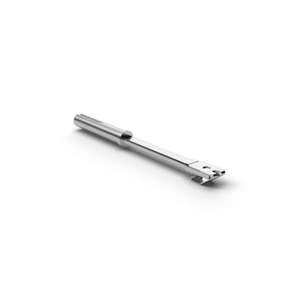

The special probe HV33086S1 (item number 1160839) belongs to the HV series and is intended for defined electrical contacting in test setups. The design of HV33086S1 provides repeatable contact with the DUT while accommodating mechanical tolerances within the fixture. HV33086S1 is specified for 10 A continuous current. The specified temperature range for HV33086S1 is -45 °C to +200 °C. Total length is 37.5 mm.
