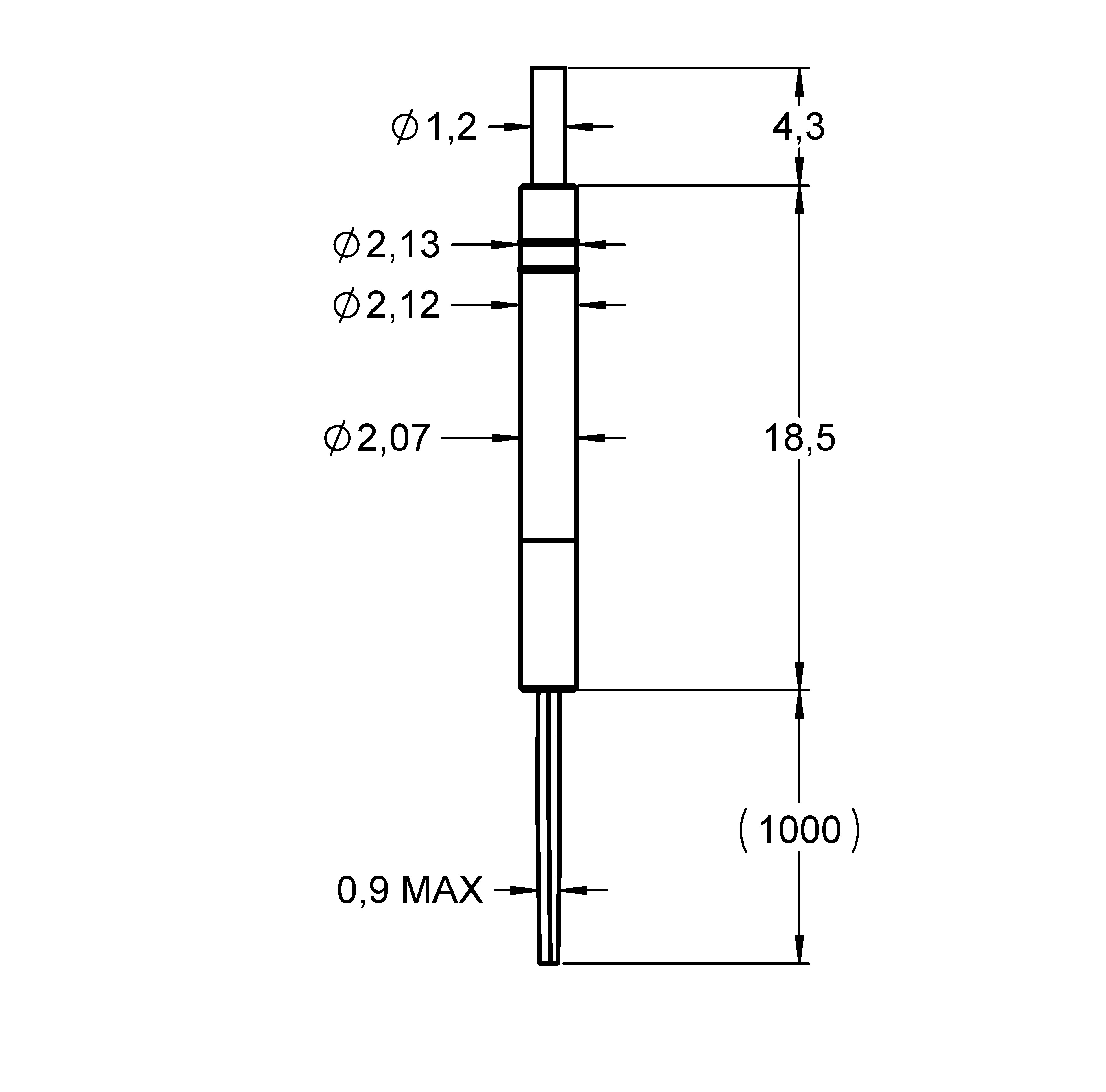

The temperature sensor TS120TYPK130K01 (item number 1157790) is designed for direct temperature measurement on components, contact points or critical test points. The spring-loaded design of TS120TYPK130K01 provides defined mechanical contact with the measurement point and enables temperature changes to be captured directly at the test location. The specified sensor type is Type K (class A). The specified temperature range for TS120TYPK130K01 is -45 °C to +200 °C. TS120TYPK130K01 operates with 130 cN spring force and 3.5 mm nominal travel. The total length of TS120TYPK130K01 is 22.8 mm.
