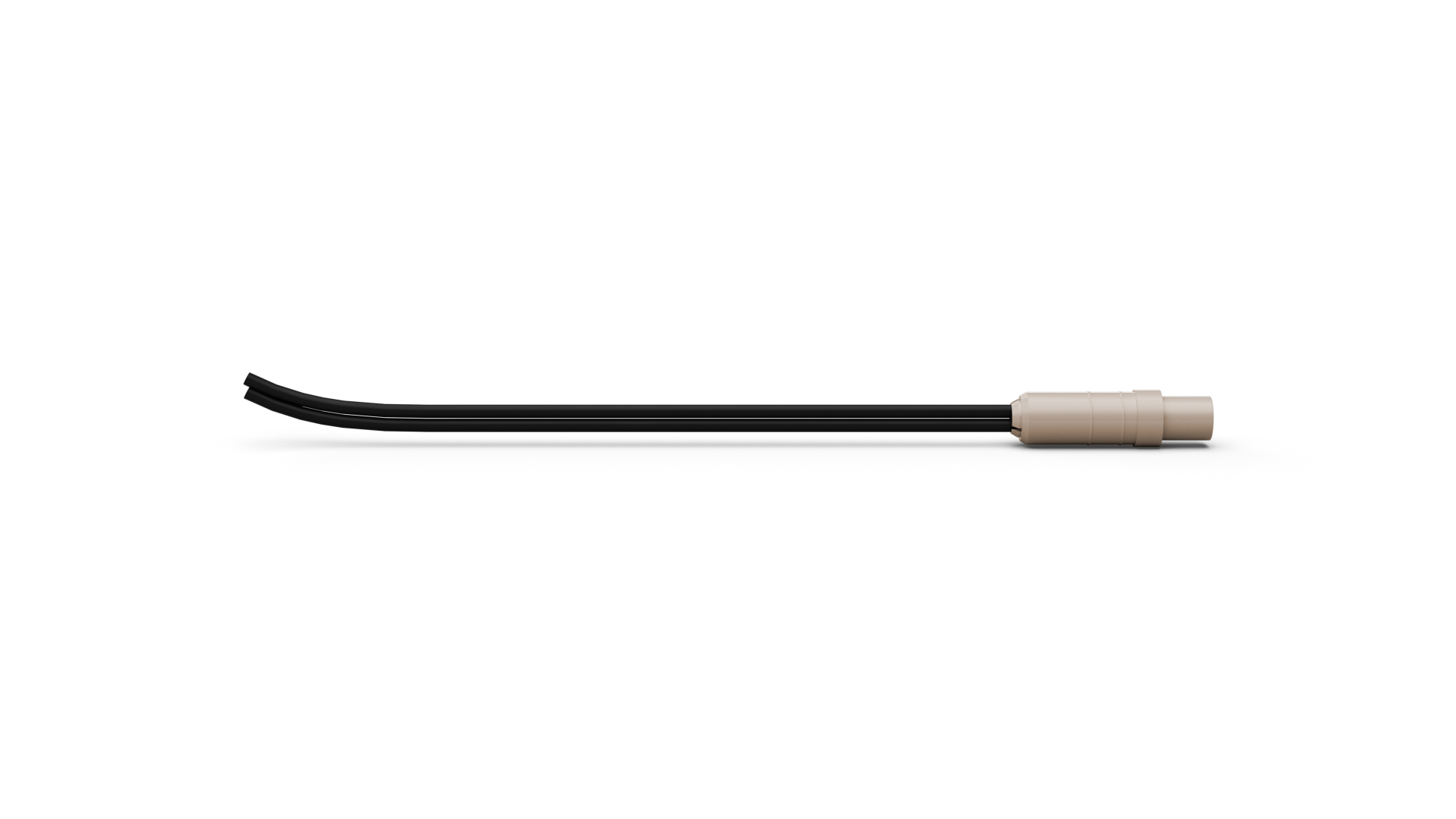

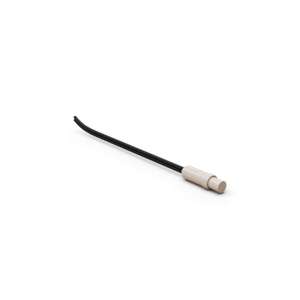

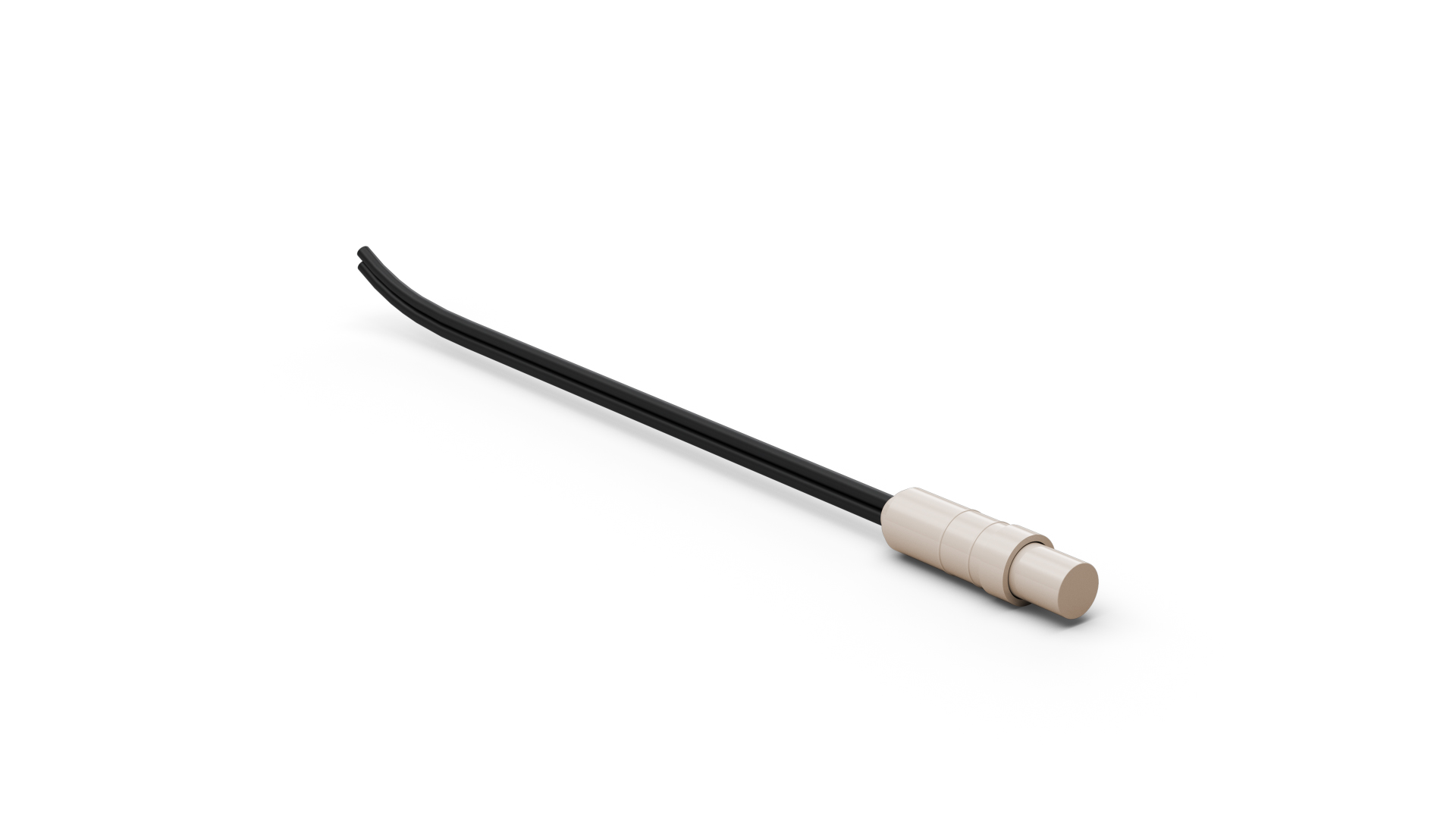

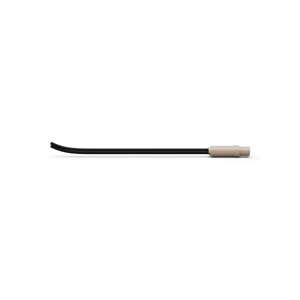

The temperature sensor TS350NTC5K300K01 (item number 1156229) is designed for direct temperature measurement on components, contact points or critical test points. The spring-loaded design of TS350NTC5K300K01 provides defined mechanical contact with the measurement point and enables temperature changes to be captured directly at the test location. The sensor type specified for TS350NTC5K300K01 is NTC. The specified temperature range for TS350NTC5K300K01 is -45 °C to +200 °C. TS350NTC5K300K01 operates with 300 cN spring force and 3 mm nominal travel. The total length of TS350NTC5K300K01 is 15.7 mm.
