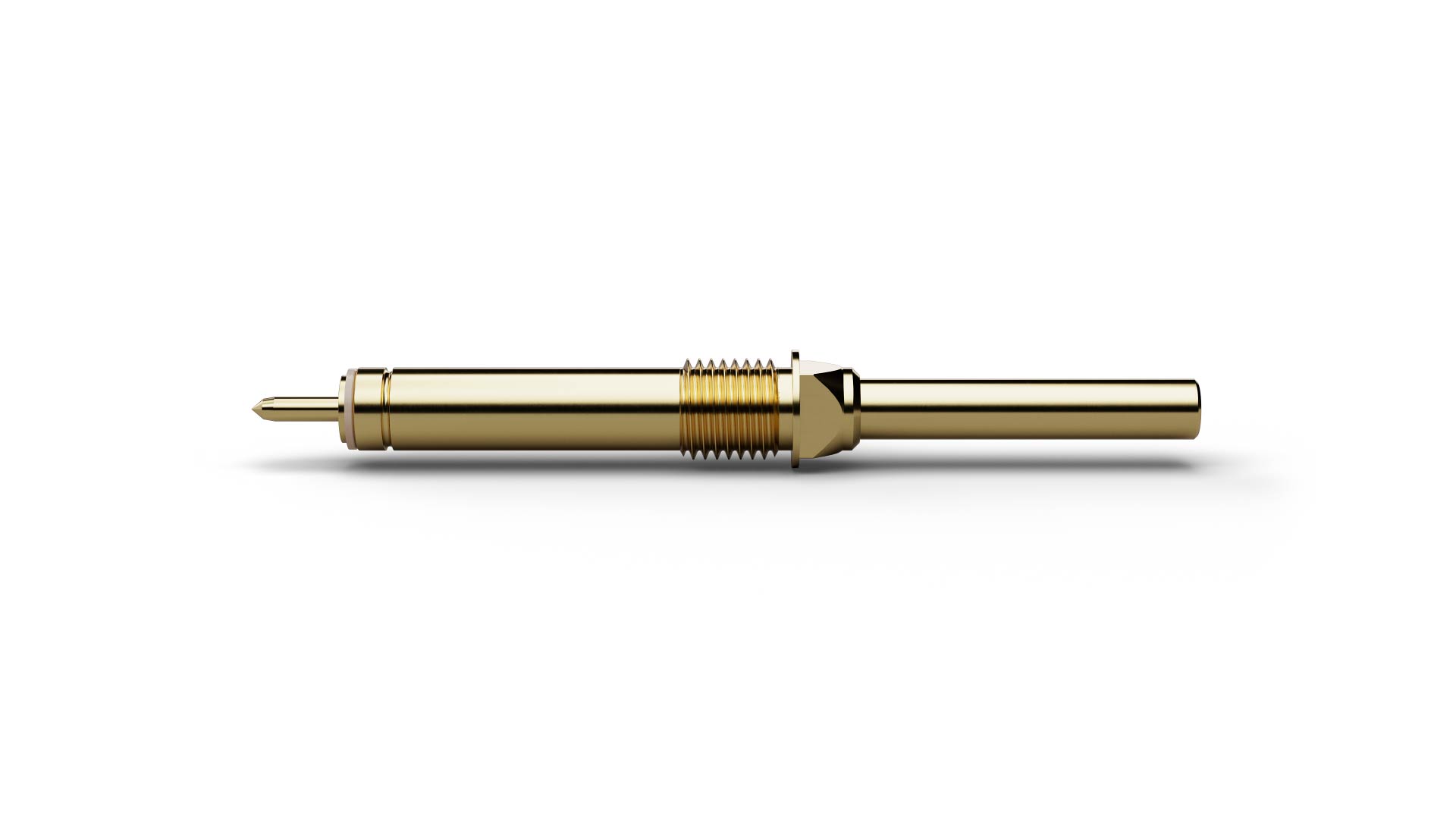

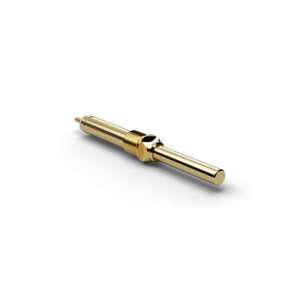

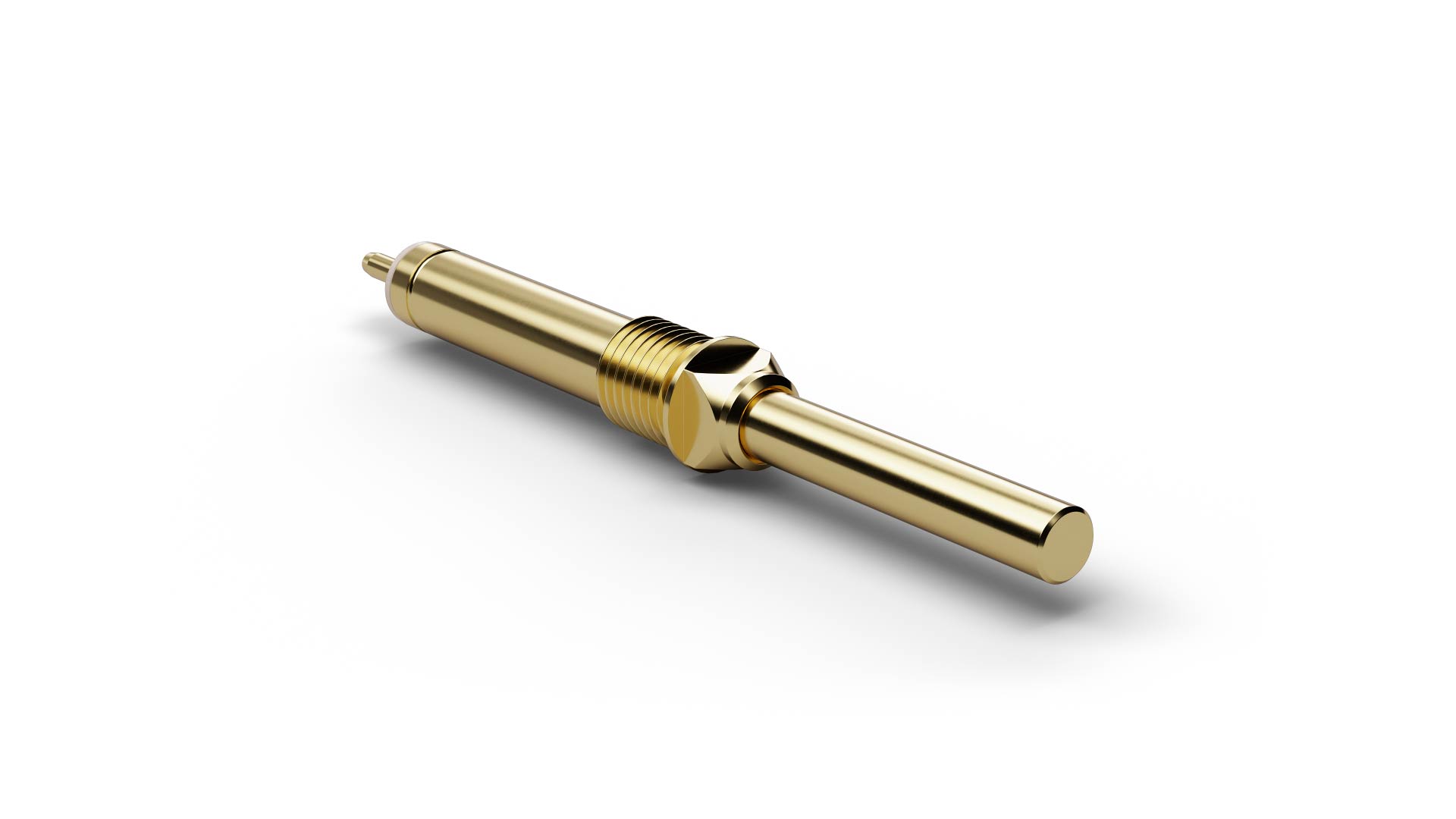

The Off-On-Off Switch Probe F48716B180G100E12 (item number 1031031) combines spring-loaded contacting with a defined switching or sensing function. F48716B180G100E12 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F48716B180G100E12, the Off-On-Off function provides multiple defined states along the actuation travel and adds position information to the electrical contact test. For F48716B180G100E12, spring force is 100 cN at a nominal travel of 4 mm. F48716B180G100E12 is rated for 10 A continuous current with a typical contact resistance of 20 mΩ. The design combines a pitch of 4 mm / 157 mil with tip style 16 (Flat) and a tip diameter of 1.8 mm.
