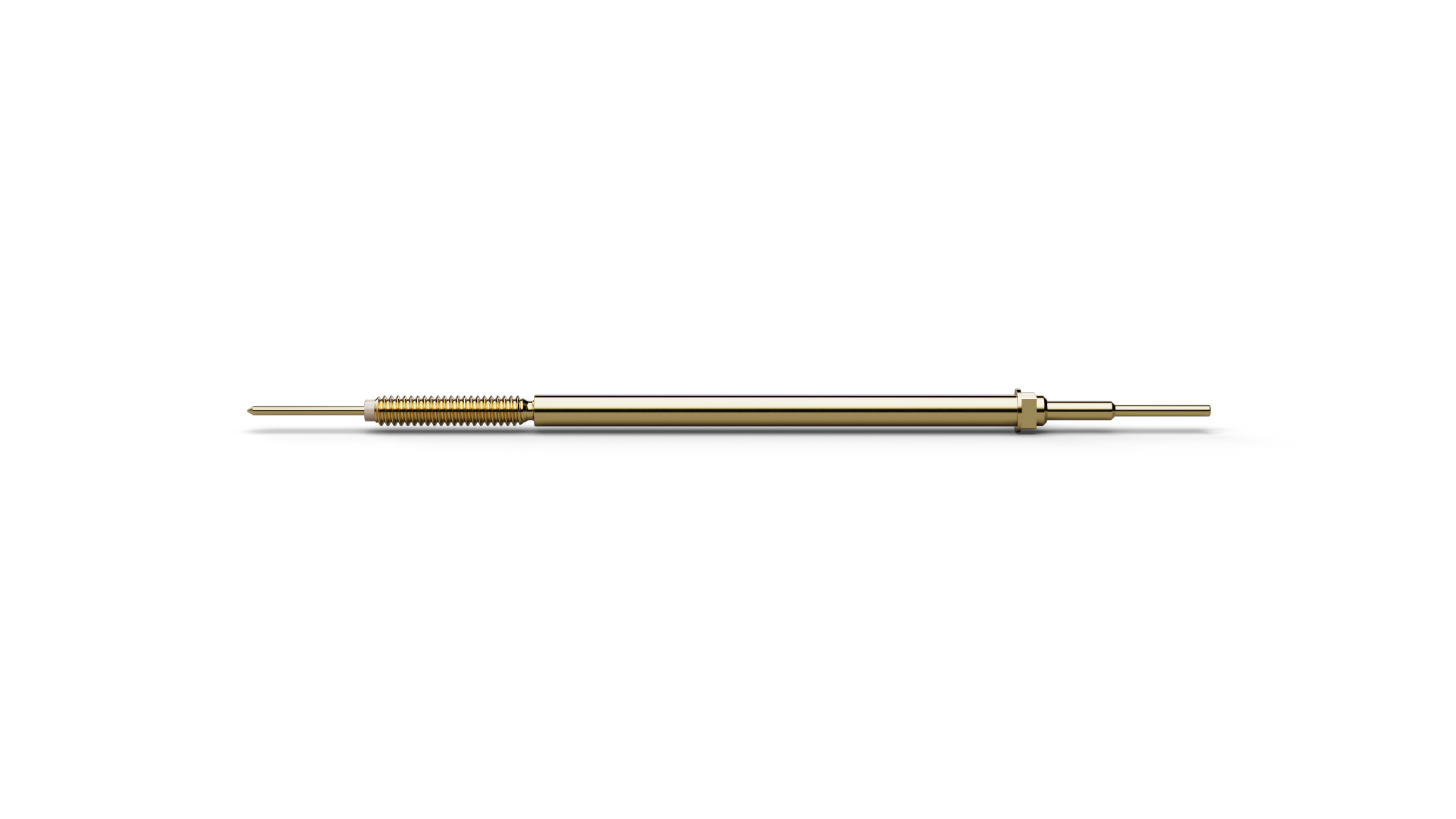

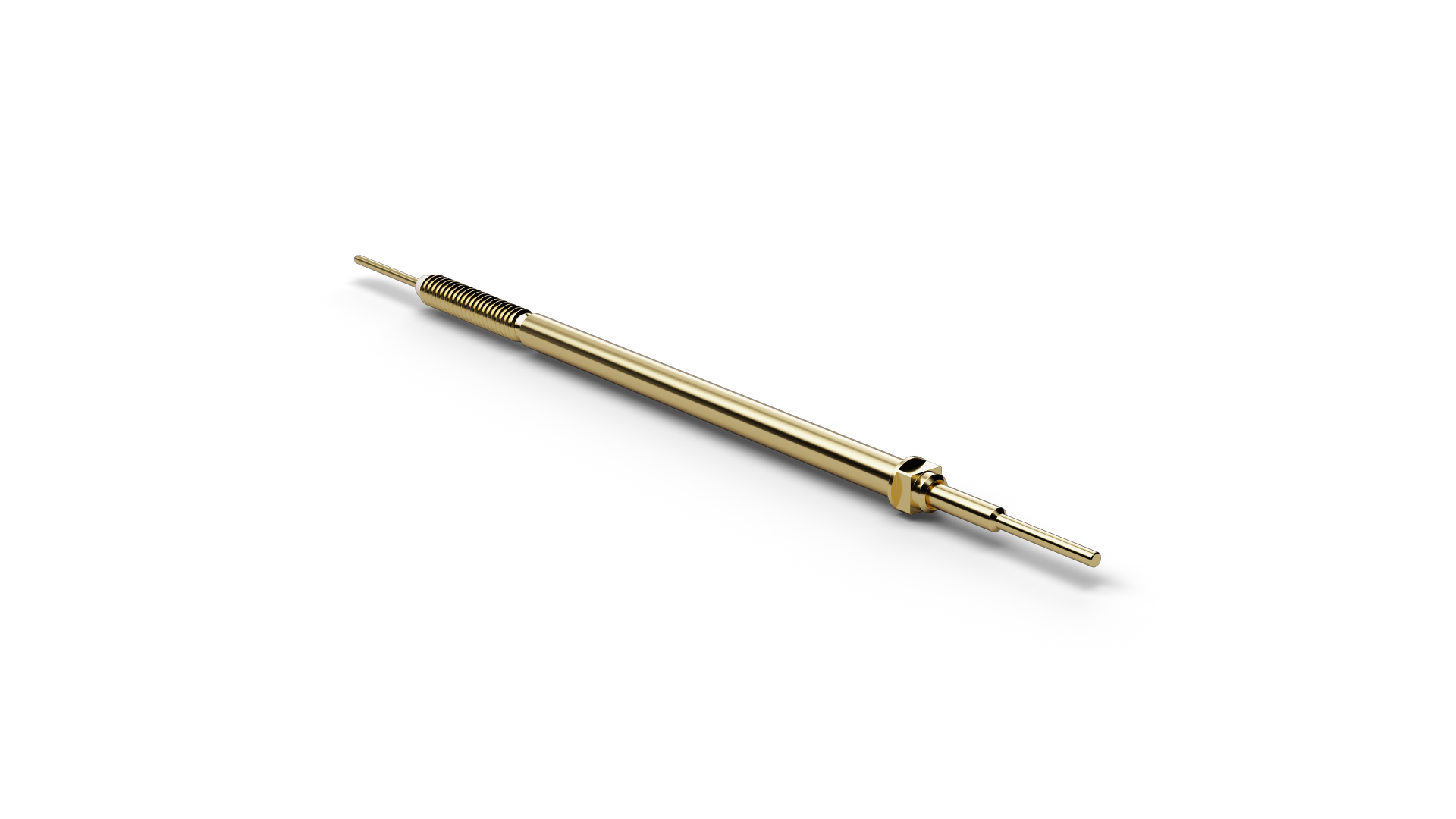

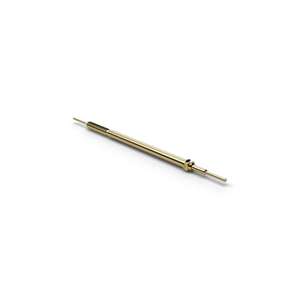

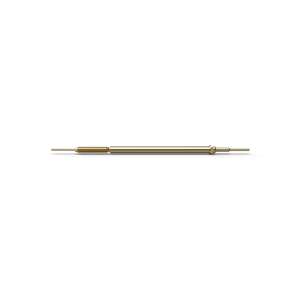

The Switch Probe F87516B060G080S1 (item number 1030630) combines spring-loaded contacting with a defined switching or sensing function. F87516B060G080S1 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. The switch type specified for F87516B060G080S1 is NO (Normally Open). The switching travel specified for F87516B060G080S1 is 1.5 mm. F87516B060G080S1 combines a pitch of 2.54 mm / 100 mil with tip style 16 (Flat) and a tip diameter of 0.6 mm. For F87516B060G080S1, spring force is 80 cN at a nominal travel of 4 mm.
