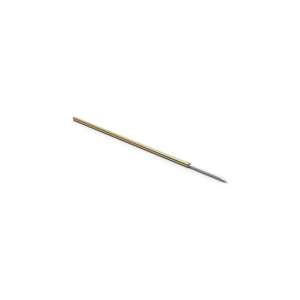

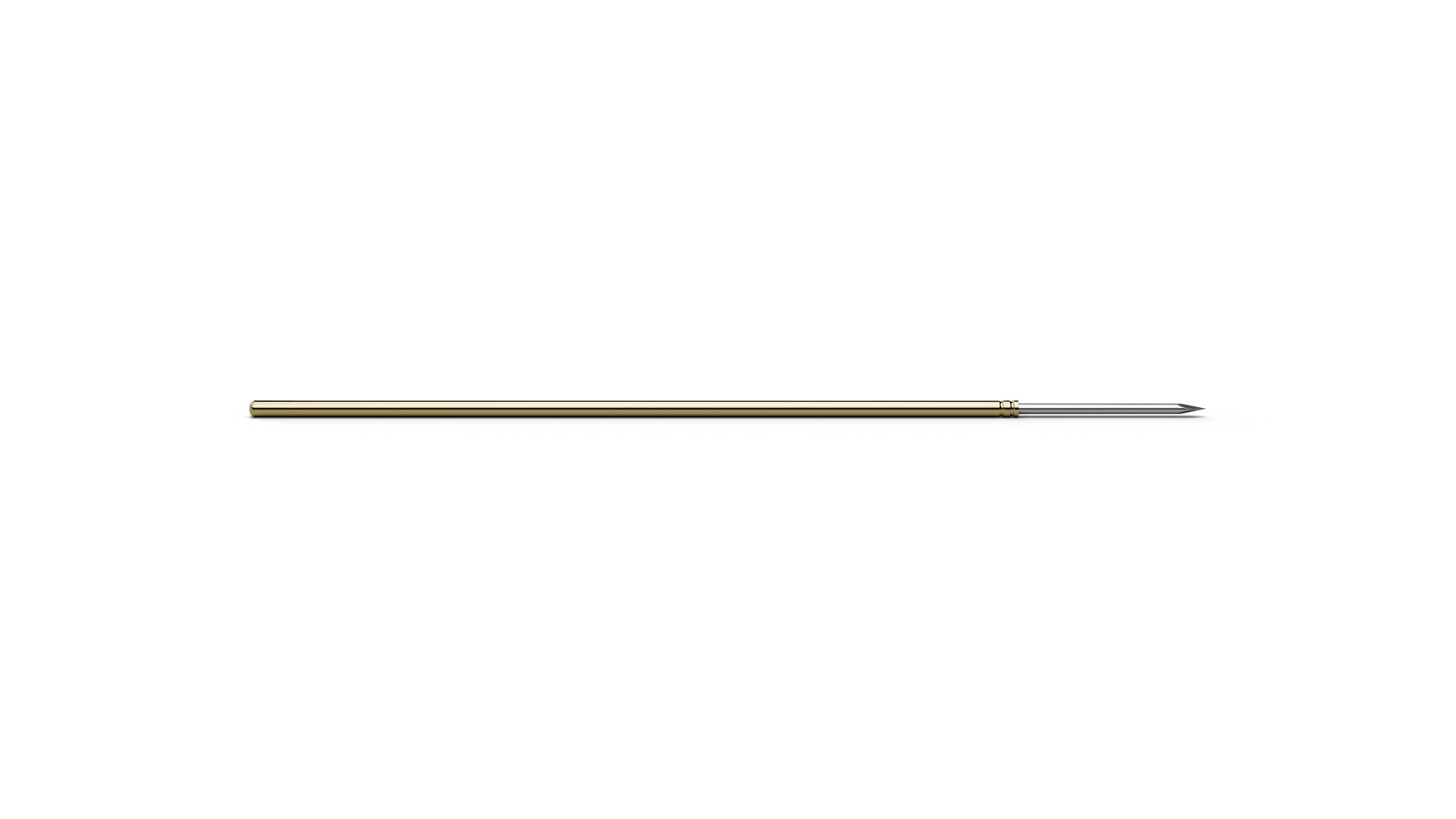

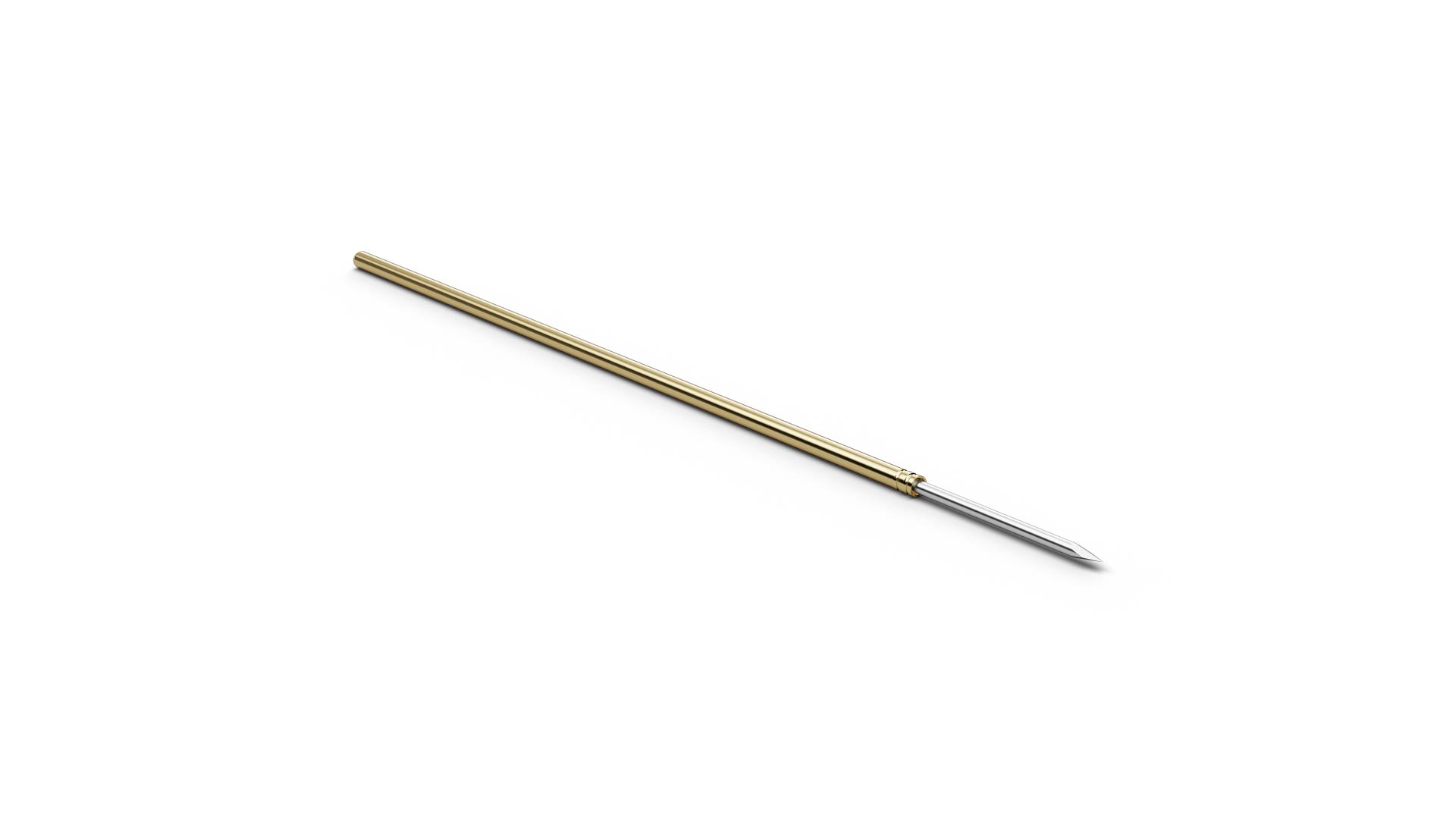

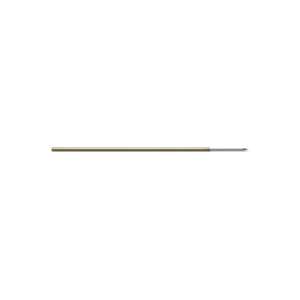

The Basic Contact Probe F05033S050P200HPL (item number 1019119) is a spring-loaded probe for temporary electrical contact with test points. With tip style 33 (Square lance 38°), F05033S050P200HPL combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F05033S050P200HPL combines a pitch of 1.27 mm / 50 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.5 mm. F05033S050P200HPL operates with 200 cN spring force and 4.3 mm nominal travel. The electrical rating of F05033S050P200HPL combines 3 A continuous current with 40 mΩ typical contact resistance. The combination of P-Coating and HP spring preload makes F05033S050P200HPL a version for contact points where residues or hard surface layers can make electrical contacting more demanding.
