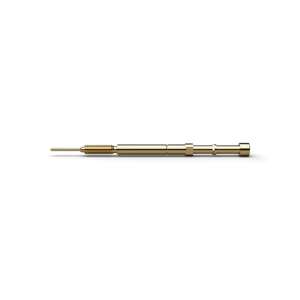

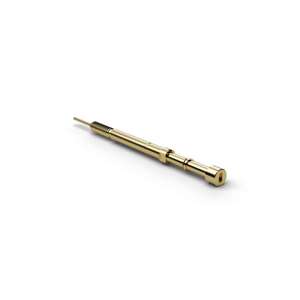

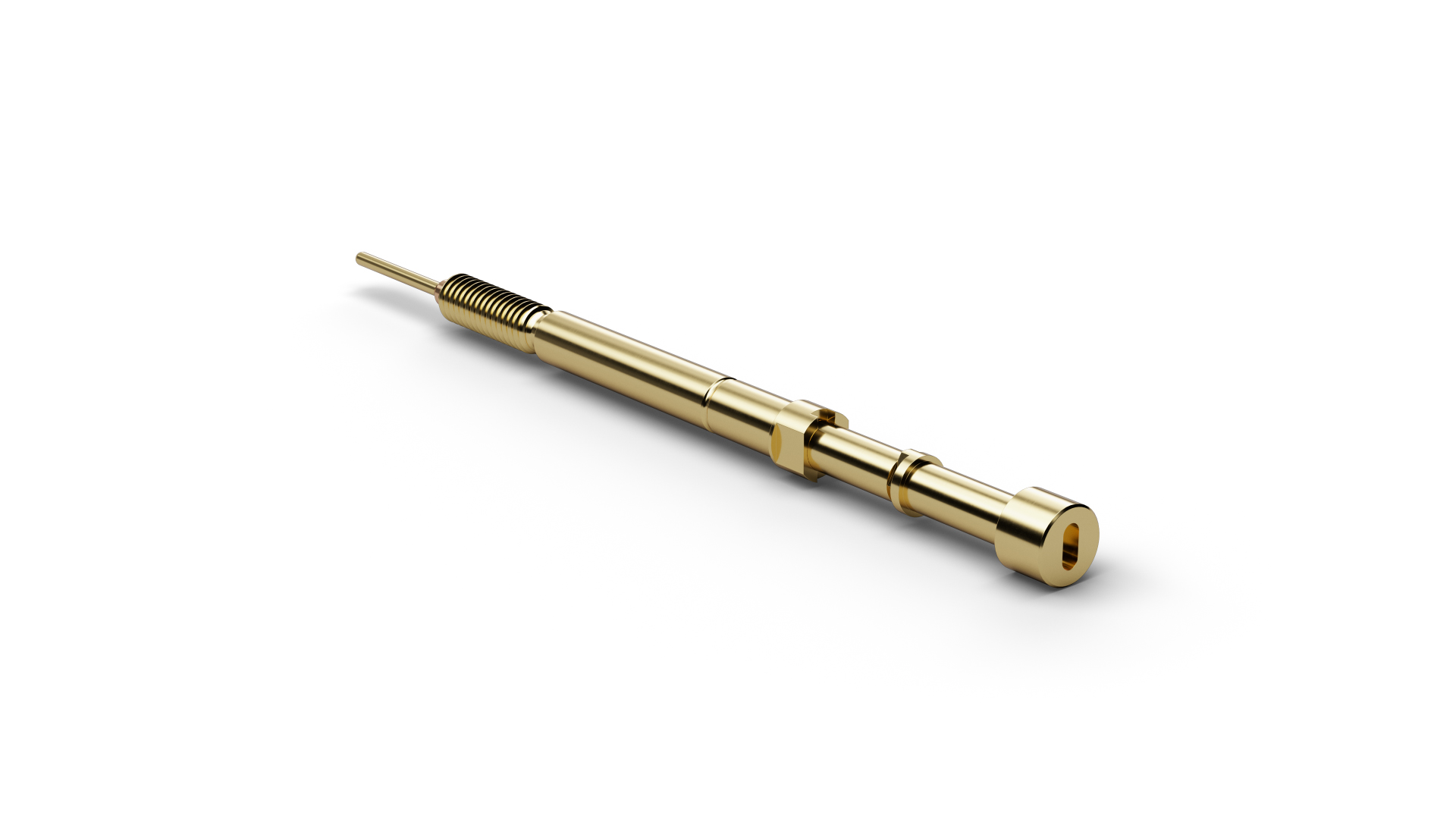

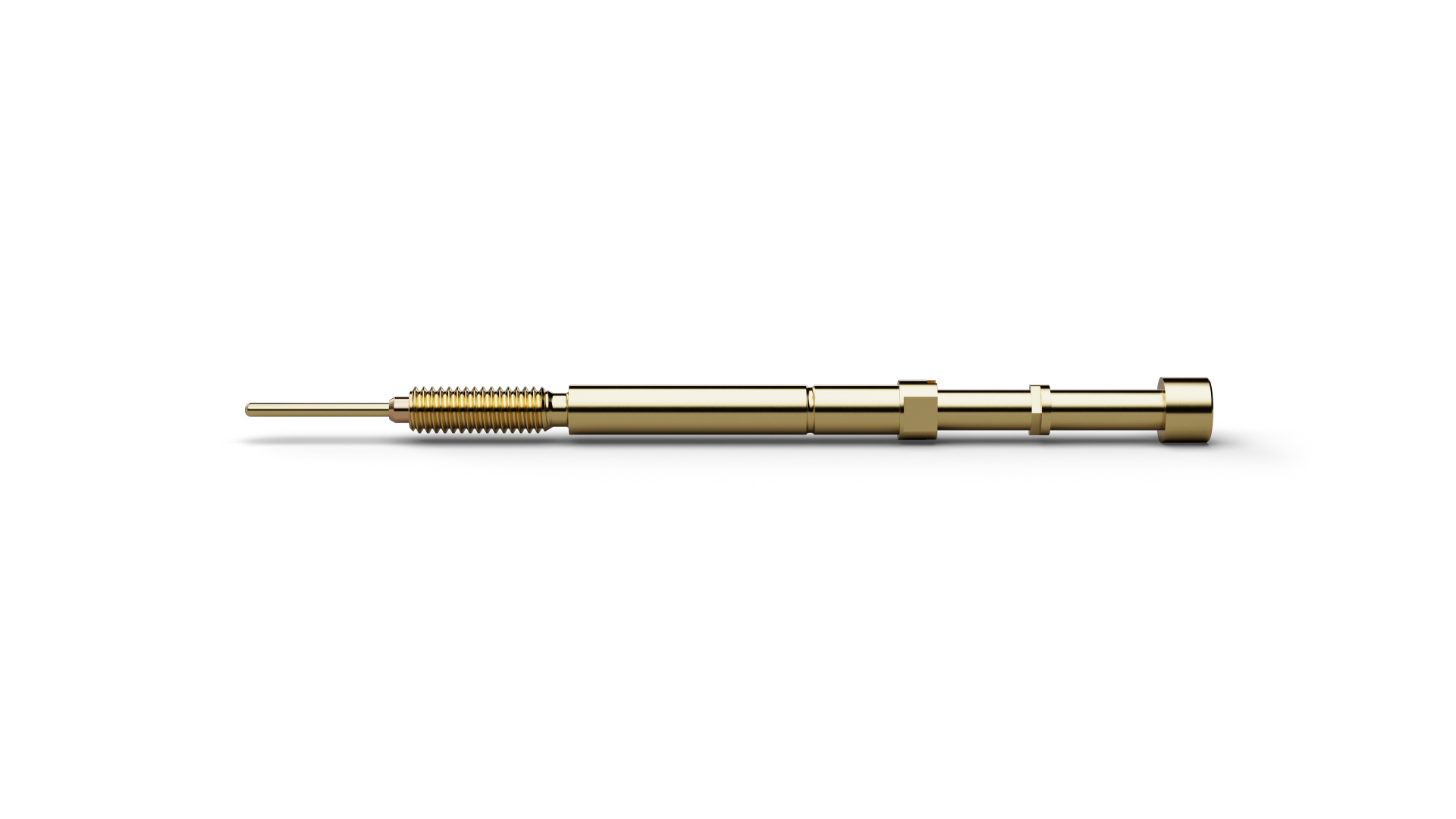

The Normally Open Switch Probe F88617B350G200LM (item number 1007345) combines spring-loaded contacting with a defined switching or sensing function. F88617B350G200LM combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F88617B350G200LM, the normally open function closes the electrical contact at the defined actuation travel, combining contacting with presence or position information. F88617B350G200LM operates with 200 cN spring force and 4 mm nominal travel. F88617B350G200LM is rated for 10 A continuous current with a typical contact resistance of 50 mΩ. F88617B350G200LM combines a pitch of 3.5 mm / 138 mil with tip style 17 (Flat stepped) and a tip diameter of 3.5 mm.
