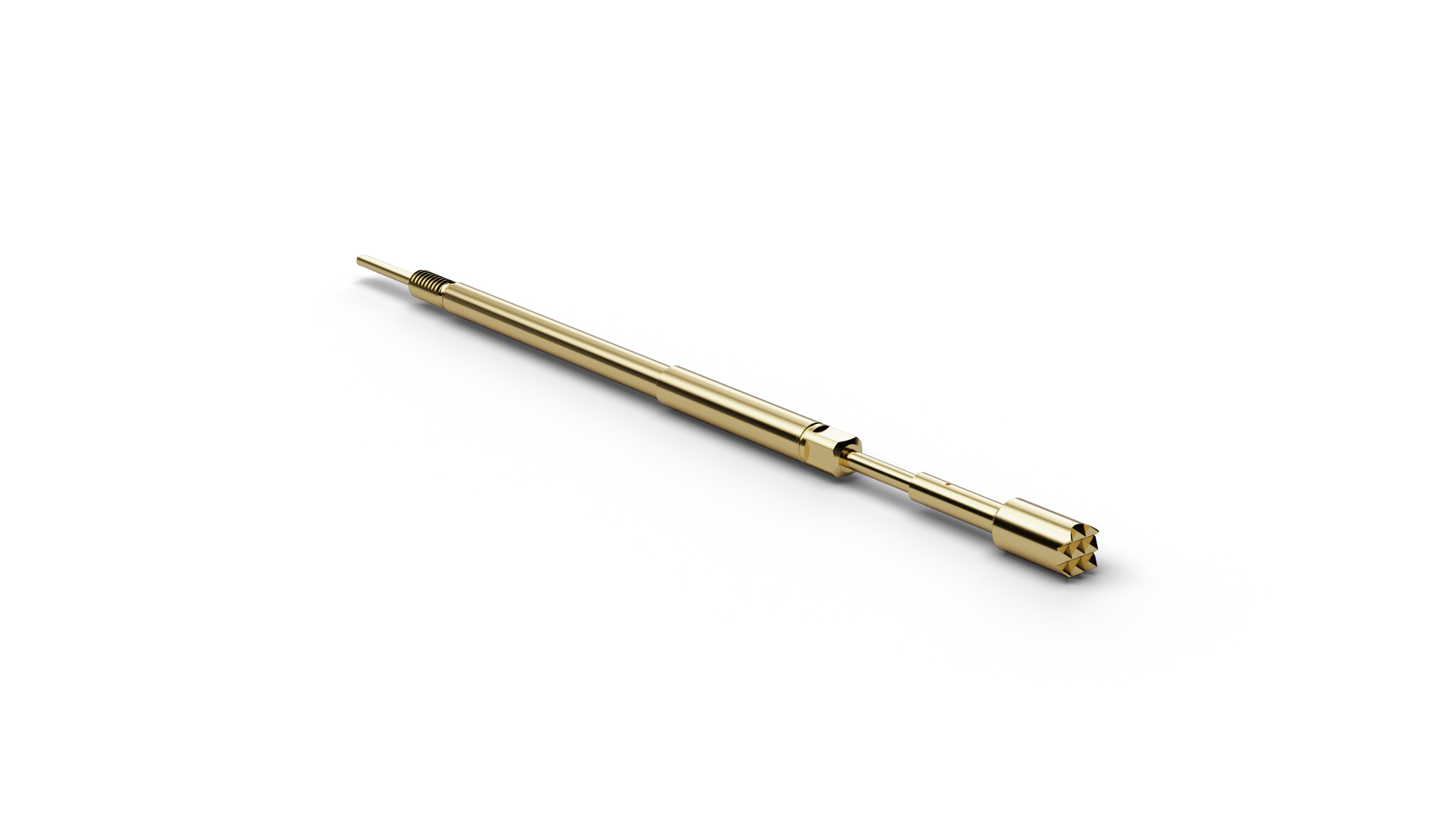

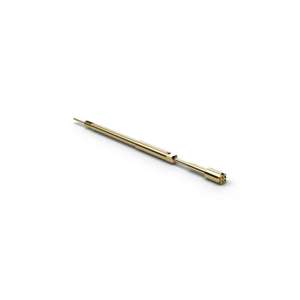

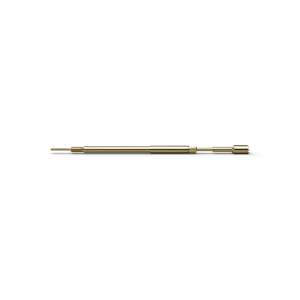

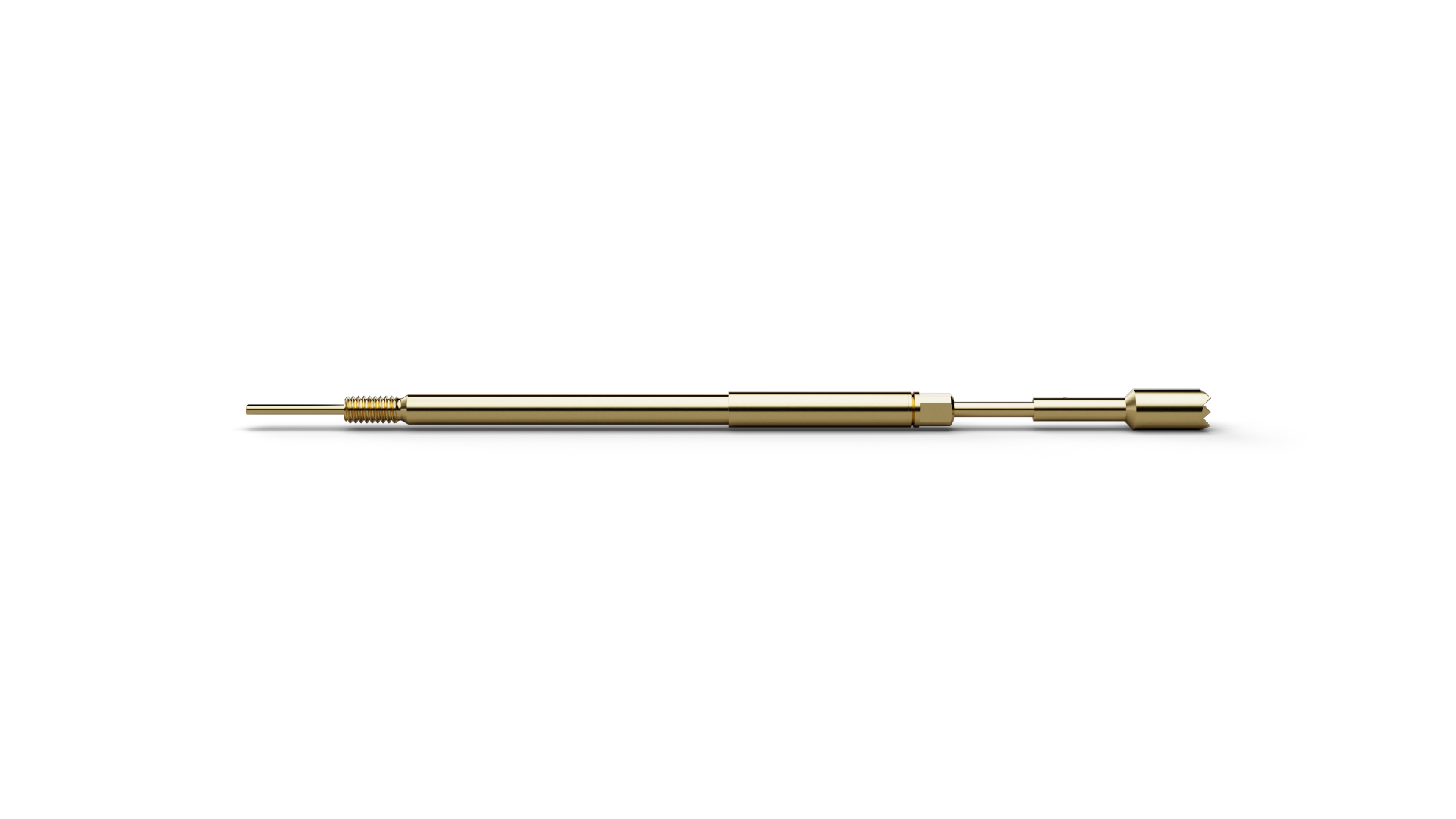

The Push Back Probe VF306B300G05 (item number 1006281) is designed to verify that terminals are correctly locked in connector housings. VF306B300G05 can verify that a terminal remains securely locked in the connector housing and is not pushed back beyond the permitted position during contacting. VF306B300G05 operates with 500 cN spring force and 5 mm nominal travel. Pointing accuracy for VF306B300G05 is specified as ±0.1 mm. VF306B300G05 is rated for 8 A continuous current with a typical contact resistance of 30 mΩ. For installation, VF306B300G05 uses an M2 x 0.2 thread.
