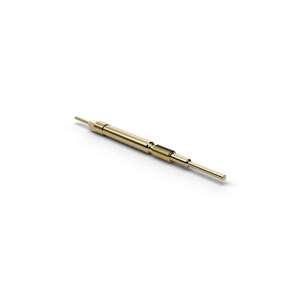

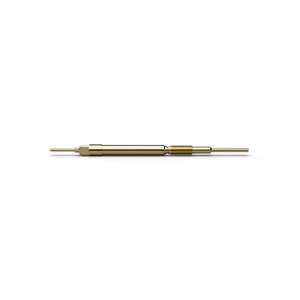

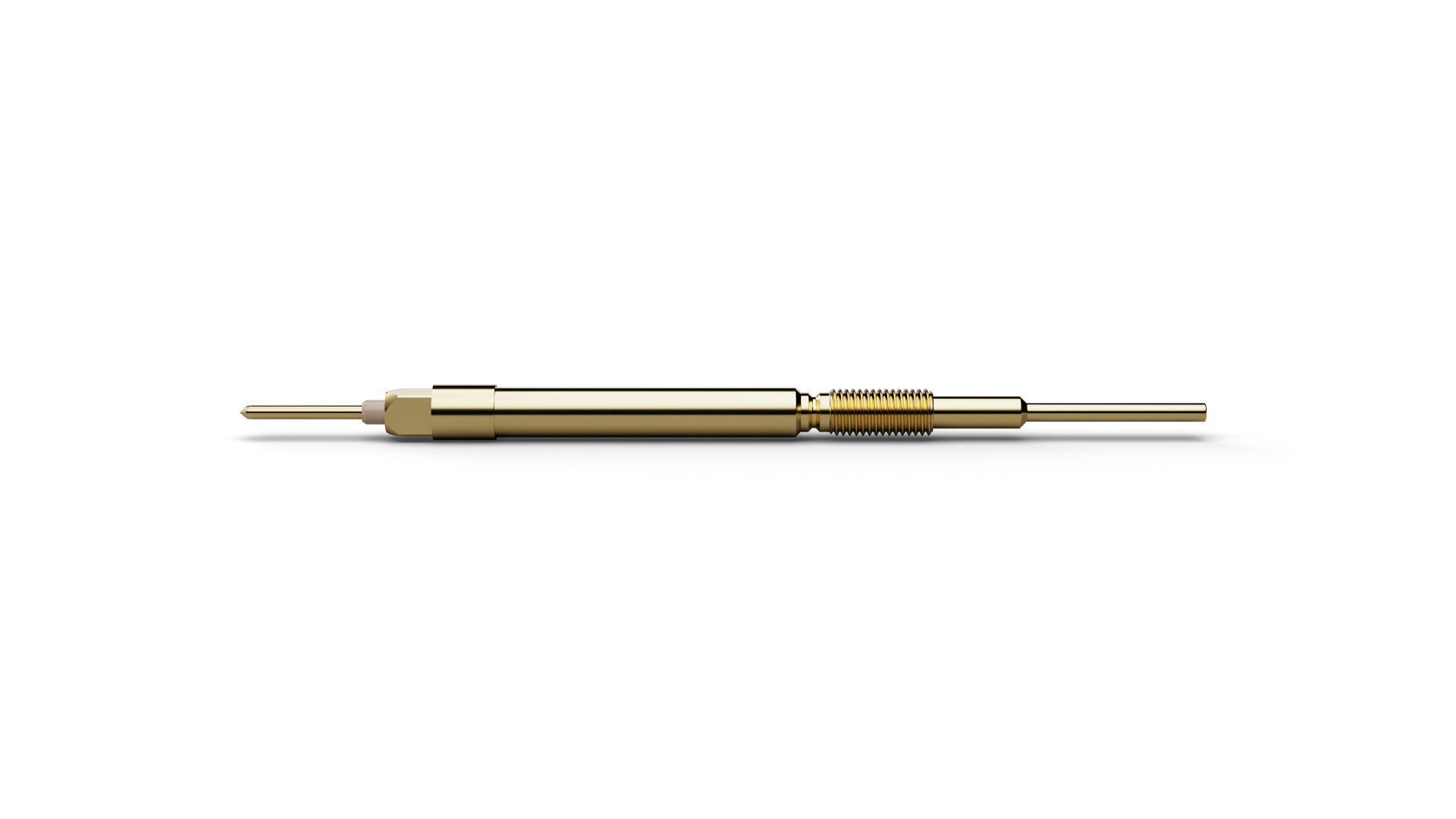

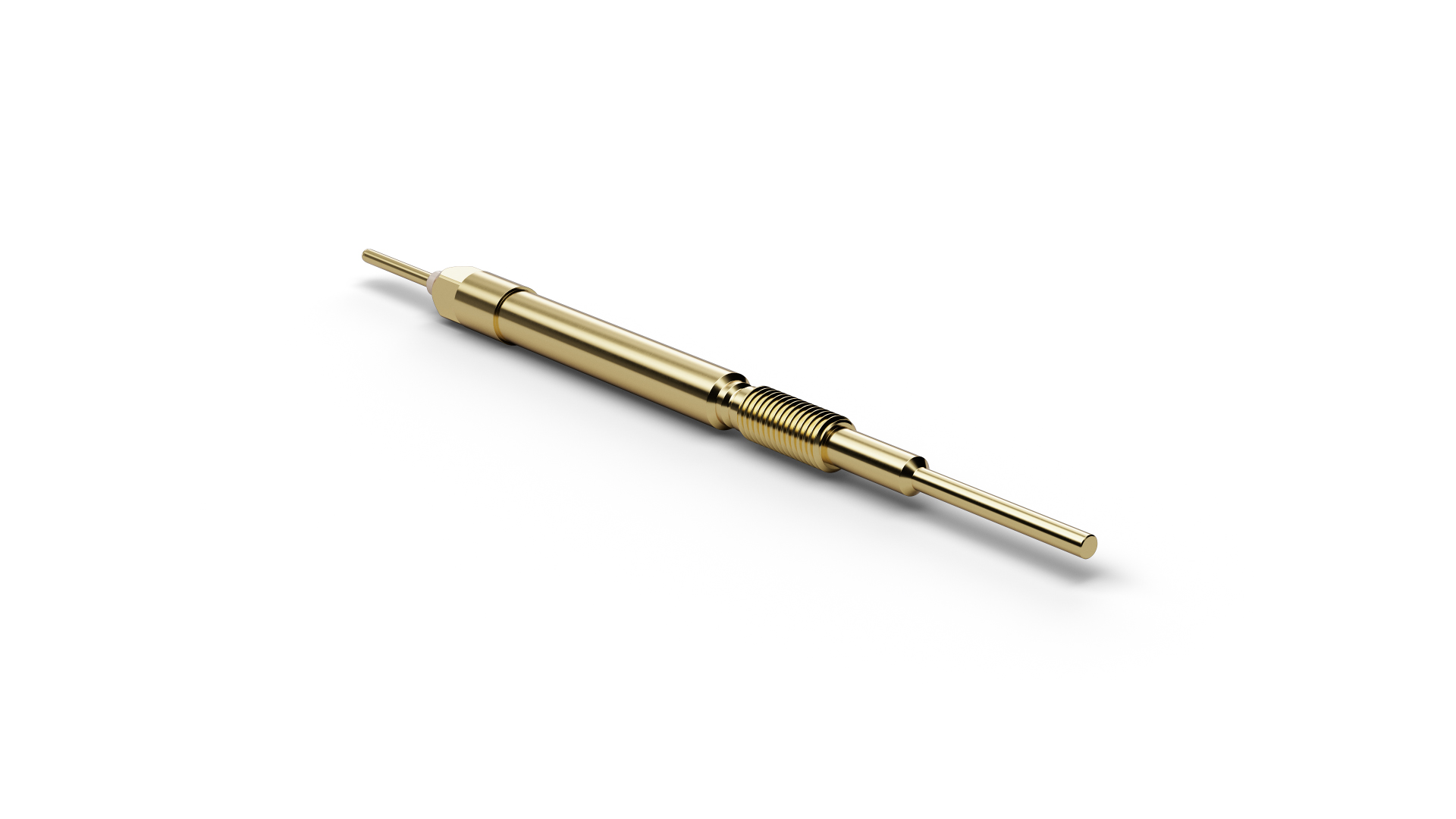

The Switch Probe F88016B100G350L (item number 1004352) combines spring-loaded contacting with a defined switching or sensing function. F88016B100G350L combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. F88016B100G350L is used for presence and position testing and sends an electrical signal to the test system when the defined actuation travel is reached. For F88016B100G350L, spring force is 350 cN at a nominal travel of 4 mm. F88016B100G350L is rated for 10 A continuous current with a typical contact resistance of 50 mΩ. F88016B100G350L combines a pitch of 3.5 mm / 138 mil with tip style 16 (Flat) and a tip diameter of 1 mm.
