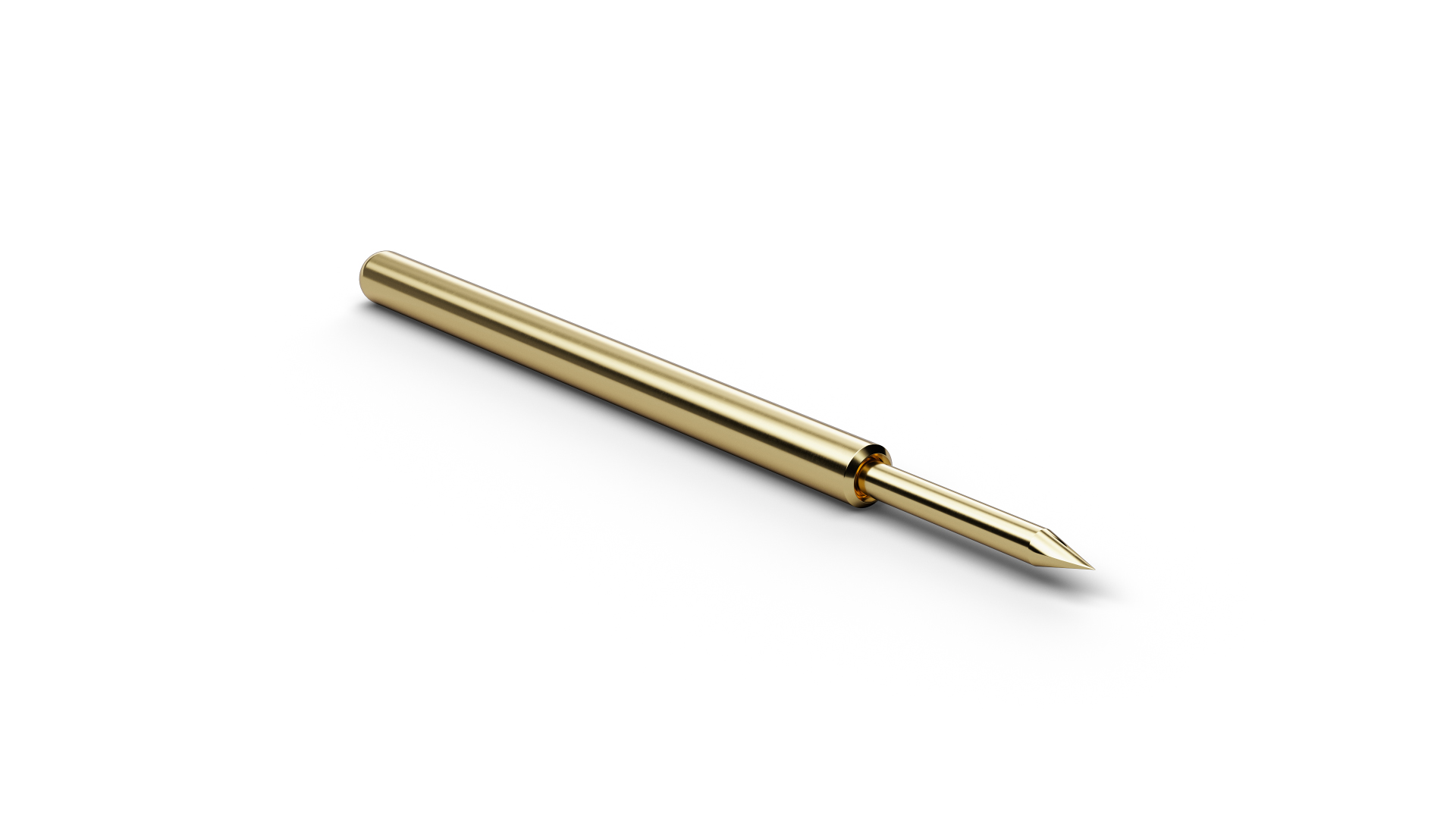

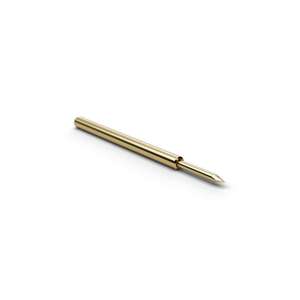

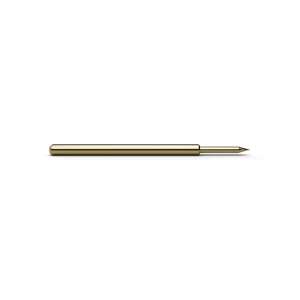

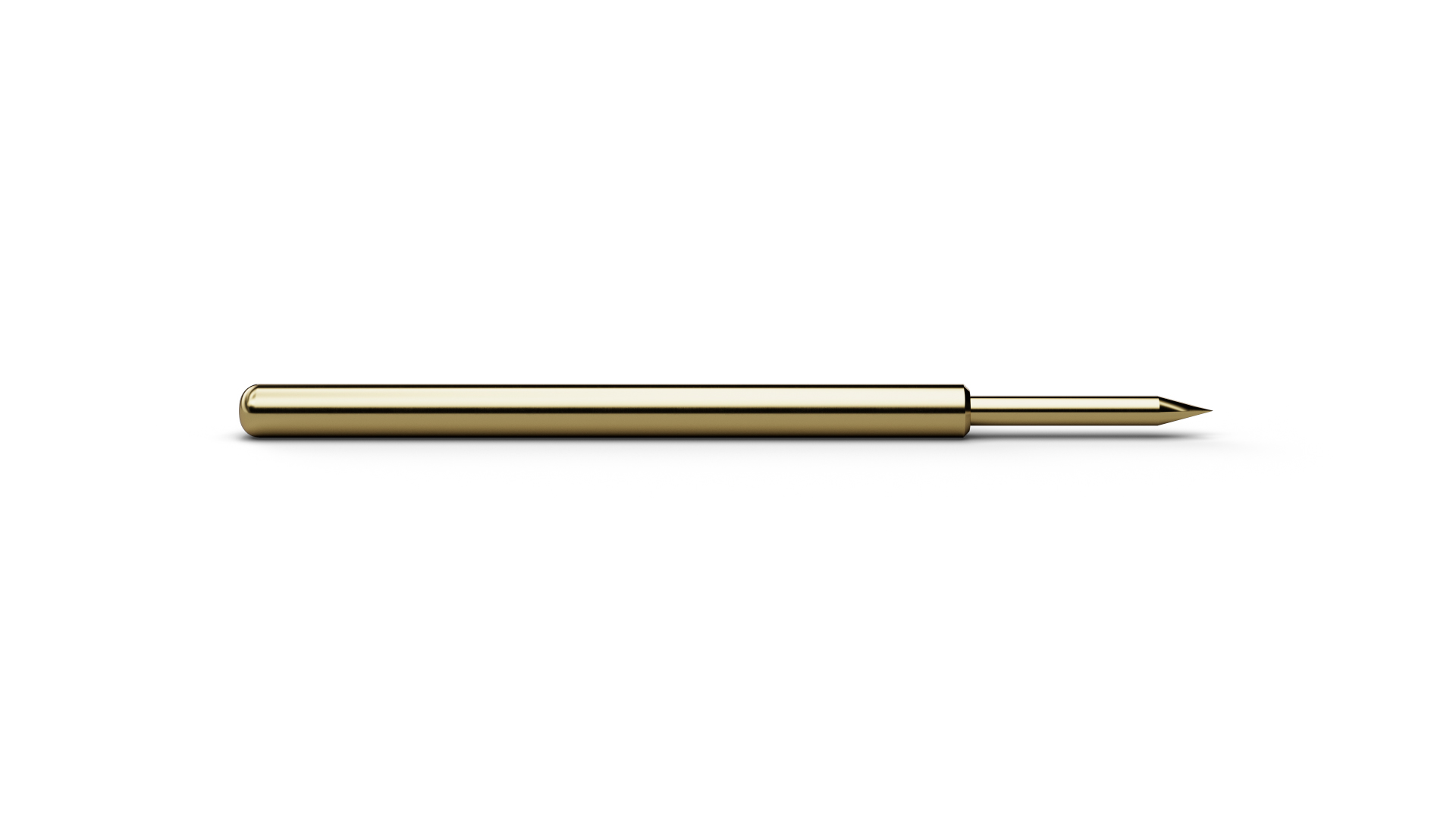

As a Basic Contact Probe, F56218B076G200 (item number 1001326) establishes a spring-loaded electrical connection to the test point. With tip style 18 (Conical 30°), F56218B076G200 combines ICT/FCT use with a geometry intended for solder pads and vias. F56218B076G200 combines a pitch of 2.54 mm / 100 mil with tip style 18 (Conical 30°) and a tip diameter of 0.76 mm. For F56218B076G200, spring force is 200 cN at a nominal travel of 2.7 mm. F56218B076G200 is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F56218B076G200 is made of beryllium copper and is gold-plated.
