기술 데이터
| 일반 사항 | |
|---|---|
| 형태/계열 | H772 |
| 거리(mm/mil) | 2,54 / 100 |
| 추가정의 | Spacer |
| 치수 | |
|---|---|
| 전체 길이(mm) | 0.5 |
| 외경(mm) | 2.2 |
| 재료 및 표면 | |
|---|---|
| 재료, 코팅 | Brass, Uncoated |
Beschreibung des Produkts

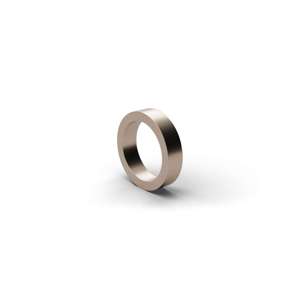

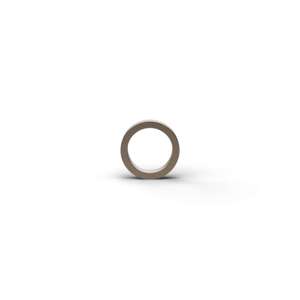

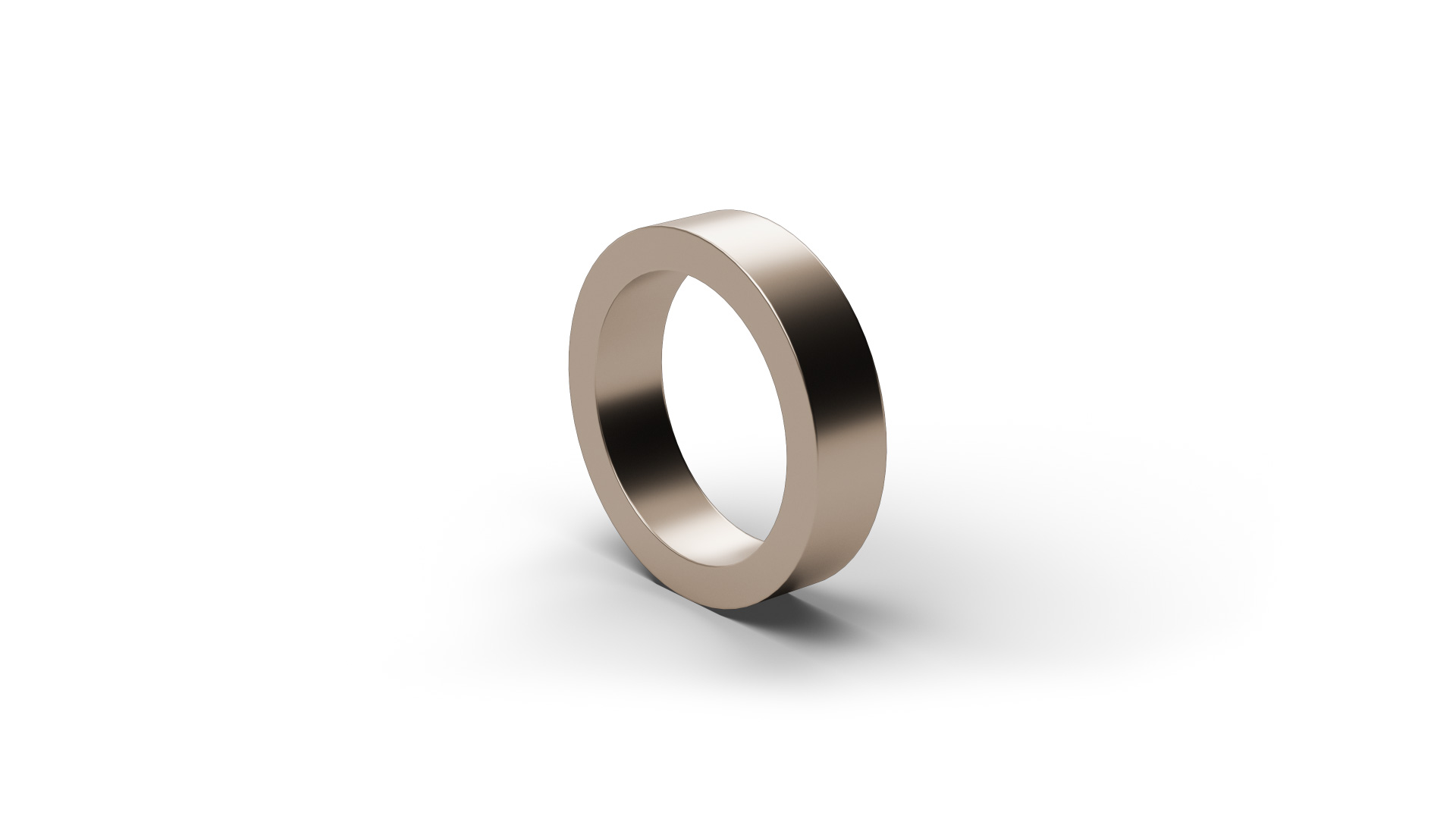

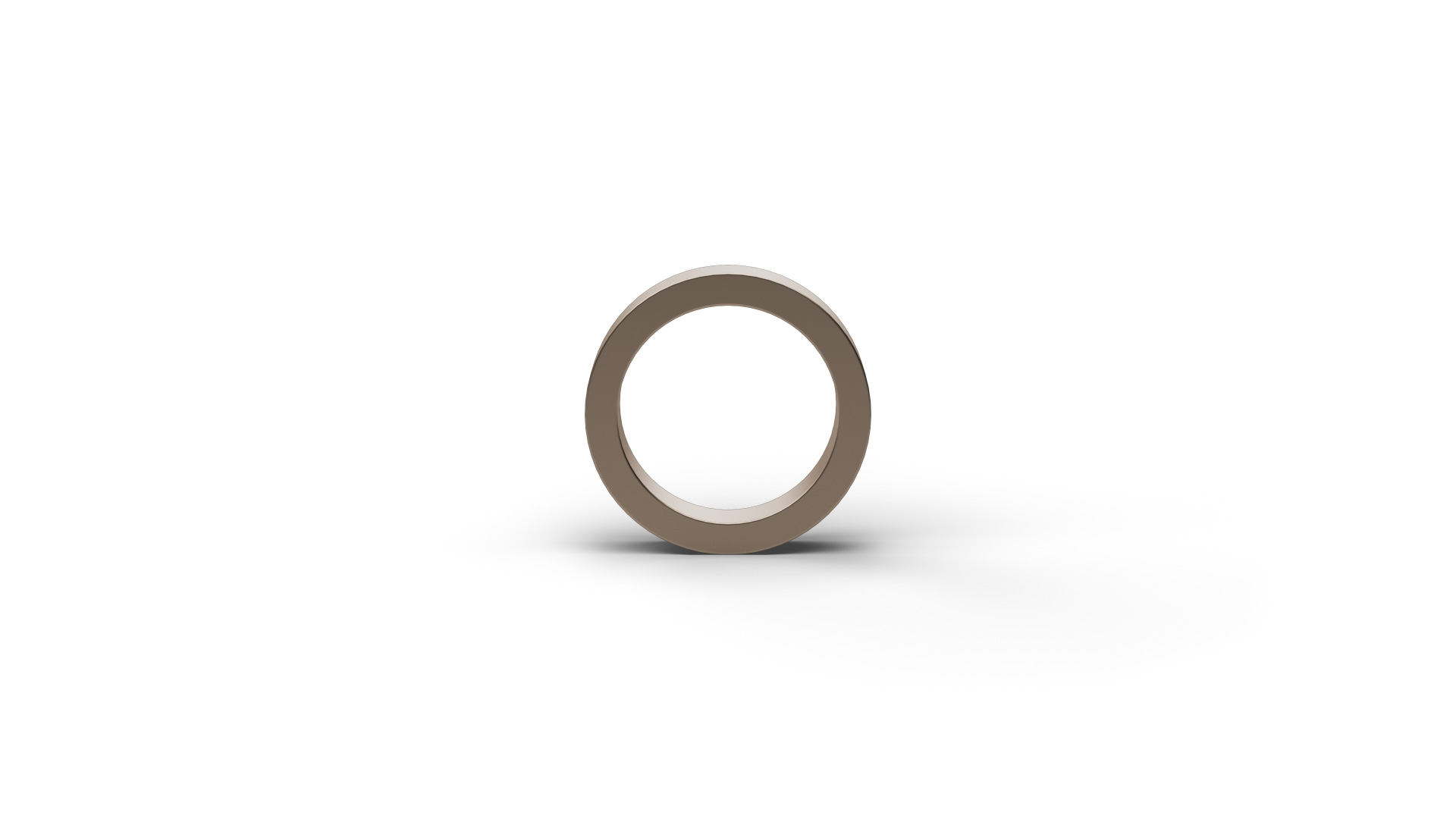

H772DS-05 (item number 1170840) is a receptacle for a compatible Contact Probe. H772DS-05 defines the installed position and supports controlled probe replacement during maintenance or product changes. H772DS-05 is designed as a spacer Receptacle for the corresponding contacting arrangement. Key installation dimensions are outside diameter 2.2 mm, length 0.5 mm. The Receptacle H772DS-05 is designed for a pitch of 2.54 mm / 100 mil. The Receptacle H772DS-05 is made of brass and is uncoated.
