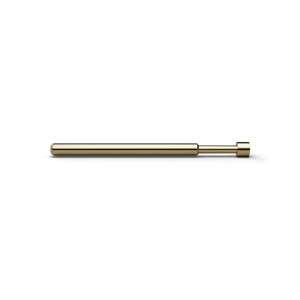

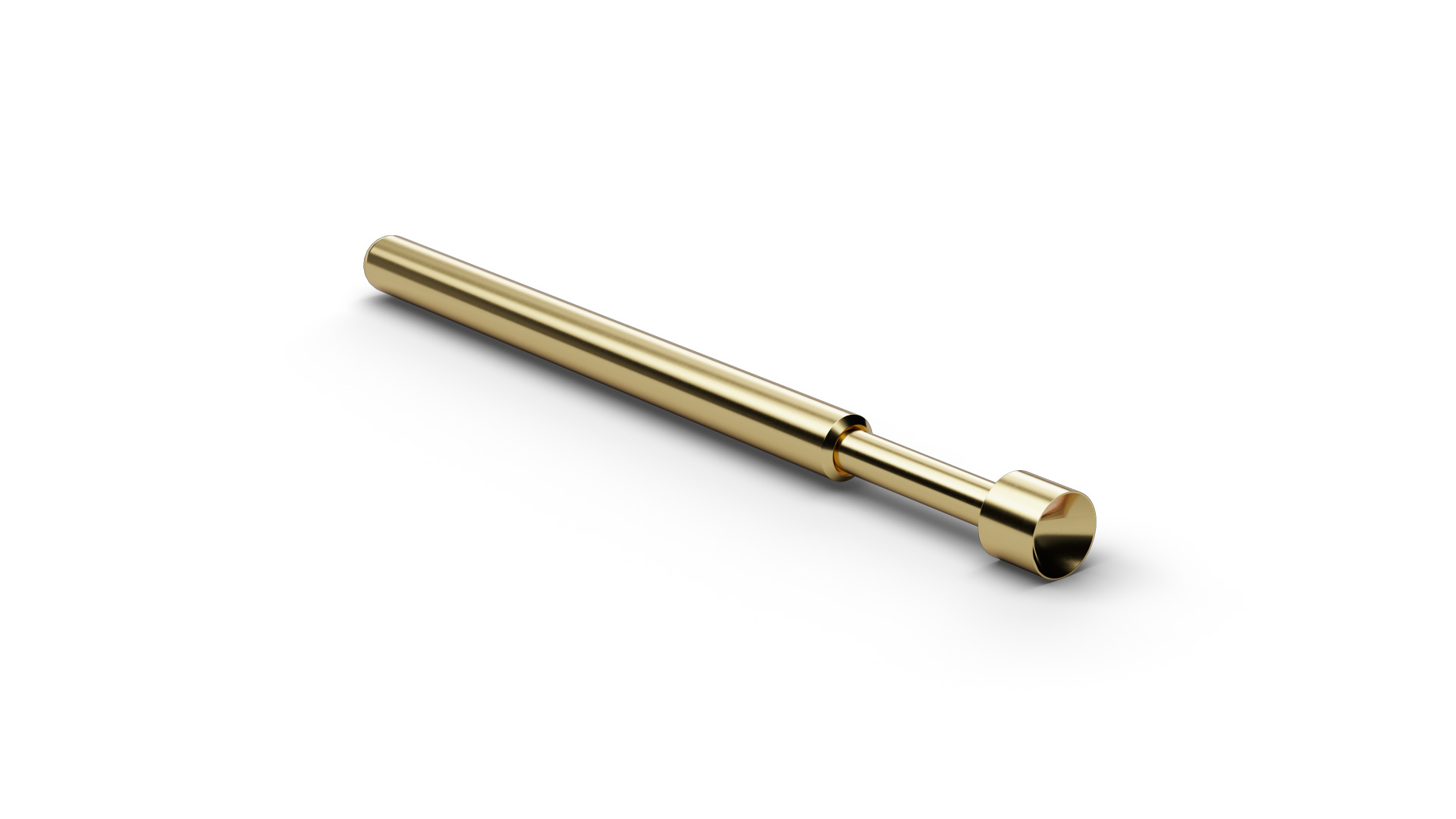

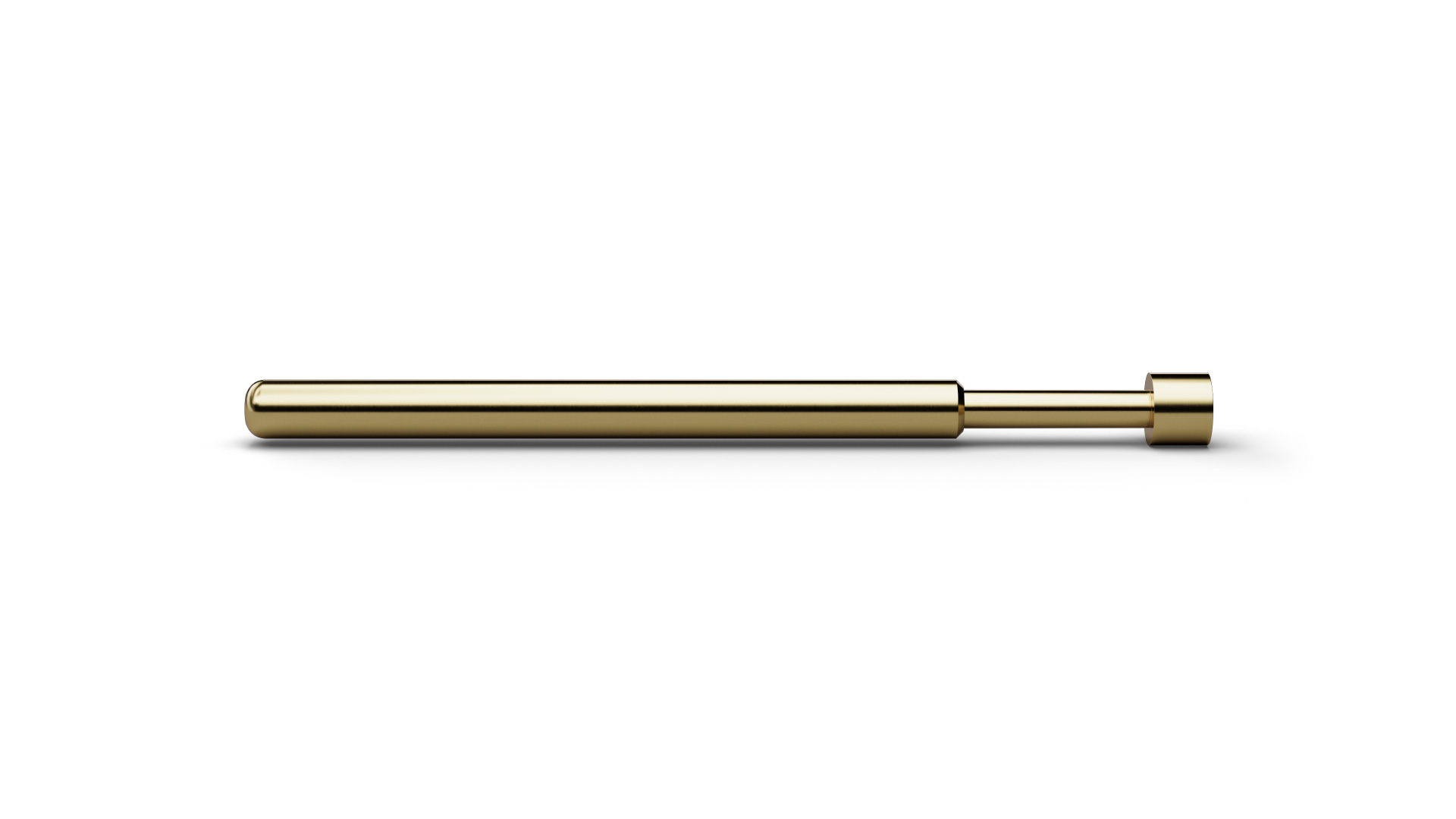

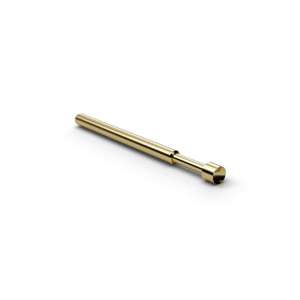

F56305B250G200 (item number 1169810) provides a Basic Contact Probe for defined electrical contact in ICT and Functional Test fixtures. With tip style 05 (Concave stepped), F56305B250G200 combines ICT/FCT use with a geometry intended for pins and wire-wrap posts with a guided, smooth contacting action. F56305B250G200 combines a pitch of 3 mm / 118 mil with tip style 05 (Concave stepped) and a tip diameter of 2.5 mm. For F56305B250G200, spring force is 200 cN at a nominal travel of 4.3 mm. F56305B250G200 is specified for 6 A continuous current.
