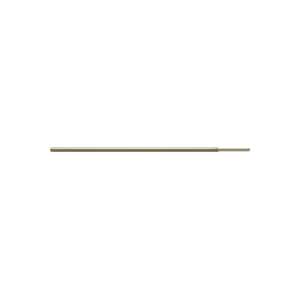

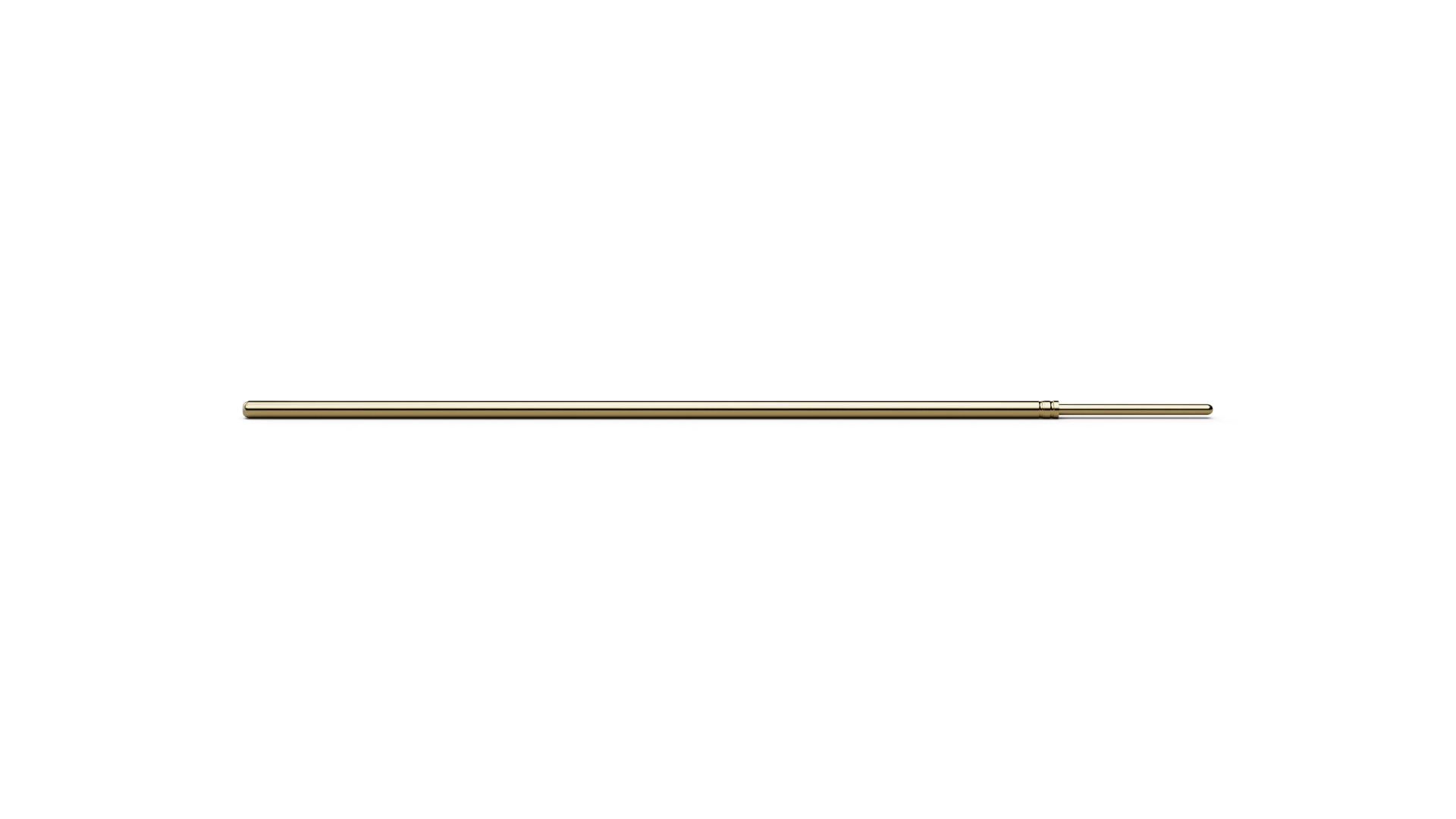

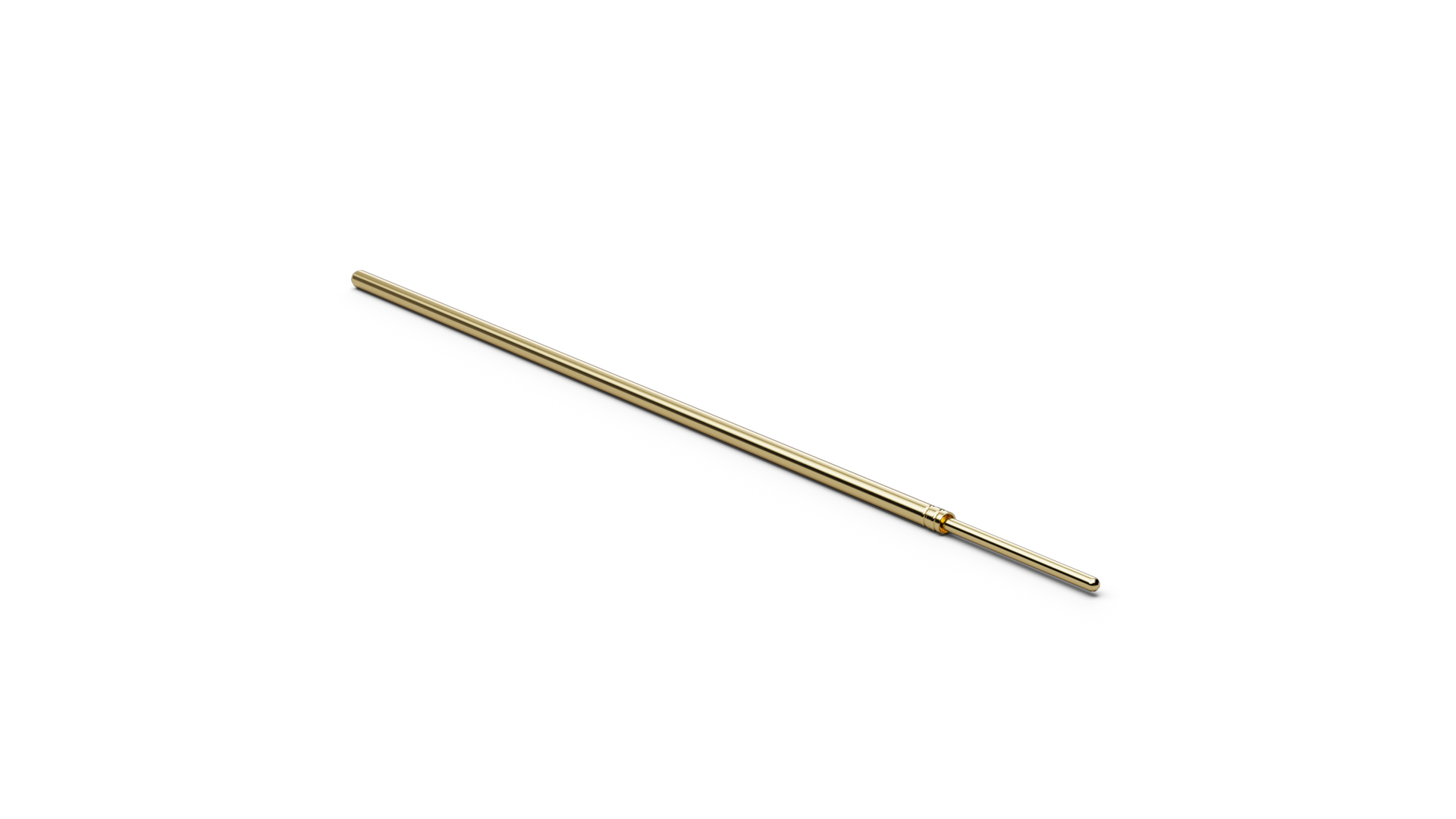

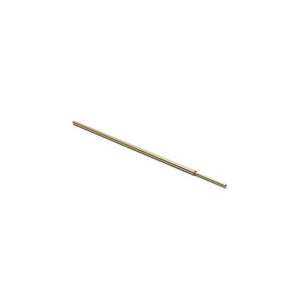

F05011B050G100 (item number 1169802) provides a Basic Contact Probe for defined electrical contact in ICT and Functional Test fixtures. With tip style 11 (Spherical), F05011B050G100 combines ICT/FCT use with a geometry intended for clean contact surfaces where marking or scratching should be minimized. F05011B050G100 combines a pitch of 1.27 mm / 50 mil with tip style 11 (Spherical) and a tip diameter of 0.5 mm. For F05011B050G100, spring force is 100 cN at a nominal travel of 4.3 mm. The continuous-current rating of F05011B050G100 is 3 A.
