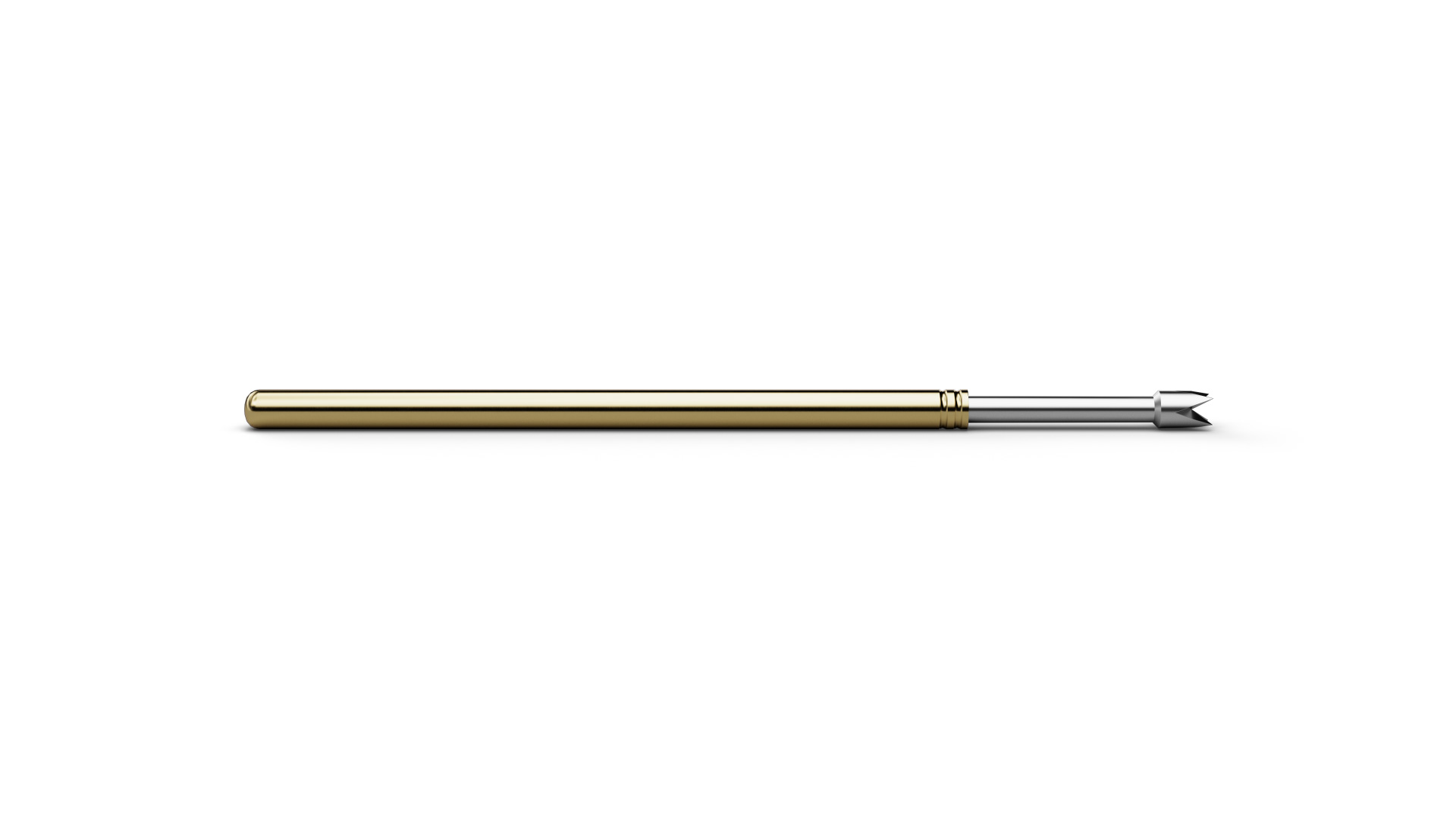

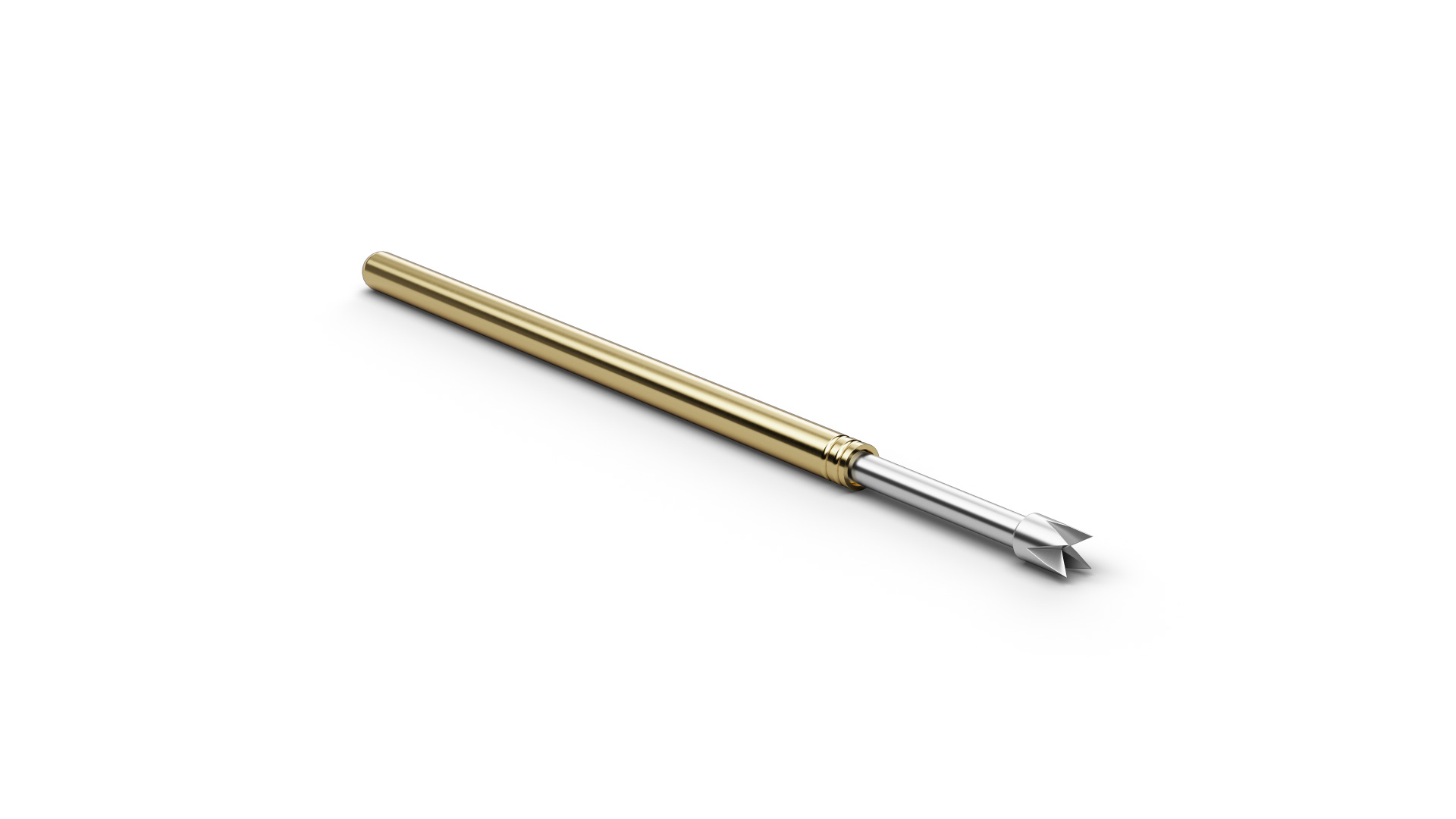

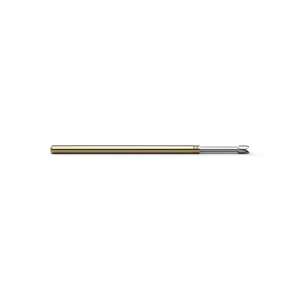

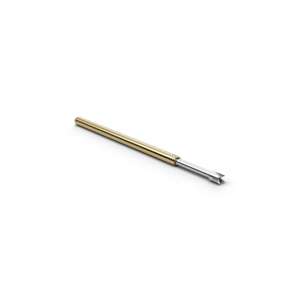

F10014S130P300HP (item number 1161282) provides a Basic Contact Probe for defined electrical contact in ICT and Functional Test fixtures. With tip style 14 (4-point crown stepped (self-cleaning)), F10014S130P300HP combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F10014S130P300HP combines a pitch of 2.54 mm / 100 mil with tip style 14 (4-point crown stepped (self-cleaning)) and a tip diameter of 1.3 mm. For F10014S130P300HP, spring force is 300 cN at a nominal travel of 4.3 mm. The continuous-current rating of F10014S130P300HP is 5 A. Two features address difficult surface conditions on F10014S130P300HP: Progressive Coating reduces contamination sensitivity, while the HP spring provides increased preload at the start of the contact stroke.
