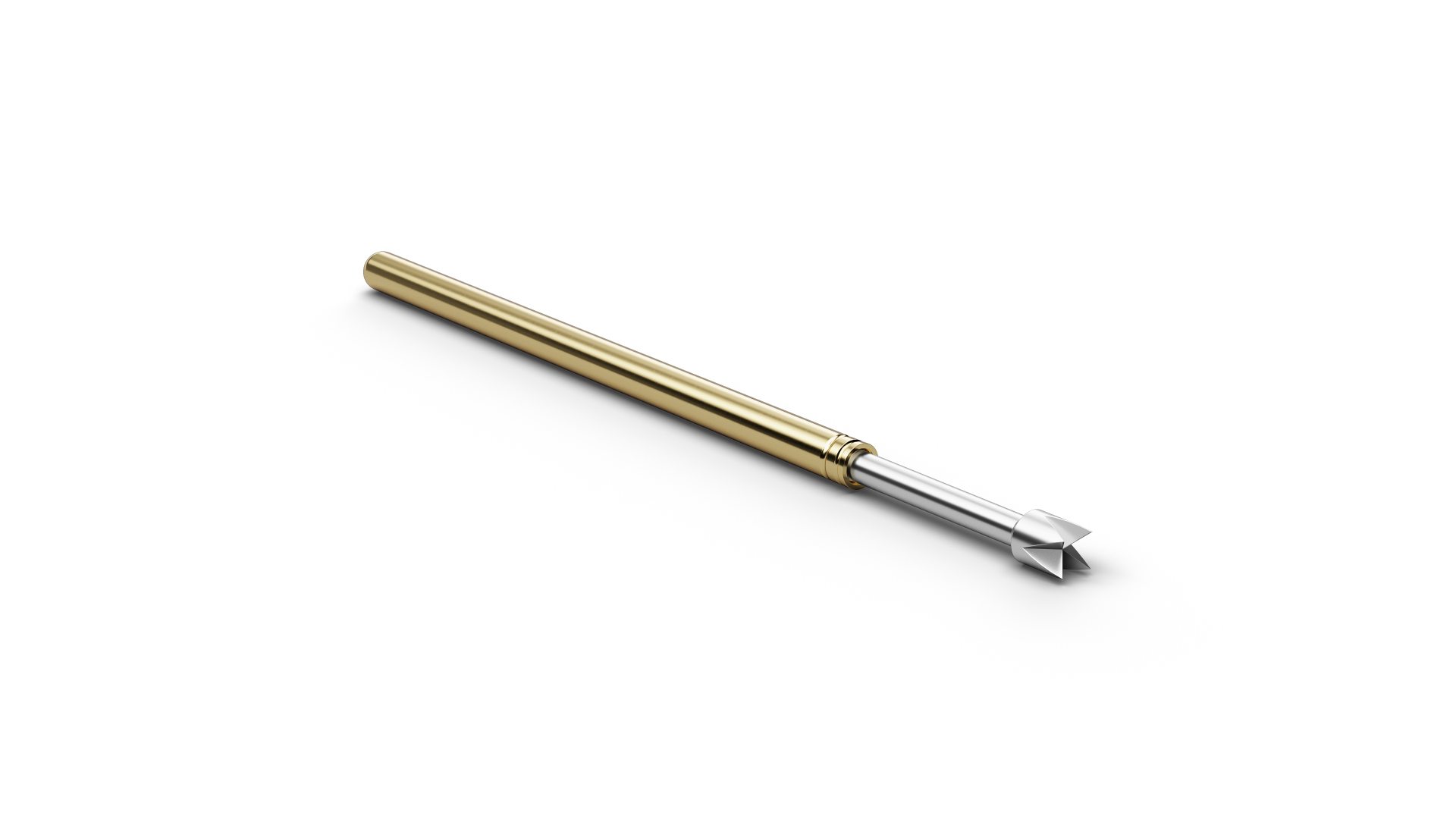

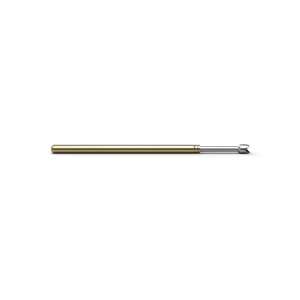

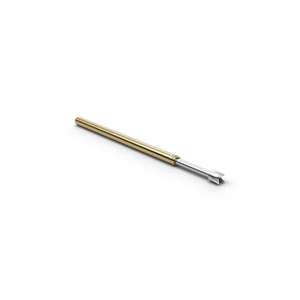

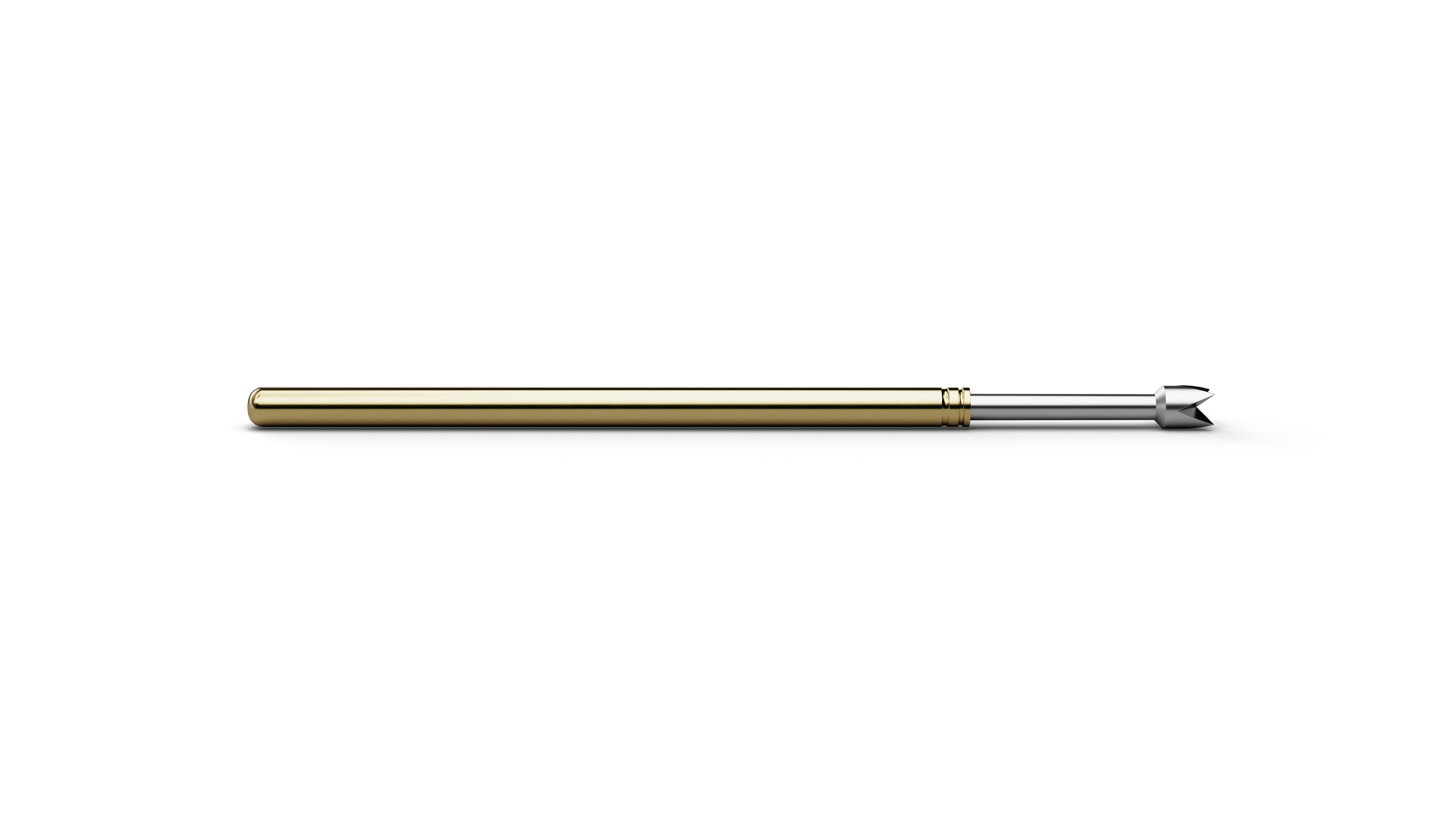

F10015B150P200HP (item number 1156211) provides a Basic Contact Probe for defined electrical contact in ICT and Functional Test fixtures. With tip style 15 (Triangular 45° stepped), F10015B150P200HP combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. F10015B150P200HP combines a pitch of 2.54 mm / 100 mil with tip style 15 (Triangular 45° stepped) and a tip diameter of 1.5 mm. F10015B150P200HP operates with 200 cN spring force and 4.3 mm nominal travel. F10015B150P200HP is specified for 5 A continuous current. On F10015B150P200HP, Progressive Coating works together with the higher preload of the HP version, targeting test points affected by OSP, flux, oxidation or other contamination rather than treating the coating as an isolated feature.
