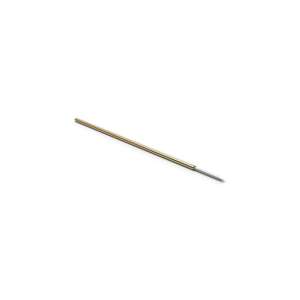

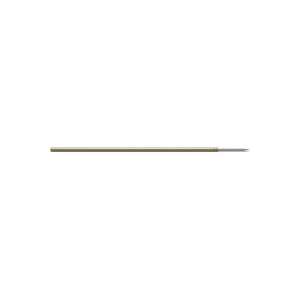

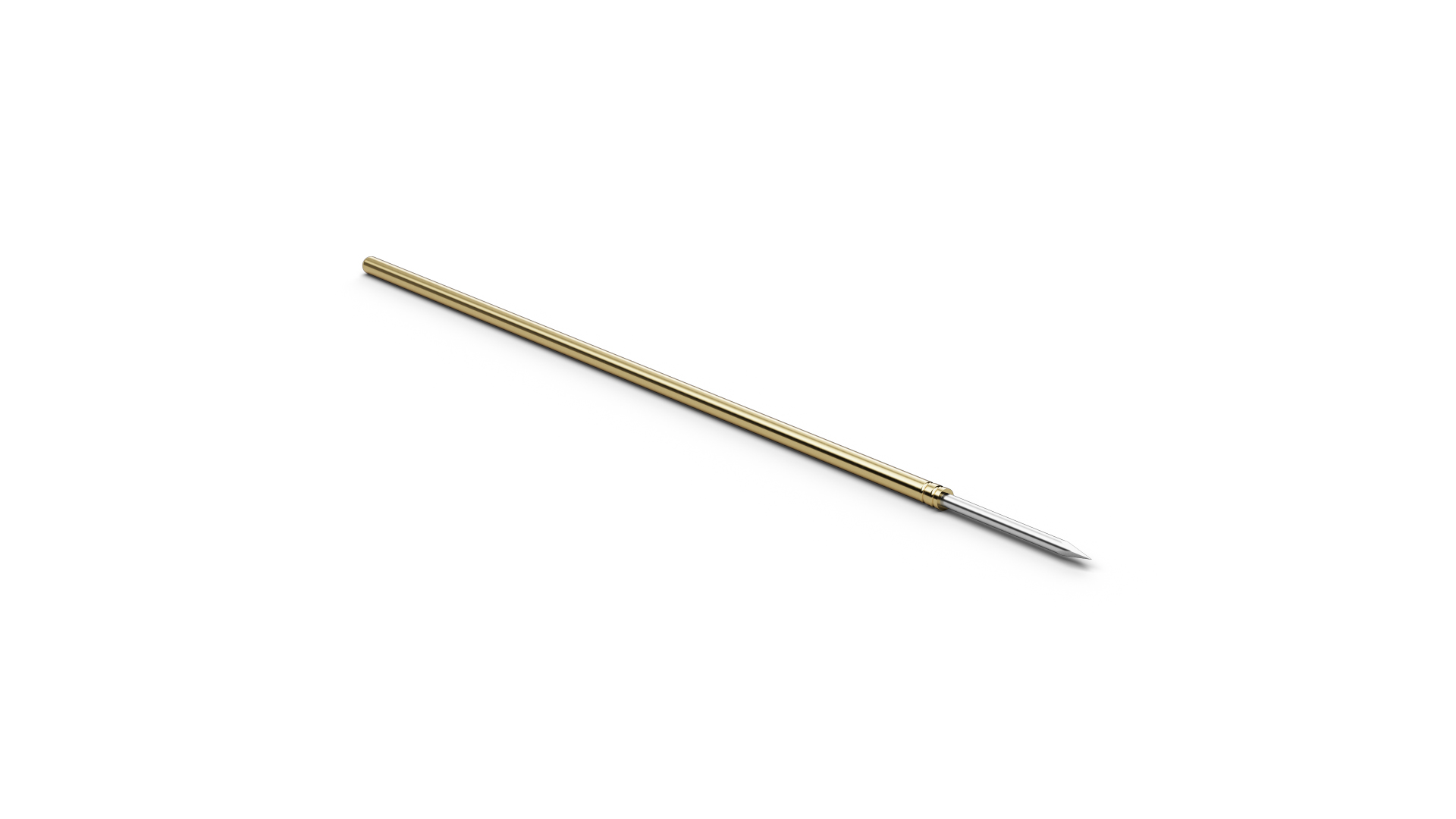

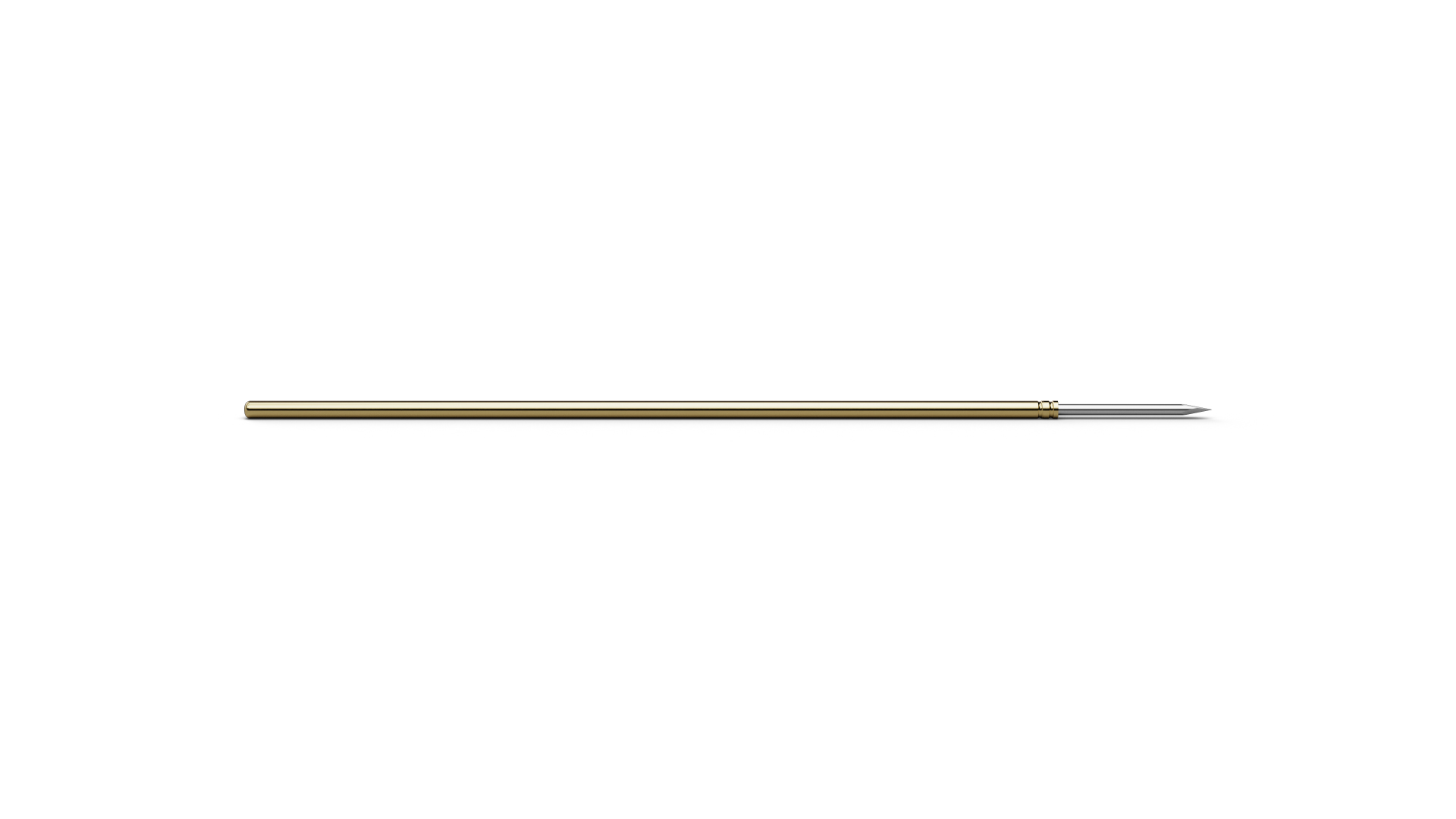

F05033S050P250HP (item number 1150038) provides a Basic Contact Probe for defined electrical contact in ICT and Functional Test fixtures. With tip style 33 (Square lance 38°), F05033S050P250HP combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F05033S050P250HP combines a pitch of 1.27 mm / 50 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.5 mm. F05033S050P250HP operates with 250 cN spring force and 4.3 mm nominal travel. The continuous-current rating of F05033S050P250HP is 3 A. For demanding test points, F05033S050P250HP combines functional Progressive Coating with the higher preload of the HP spring, supporting reliable contact on OSP surfaces and areas affected by flux or contamination.
