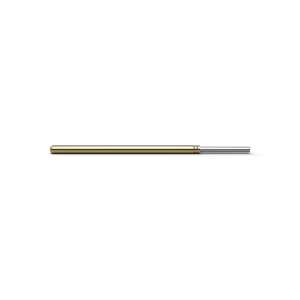

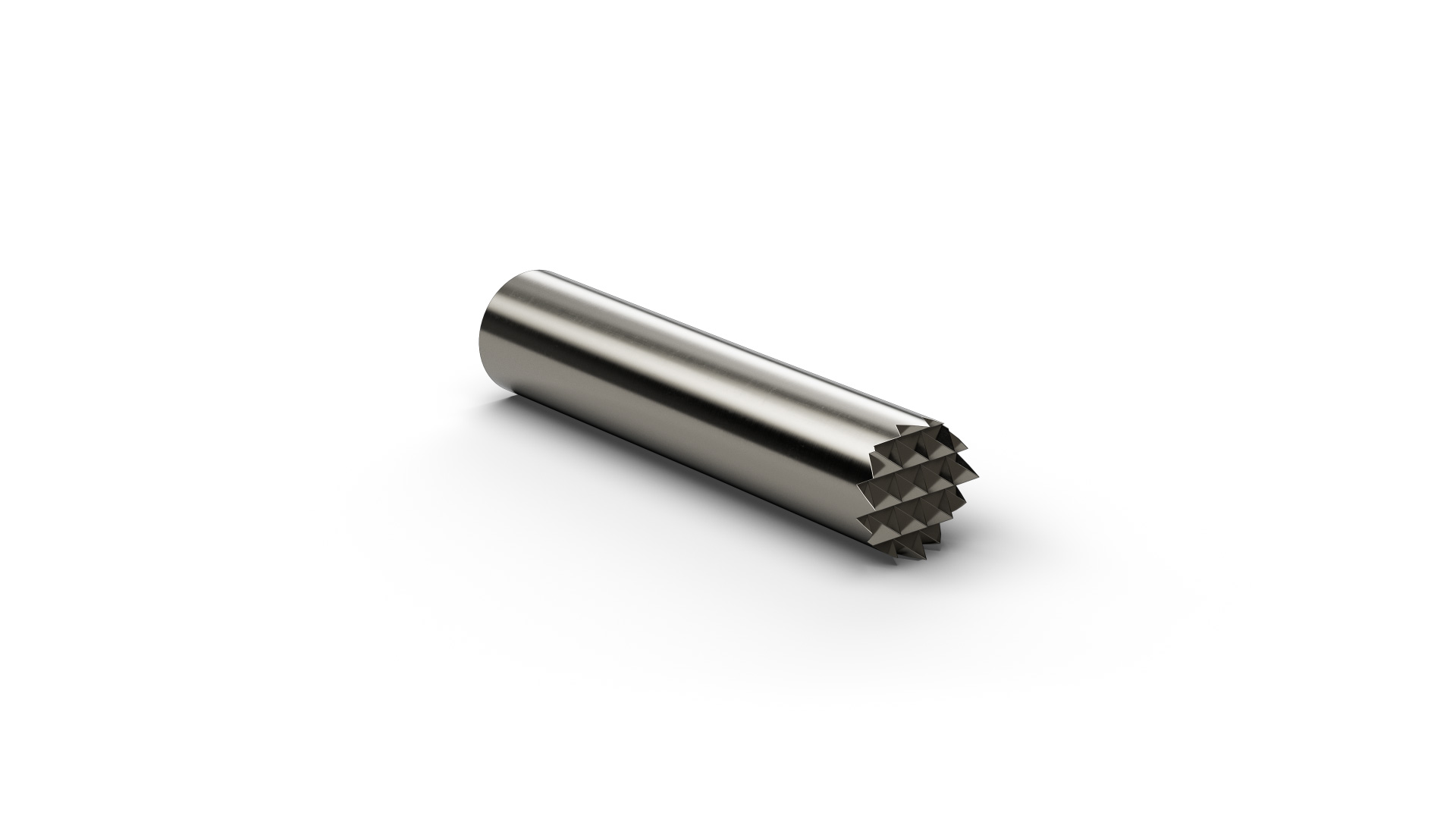

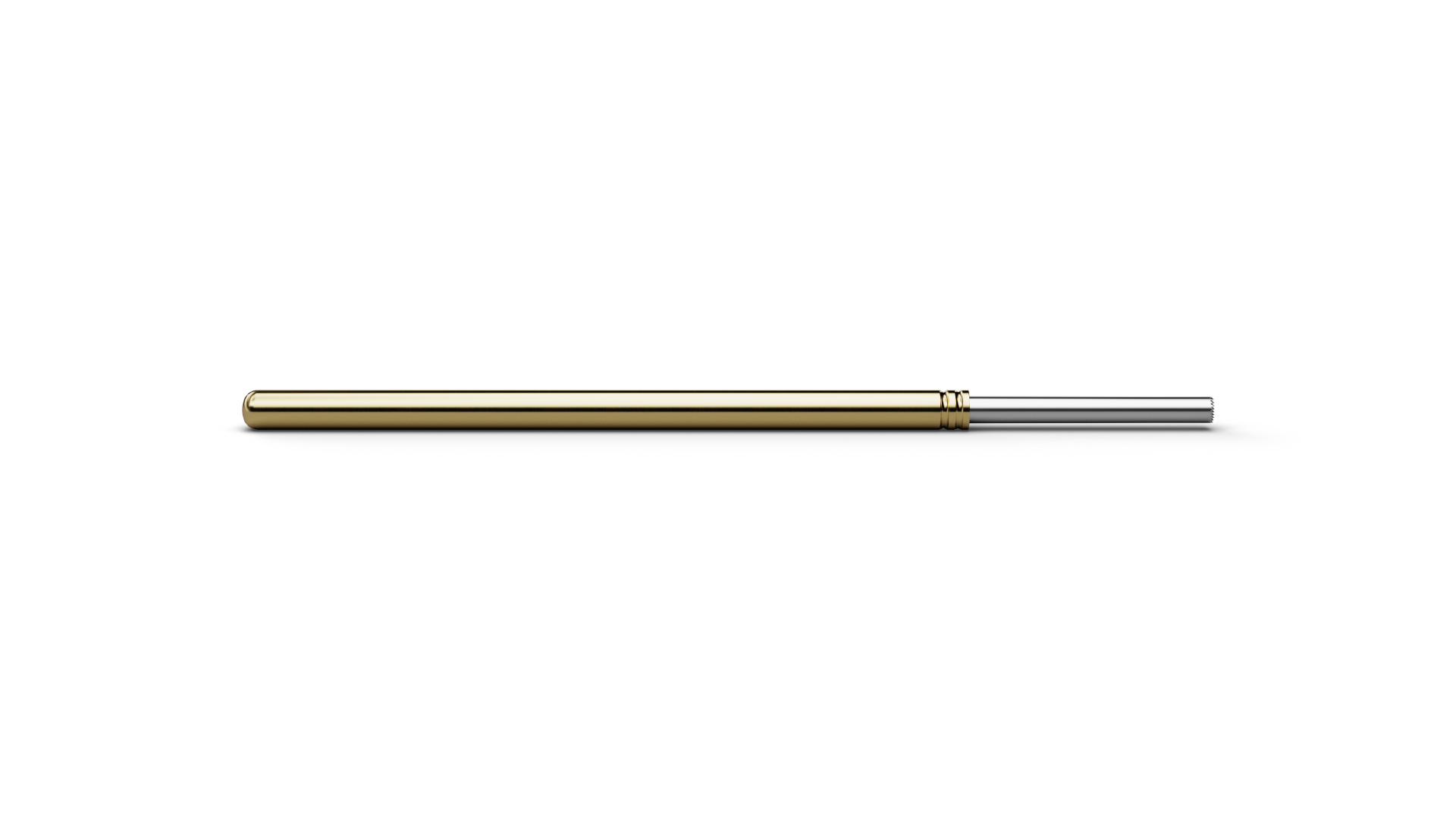

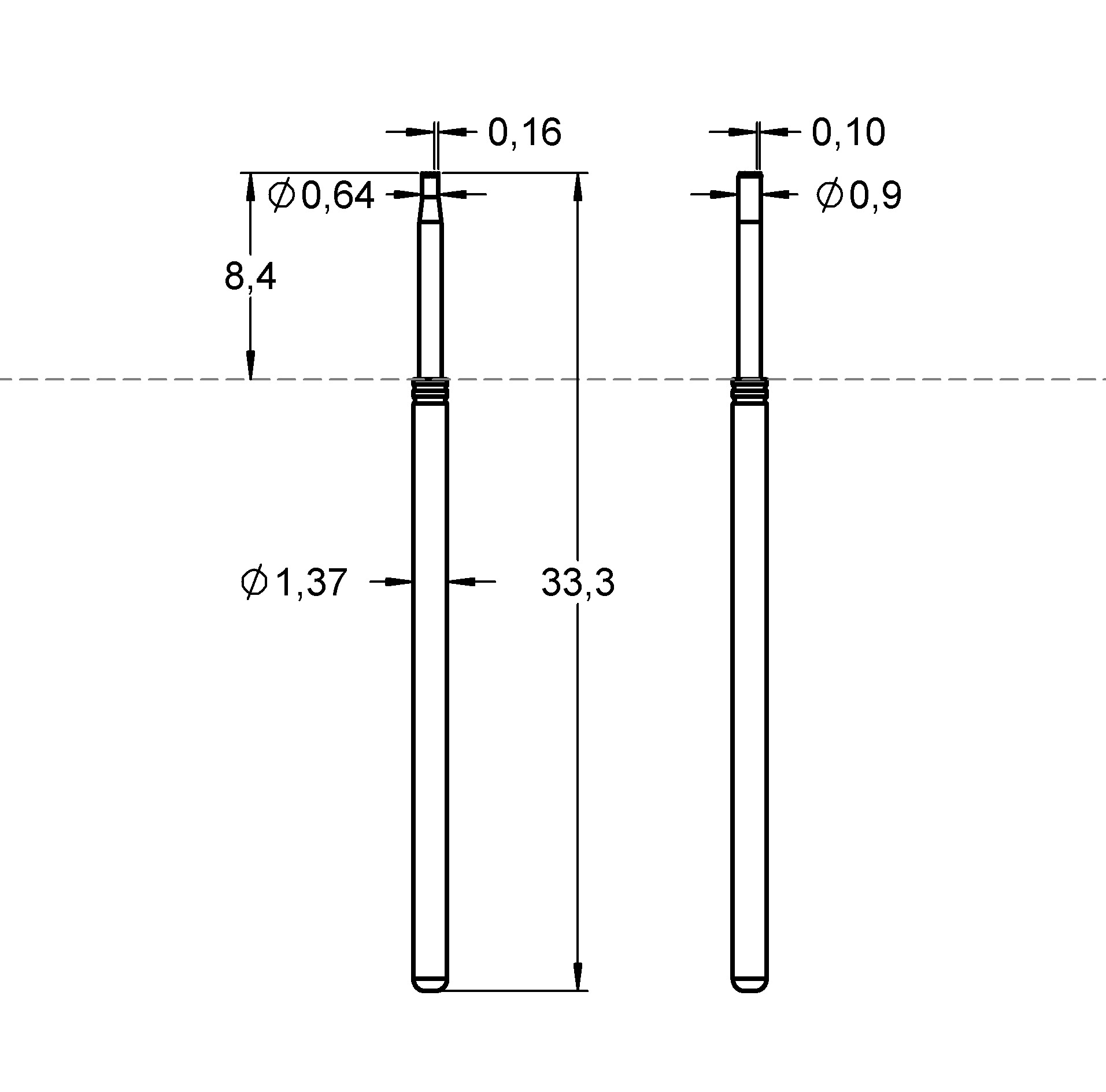

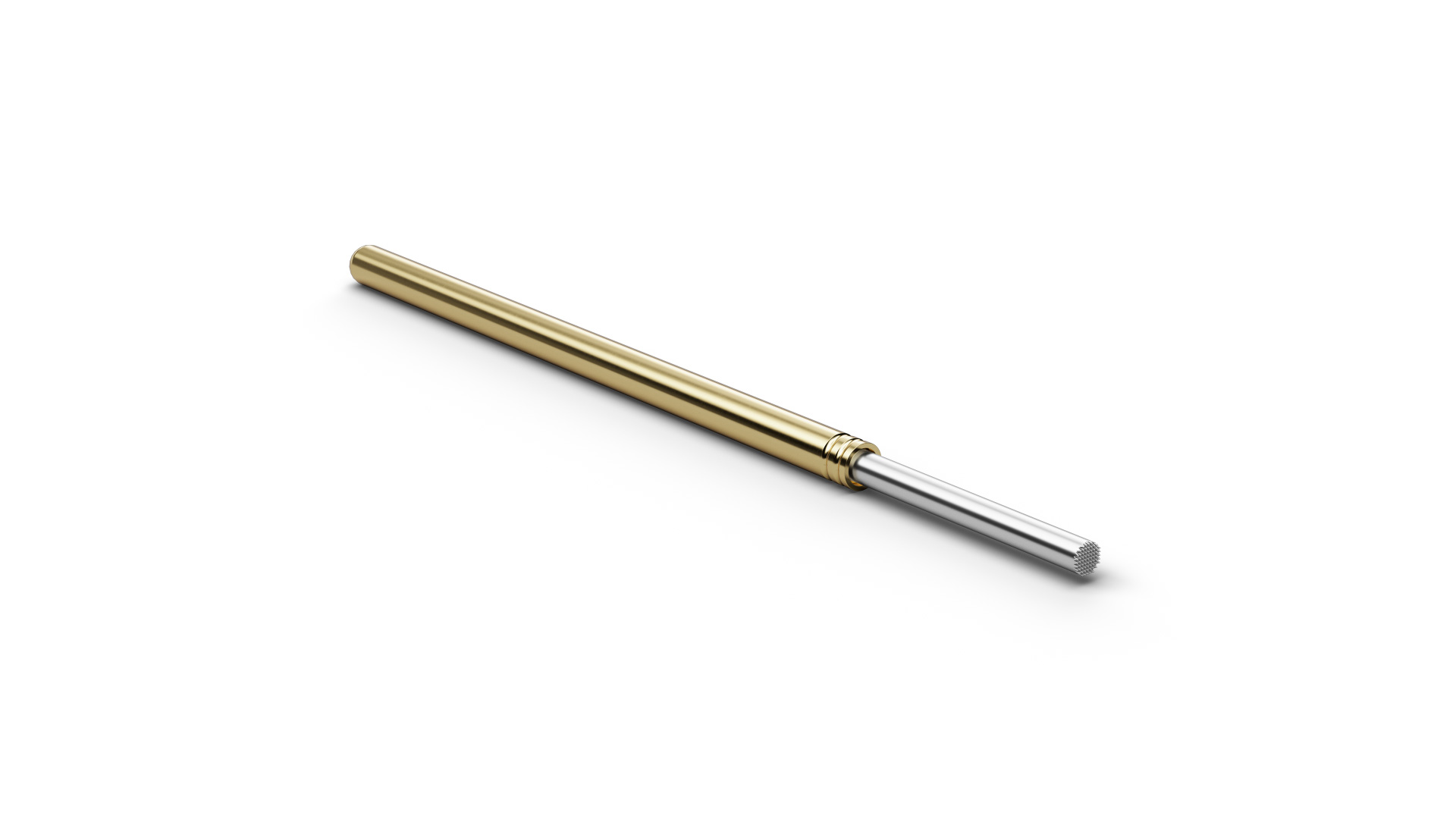

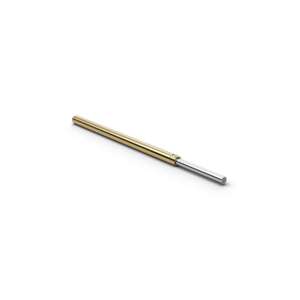

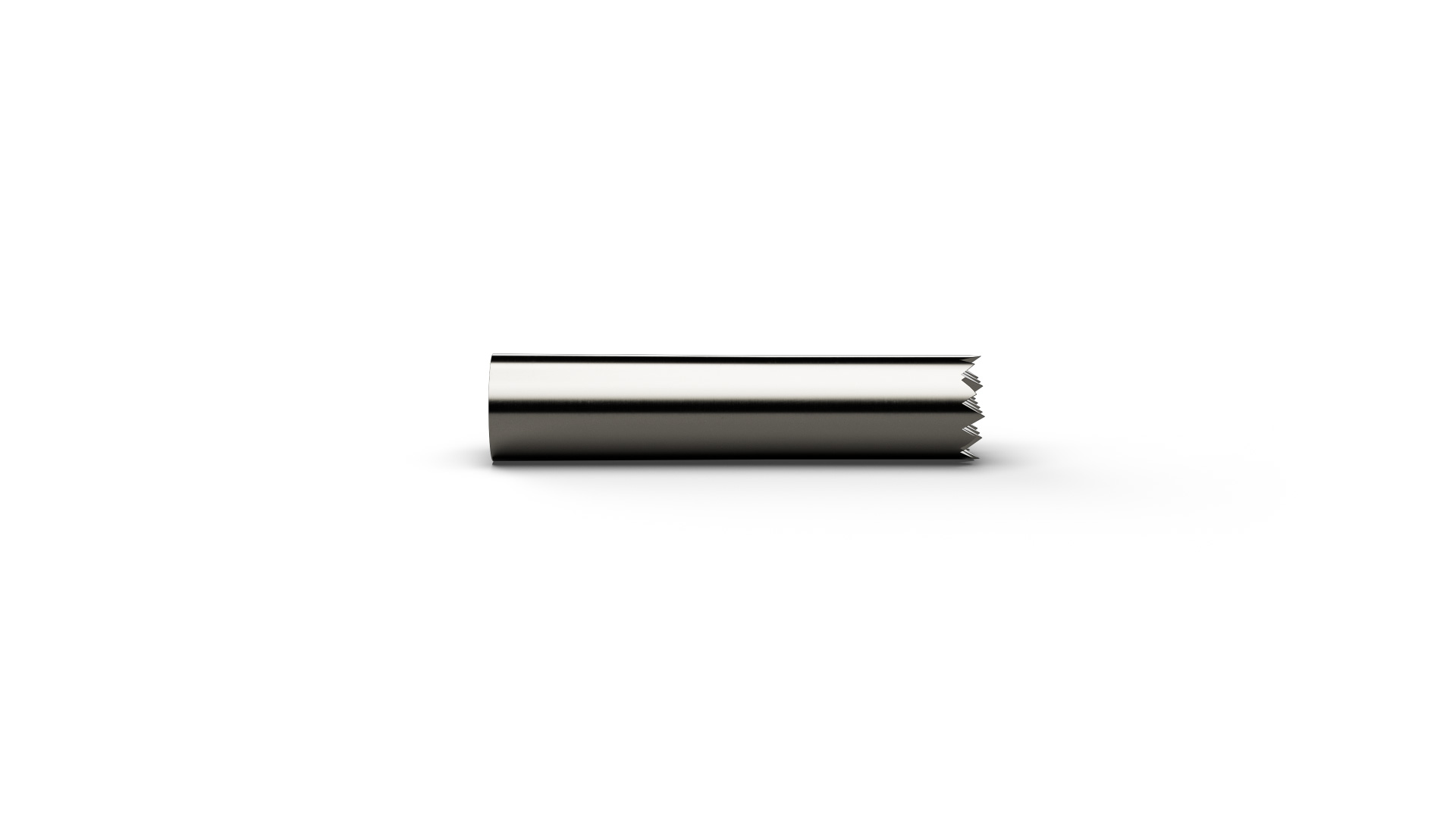

The Bead Probe BP10006B090P150 (item number 1138832) was developed specifically for contacting solder beads on printed circuit boards. Its tip style 06 (Serrated stepped) with a 0.9 mm tip diameter is matched to small solder-bead geometries and provides targeted contacting without unnecessarily loading the surrounding PCB track. BP10006B090P150 is specified with a pitch of 2.54 mm / 100 mil, 150 cN spring force and 4.3 mm nominal travel. The electrical rating allows 5 A continuous current. The Progressive Coating on the plunger reduces contamination build-up on BP10006B090P150 and supports reliable contacting on more heavily contaminated PCBs.
