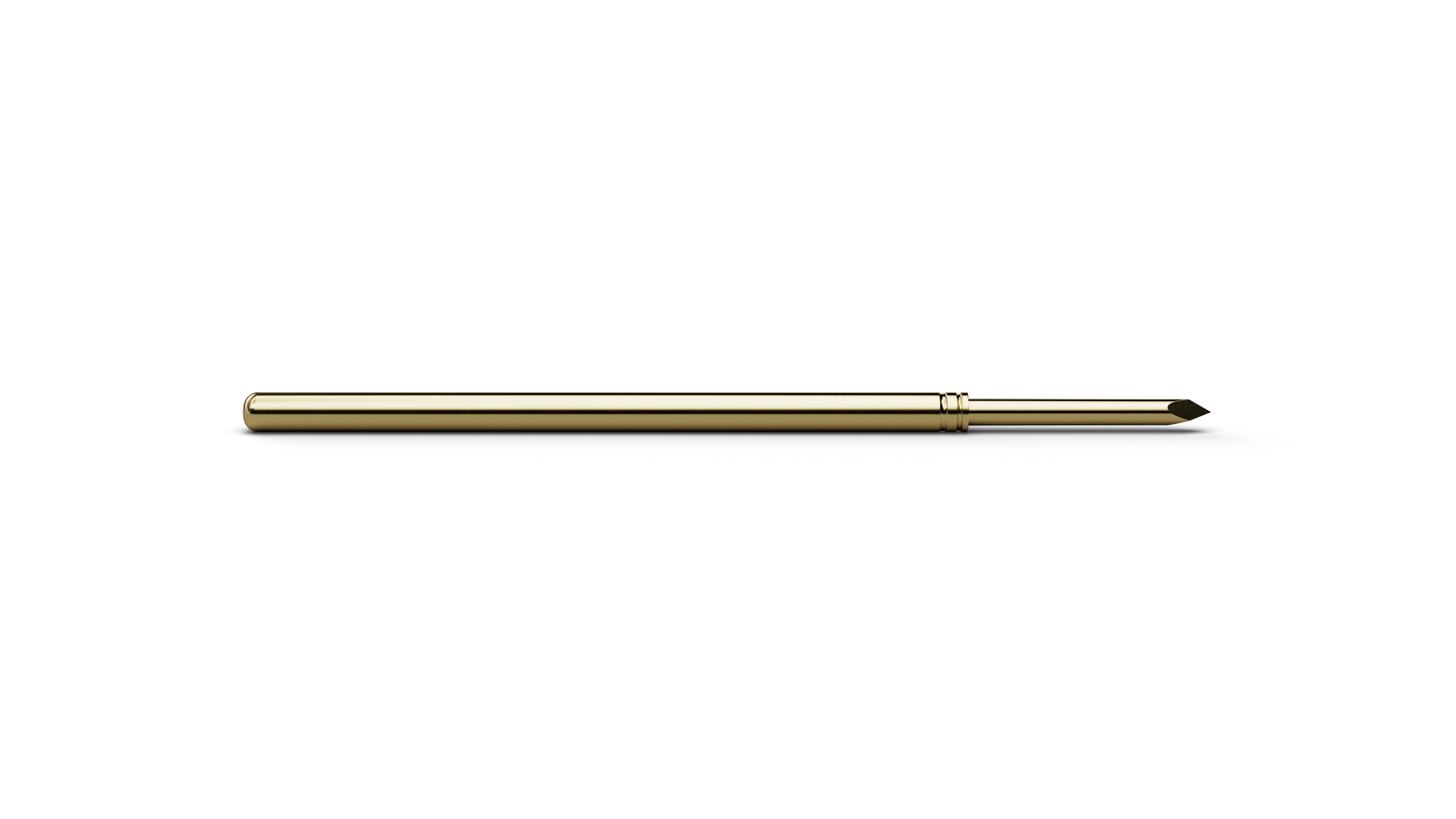

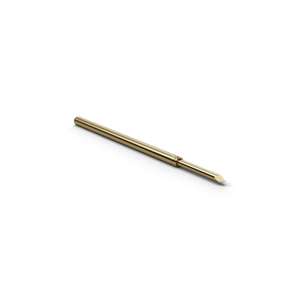

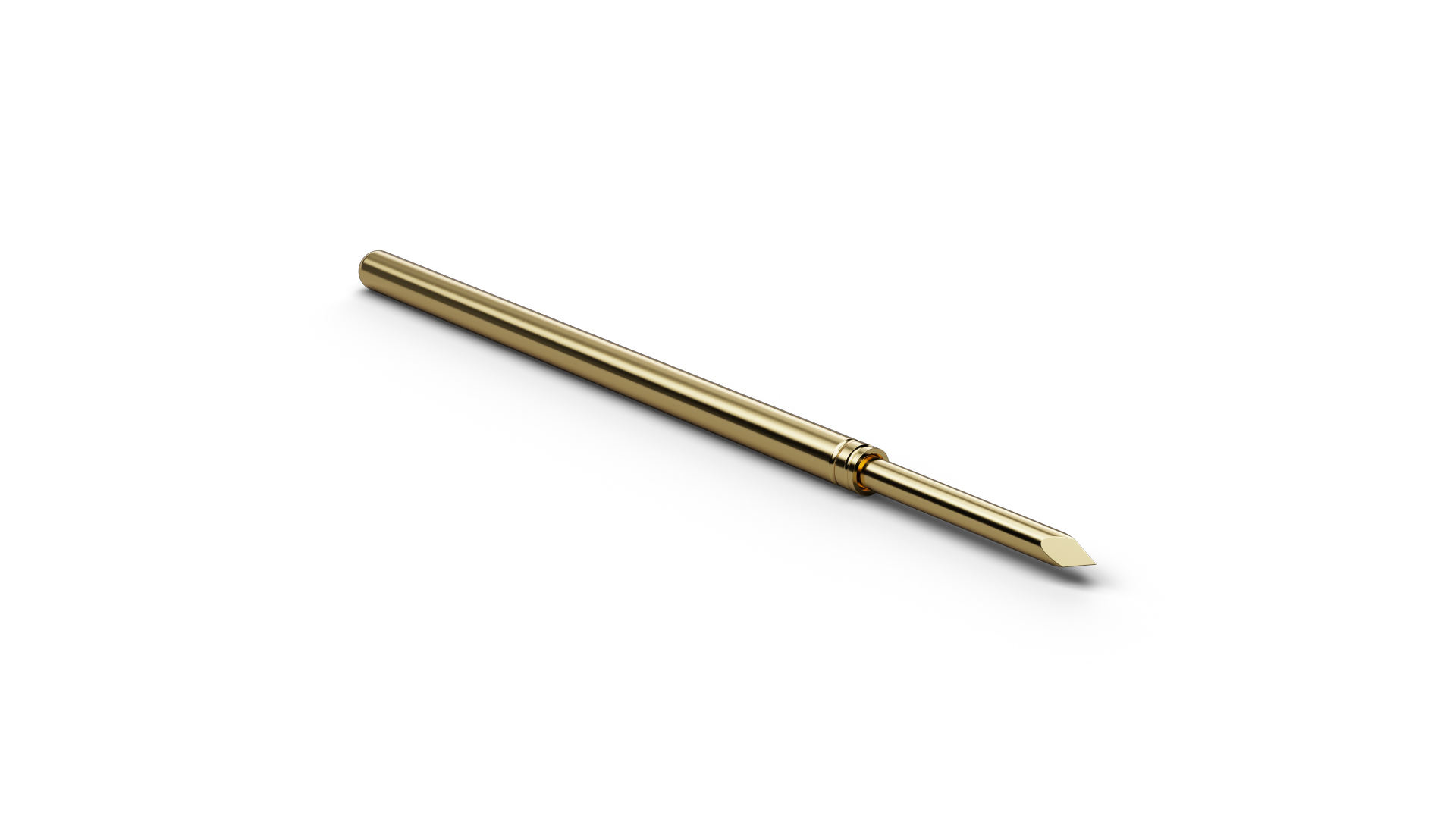

The Basic Contact Probe F10062S090L100 (item number 1137392) is a spring-loaded probe for temporary electrical contact with test points. With tip style 62 (Triangular 30°), F10062S090L100 combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. F10062S090L100 combines a pitch of 2.54 mm / 100 mil with tip style 62 (Triangular 30°) and a tip diameter of 0.9 mm. For F10062S090L100, spring force is 100 cN at a nominal travel of 4.3 mm. F10062S090L100 is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F10062S090L100 is made of steel and uses Longtime Gold plating.
