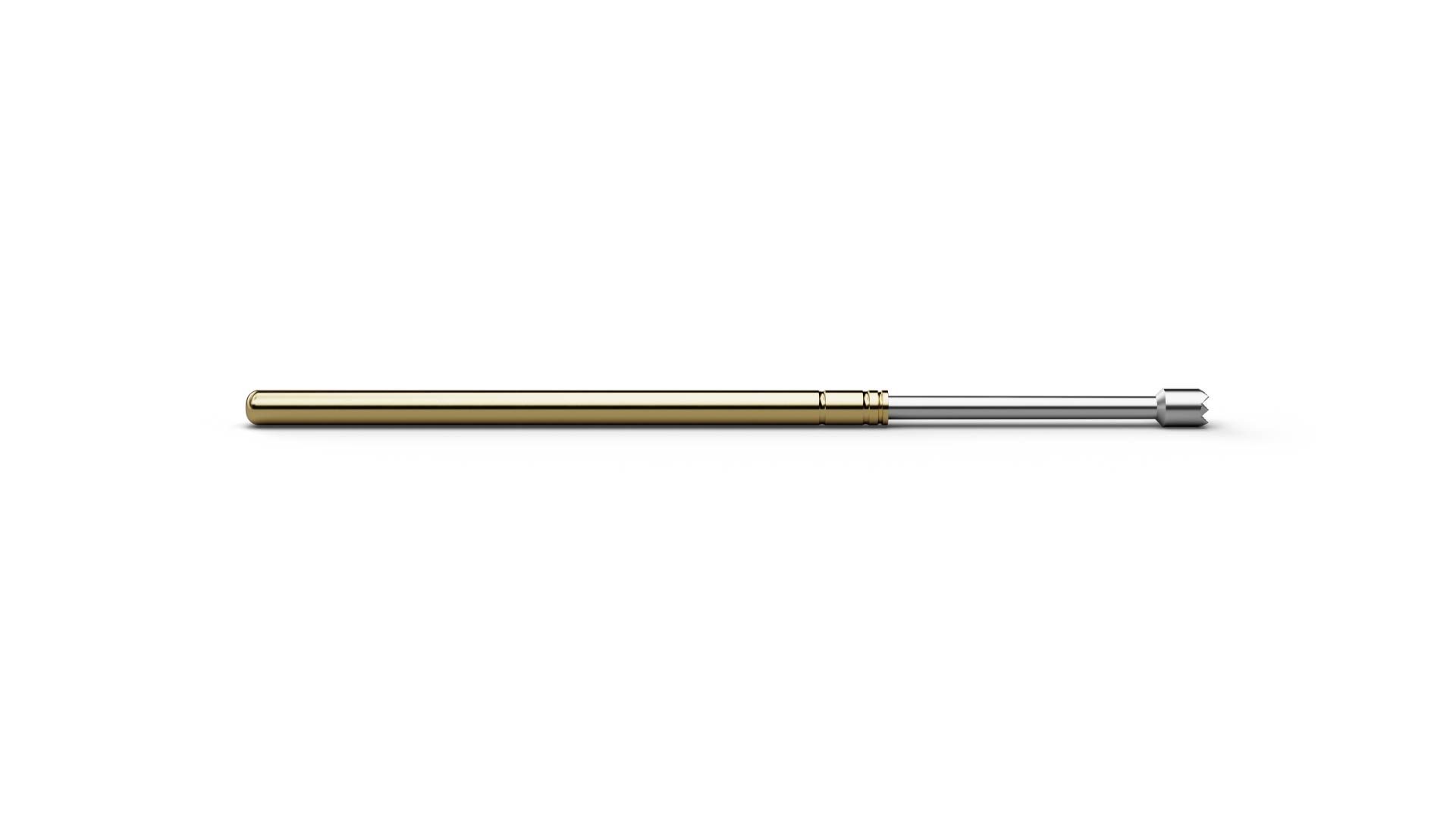

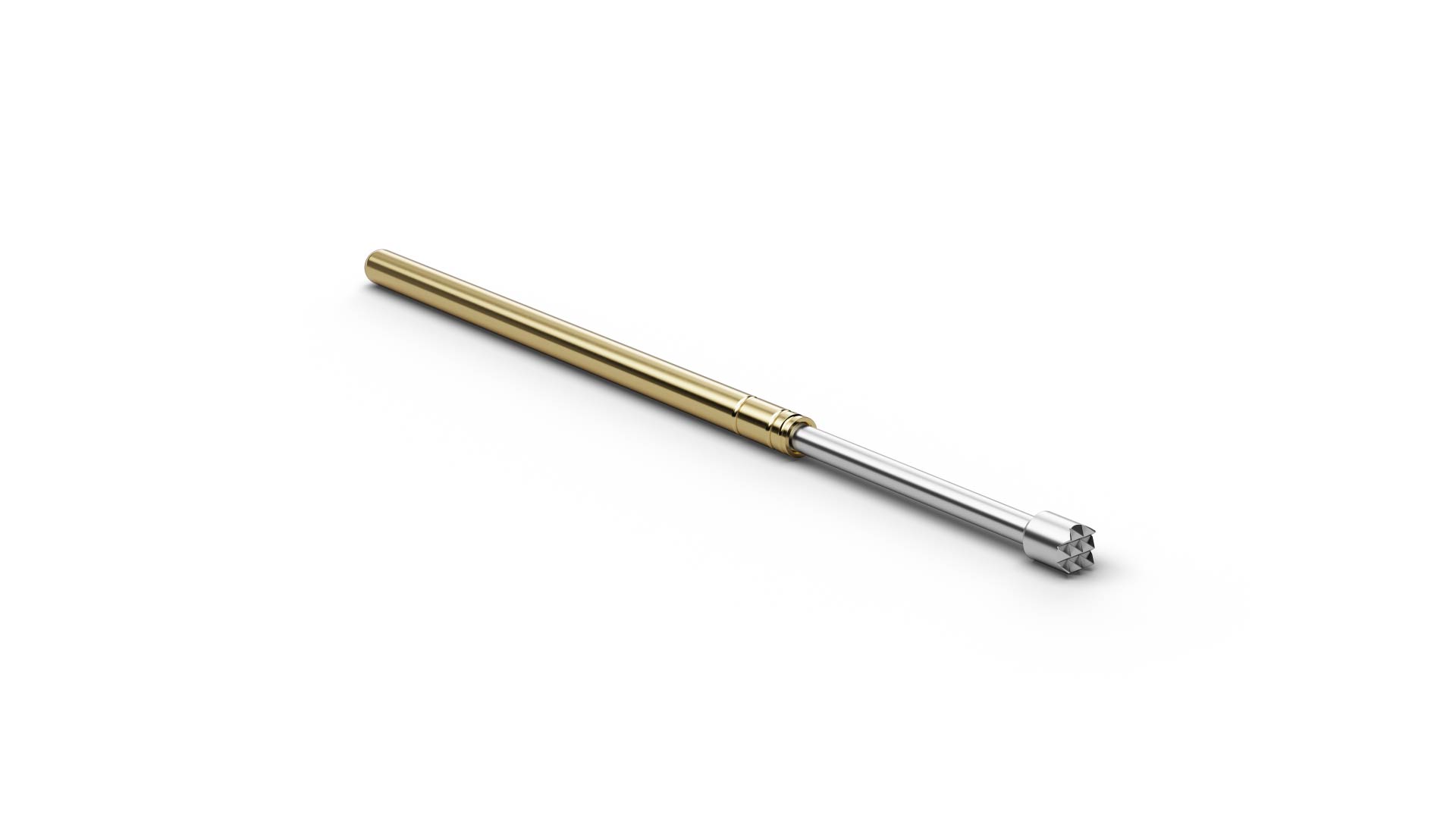

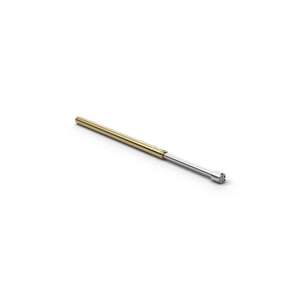

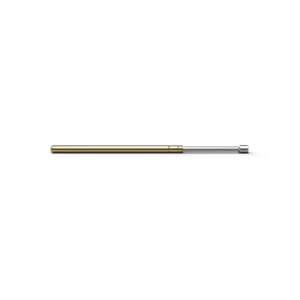

The Basic Contact Probe F58806B150P300S (item number 1097833) is a spring-loaded probe for temporary electrical contact with test points. With tip style 06 (Serrated stepped), F58806B150P300S combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F58806B150P300S combines a pitch of 2.54 mm / 100 mil with tip style 06 (Serrated stepped) and a tip diameter of 1.5 mm. For F58806B150P300S, spring force is 300 cN at a nominal travel of 7.6 mm. F58806B150P300S is rated for 5 A continuous current with a typical contact resistance of 30 mΩ. The plunger in F58806B150P300S is made of beryllium copper and uses Progressive Coating.
