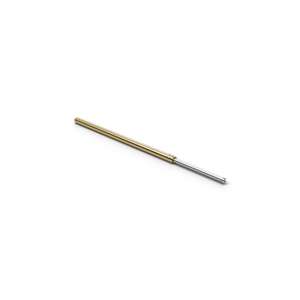

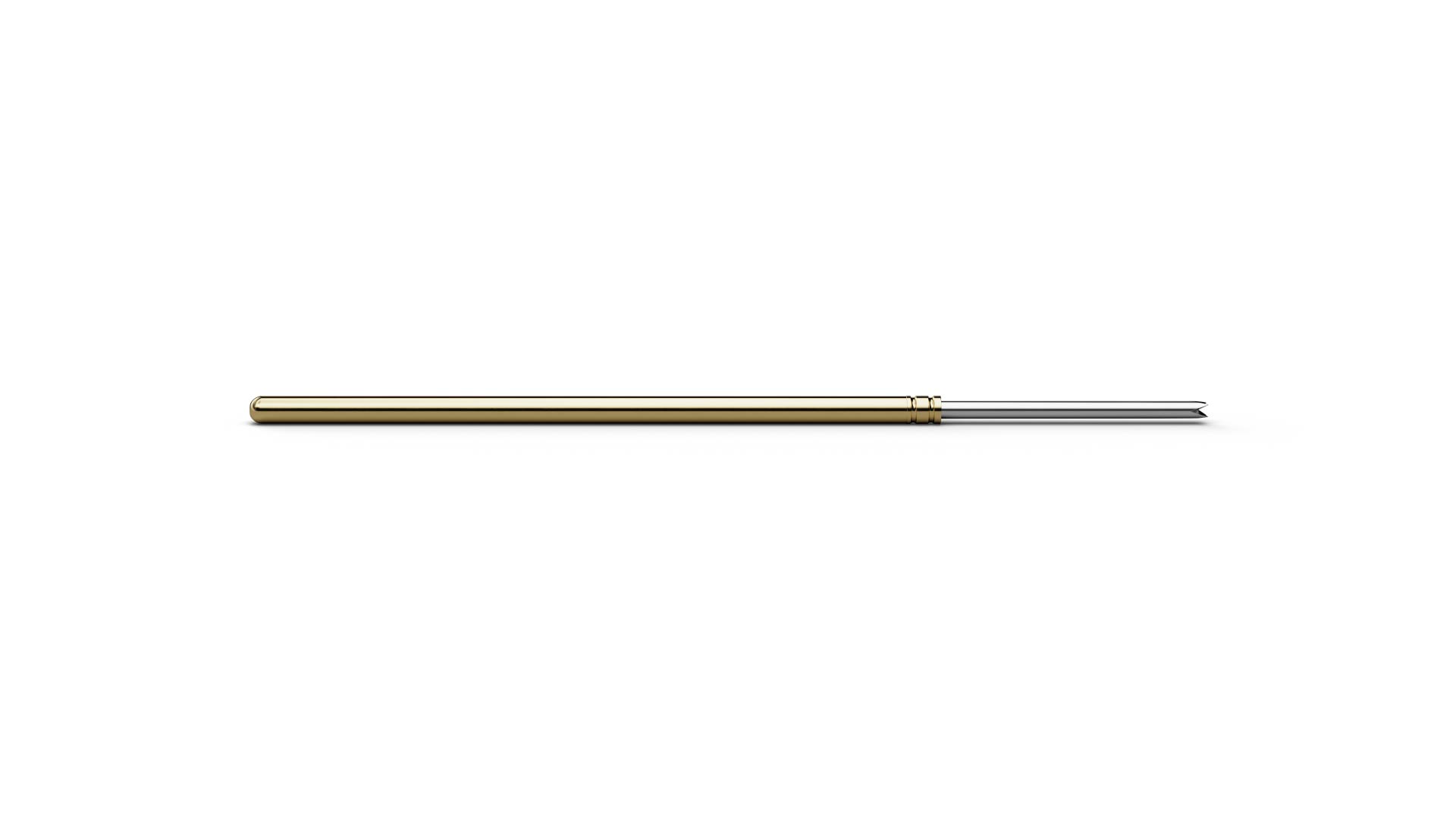

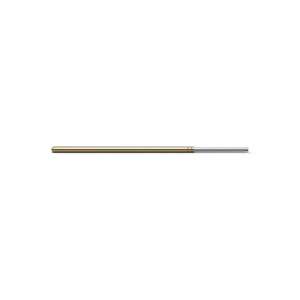

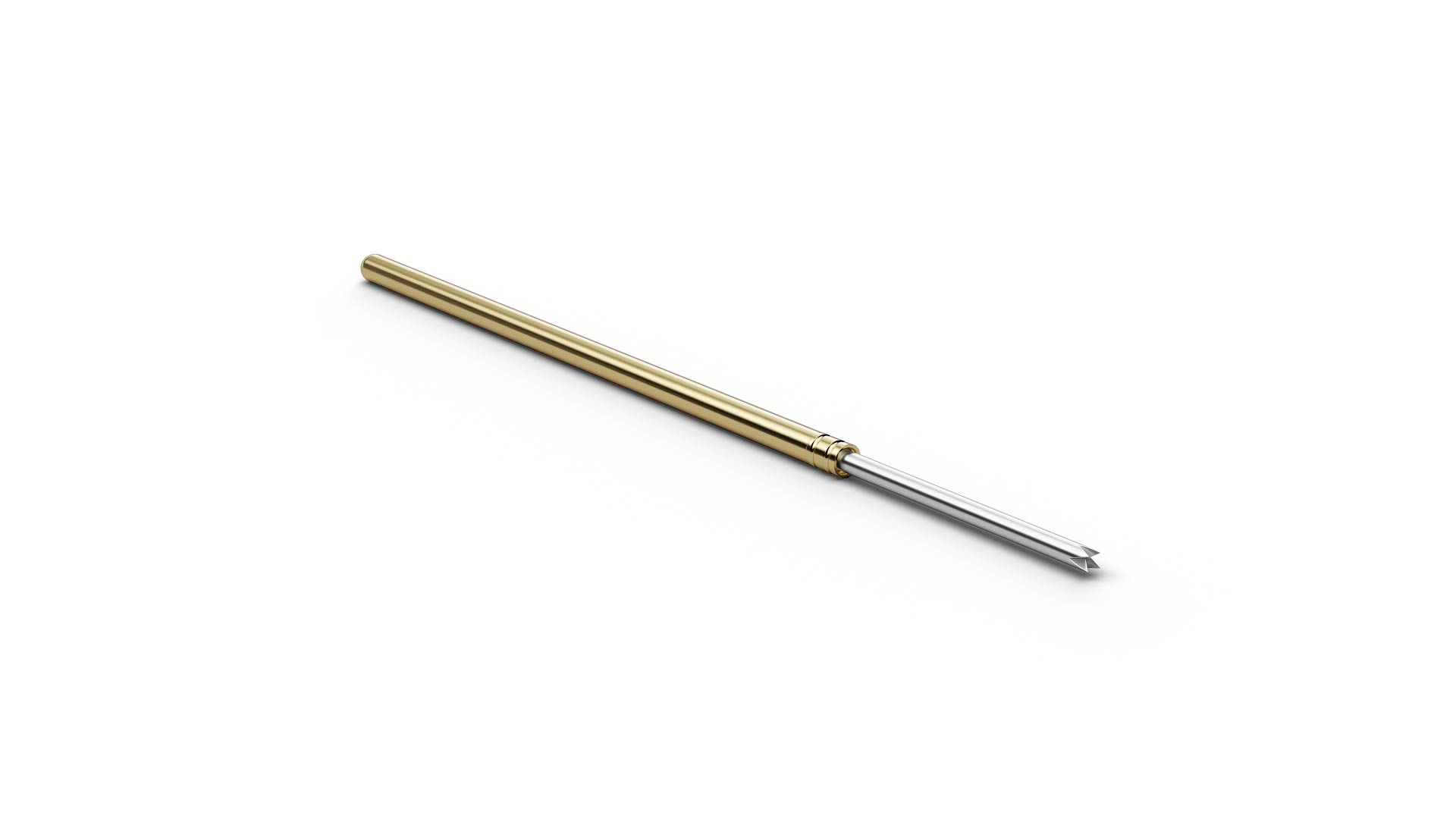

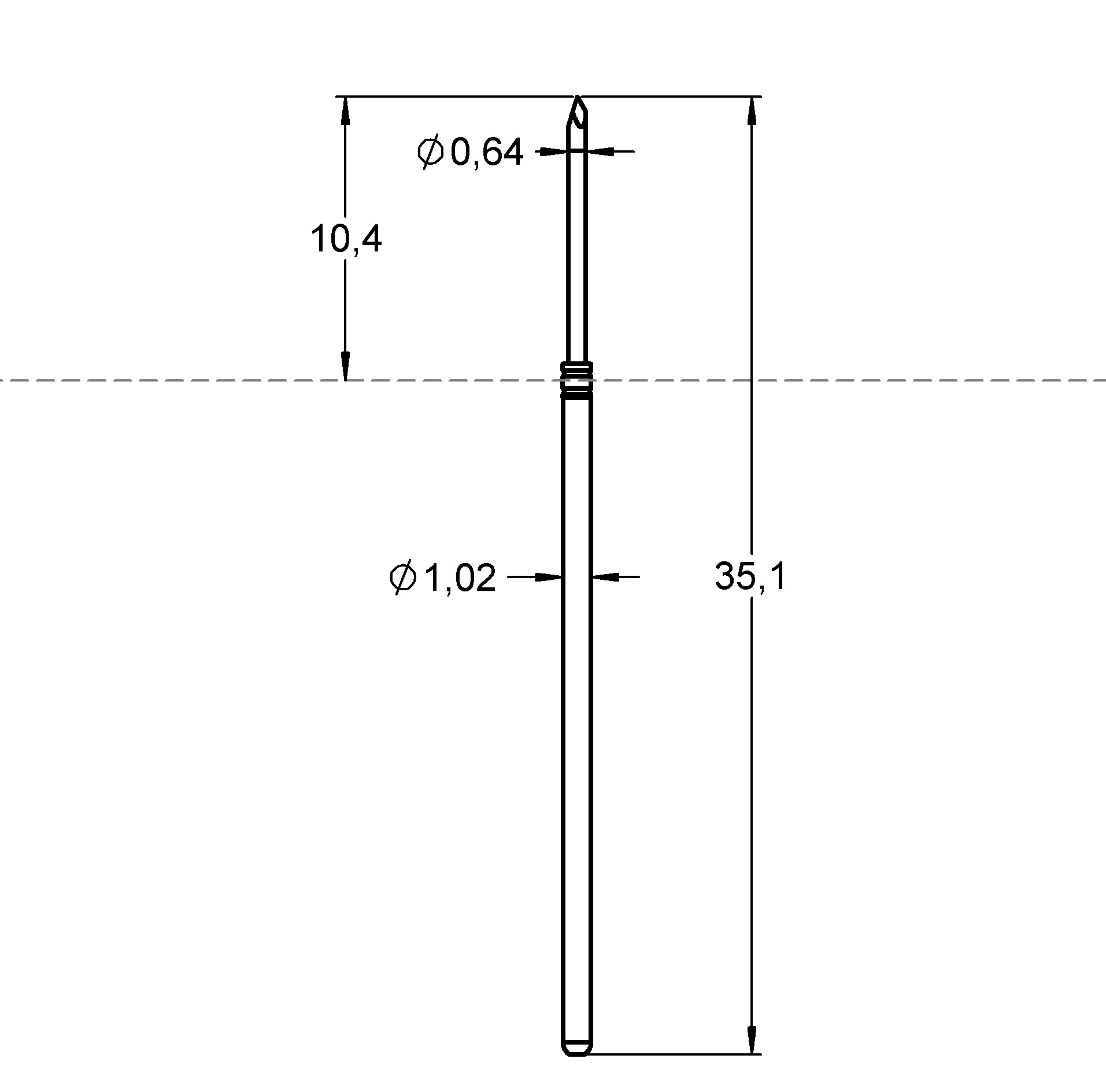

As a Basic Contact Probe, F07521S064P200HPL (item number 1053951) establishes a spring-loaded electrical connection to the test point. With tip style 21 (4-point crown (self-cleaning)), F07521S064P200HPL combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F07521S064P200HPL combines a pitch of 1.9 mm / 75 mil with tip style 21 (4-point crown (self-cleaning)) and a tip diameter of 0.64 mm. F07521S064P200HPL operates with 200 cN spring force and 4.3 mm nominal travel. The electrical rating of F07521S064P200HPL combines 4 A continuous current with 40 mΩ typical contact resistance. The P/HP configuration of F07521S064P200HPL pairs contamination-resistant Progressive Coating with increased spring preload so that difficult surfaces such as OSP, oxidized pads or flux-contaminated test points can be contacted more effectively.
