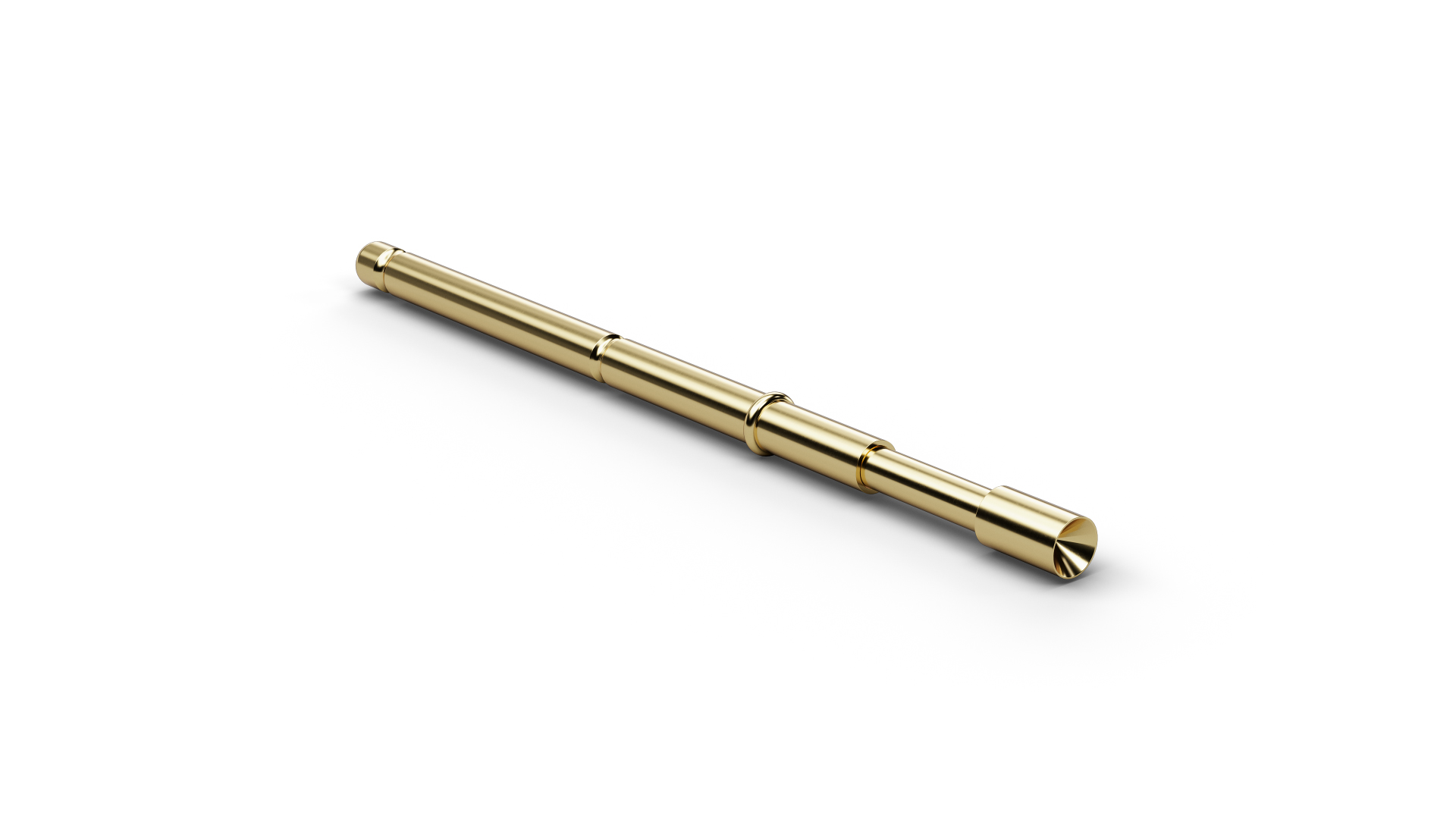

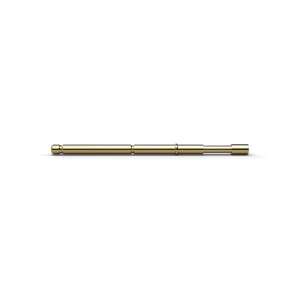

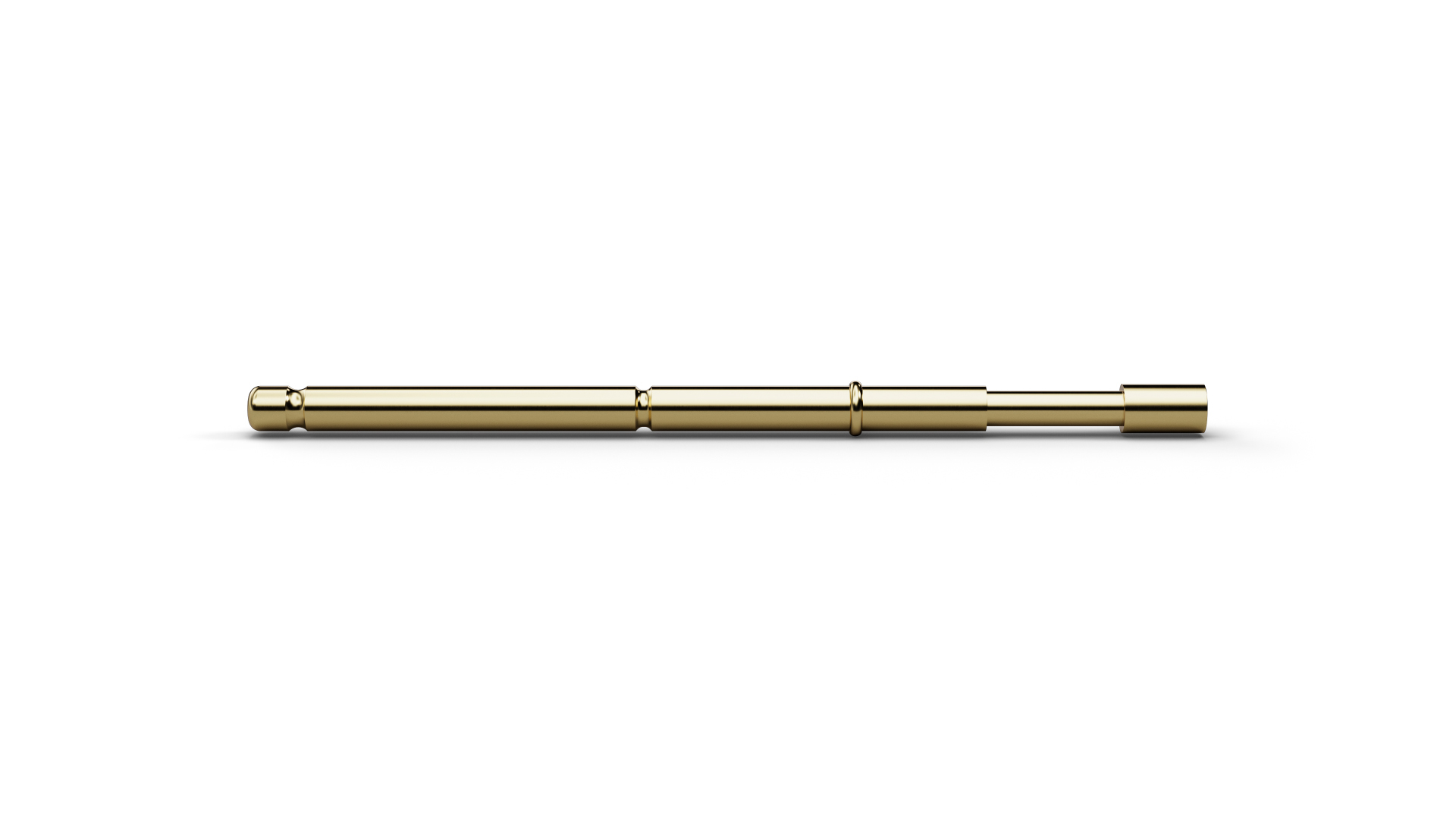

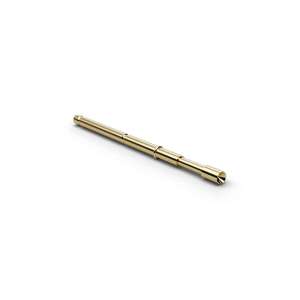

The Basic Contact Probe F77205B180G220E13 (item number 1035241) is designed for precise, repeatable contacting of electronic test points. The application focus of F77205B180G220E13 is on ICT and Functional Test with defined contact geometry and repeatable spring behavior. The design combines a pitch of 2.54 / 100 with tip style 05 (Concave stepped) and a tip diameter of 1.8 mm. Spring force is 220 cN at a nominal travel of 4 mm, supporting defined contact conditions. The continuous-current rating of F77205B180G220E13 is 5 A. The plunger in F77205B180G220E13 is made of beryllium copper and is gold-plated.
