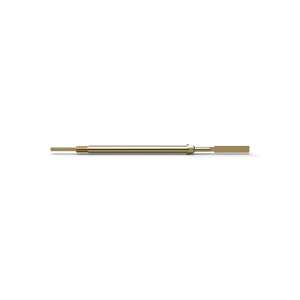

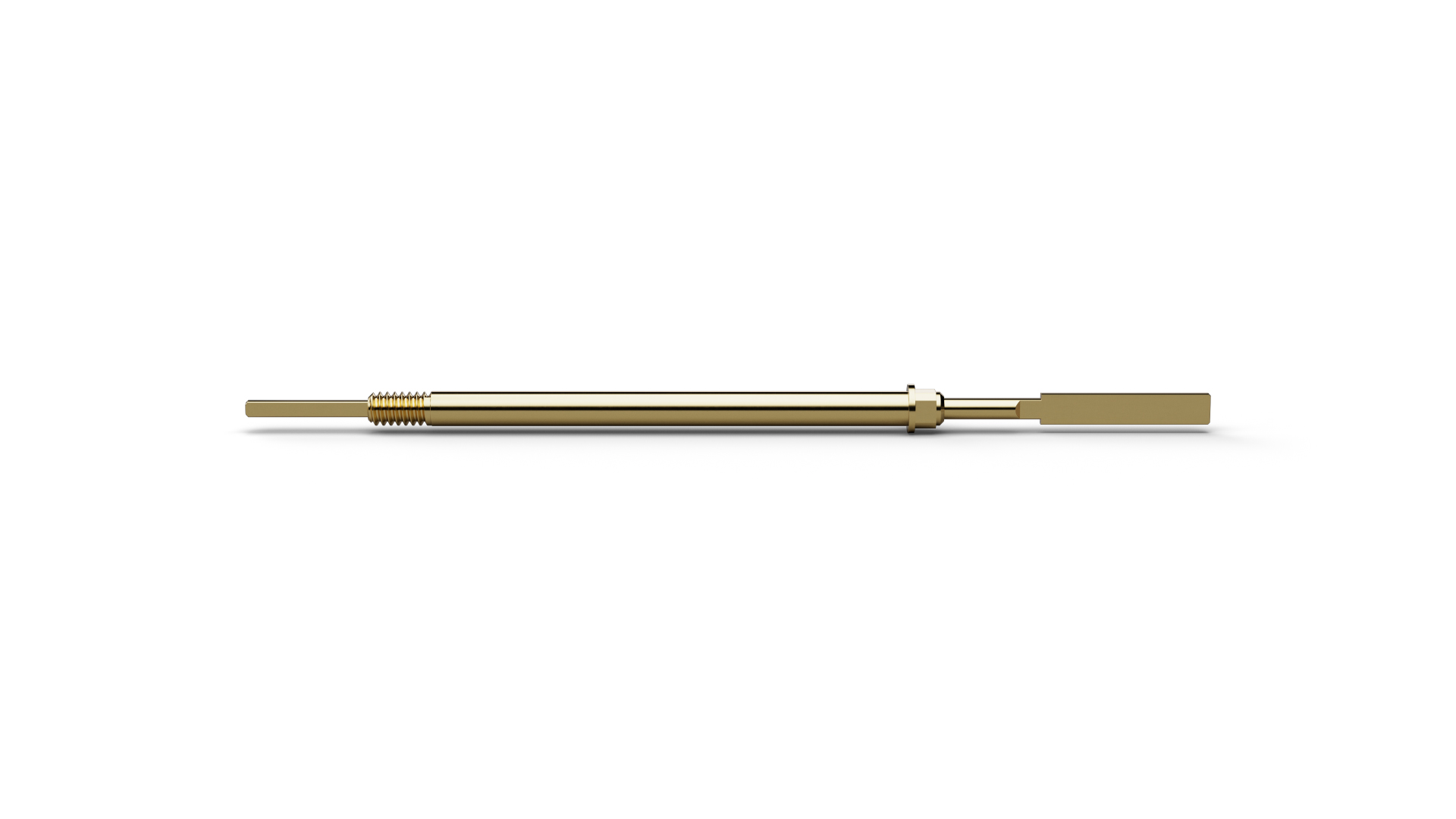

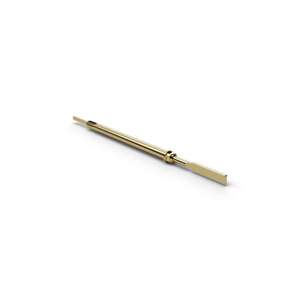

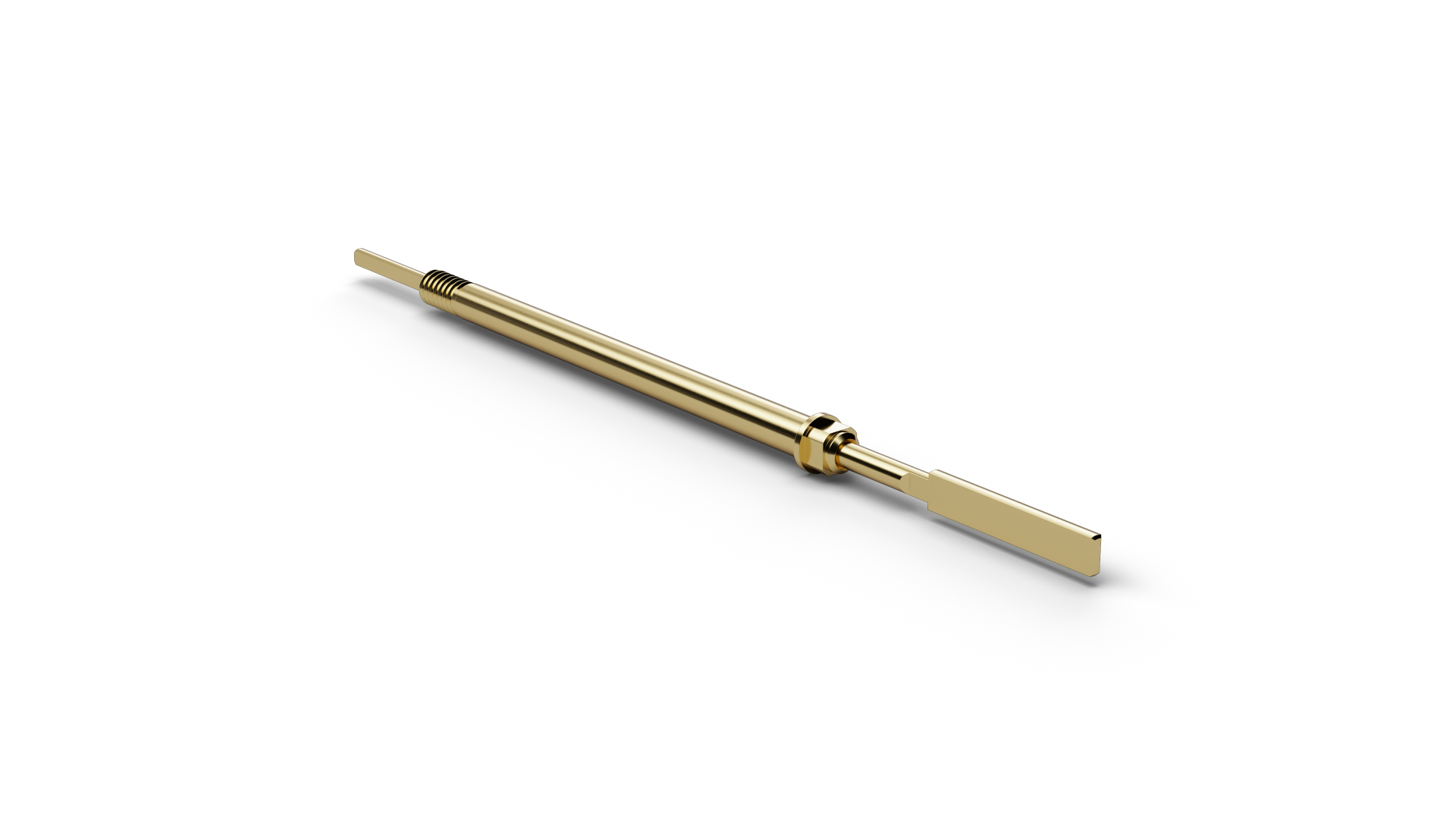

F75684B0011G150E14 (item number 1034075) belongs to the Twist Proof Probe range for repeatable connector tests with controlled tip orientation. On F75684B0011G150E14, tip style 84 (SpadeØ > plungerØ stepped) supports twist-proof contacting of connector elements whose orientation must be maintained in the test fixture. Orientation-relevant dimensions include spade diameter 1.5 mm, spade width 0.5 mm, spade length 8 mm. F75684B0011G150E14 combines a pitch of 2.54 mm / 100 mil with tip style 84 (SpadeØ > plungerØ stepped) and a tip diameter of 1.5 mm. F75684B0011G150E14 operates with 150 cN spring force and 4 mm nominal travel. For F75684B0011G150E14, the specified continuous current is 5 A.
