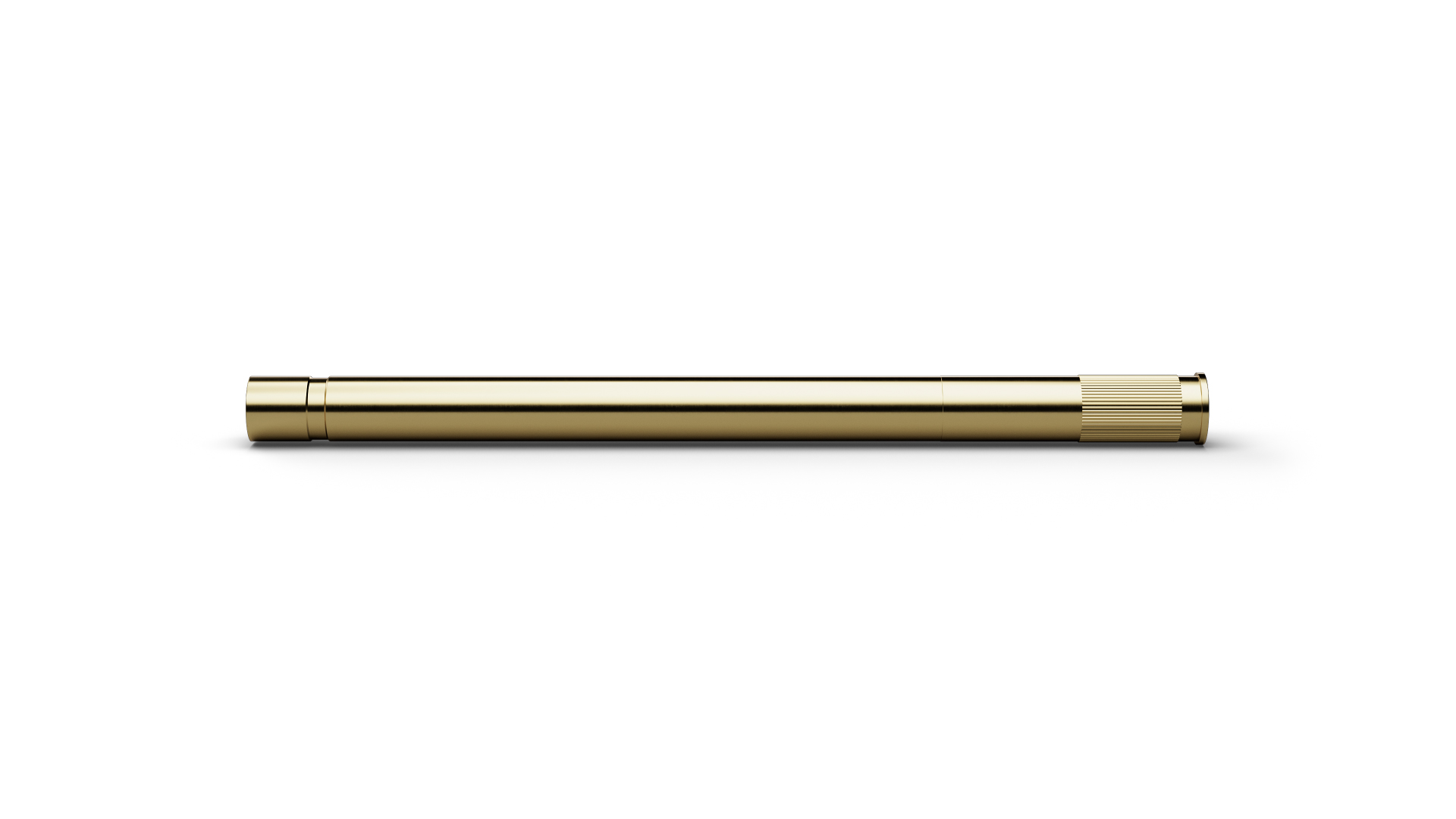

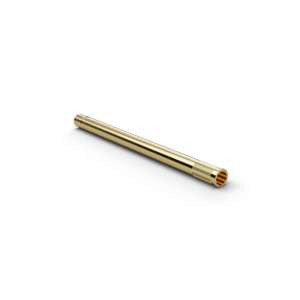

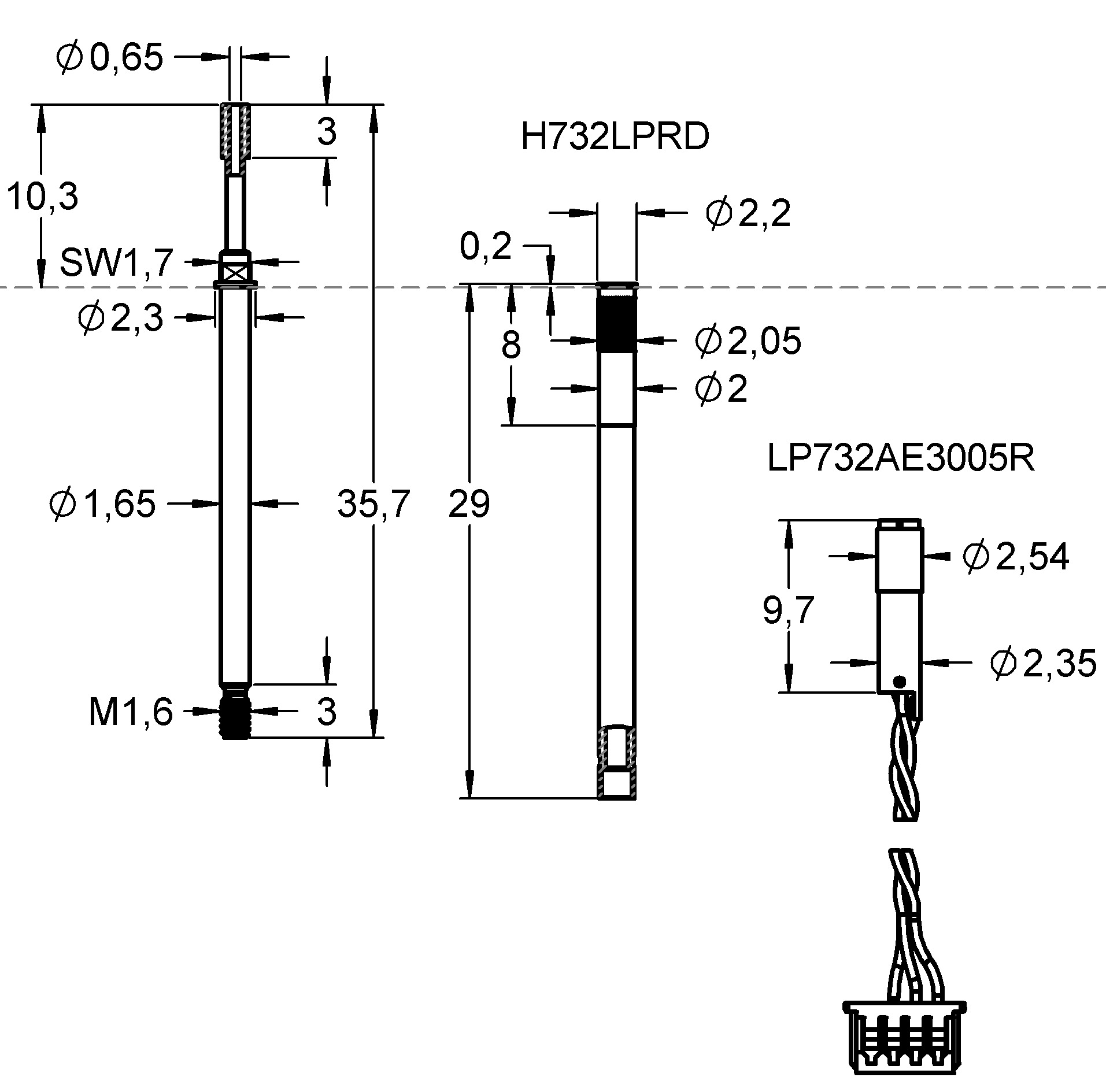

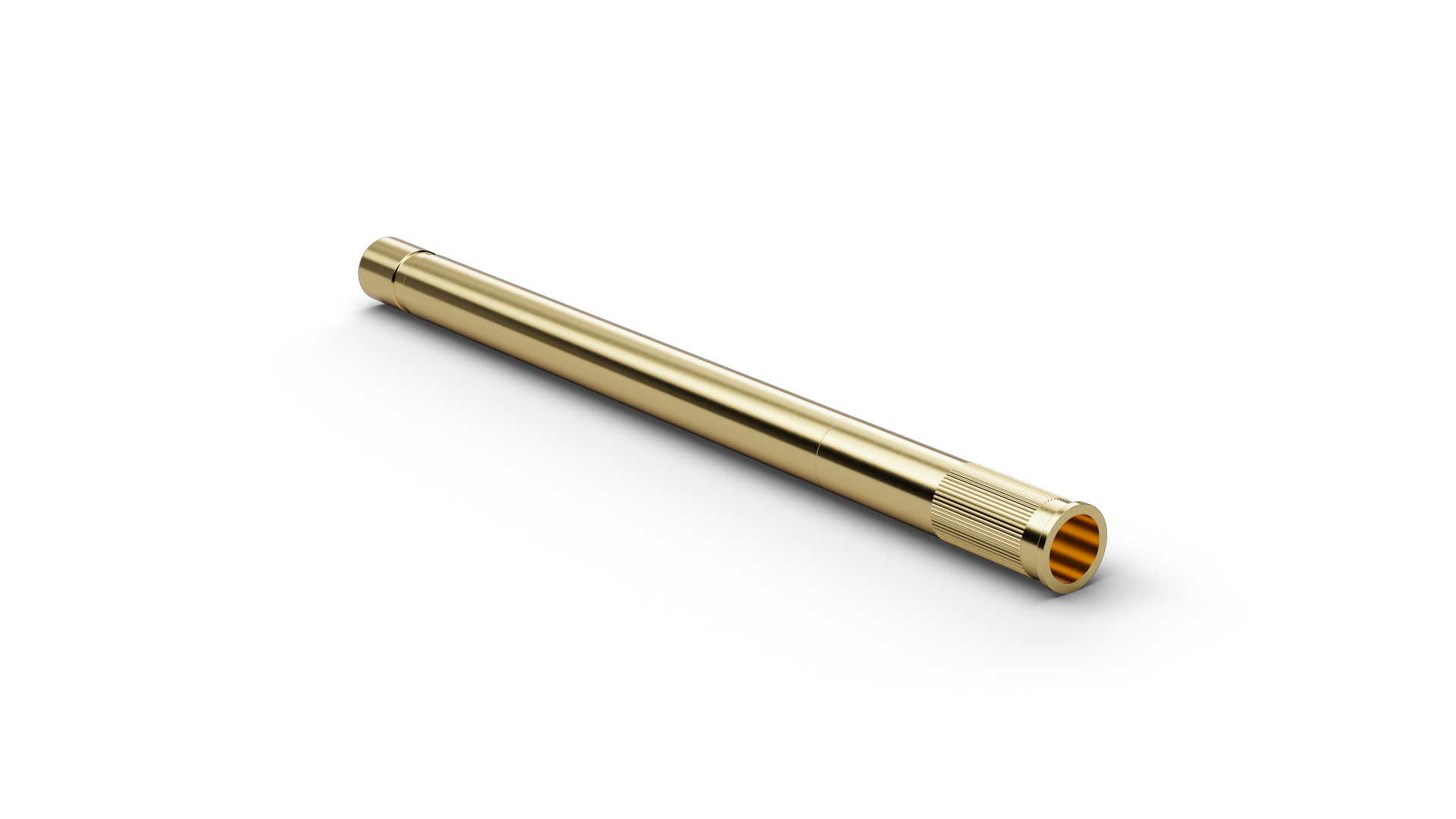

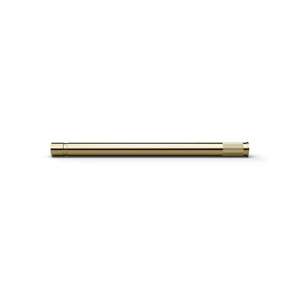

The receptacle H732LPRD (item number 1033607) guides and positions the associated special probe in a defined location within the fixture or contacting assembly. The Receptacle H732LPRD includes a knurled section for mechanical retention in the mounting bore. Key installation dimensions are outside diameter 2 mm, length 29 mm. The Receptacle H732LPRD is designed for a pitch of 2.54 mm / 100 mil. H732LPRD also has the following specified feature: The internal thread is 1.6. The Receptacle H732LPRD is made of brass and is gold-plated.
