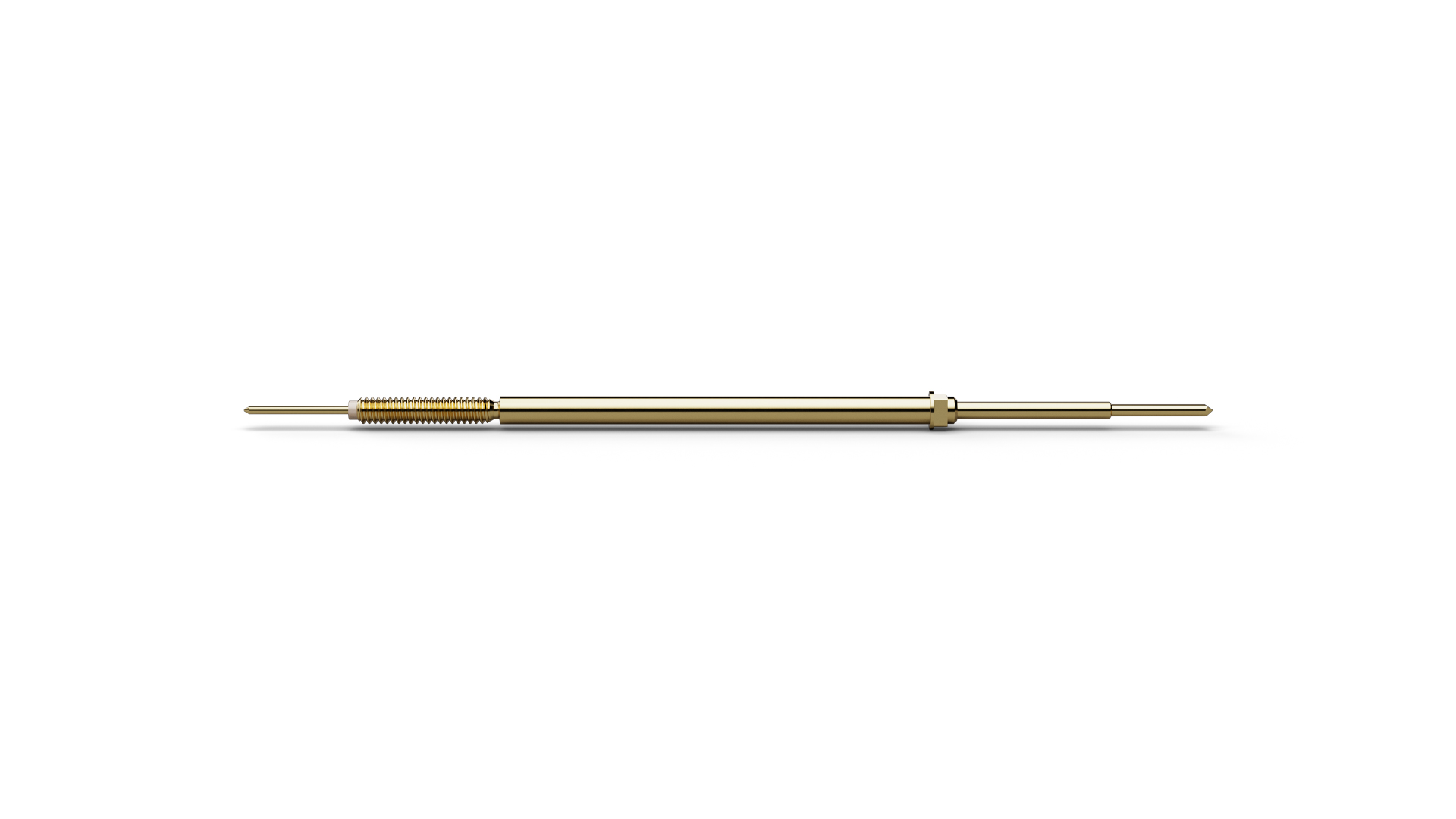

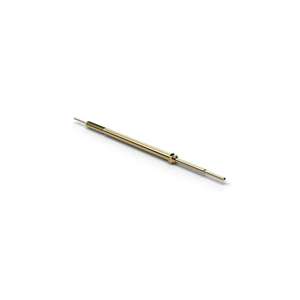

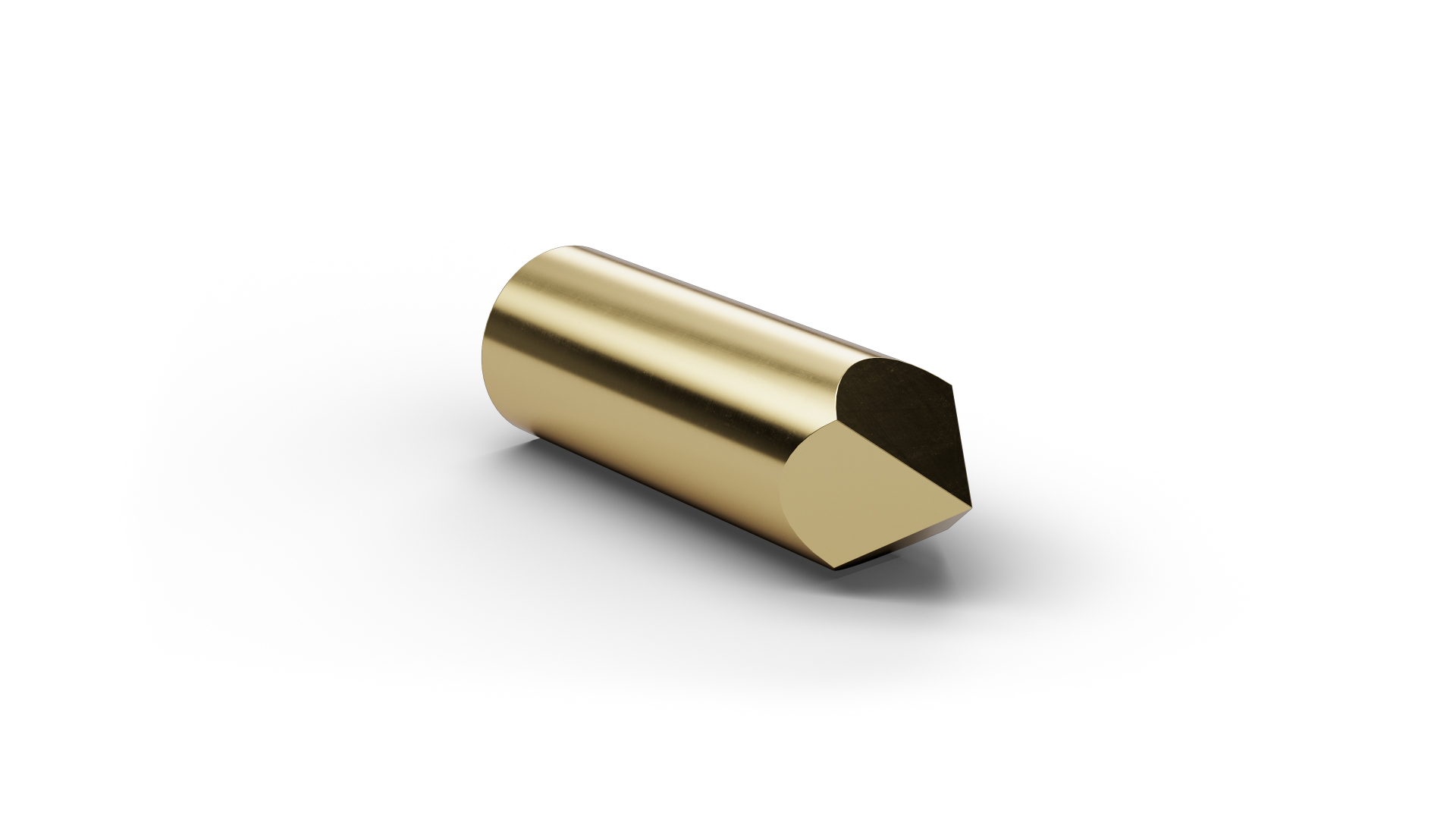

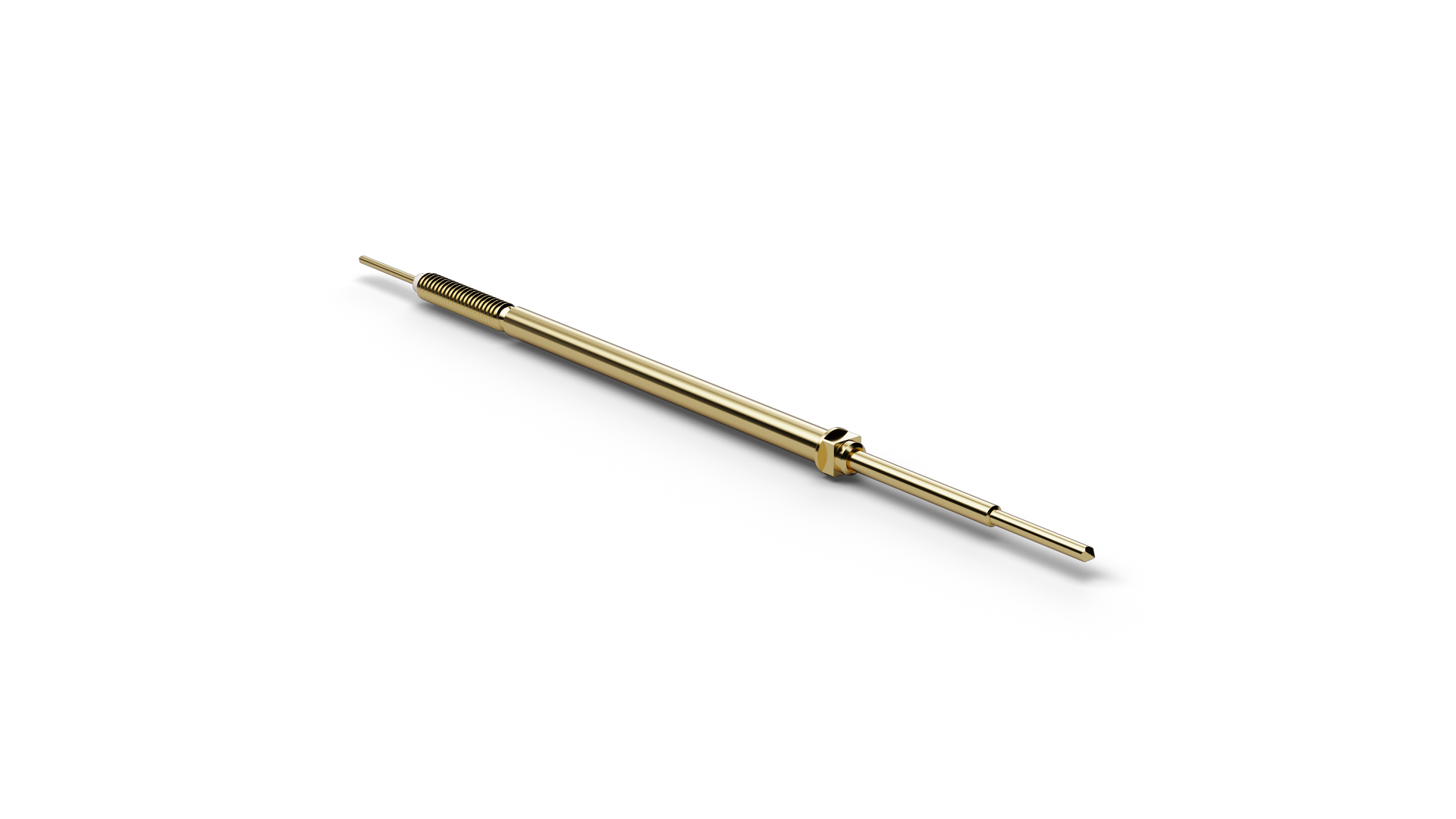

The Switch Probe F87547B070G135L (item number 1029608) combines spring-loaded contacting with a defined switching or sensing function. F87547B070G135L combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. The switch type specified for F87547B070G135L is NO (Normally Open). The switching travel specified for F87547B070G135L is 1.5 mm. The design combines a pitch of 2.54 mm / 100 mil with tip style 47 (Square 70°) and a tip diameter of 0.7 mm. For F87547B070G135L, spring force is 135 cN at a nominal travel of 4 mm.
