기술 데이터
| 일반 사항 | |
|---|---|
| 형태/계열 | H030 |
| 거리(mm/mil) | 0,75 / 30 |
| 치수 | |
|---|---|
| 전체 길이(mm) | 5.1 |
| 외경(mm) | 0.38 |
| 칼라 높이(mm) | 1 |
| 재료 및 표면 | |
|---|---|
| 재료, 코팅 | Brass, Gold |
| 기계적 사양 | |
|---|---|
| 연결 | Connection Element |

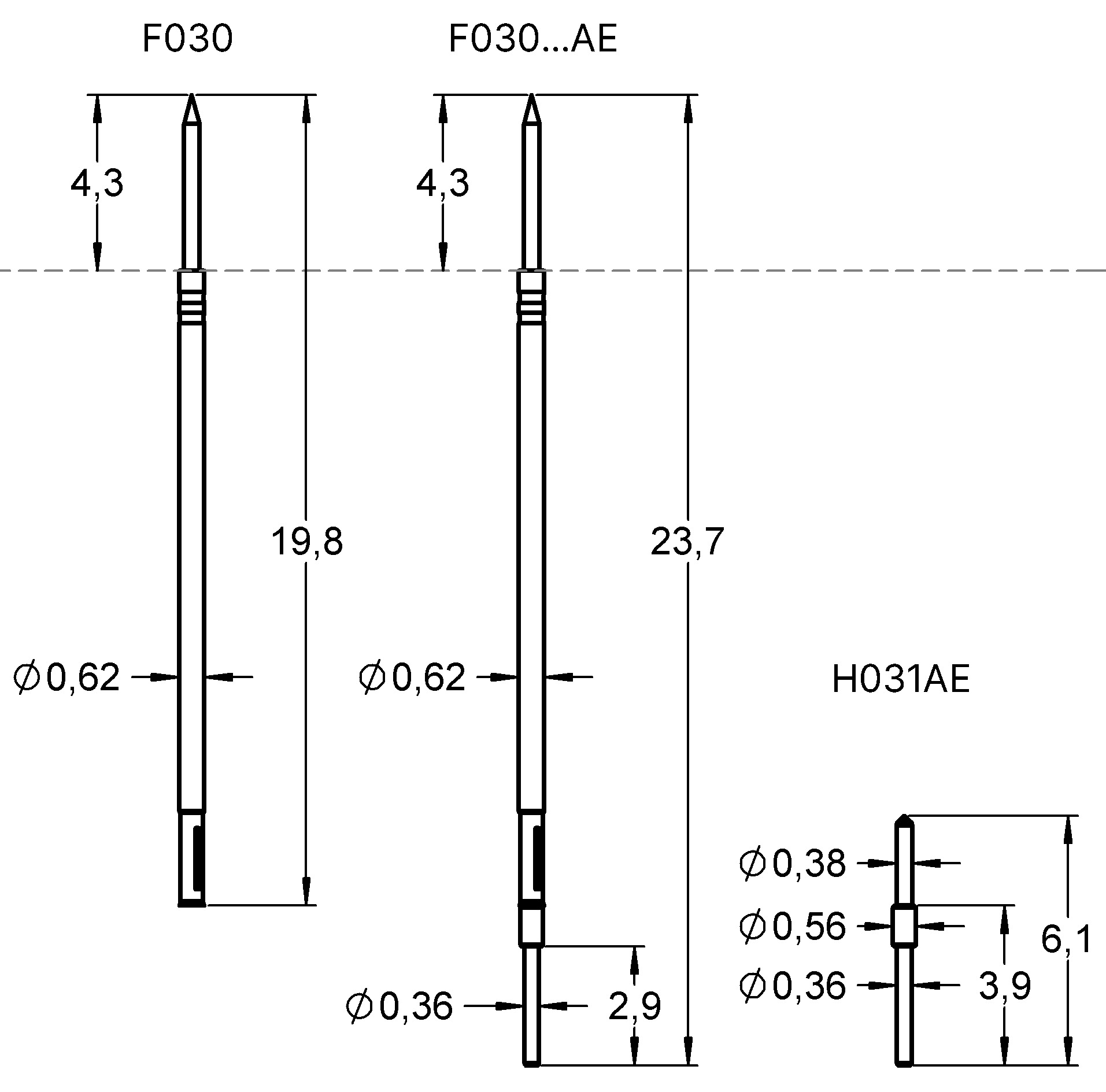

그래픽
Beschreibung des Produkts

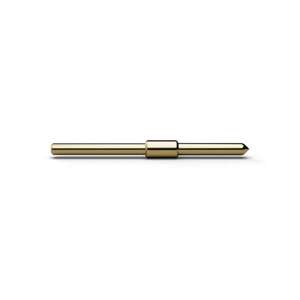

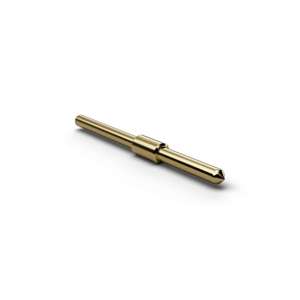

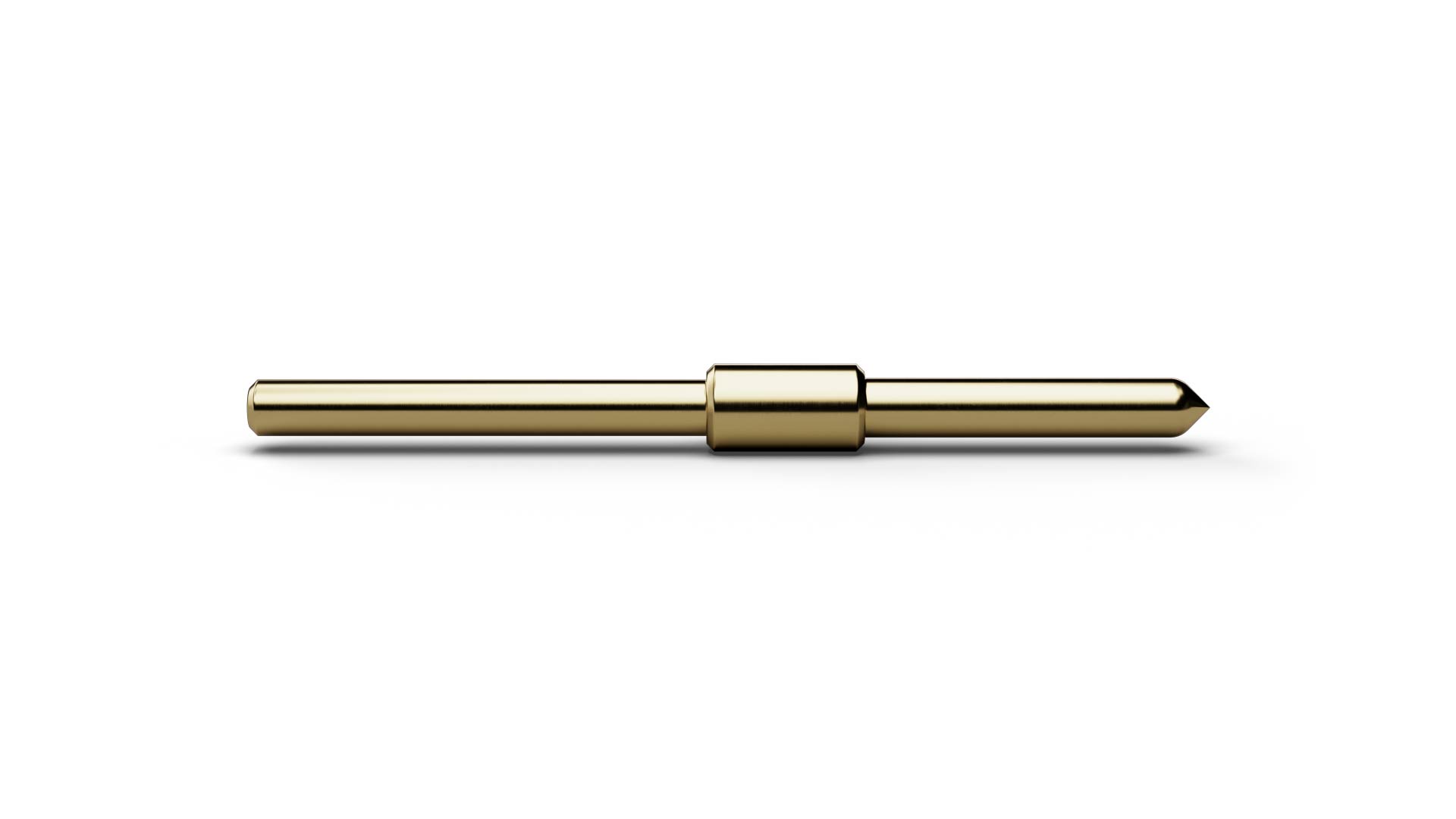

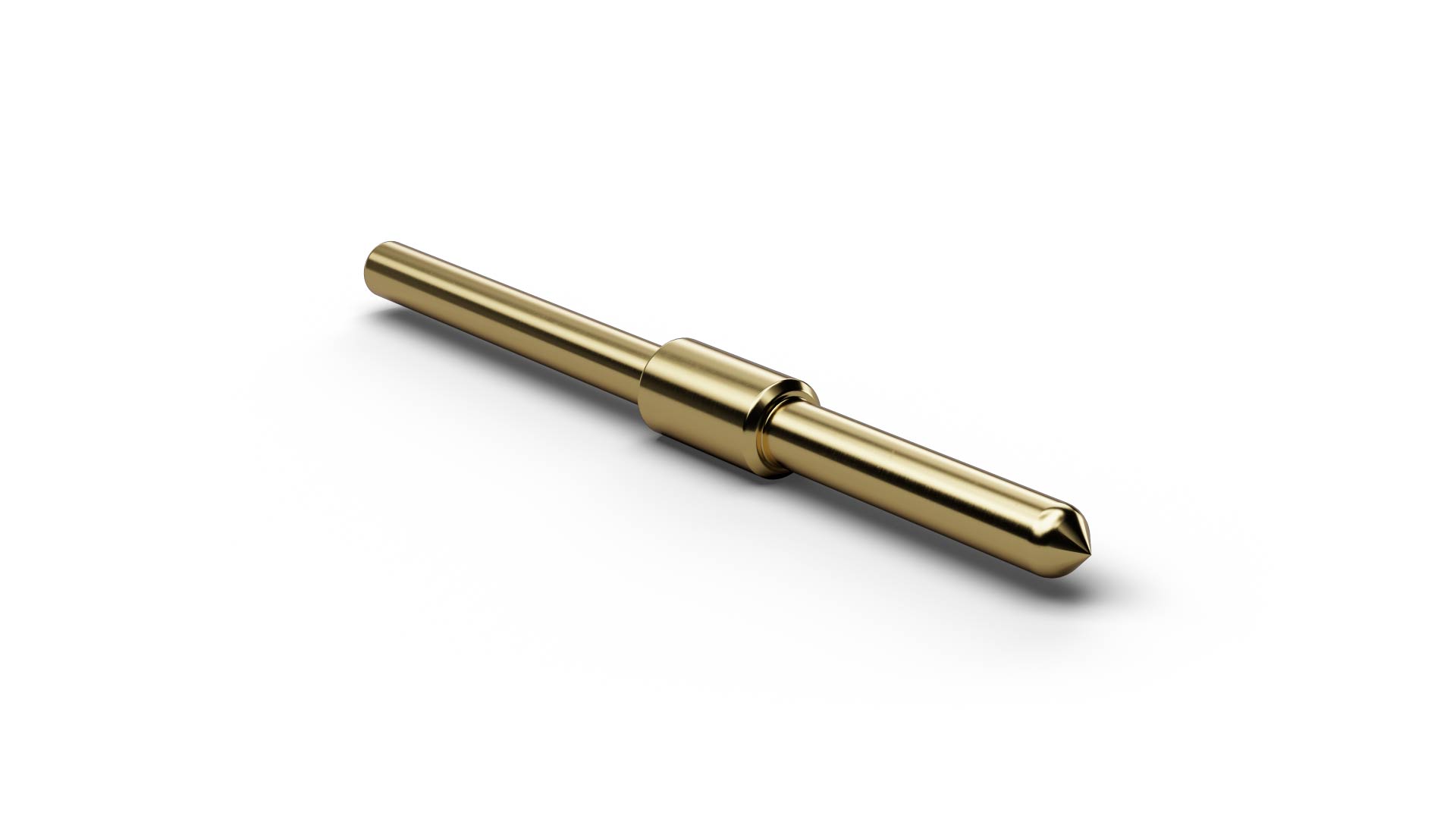

The receptacle H031AE (item number 1029337) guides and positions a compatible Contact Probe in a defined location within the fixture or contacting assembly. Within the contacting assembly, H031AE serves as the Receptacle connection element. Key installation dimensions are outside diameter 0.38 mm, length 5.1 mm. The receptacle is designed for a pitch of 0.75 mm / 30 mil. The Receptacle H031AE is made of brass and is gold-plated.
