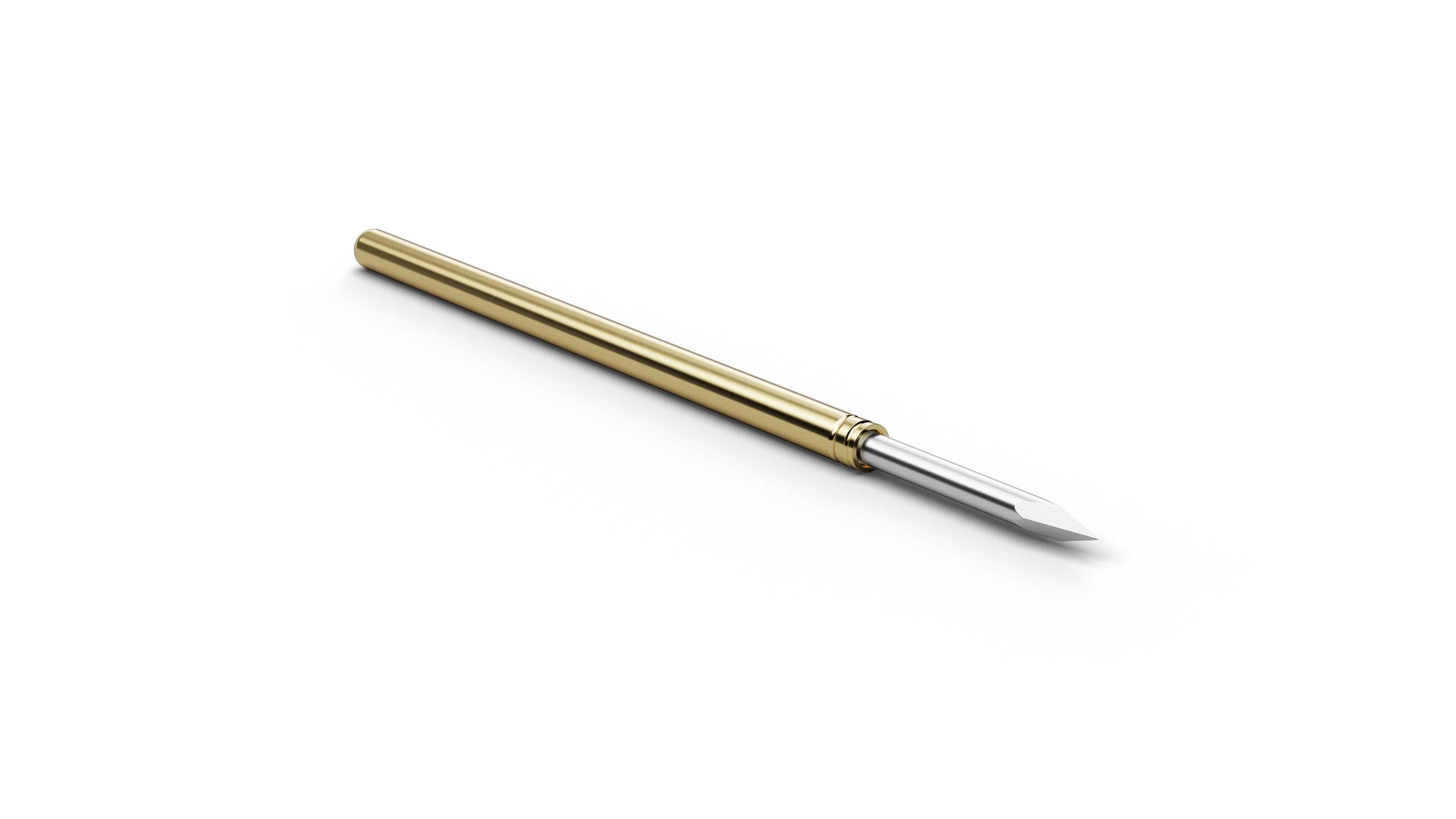

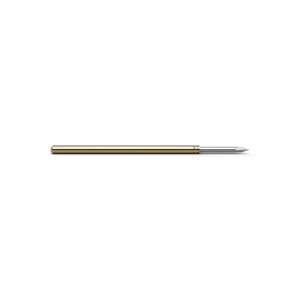

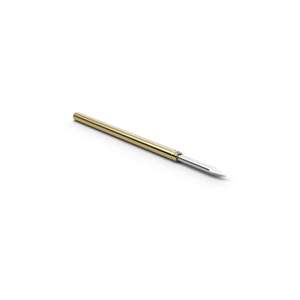

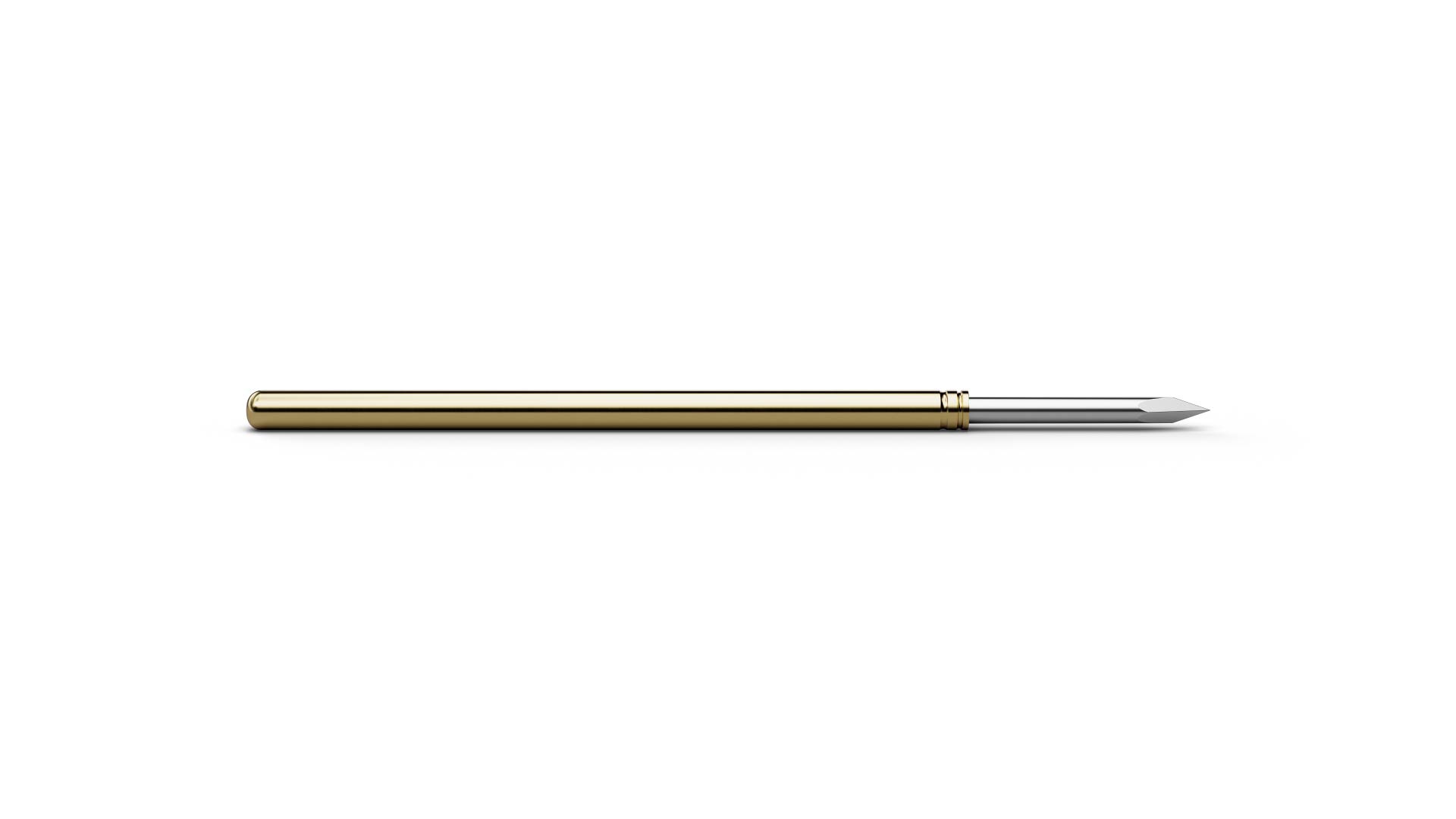

The Basic Contact Probe F10033S090P300 (item number 1026187) is a spring-loaded probe for temporary electrical contact with test points. With tip style 33 (Square lance 38°), F10033S090P300 combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F10033S090P300 combines a pitch of 2.54 mm / 100 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.9 mm. For F10033S090P300, spring force is 300 cN at a nominal travel of 4.3 mm. The electrical rating of F10033S090P300 combines 5 A continuous current with 20 mΩ typical contact resistance. The plunger in F10033S090P300 is made of steel and uses Progressive Coating.
