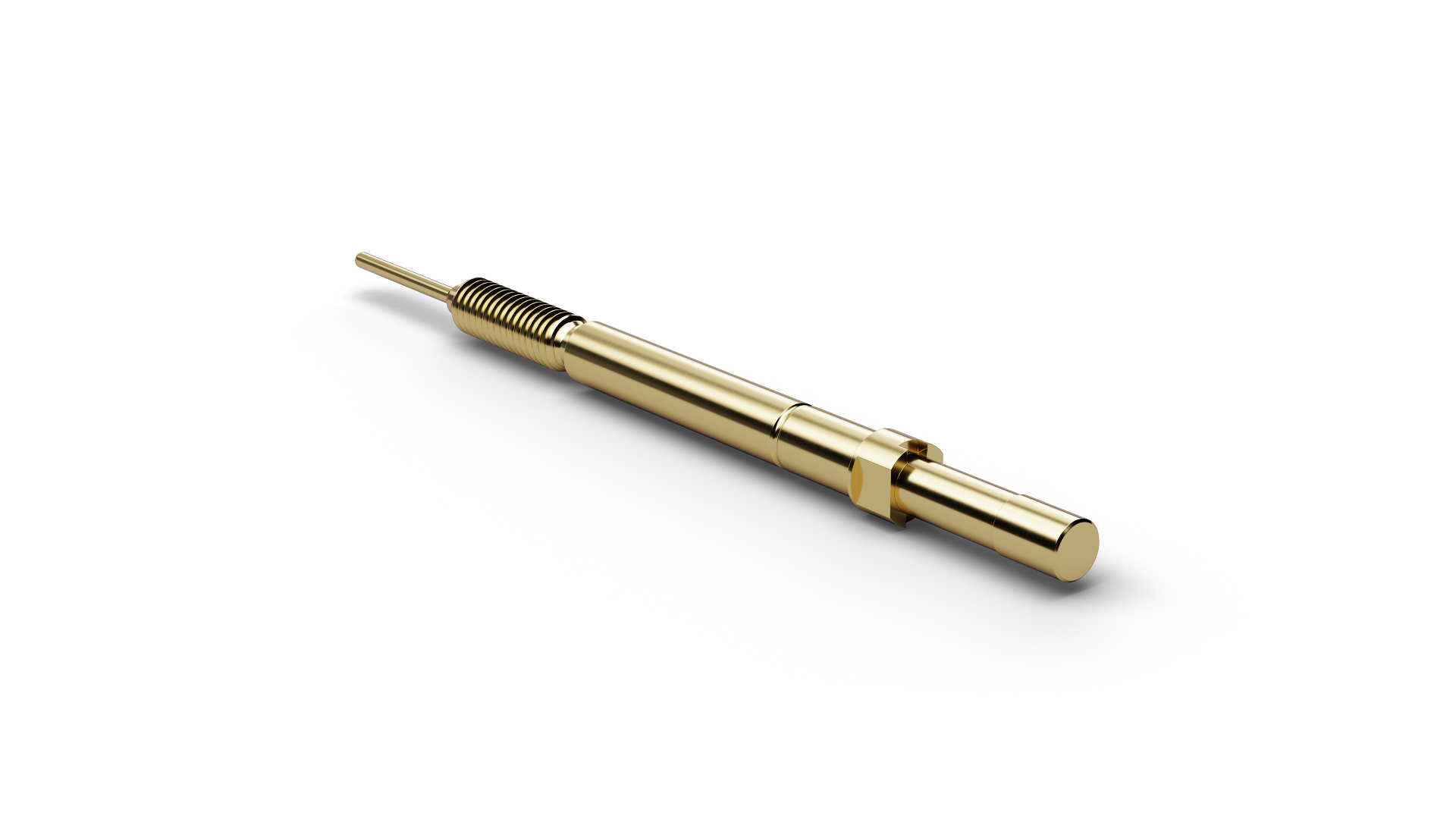

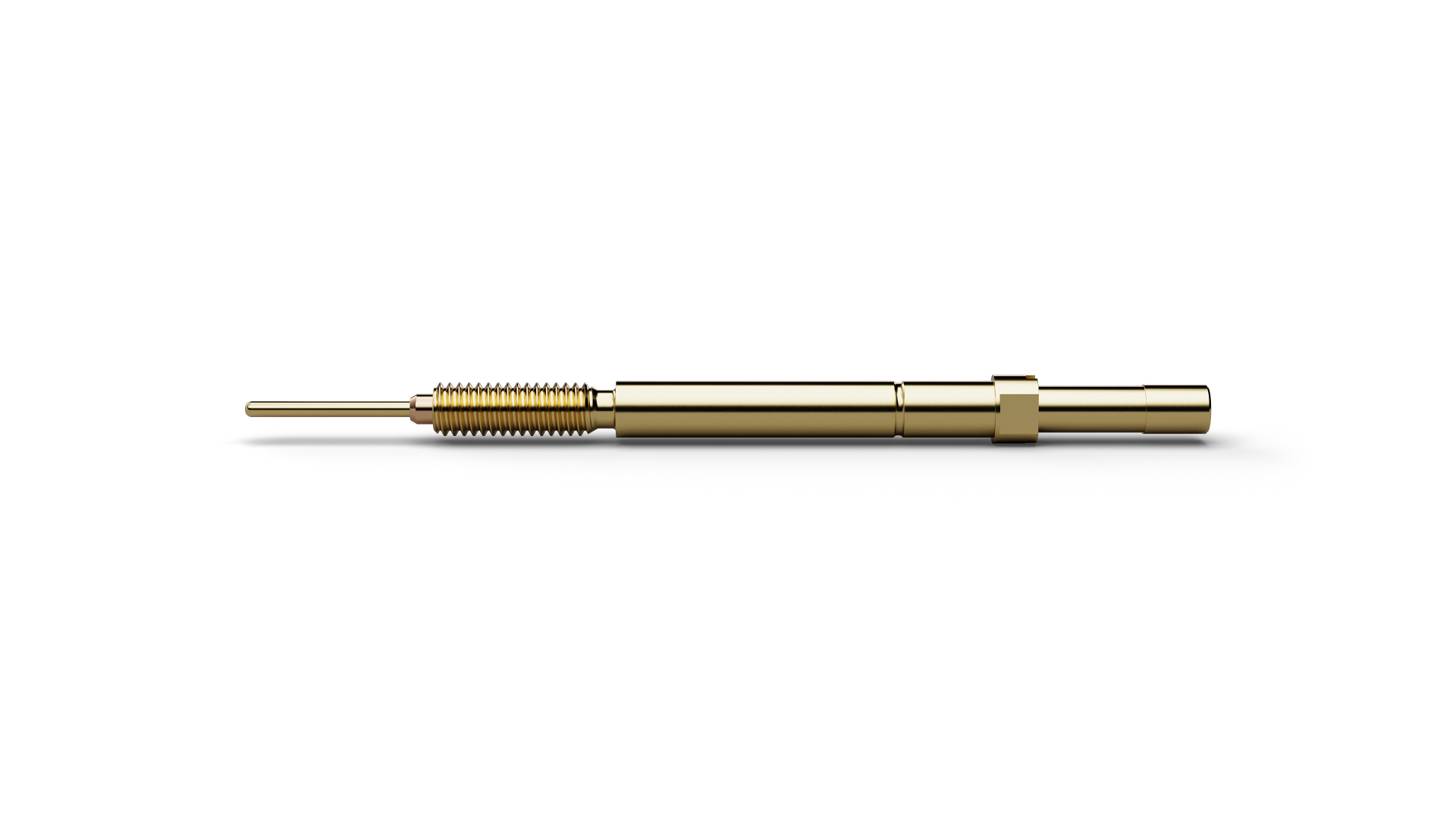

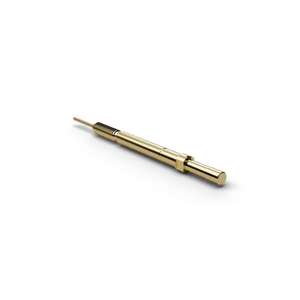

F88517B230G080SM (item number 1023654) belongs to the Switch Probe range and generates an electrical signal at a defined actuation travel. F88517B230G080SM combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. The switch type specified for F88517B230G080SM is NO (Normally Open). The switching travel specified for F88517B230G080SM is 1.7 mm. F88517B230G080SM combines a pitch of 3.5 mm / 138 mil with tip style 17 (Flat stepped) and a tip diameter of 2.3 mm. F88517B230G080SM operates with 80 cN spring force and 4 mm nominal travel.
