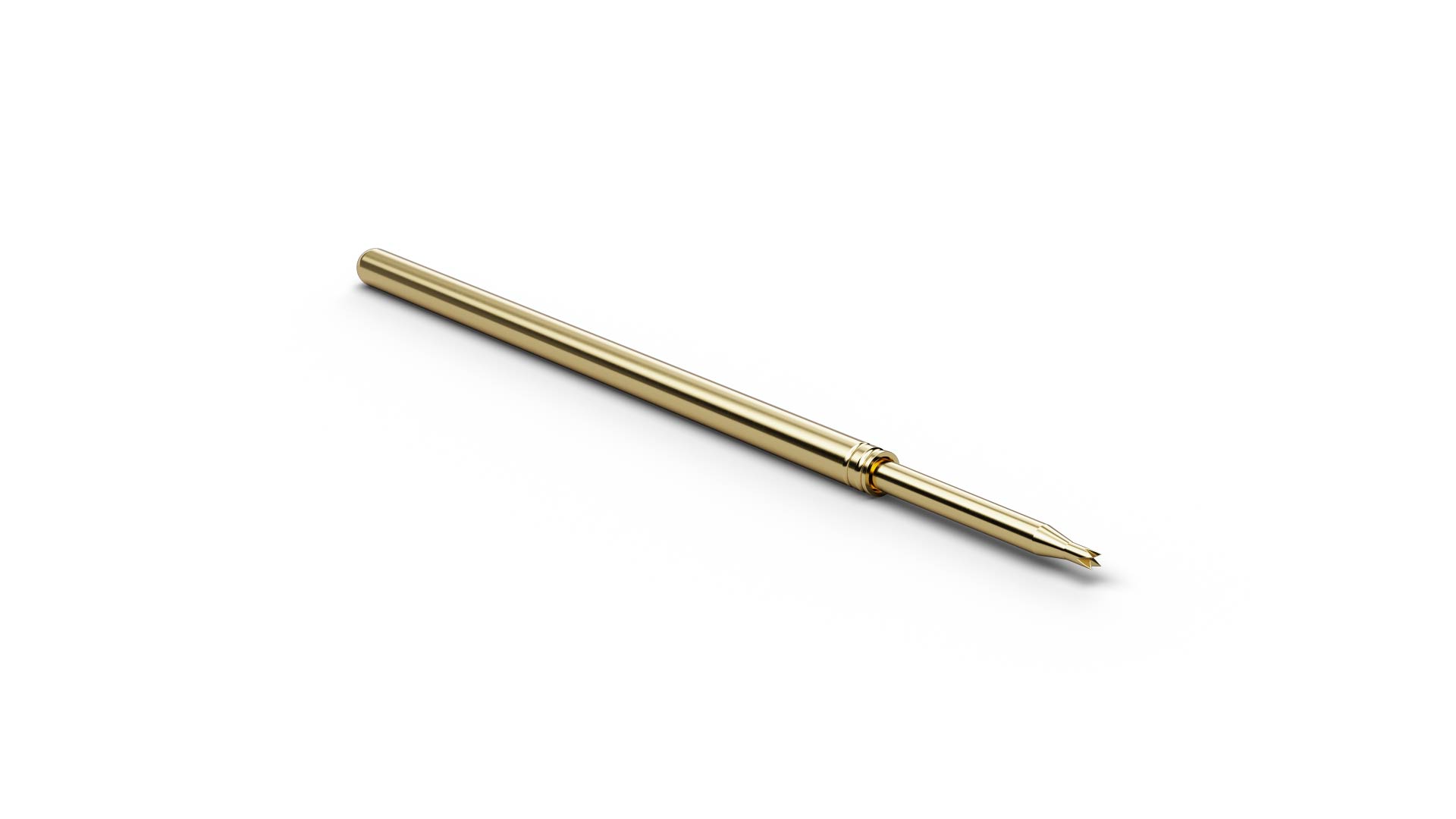

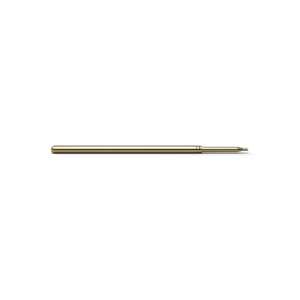

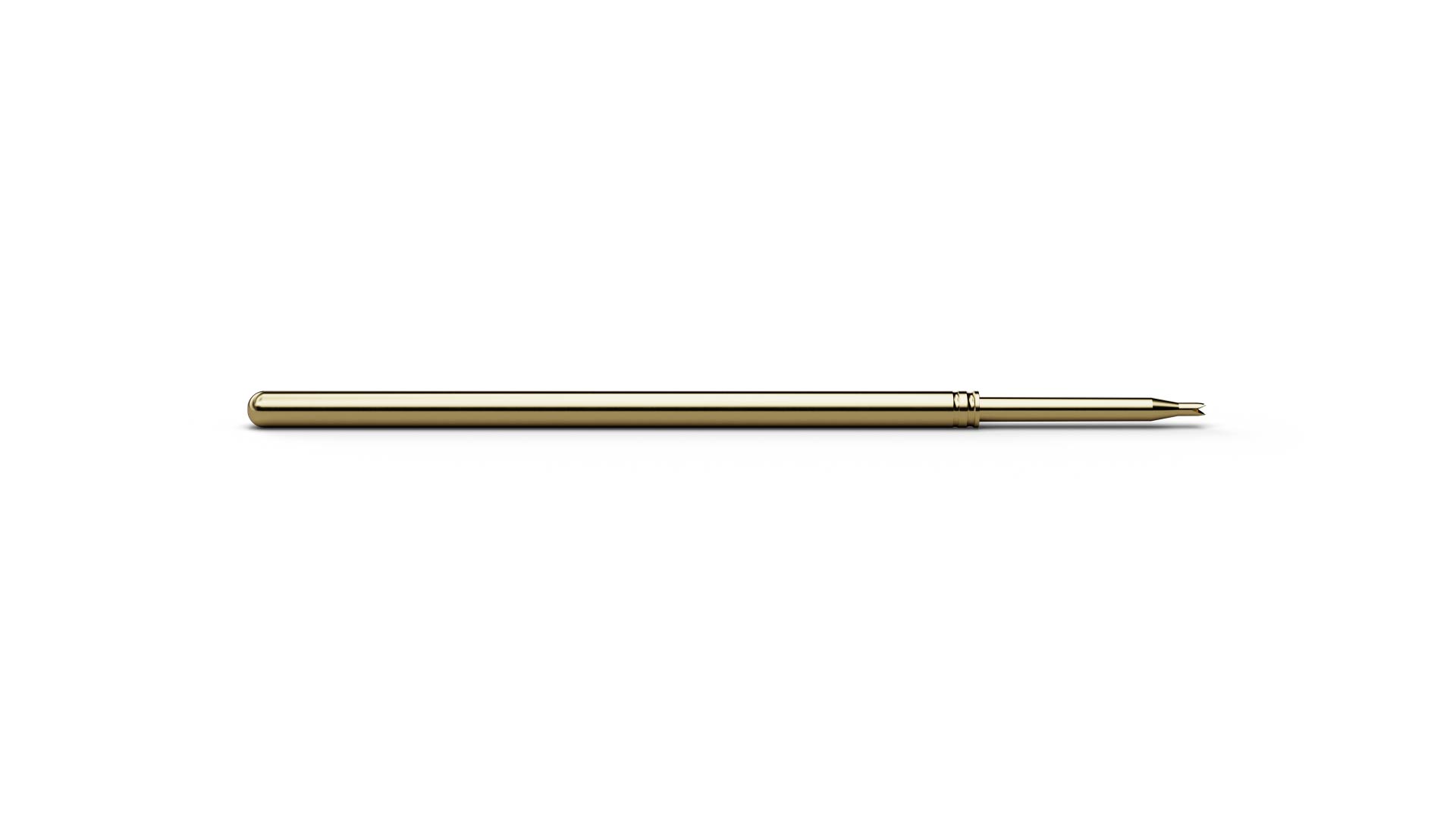

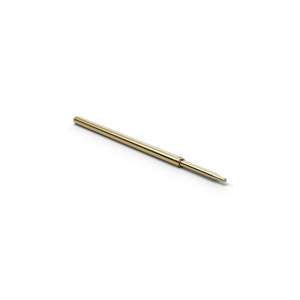

F10037S050L100L (item number 1017466) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 37 (4-point crown stepped), F10037S050L100L combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F10037S050L100L combines a pitch of 2.54 mm / 100 mil with tip style 37 (4-point crown stepped) and a tip diameter of 0.5 mm. F10037S050L100L operates with 100 cN spring force and 4.3 mm nominal travel. F10037S050L100L is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F10037S050L100L is made of steel and uses Longtime Gold plating.
