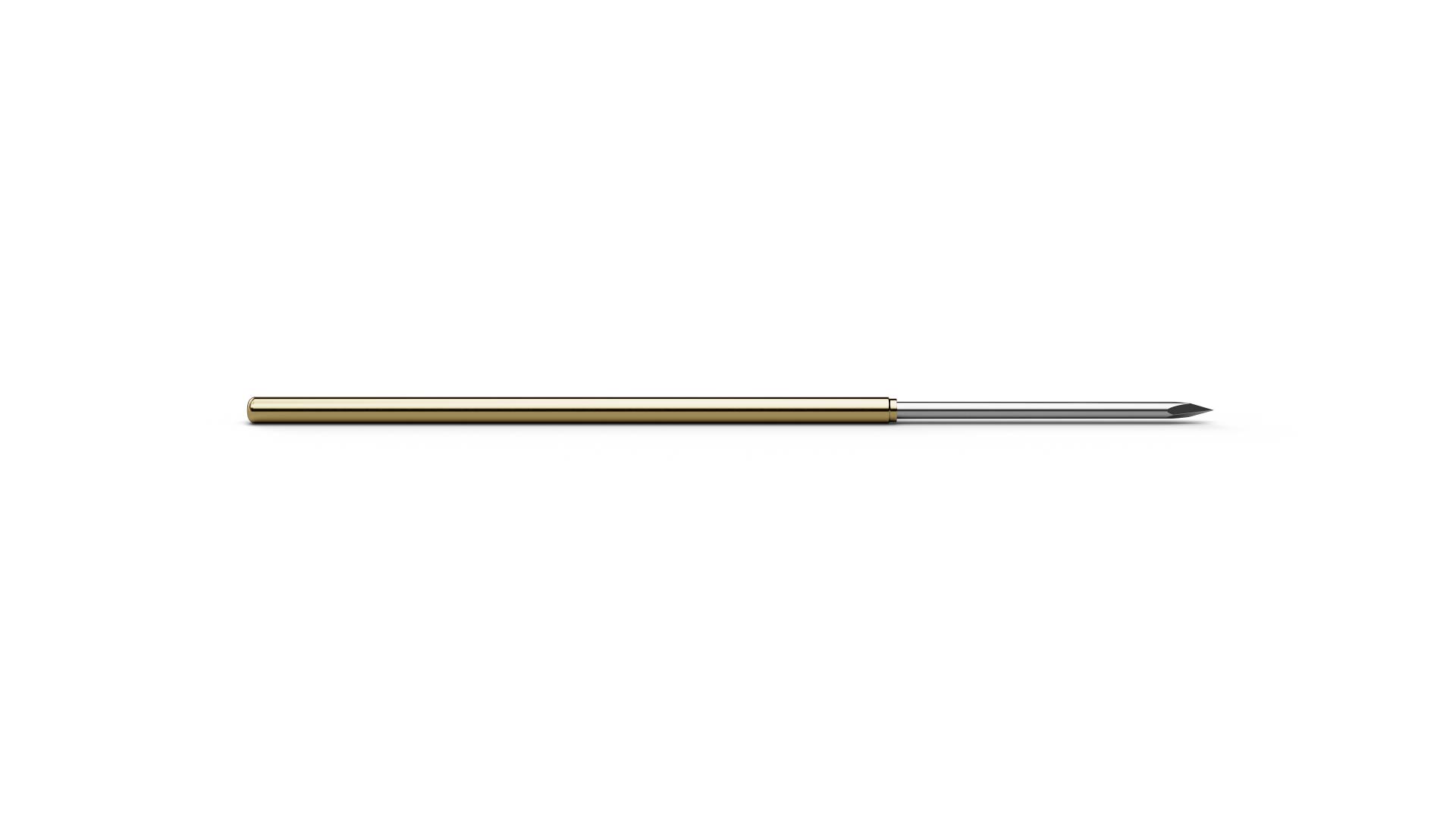

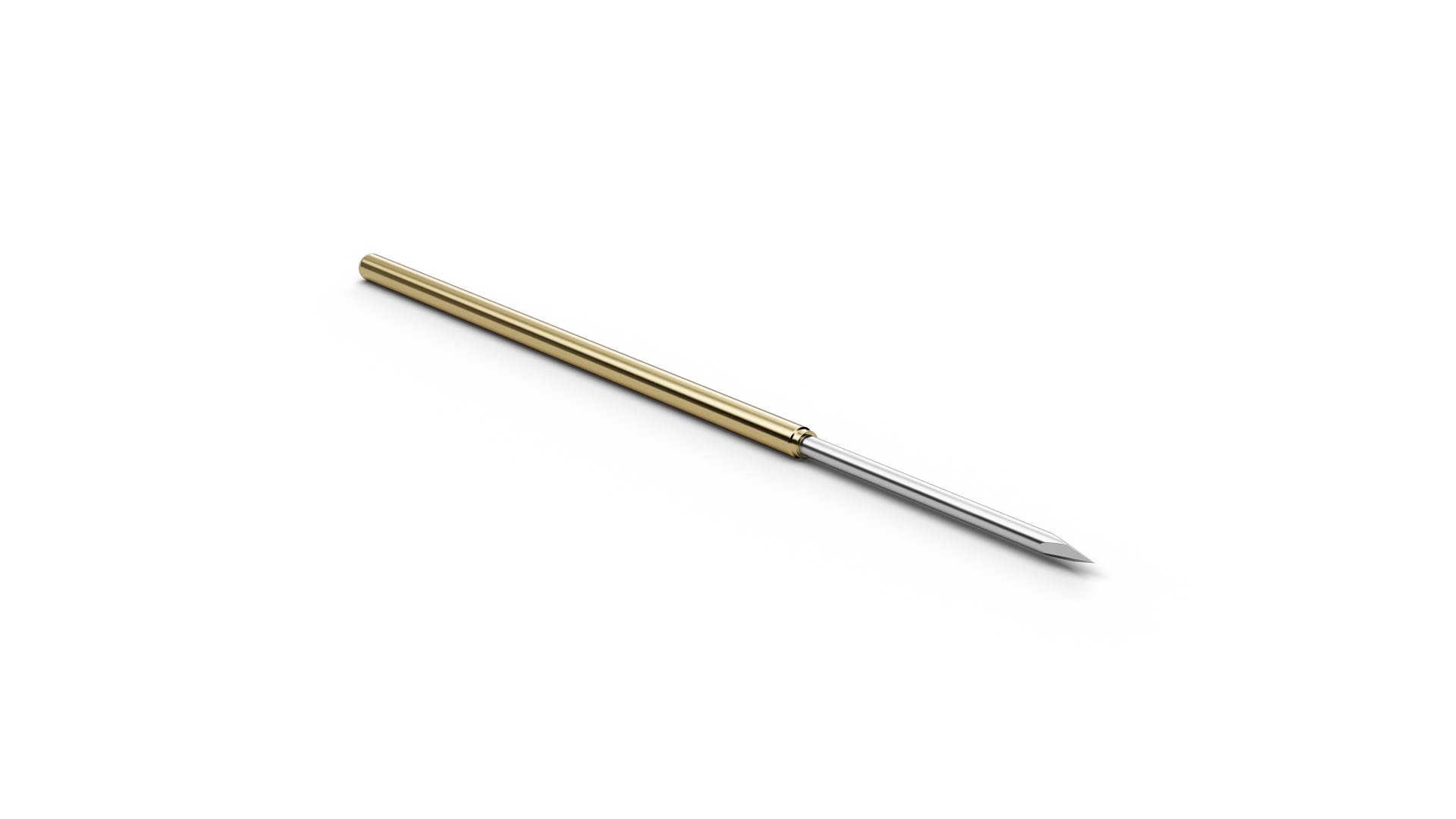

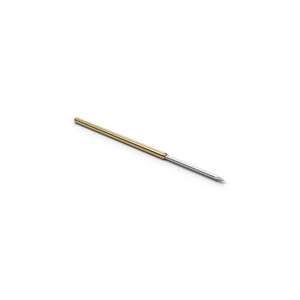

F79333S064P250HP (item number 1013301) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 33 (Square lance 38°), F79333S064P250HP combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F79333S064P250HP combines a pitch of 1.9 mm / 75 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.64 mm. For F79333S064P250HP, spring force is 250 cN at a nominal travel of 8 mm. F79333S064P250HP is rated for 4 A continuous current with a typical contact resistance of 20 mΩ. On F79333S064P250HP, Progressive Coating works together with the higher preload of the HP version, targeting test points affected by OSP, flux, oxidation or other contamination rather than treating the coating as an isolated feature.
