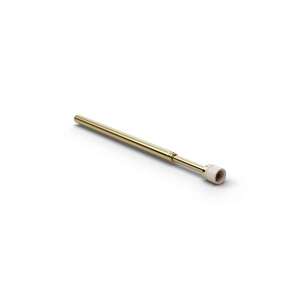

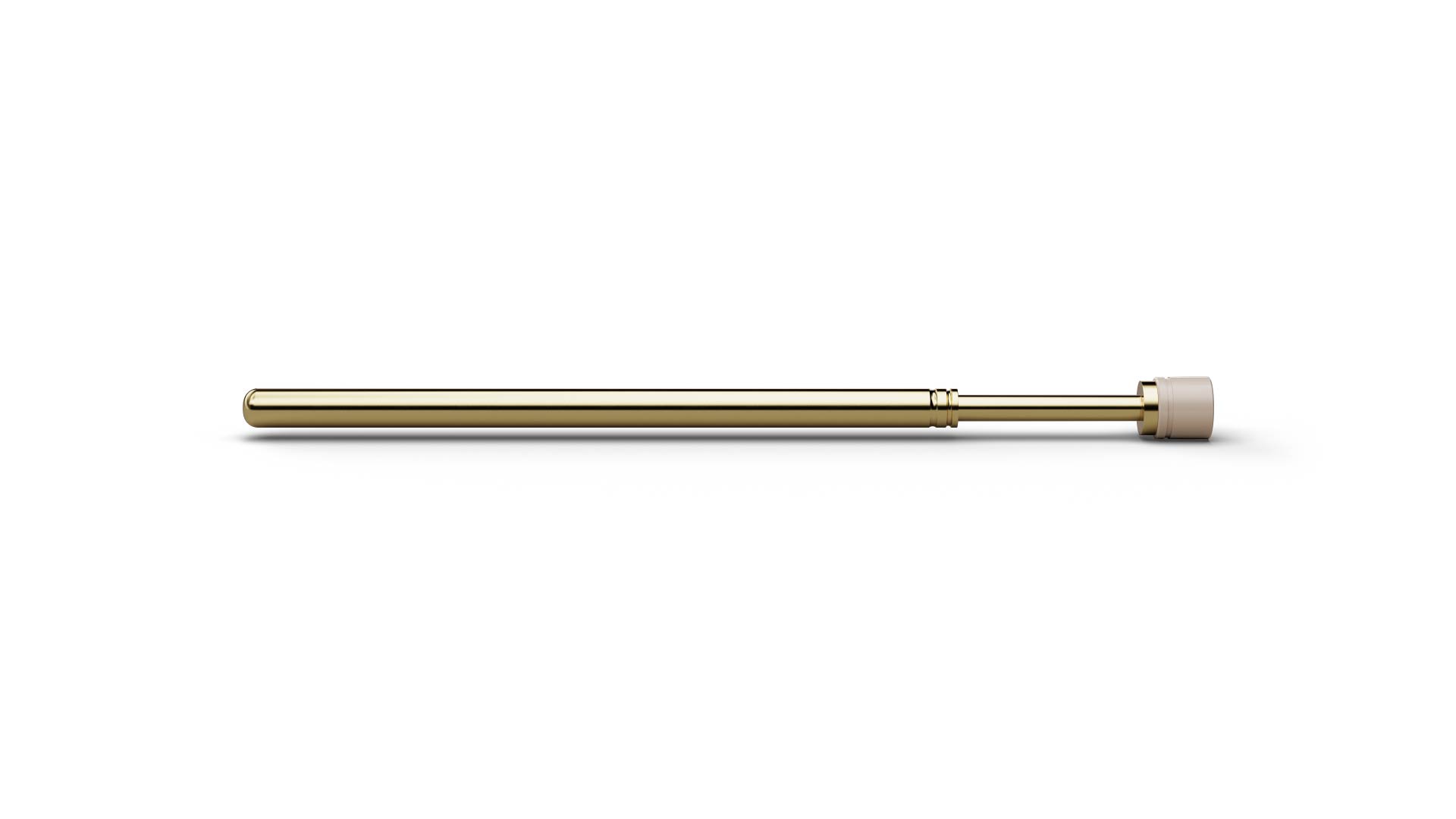

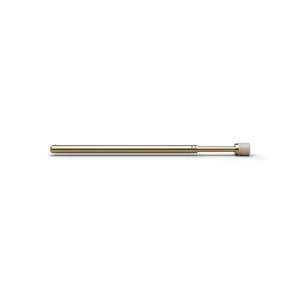

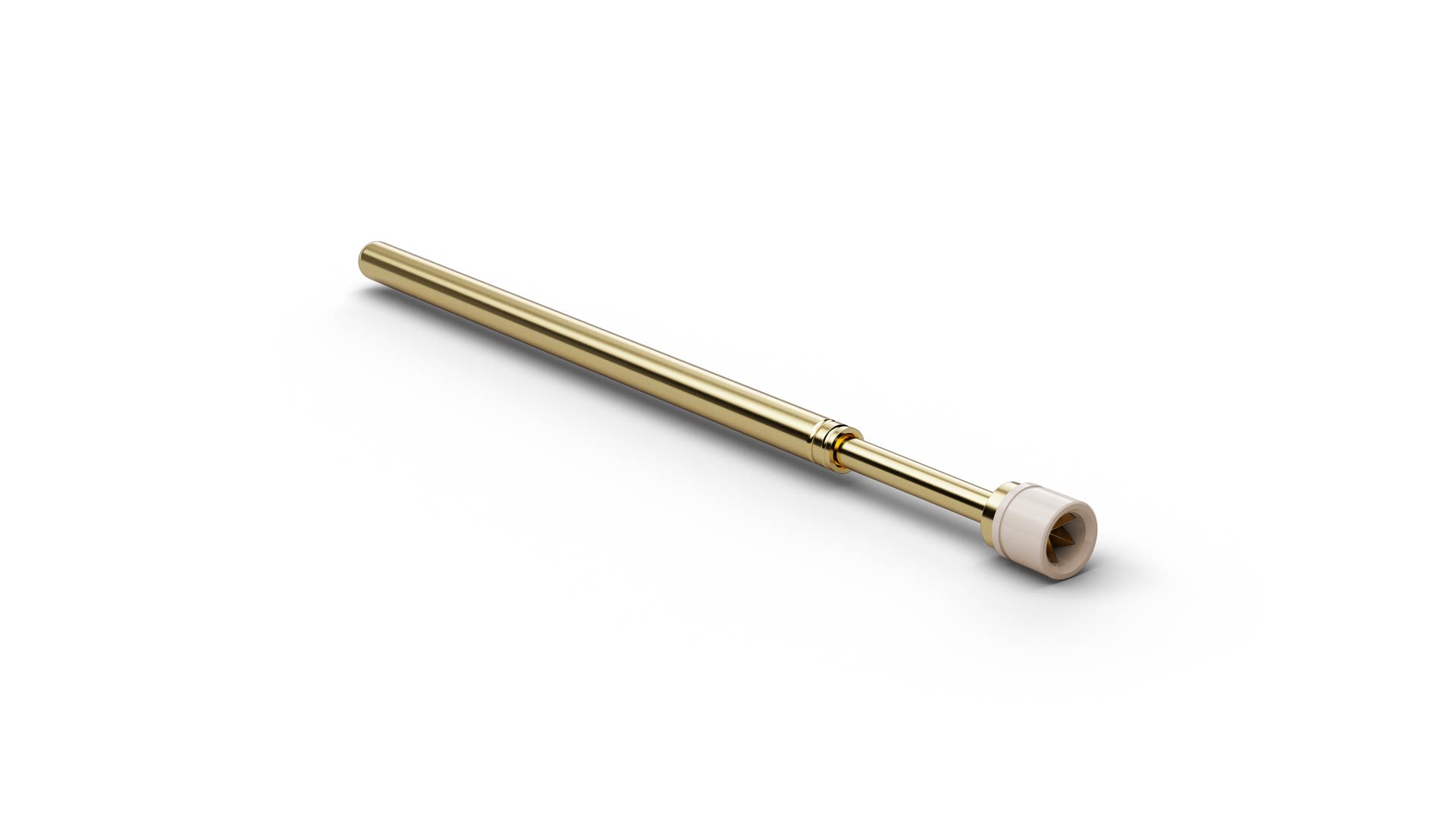

The Basic Contact Probe F10041B150G300IK04 (item number 1012770) is a spring-loaded probe for temporary electrical contact with test points. With tip style 41 (6-point crown stepped (self-cleaning)), F10041B150G300IK04 combines ICT/FCT use with a geometry intended for wire-wrap posts, including contacts that are slightly bent or twisted. F10041B150G300IK04 combines a pitch of 2.54 mm / 100 mil with tip style 41 (6-point crown stepped (self-cleaning)) and a tip diameter of 1.5 mm. F10041B150G300IK04 operates with 300 cN spring force and 4.3 mm nominal travel. The electrical rating of F10041B150G300IK04 combines 5 A continuous current with 20 mΩ typical contact resistance. The plunger in F10041B150G300IK04 is made of beryllium copper and is gold-plated.
