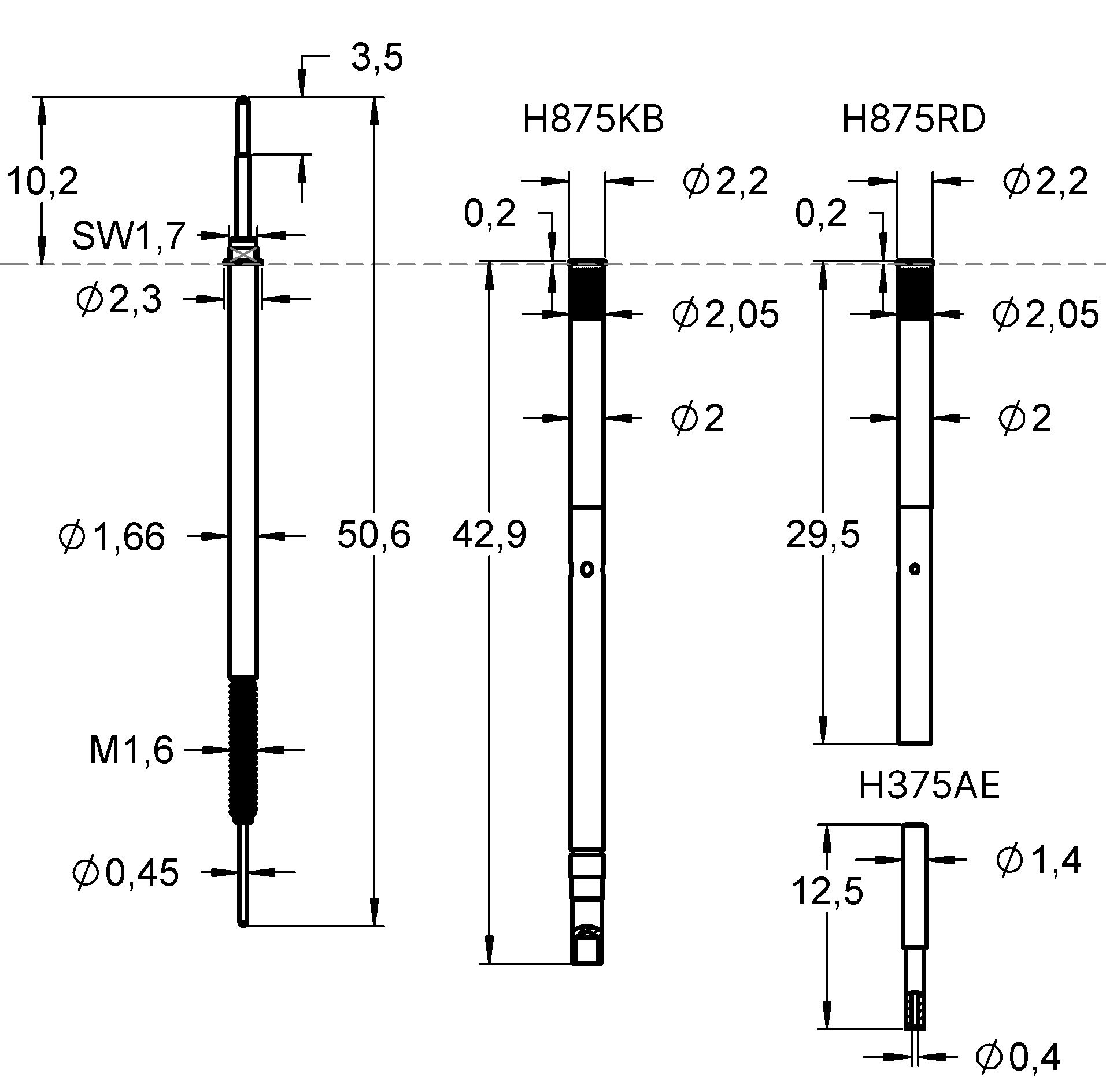

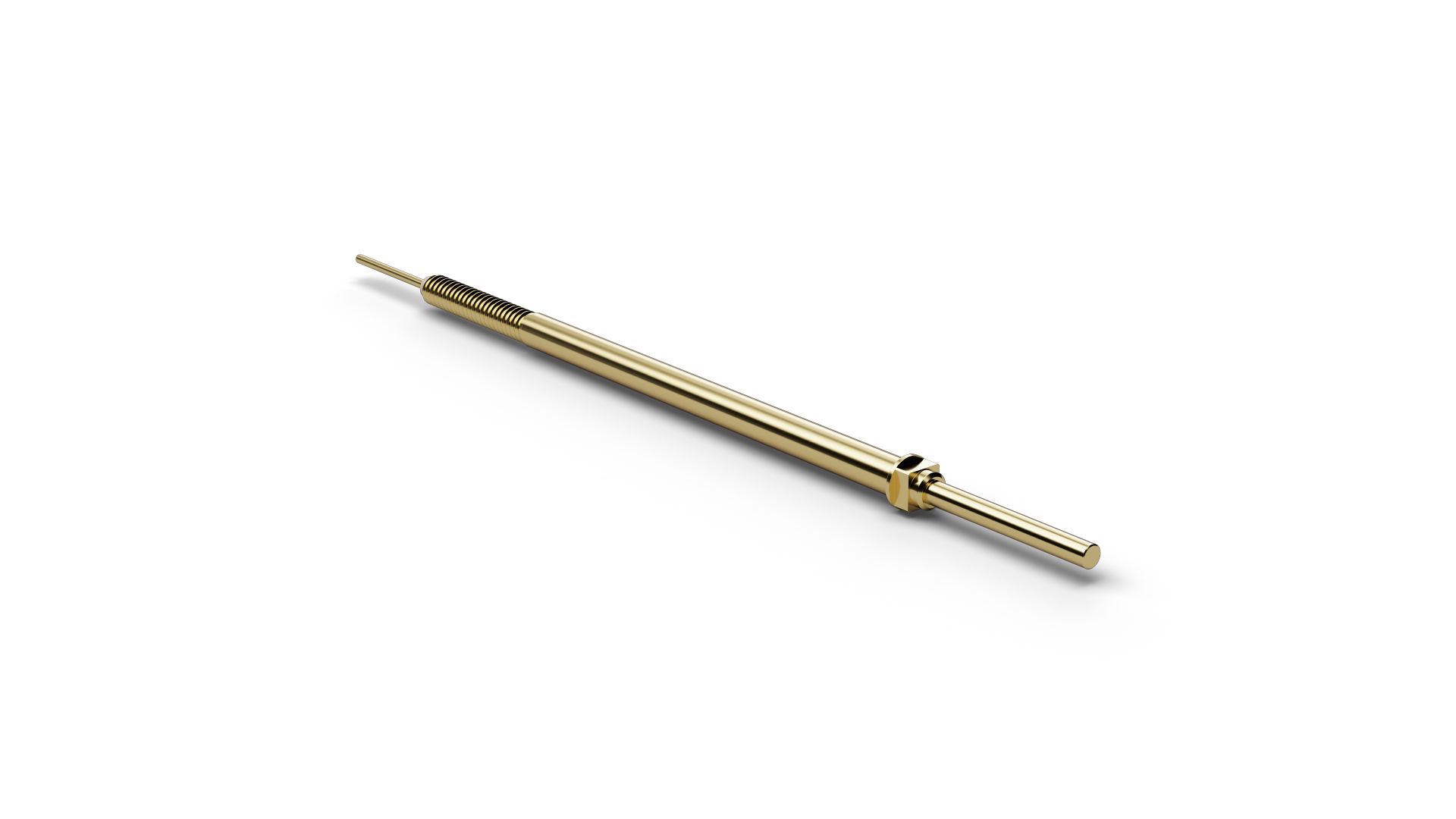

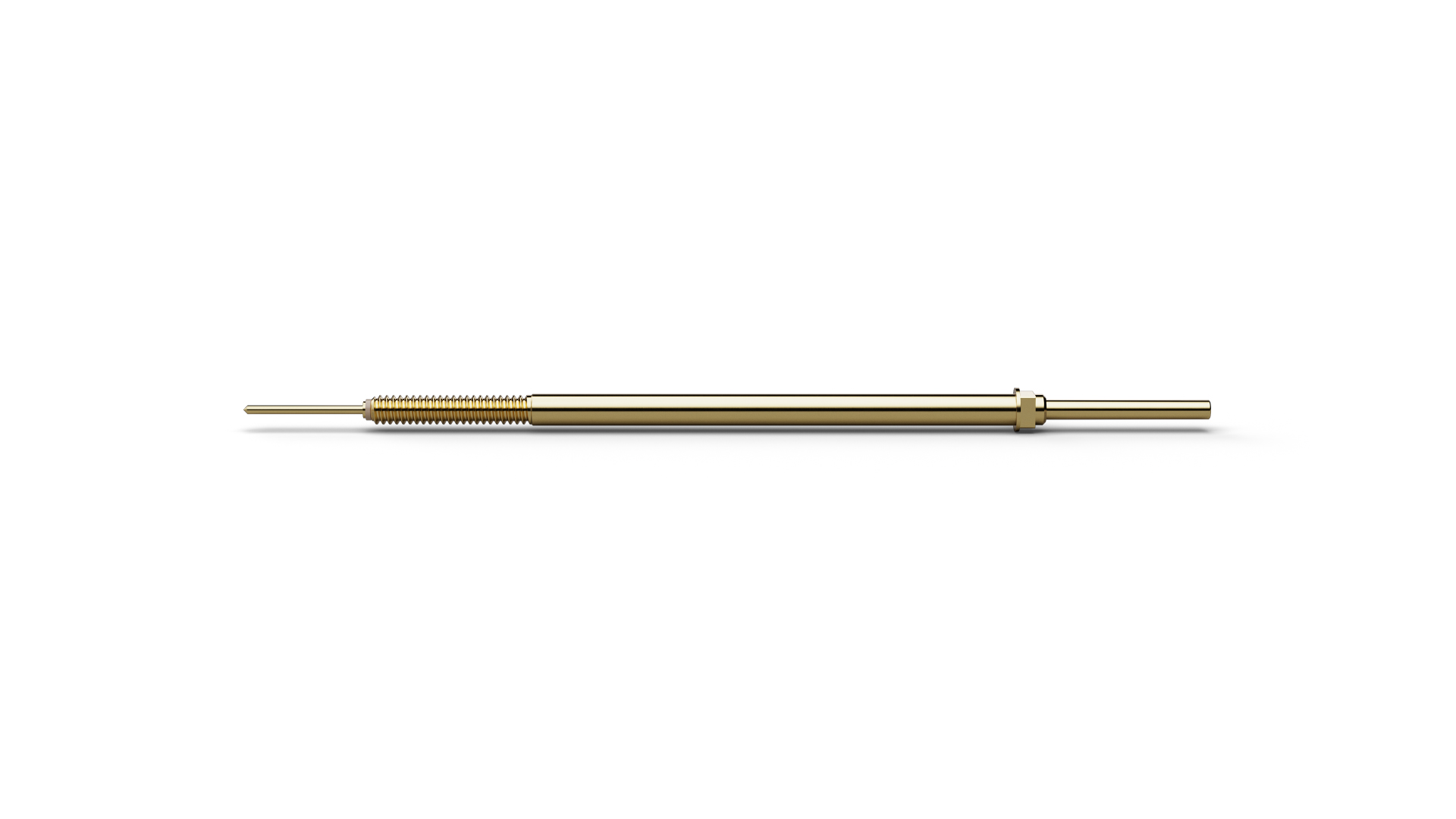

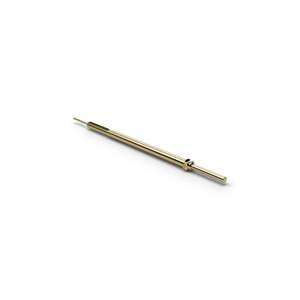

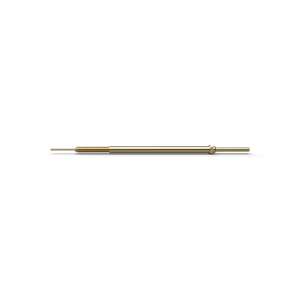

The Normally Closed Switch Probe F87316B100G250 (item number 1009368) combines spring-loaded contacting with a defined switching or sensing function. F87316B100G250 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F87316B100G250, the normally closed function opens an initially closed contact at the defined actuation travel, allowing the test system to detect a mechanical state electrically. For F87316B100G250, spring force is 250 cN at a nominal travel of 4 mm. The electrical rating of F87316B100G250 combines 5 A continuous current with 65 mΩ typical contact resistance. F87316B100G250 combines a pitch of 2.54 mm / 100 mil with tip style 16 (Flat) and a tip diameter of 1 mm.
