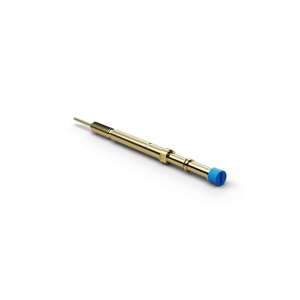

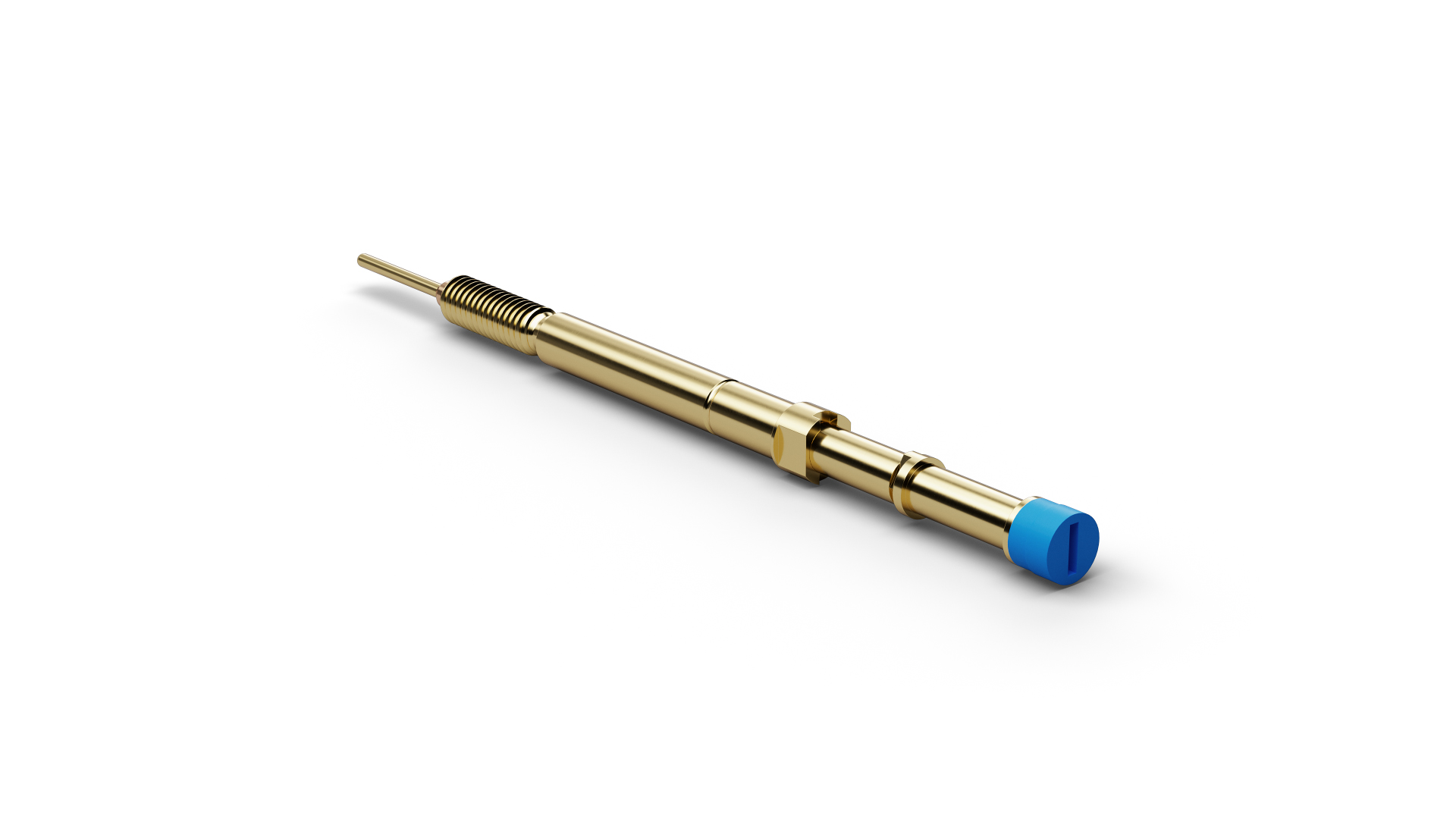

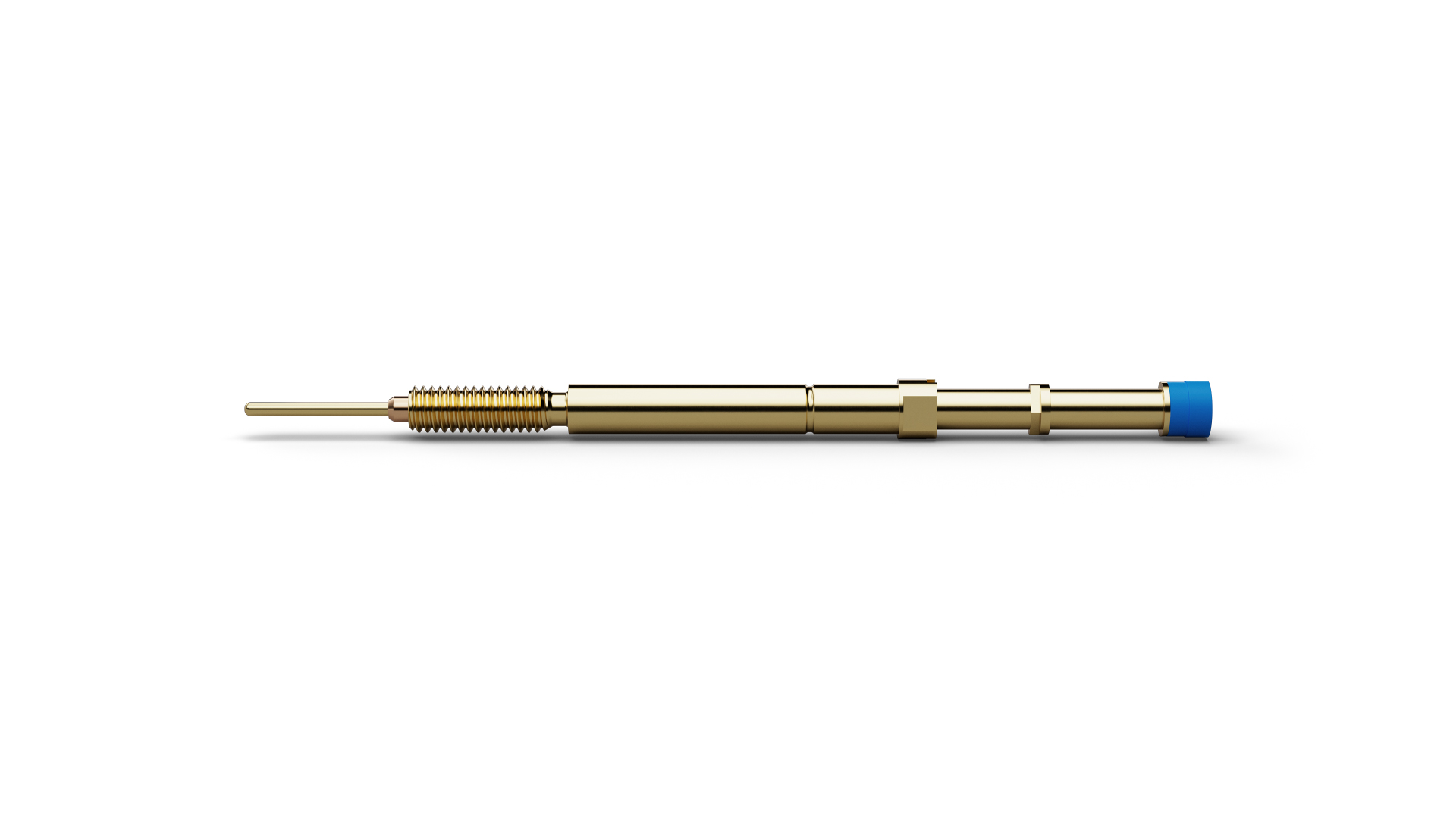

The Normally Open Switch Probe F88617K300U200LM (item number 1008531) combines spring-loaded contacting with a defined switching or sensing function. F88617K300U200LM combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F88617K300U200LM, the normally open function closes the electrical contact at the defined actuation travel, combining contacting with presence or position information. For F88617K300U200LM, spring force is 200 cN at a nominal travel of 4 mm. F88617K300U200LM is rated for 10 A continuous current with a typical contact resistance of 50 mΩ. F88617K300U200LM combines a pitch of 3.5 mm / 138 mil with tip style 17K and a tip diameter of 3 mm.
