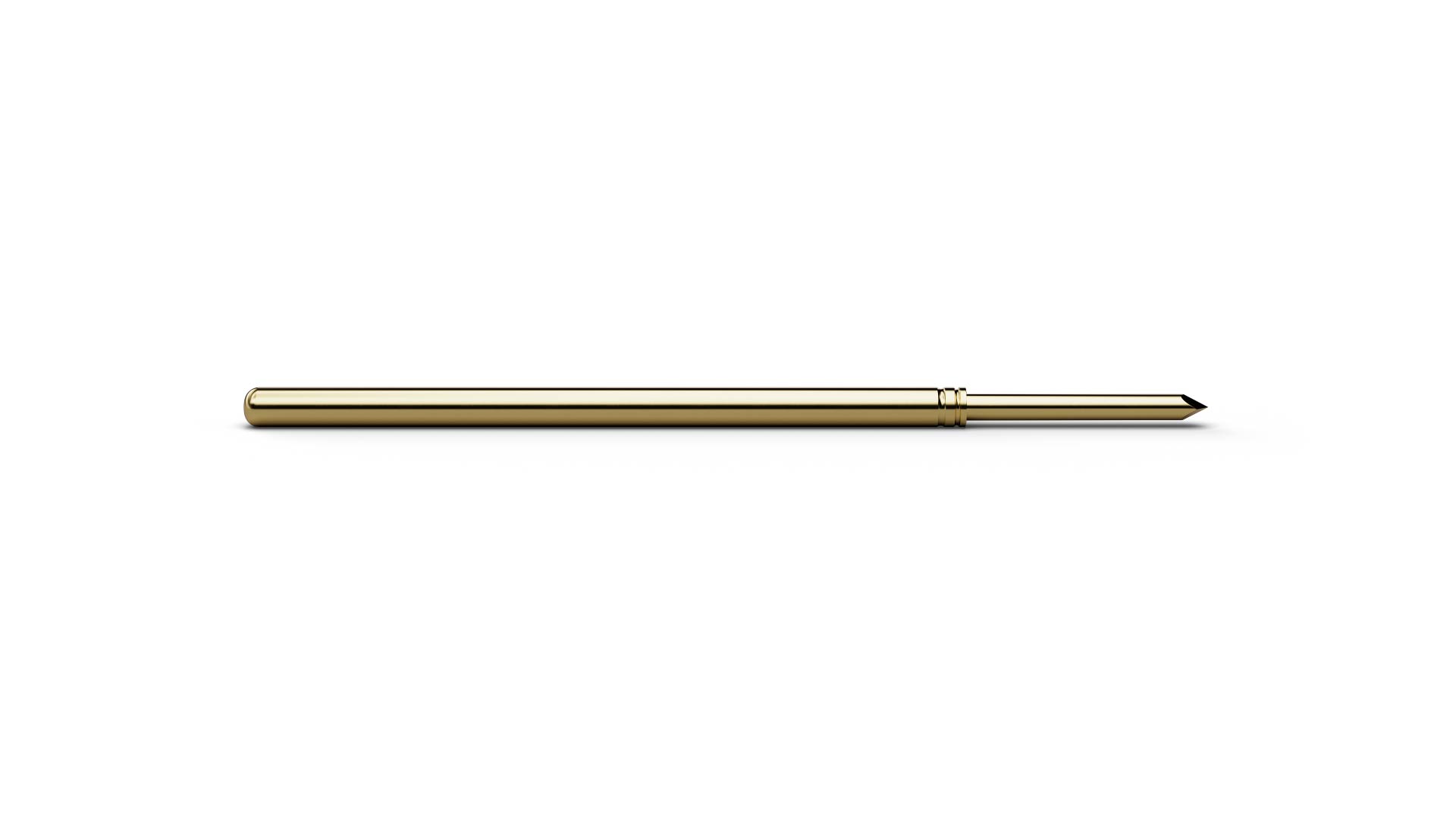

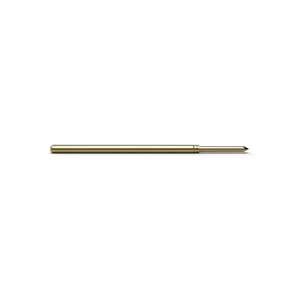

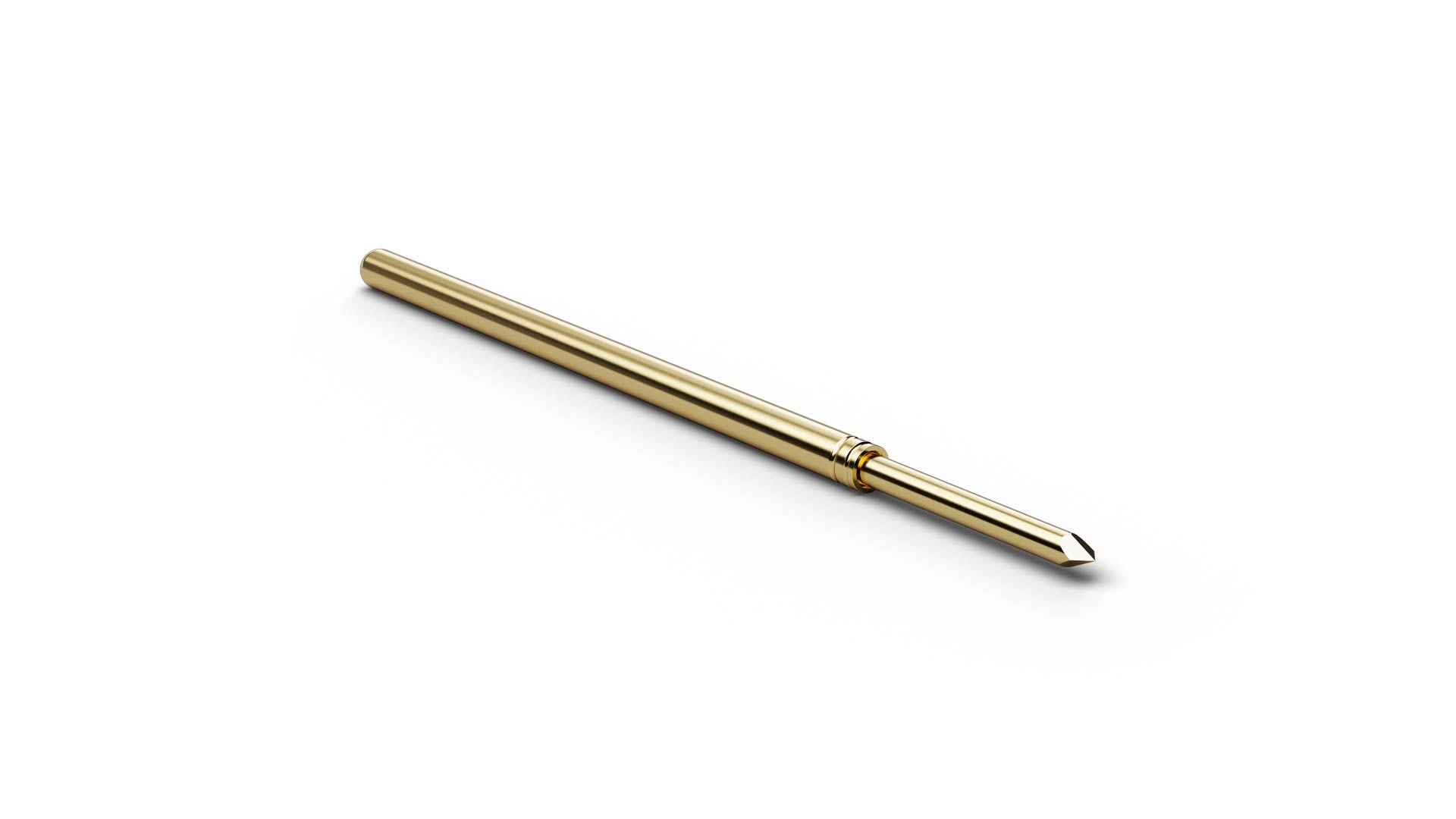

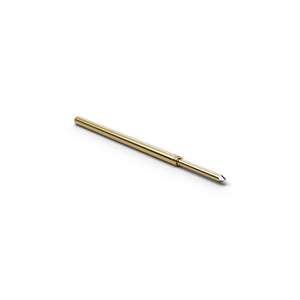

F10043S090L200 (item number 1006908) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 43 (Square lance 90°), F10043S090L200 combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F10043S090L200 combines a pitch of 2.54 mm / 100 mil with tip style 43 (Square lance 90°) and a tip diameter of 0.9 mm. For F10043S090L200, spring force is 200 cN at a nominal travel of 4.3 mm. The electrical rating of F10043S090L200 combines 5 A continuous current with 20 mΩ typical contact resistance. The plunger in F10043S090L200 is made of steel and uses Longtime Gold plating.
