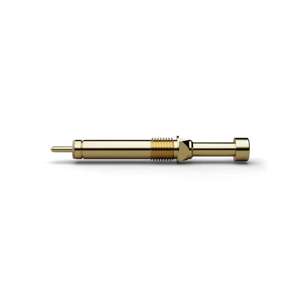

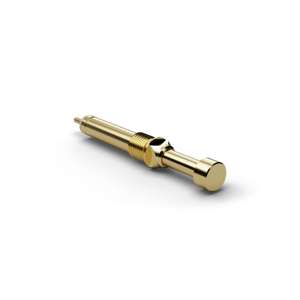

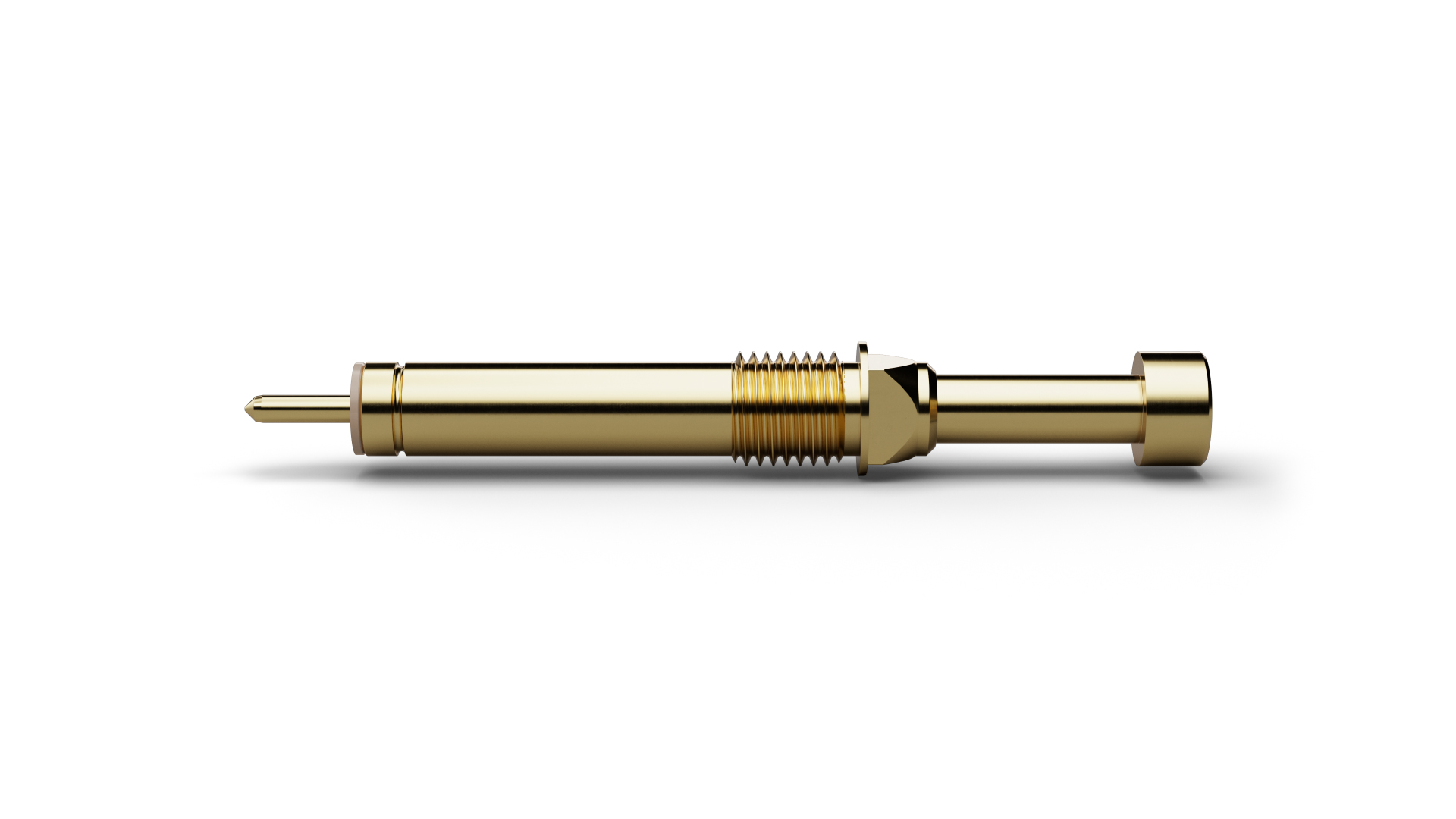

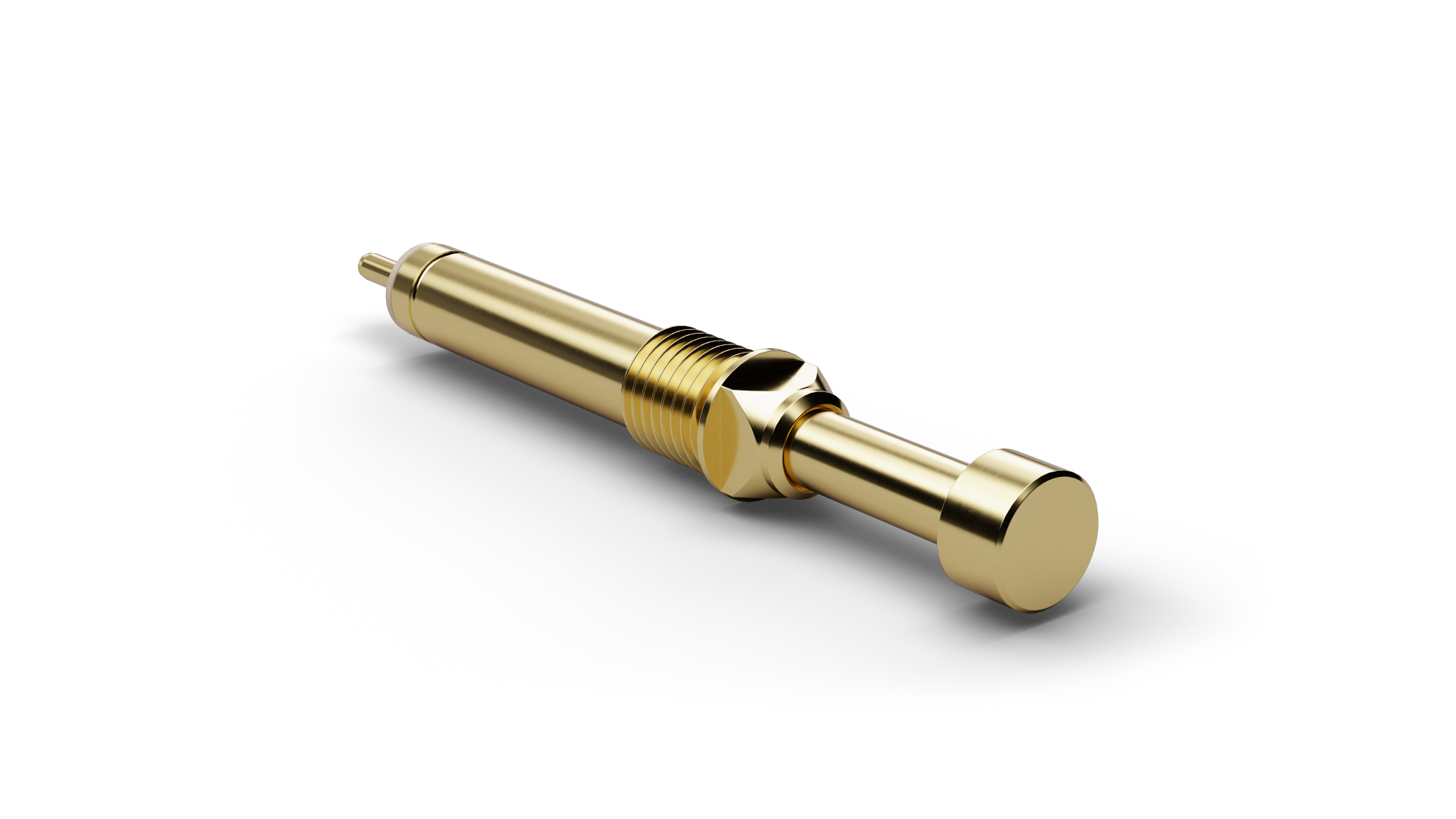

The Normally Open Switch Probe F88717B300G300 (item number 1006907) combines spring-loaded contacting with a defined switching or sensing function. F88717B300G300 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F88717B300G300, the normally open function closes the electrical contact at the defined actuation travel, combining contacting with presence or position information. For F88717B300G300, spring force is 300 cN at a nominal travel of 4 mm. F88717B300G300 is rated for 10 A continuous current with a typical contact resistance of 40 mΩ. F88717B300G300 combines a pitch of 4 mm / 157 mil with tip style 17 (Flat stepped) and a tip diameter of 3 mm.
