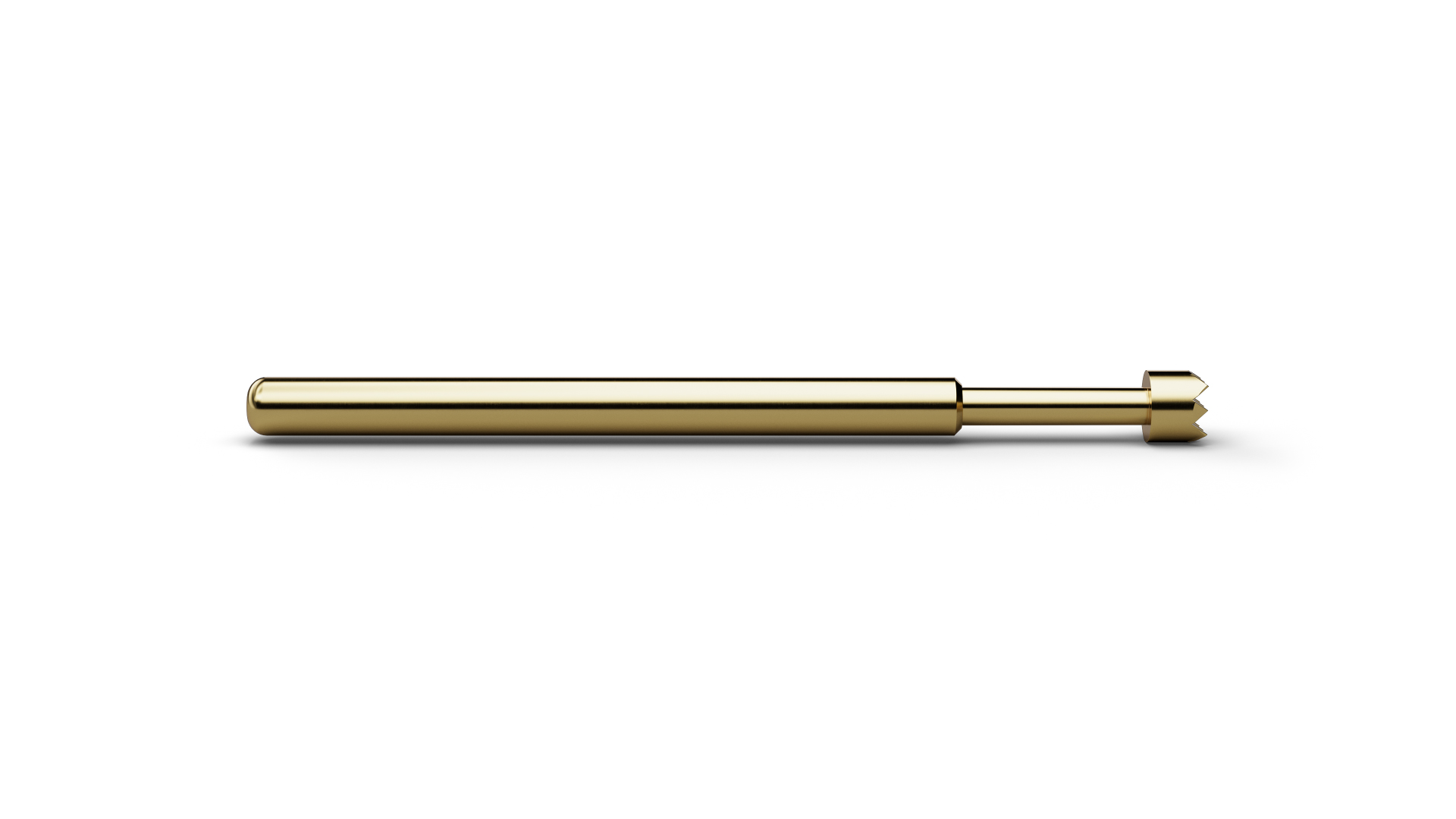

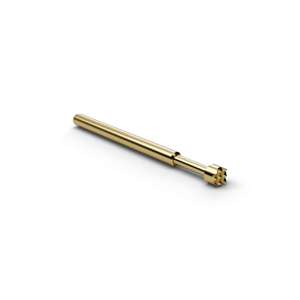

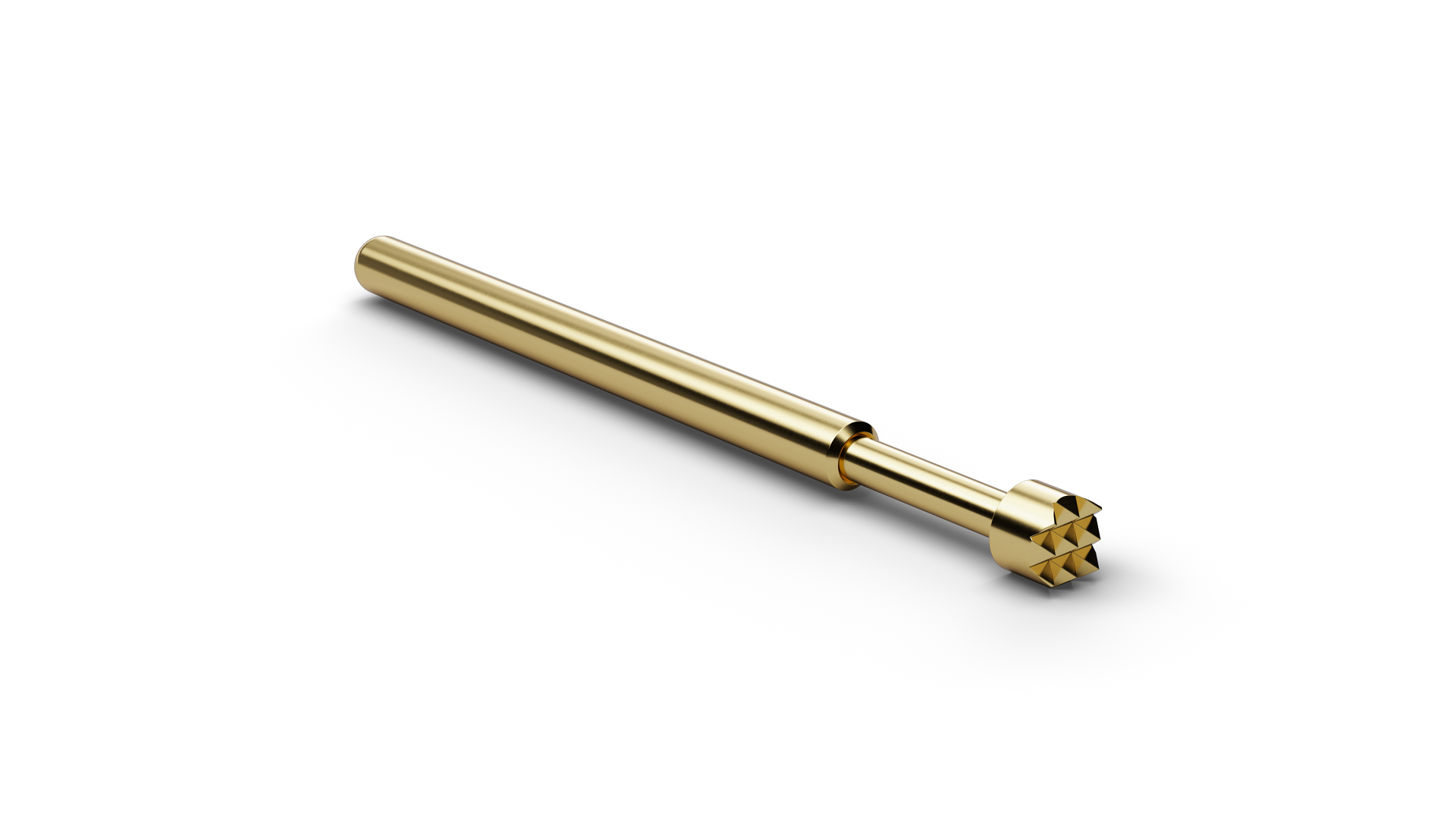

As a Basic Contact Probe, F56306B250G300 (item number 1005609) establishes a spring-loaded electrical connection to the test point. With tip style 06 (Serrated stepped), F56306B250G300 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F56306B250G300 combines a pitch of 3 mm / 118 mil with tip style 06 (Serrated stepped) and a tip diameter of 2.5 mm. For F56306B250G300, spring force is 300 cN at a nominal travel of 4.3 mm. The electrical rating of F56306B250G300 combines 6 A continuous current with 100 mΩ typical contact resistance. The plunger in F56306B250G300 is made of beryllium copper and is gold-plated.
