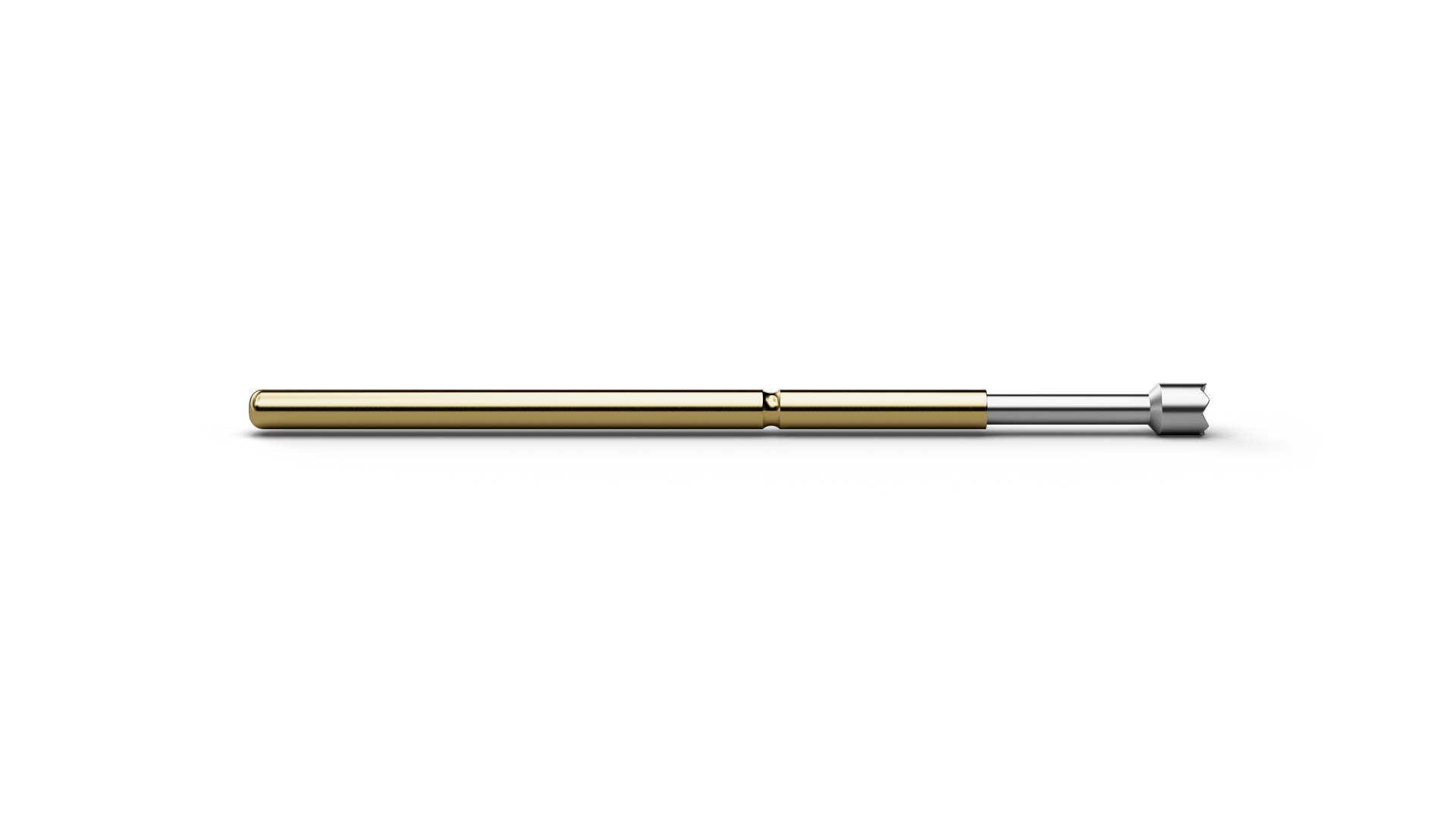

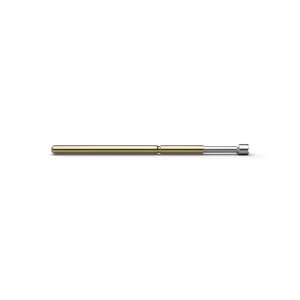

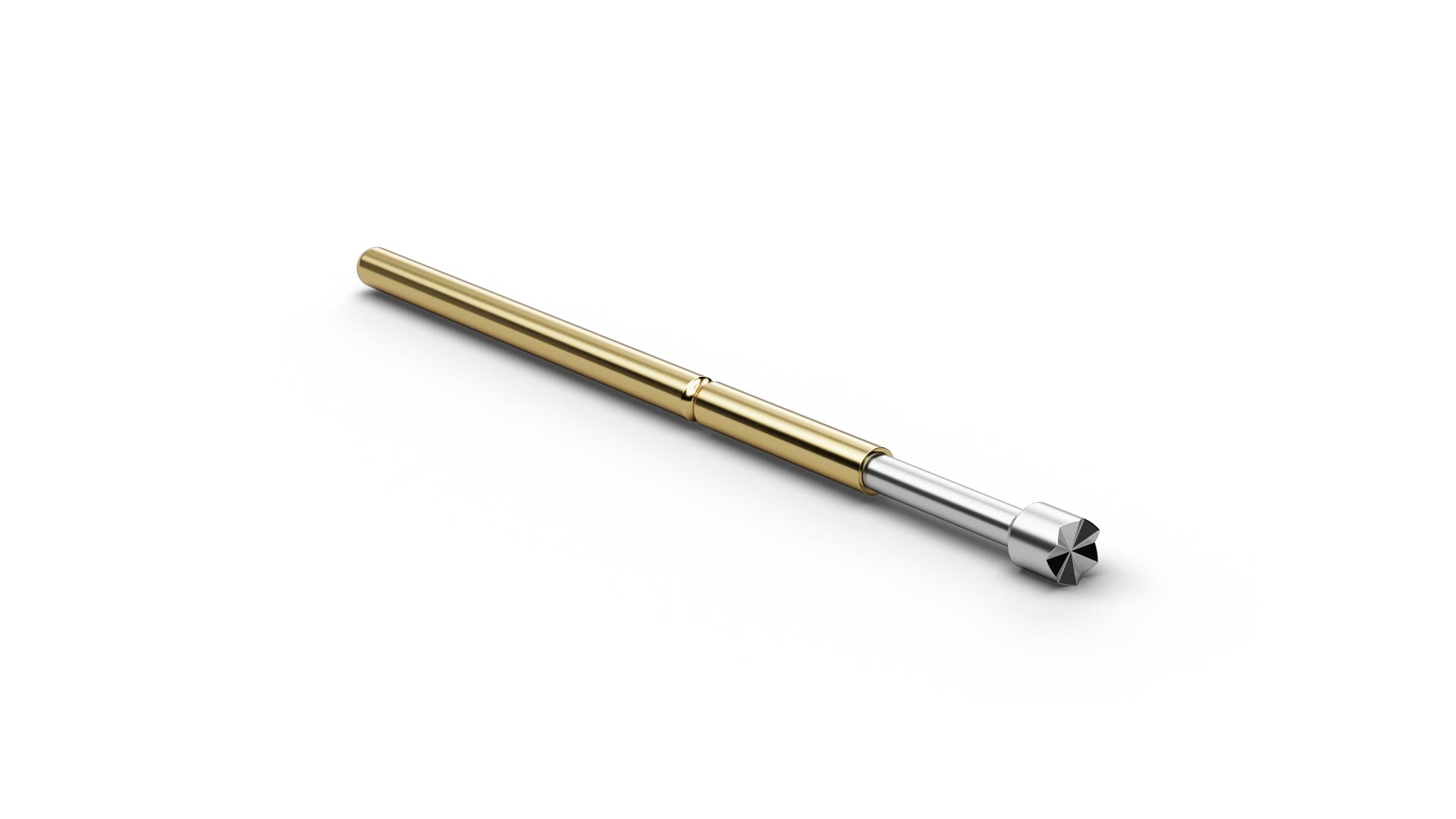

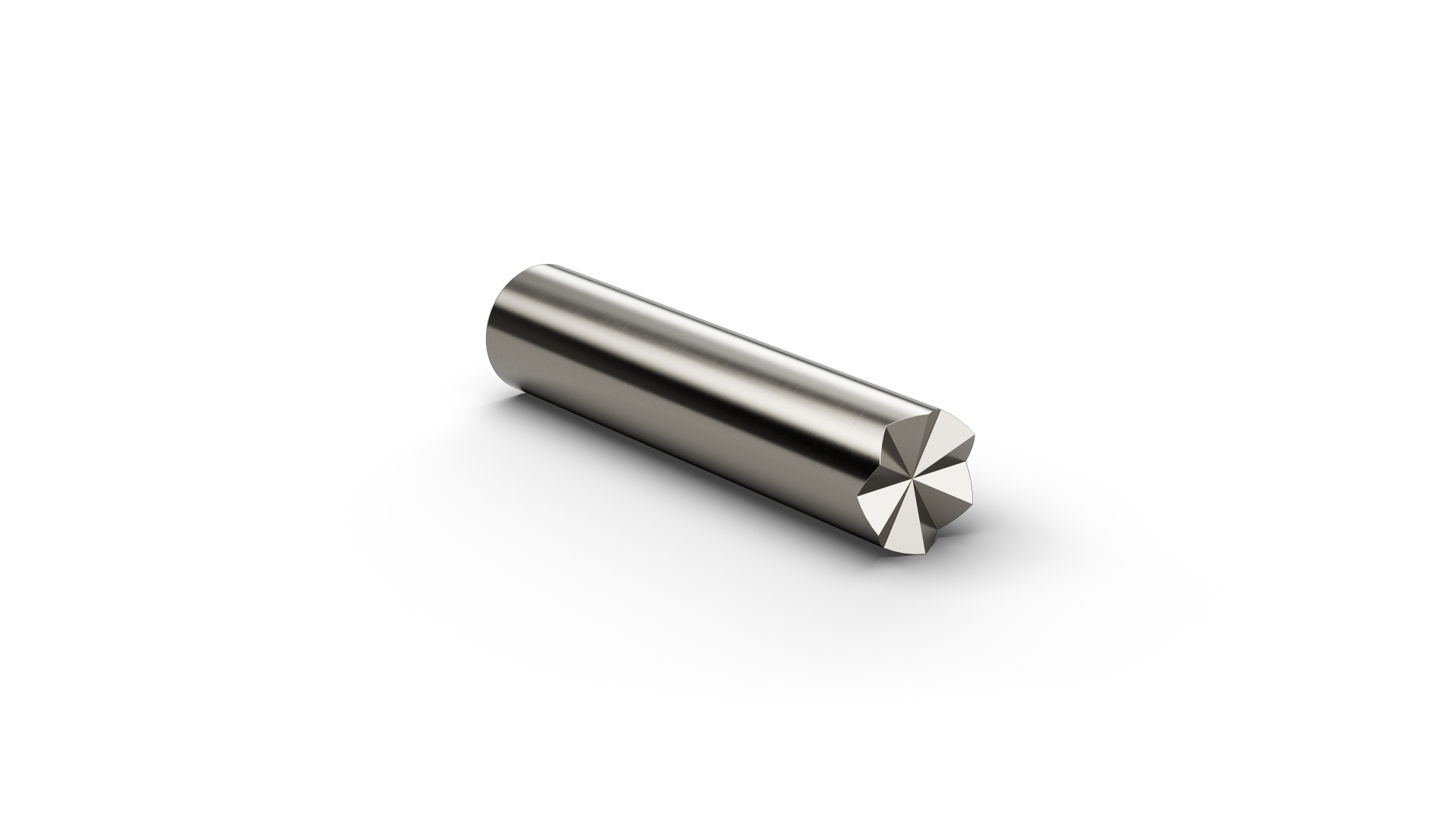

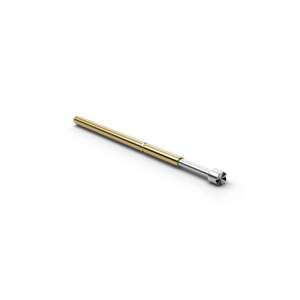

F11109S090N095H (item number 1001410) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 09 (6-point crown stepped), F11109S090N095H combines ICT/FCT use with a geometry intended for wire-wrap posts, including contacts that are slightly bent or twisted. F11109S090N095H combines a pitch of 1.27 mm / 50 mil with tip style 09 (6-point crown stepped) and a tip diameter of 0.9 mm. F11109S090N095H operates with 95 cN spring force and 2 mm nominal travel. The electrical rating of F11109S090N095H combines 3 A continuous current with 65 mΩ typical contact resistance. The plunger in F11109S090N095H is made of steel and is Nickel-plated. The final H identifies the high-temperature version; F11109S090N095H is suitable for applications up to 200 °C.
