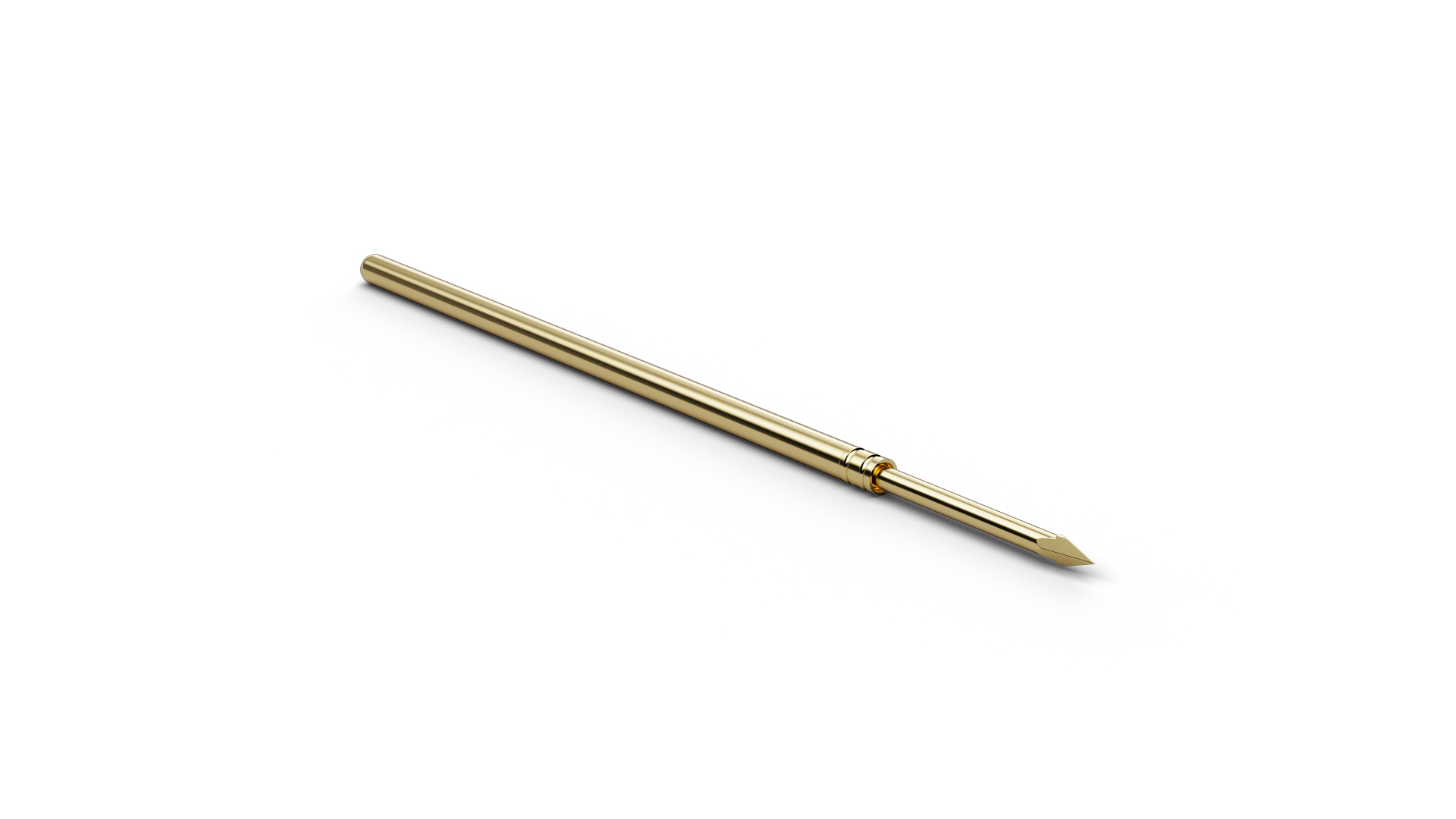

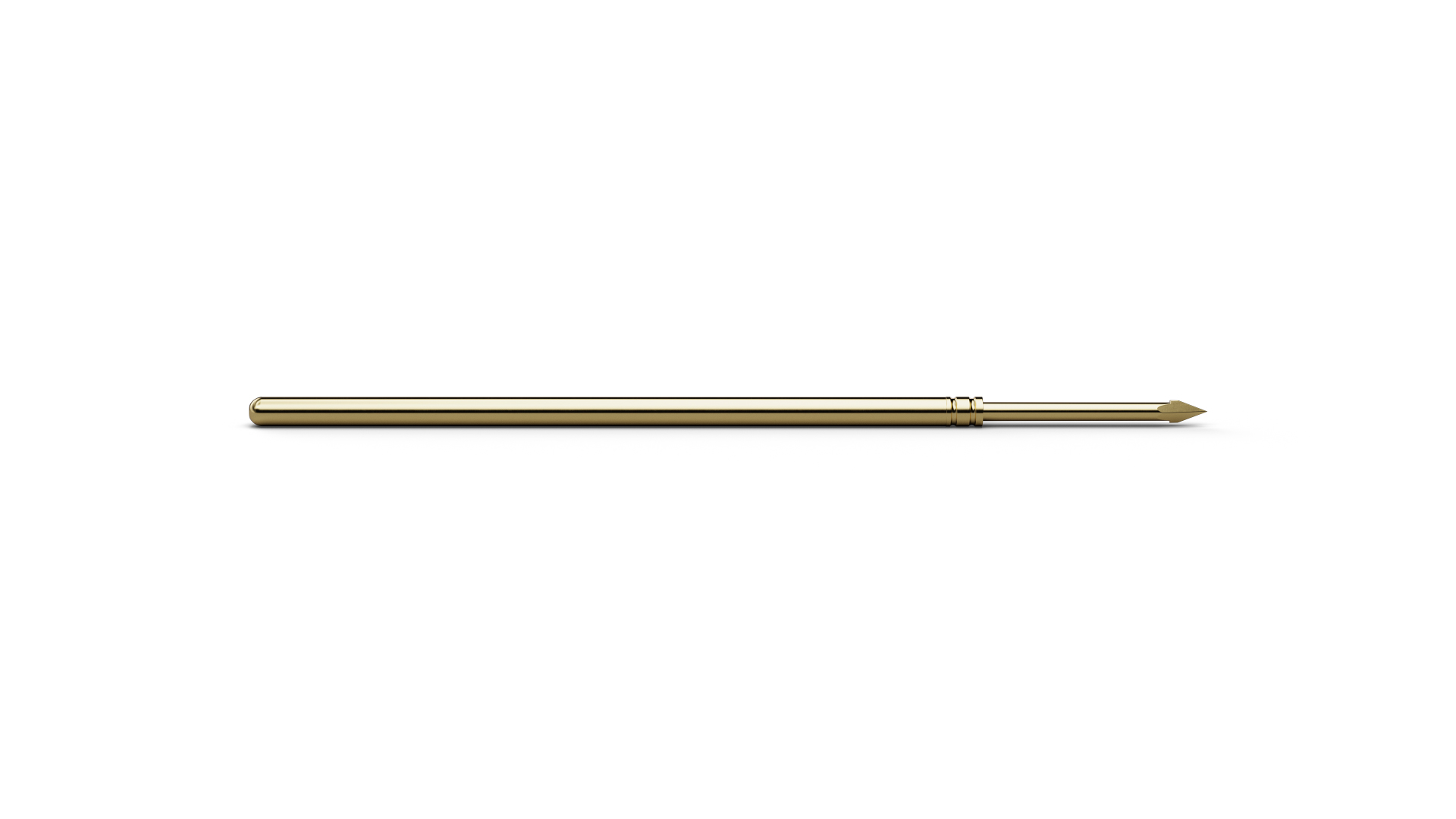

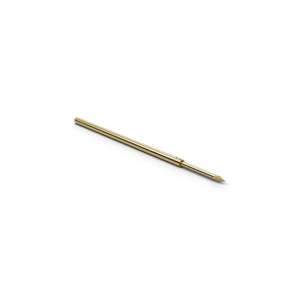

F07533S078L280 (item number 1001397) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 33 (Square lance 38°), F07533S078L280 combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F07533S078L280 combines a pitch of 1.9 mm / 75 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.78 mm. F07533S078L280 operates with 280 cN spring force and 4.3 mm nominal travel. The electrical rating of F07533S078L280 combines 4 A continuous current with 20 mΩ typical contact resistance. The plunger in F07533S078L280 is made of steel and uses Longtime Gold plating.
