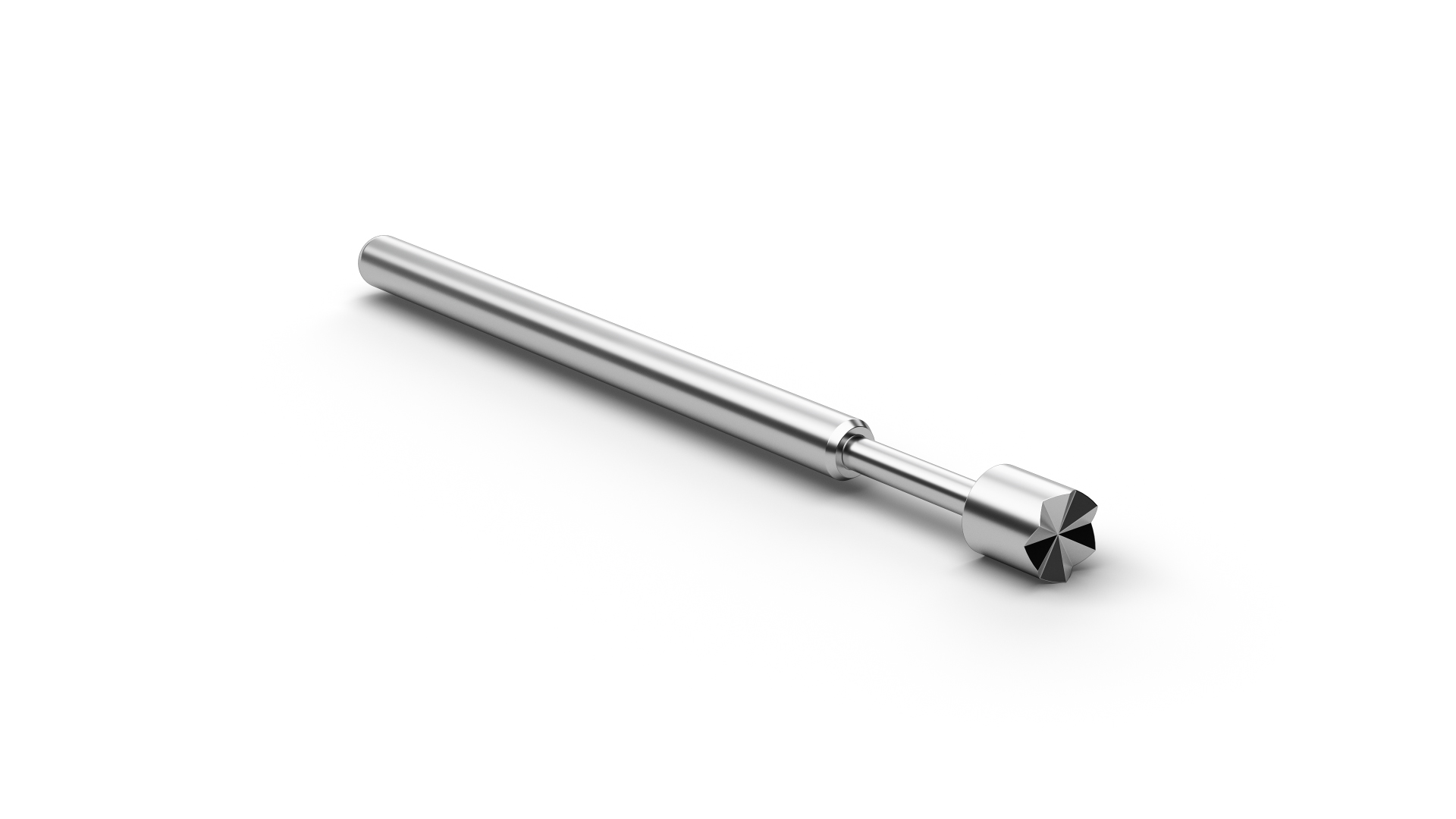

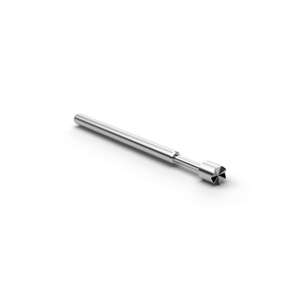

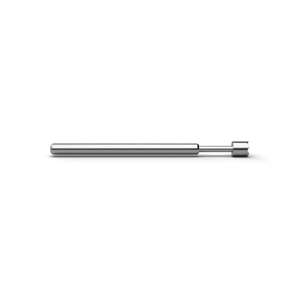

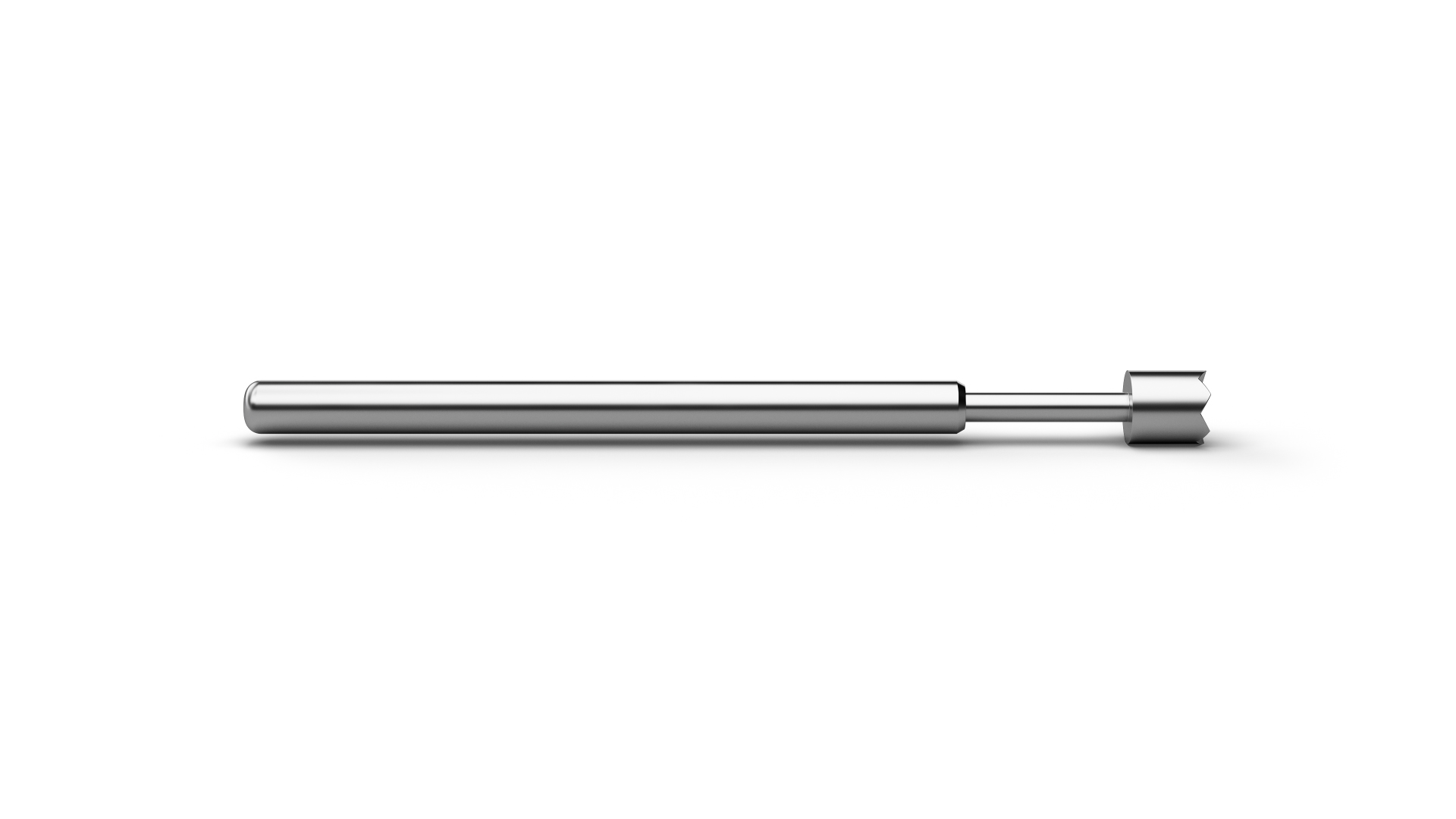

The Basic Contact Probe F50209S190N130 (item number 1001377) is a spring-loaded probe for temporary electrical contact with test points. With tip style 09 (6-point crown stepped), F50209S190N130 combines ICT/FCT use with a geometry intended for wire-wrap posts, including contacts that are slightly bent or twisted. The design combines a pitch of 2.54 mm / 100 mil with tip style 09 (6-point crown stepped) and a tip diameter of 1.9 mm. For F50209S190N130, spring force is 130 cN at a nominal travel of 2.7 mm. F50209S190N130 is rated for 5 A continuous current with a typical contact resistance of 55 mΩ. The plunger in F50209S190N130 is made of steel and is Nickel-plated.
