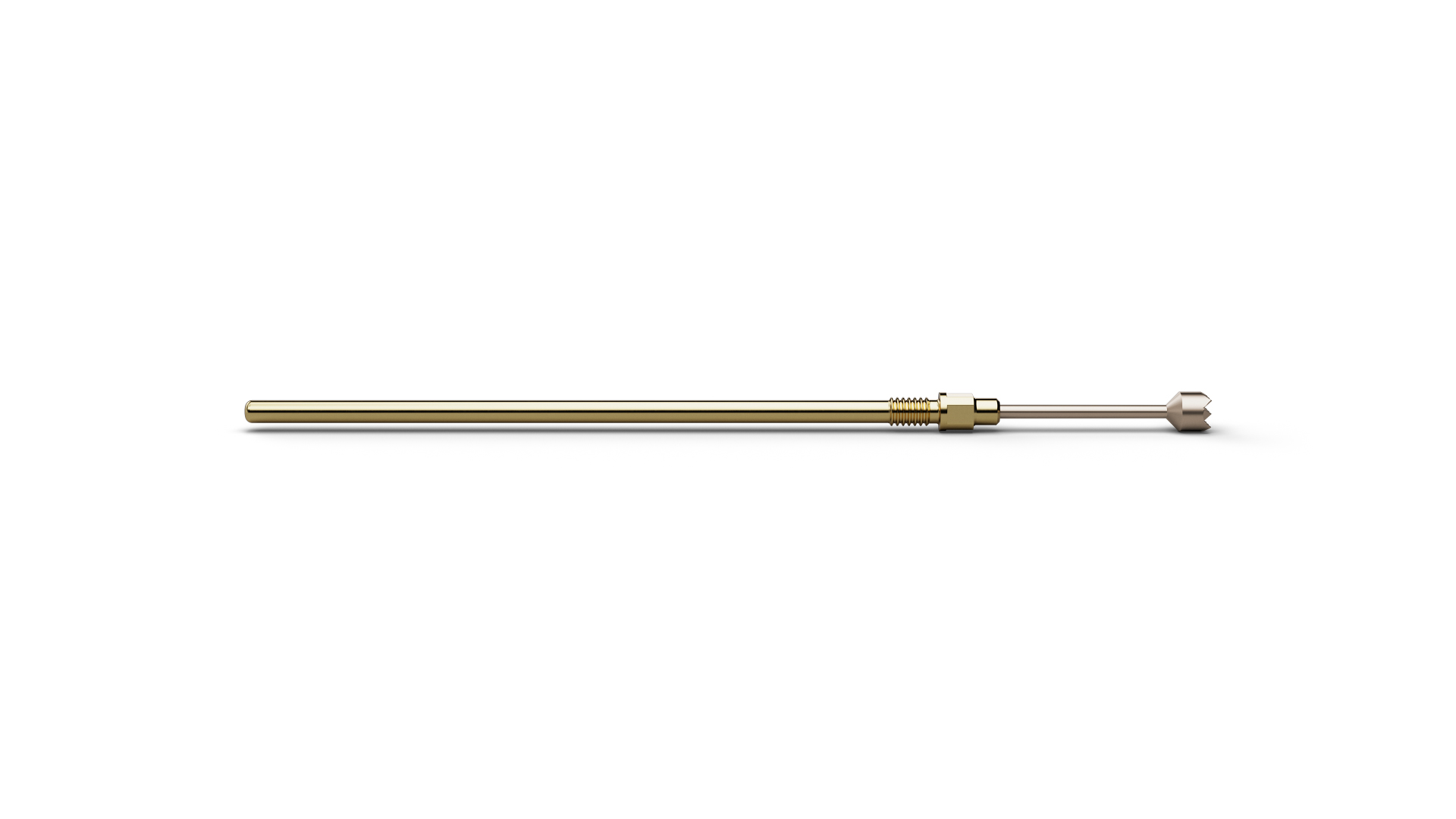

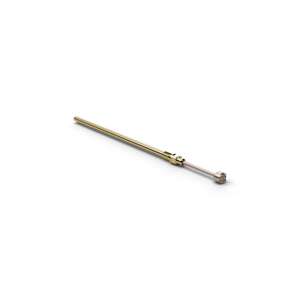

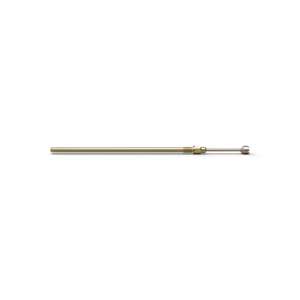

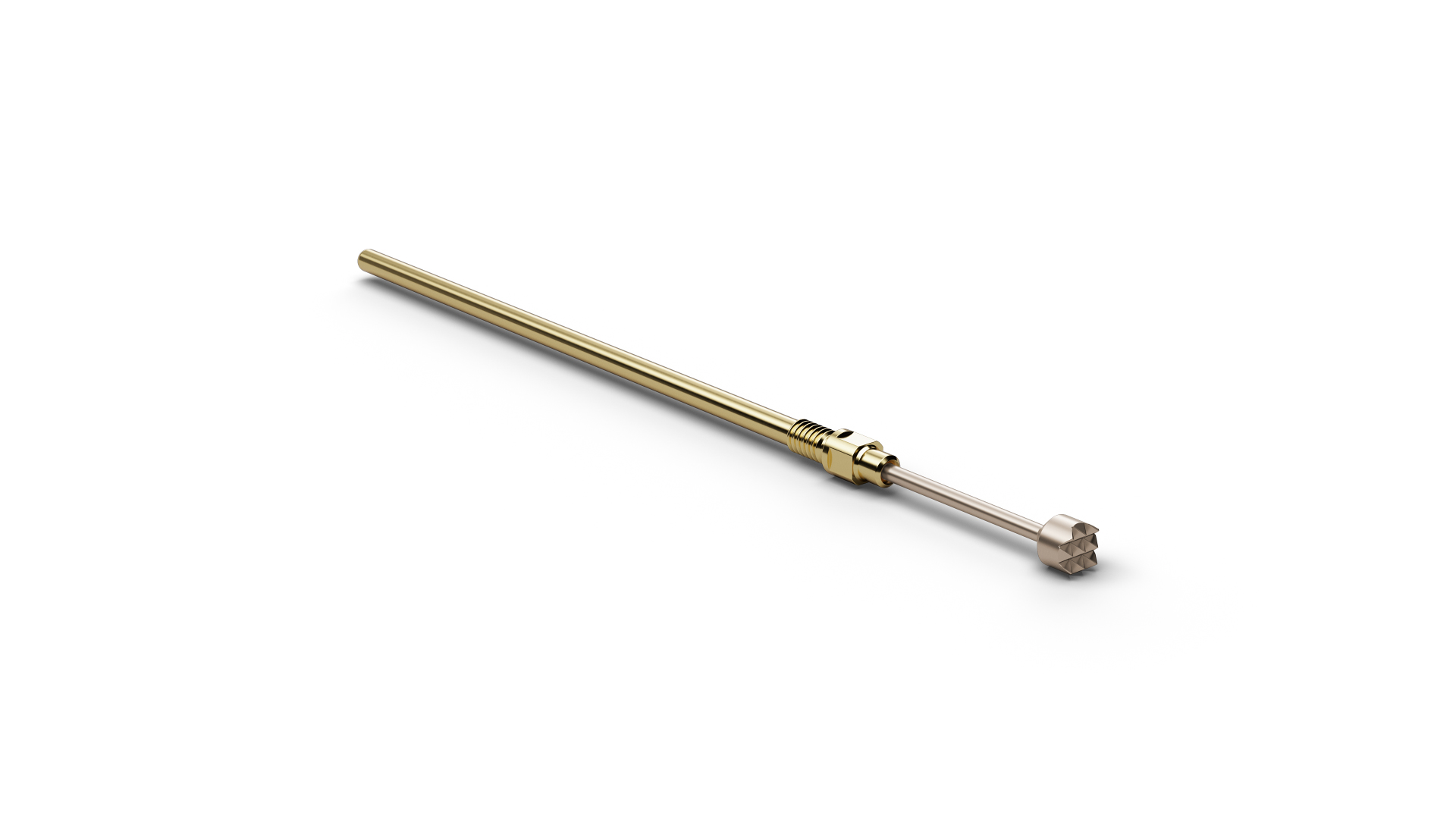

F73006B120R110 (item number 1000860) is a threaded Contact Probe for fixtures where the probe must remain securely in its installed position. The threaded mounting of F73006B120R110 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The design of F73006B120R110 is well suited to wire-harness and connector testing and to fixtures exposed to vibration or lateral forces where probe migration must be prevented. F73006B120R110 is installed using a M0.9X0.175 thread. The design combines a pitch of 1.27 mm / 50 mil with tip style 06 (Serrated stepped) and a tip diameter of 1.2 mm. For F73006B120R110, spring force is 110 cN at a nominal travel of 4 mm.
