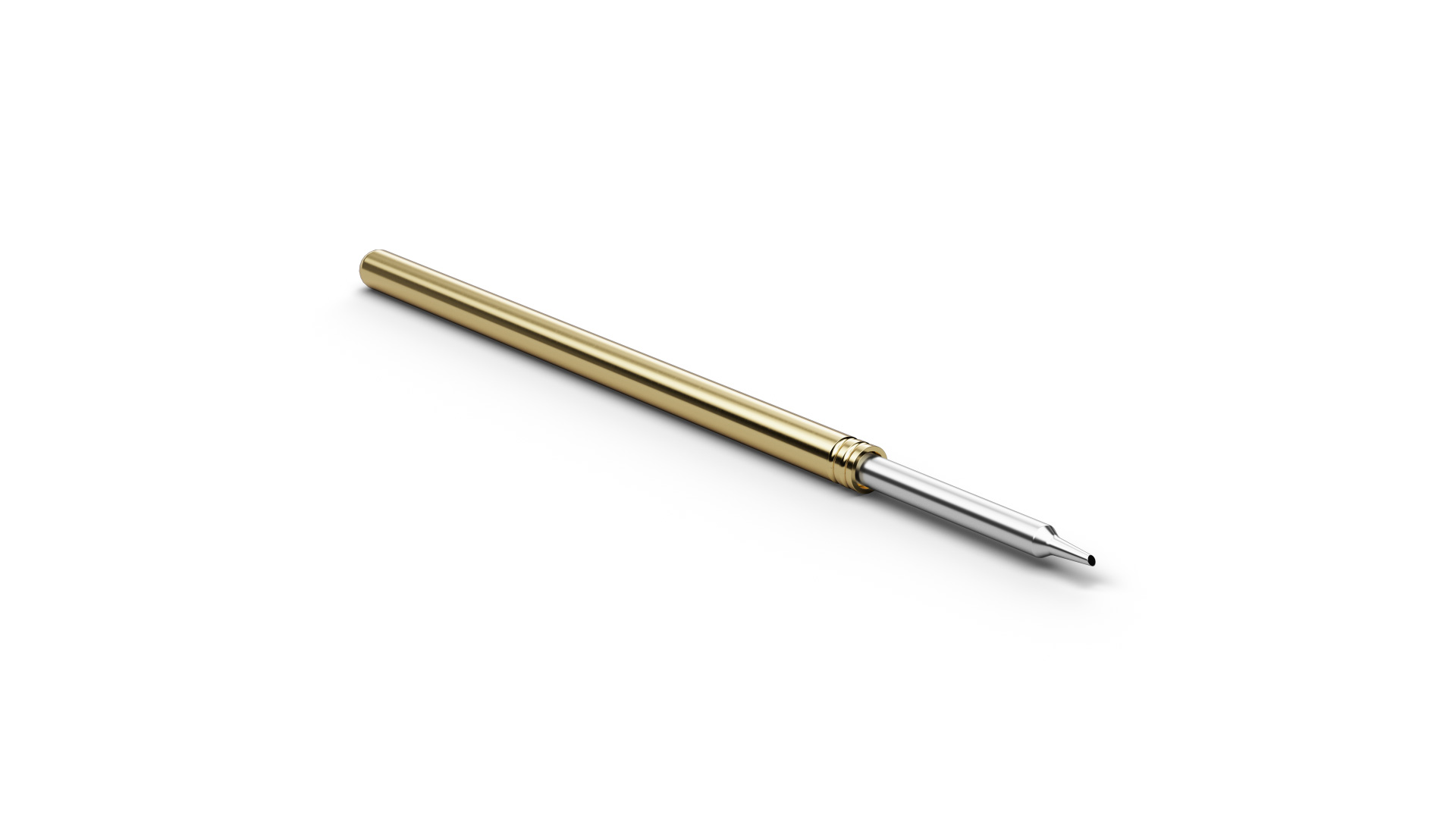

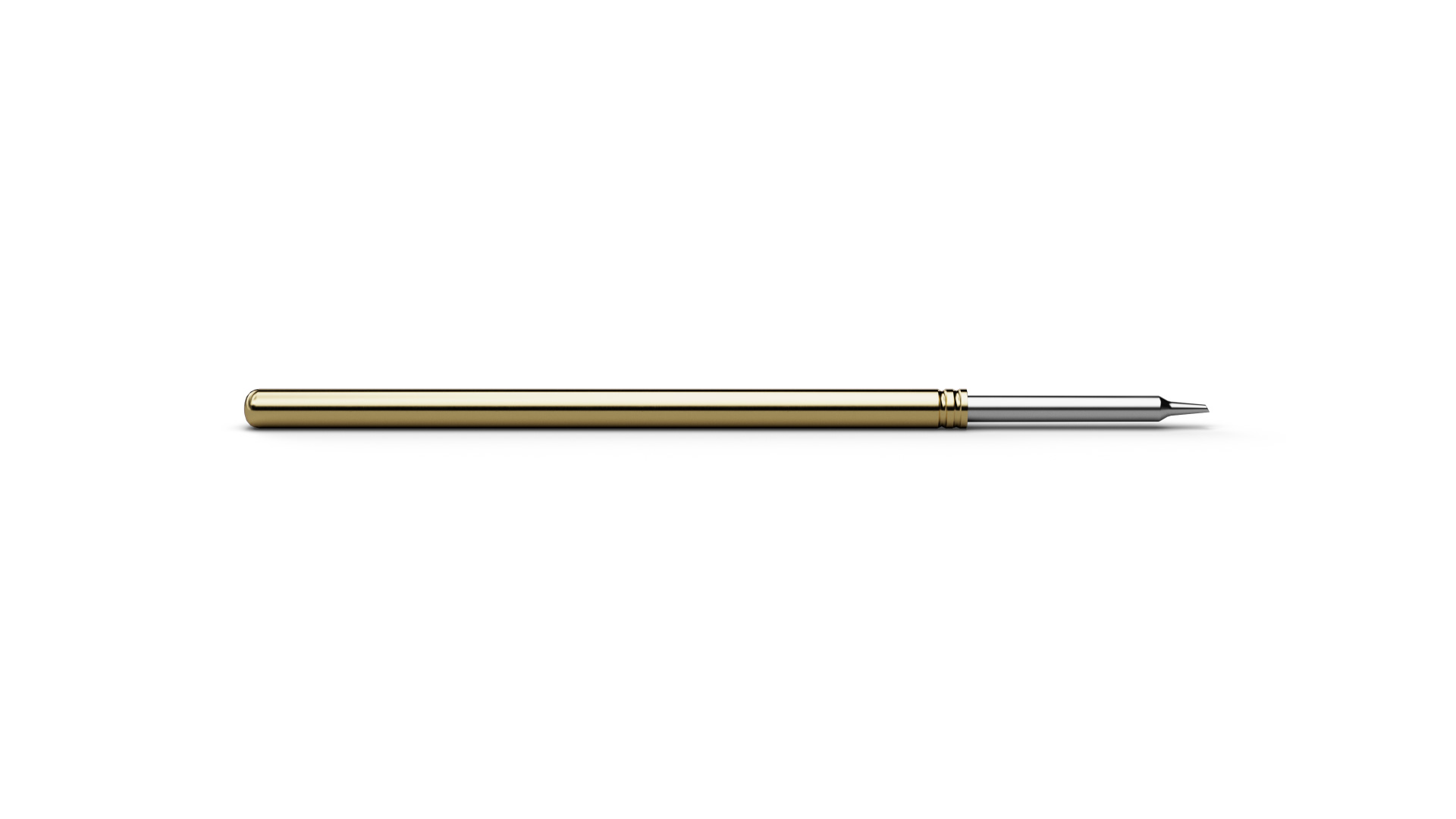

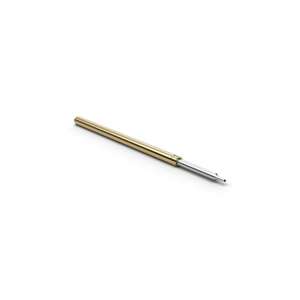

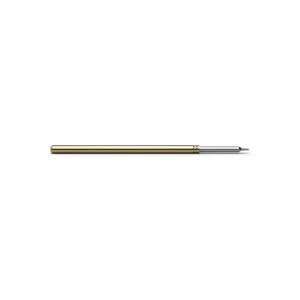

F10044S026P200HP (item number 1172558) is a Basic Contact Probe for repeatable temporary electrical connections between the test system and a test point. F10044S026P200HP belongs to the basic probe range for ICT/FCT, where tip geometry, spring force and surface finish are matched to the target test point. F10044S026P200HP combines a pitch of 2.54 mm / 100 mil with tip style 44 (Rigid needle with eccentric-cut) and a tip diameter of 0.26 mm. F10044S026P200HP operates with 200 cN spring force and 4.3 mm nominal travel. F10044S026P200HP is specified for 5 A continuous current. Two features address difficult surface conditions on F10044S026P200HP: Progressive Coating reduces contamination sensitivity, while the HP spring provides increased preload at the start of the contact stroke.
