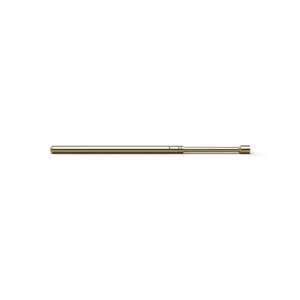

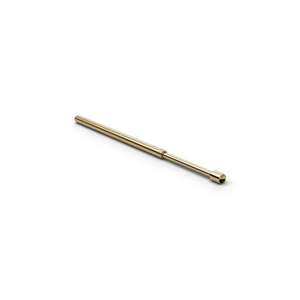

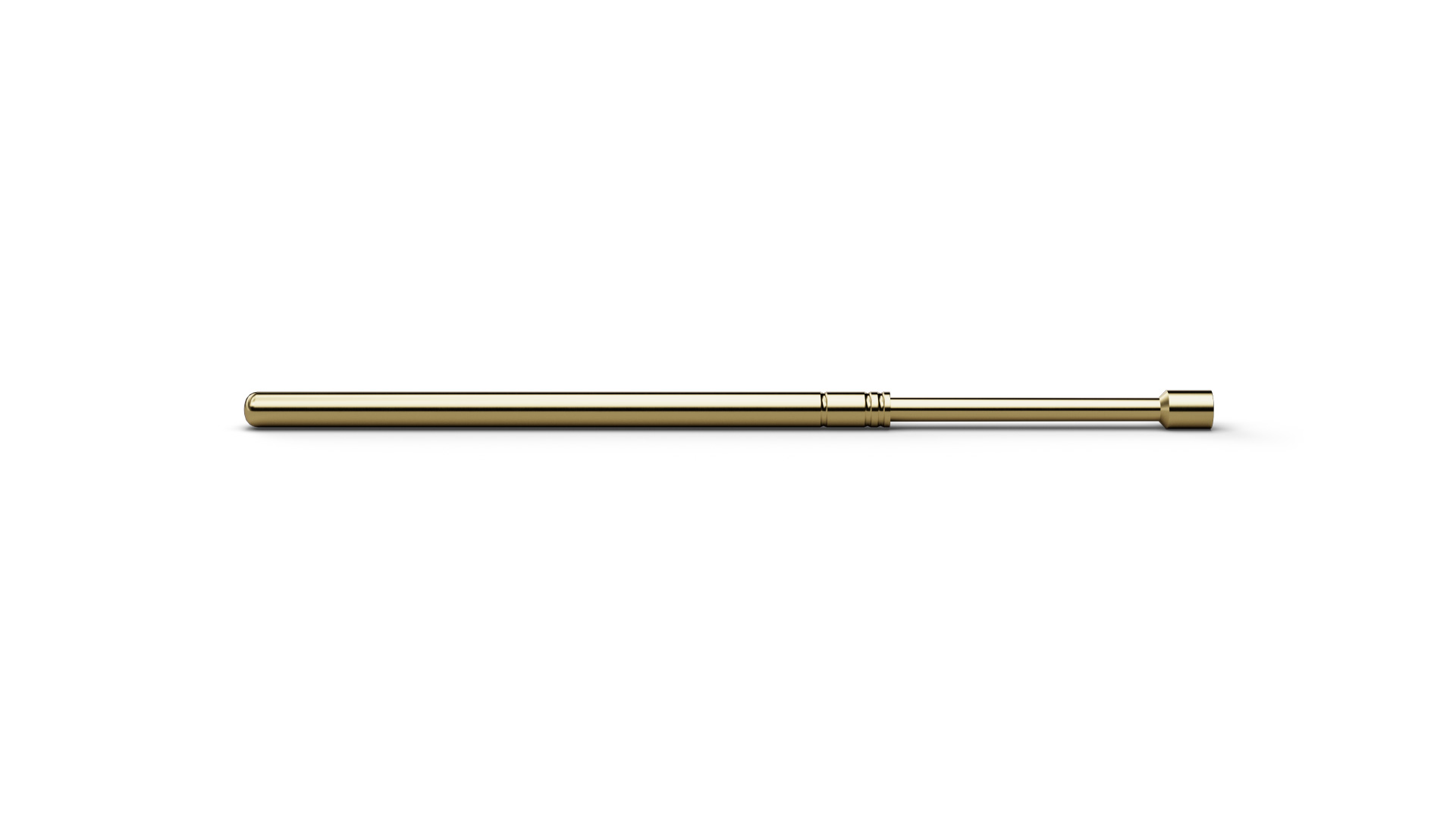

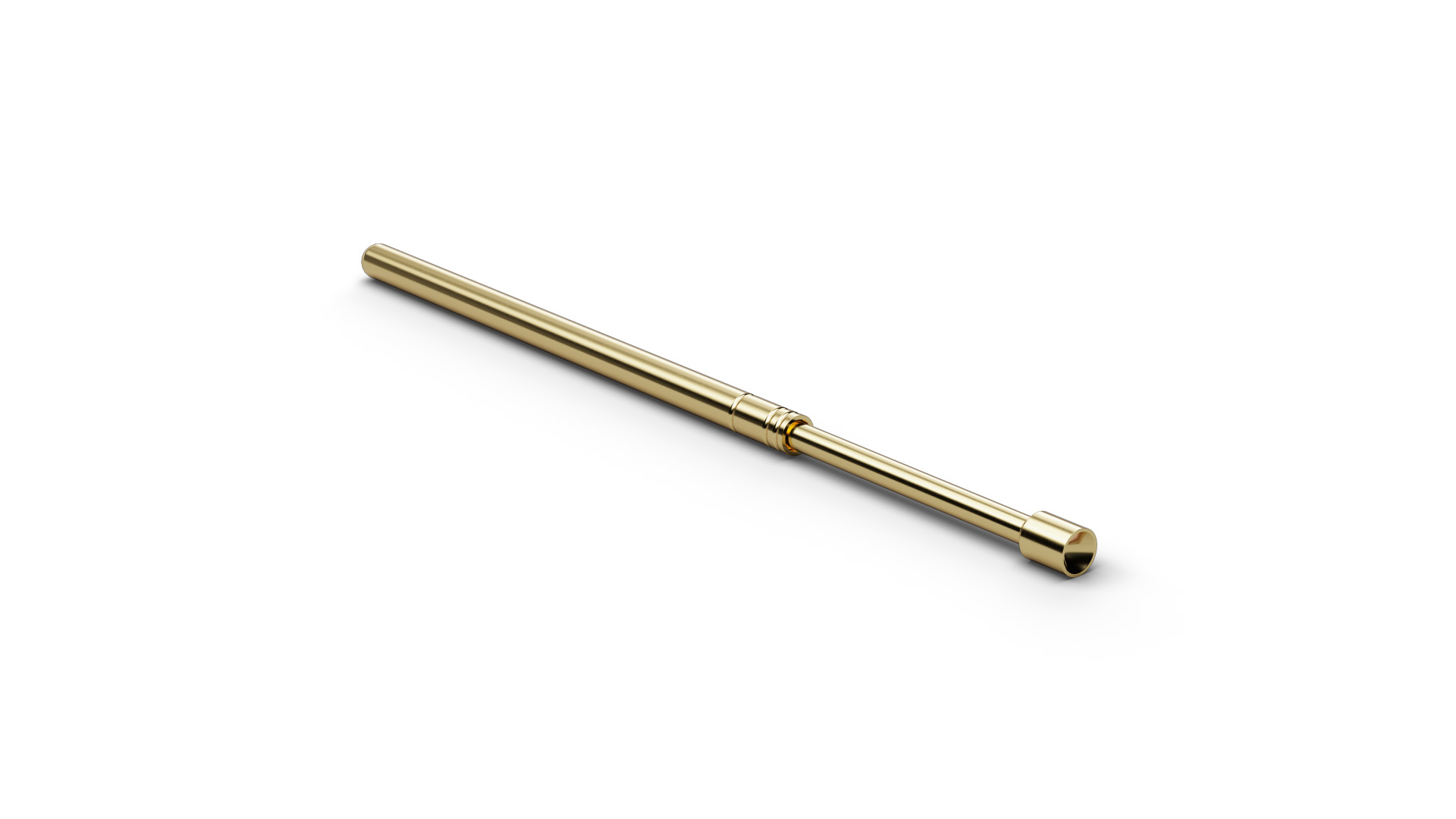

F58805B150G200S (item number 1169827) provides a Basic Contact Probe for defined electrical contact in ICT and Functional Test fixtures. With tip style 05 (Concave stepped), F58805B150G200S combines ICT/FCT use with a geometry intended for pins and wire-wrap posts with a guided, smooth contacting action. F58805B150G200S combines a pitch of 2.54 mm / 100 mil with tip style 05 (Concave stepped) and a tip diameter of 1.5 mm. F58805B150G200S operates with 200 cN spring force and 7.6 mm nominal travel. F58805B150G200S is specified for 5 A continuous current.
