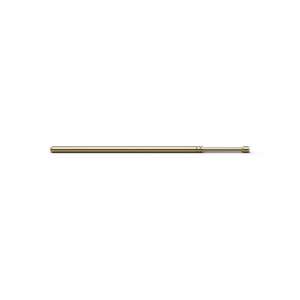

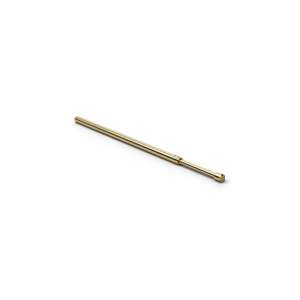

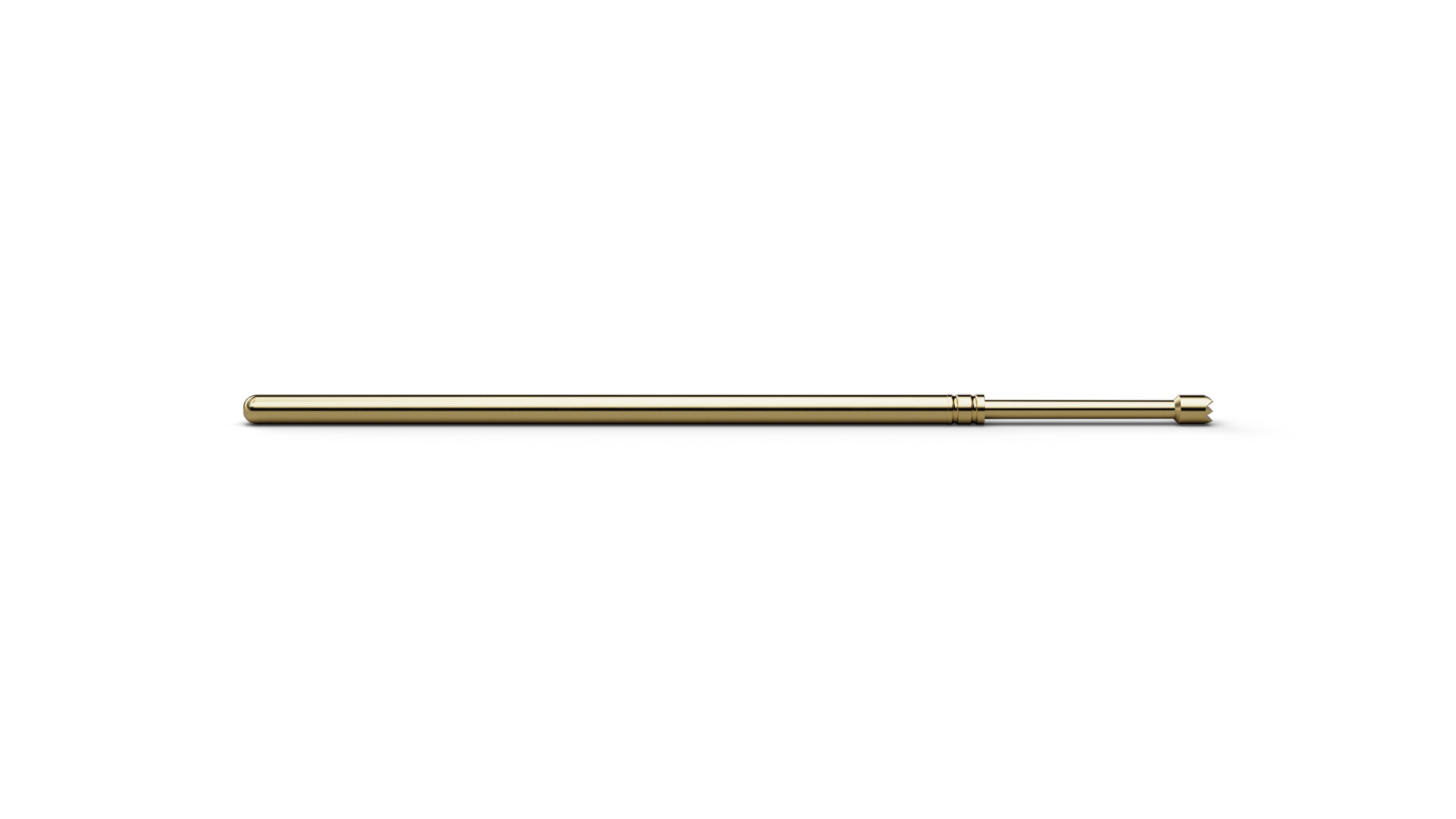

F07506B100G150 (item number 1168139) is a Basic Contact Probe for repeatable temporary electrical connections between the test system and a test point. With tip style 06 (Serrated stepped), F07506B100G150 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F07506B100G150 combines a pitch of 1.9 mm / 75 mil with tip style 06 (Serrated stepped) and a tip diameter of 1 mm. F07506B100G150 operates with 150 cN spring force and 4.3 mm nominal travel. The continuous-current rating of F07506B100G150 is 4 A.
