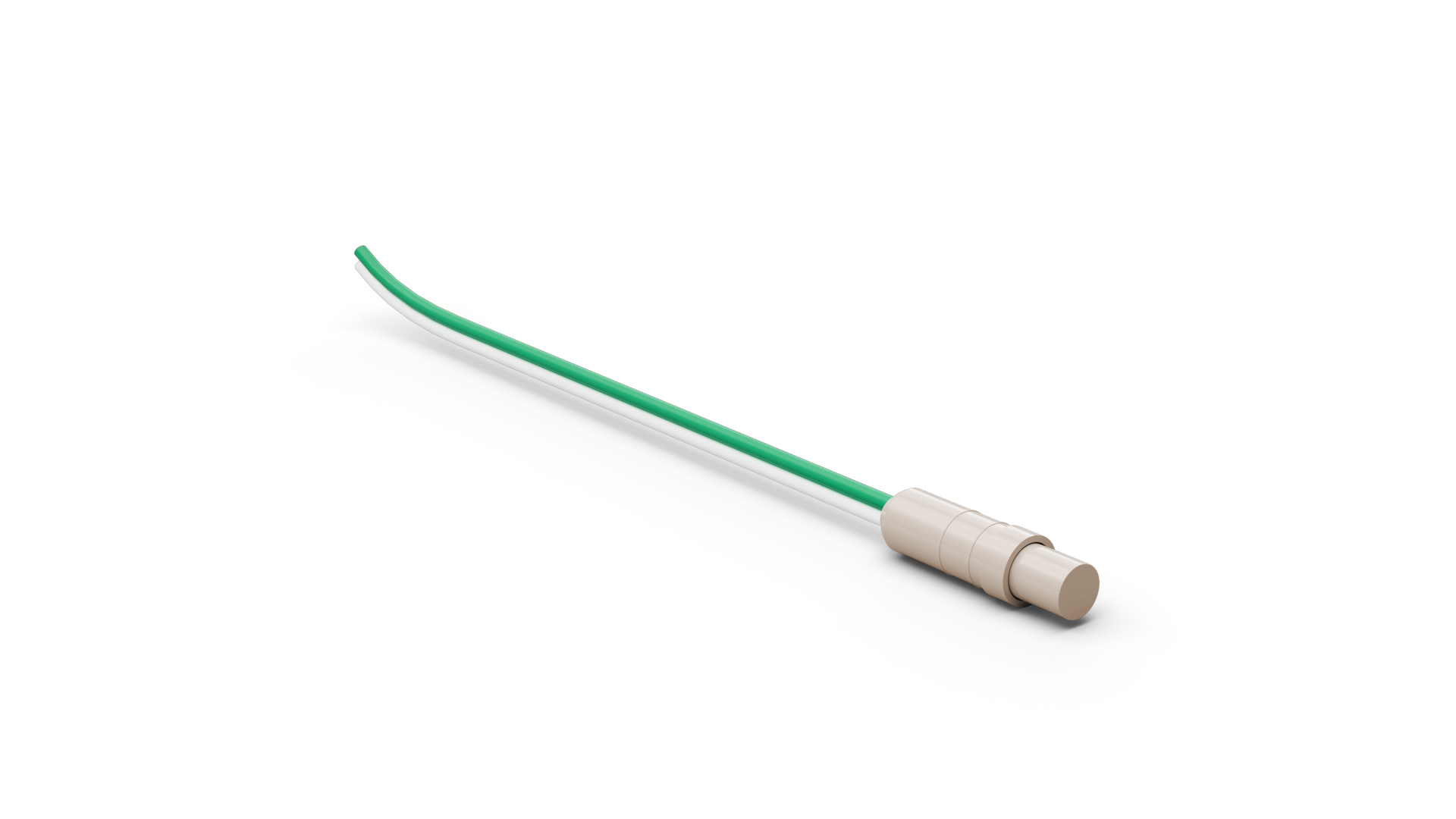

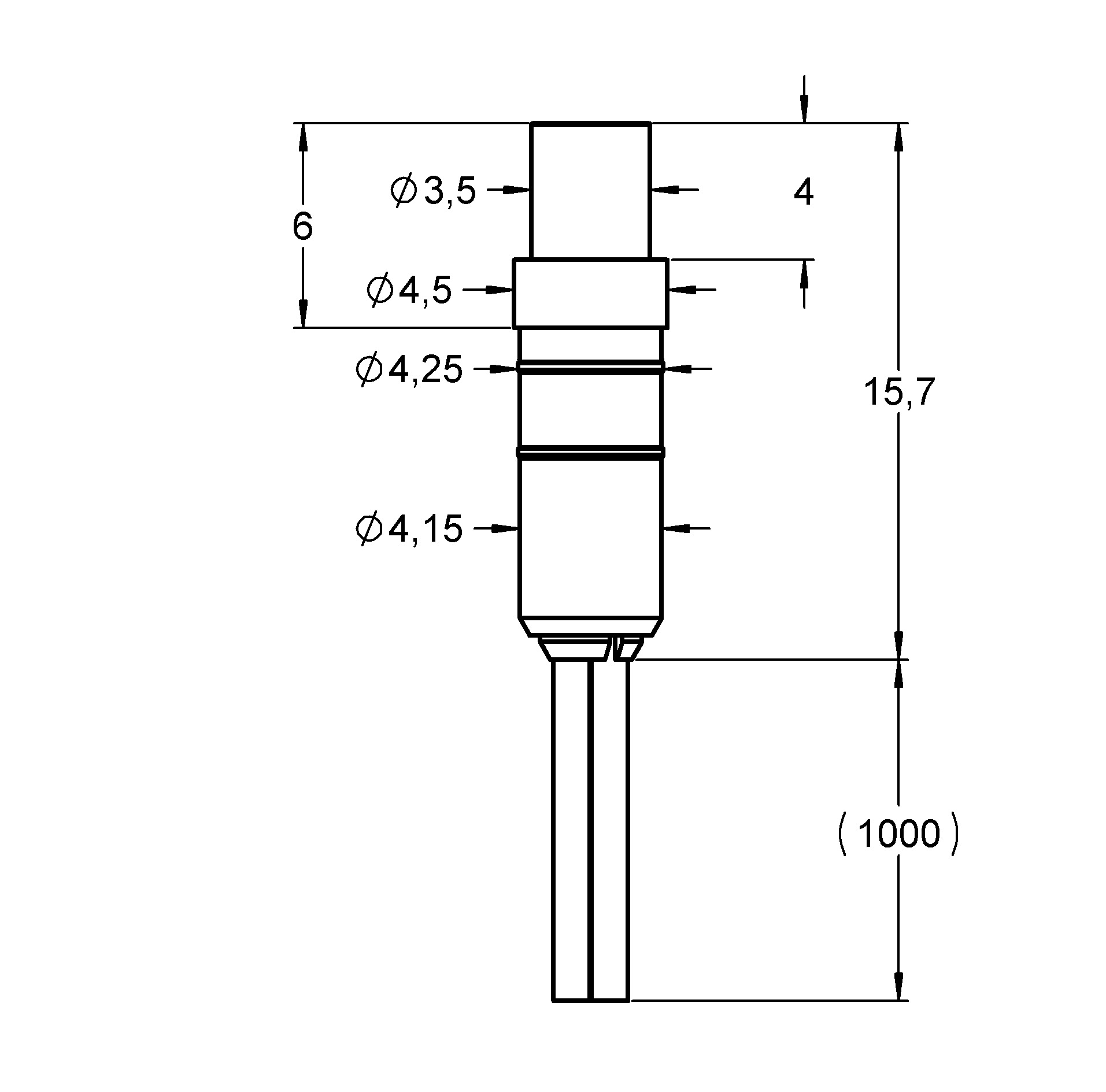

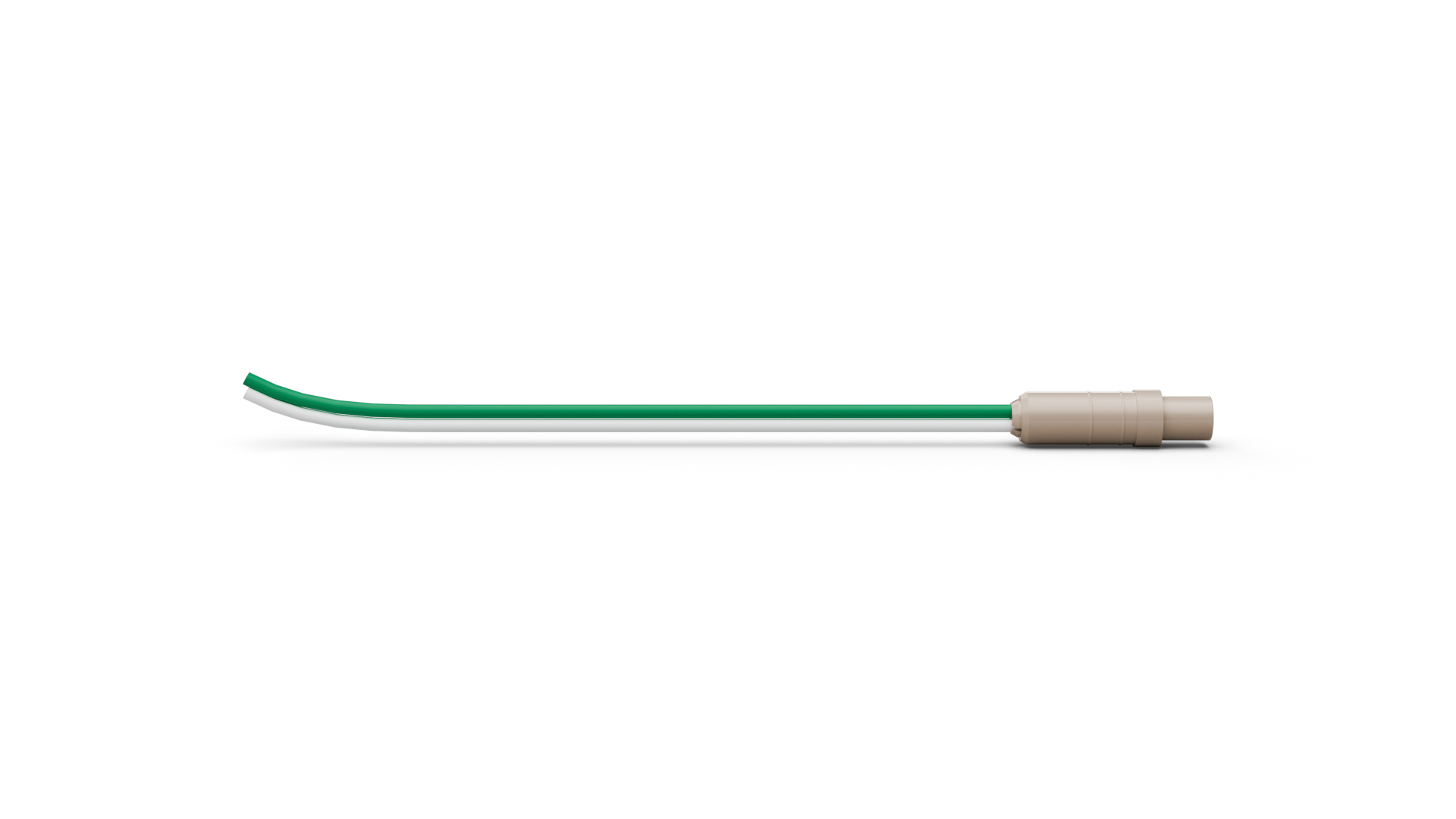

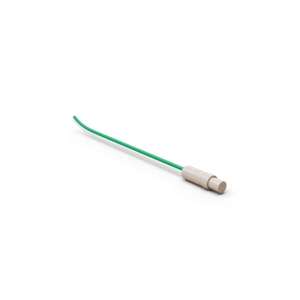

The temperature sensor TS350TYPK300K01 (item number 1156233) is designed for direct temperature measurement on components, contact points or critical test points. The spring-loaded design of TS350TYPK300K01 provides defined mechanical contact with the measurement point and enables temperature changes to be captured directly at the test location. The sensor type specified for TS350TYPK300K01 is Type K. The specified temperature range for TS350TYPK300K01 is -45 °C to +200 °C. For TS350TYPK300K01, spring force is 300 cN at a nominal travel of 3 mm. The total length of TS350TYPK300K01 is 15.7 mm.
