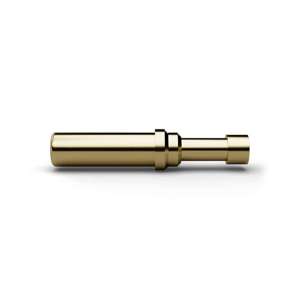

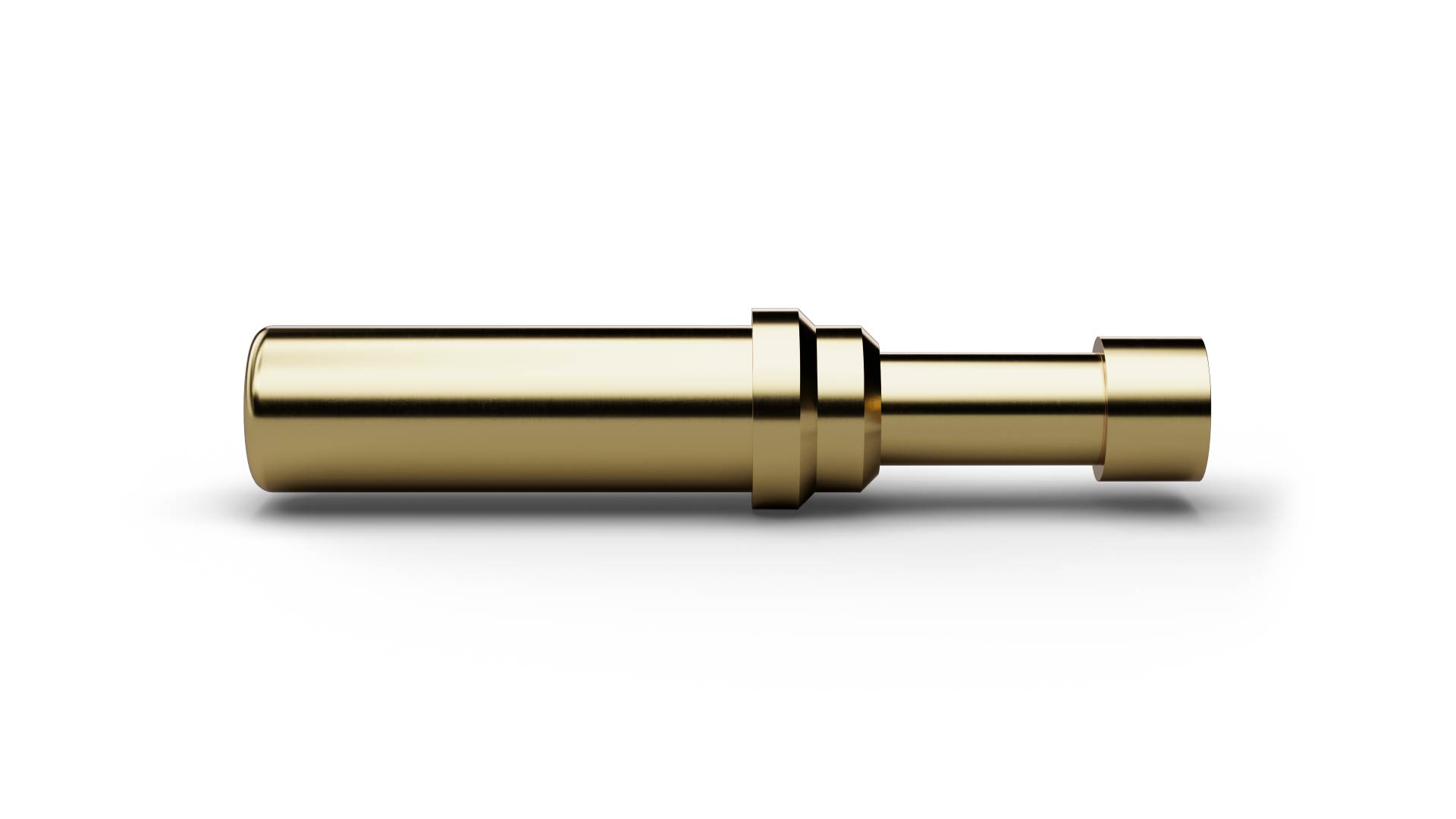

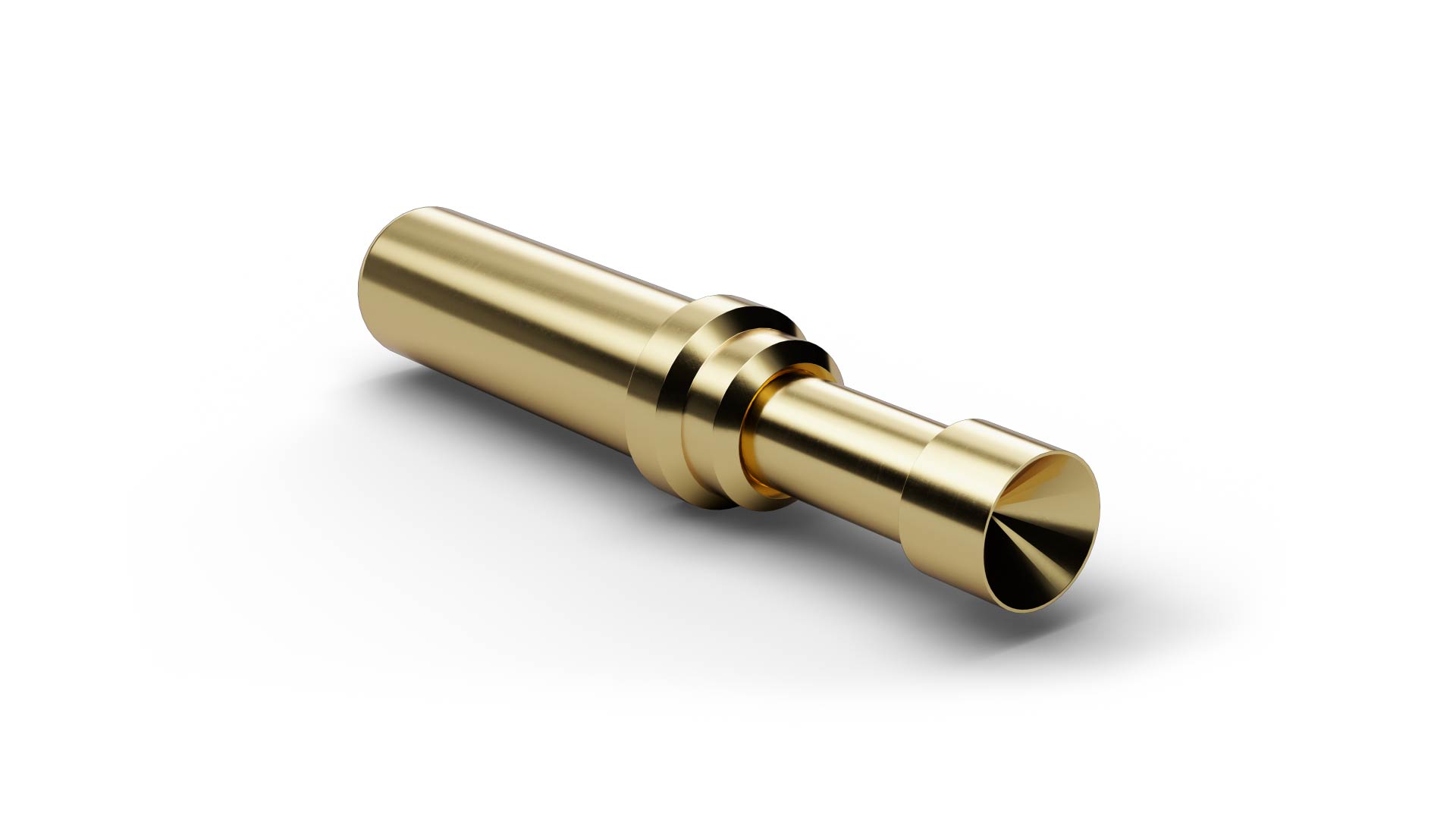

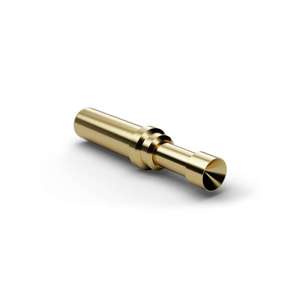

The Pogo Connector P26505B230G150TL150ST (item number 1125782) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P26505B230G150TL150ST is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P26505B230G150TL150ST is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P26505B230G150TL150ST, a pitch of 4 mm / 157 mil is combined with 150 cN spring force and 2.8 mm nominal travel. P26505B230G150TL150ST is rated for 10 A continuous current with a typical contact resistance of 100 mΩ. Tip style 05 (Concave stepped) has a diameter of 2.3 mm.
