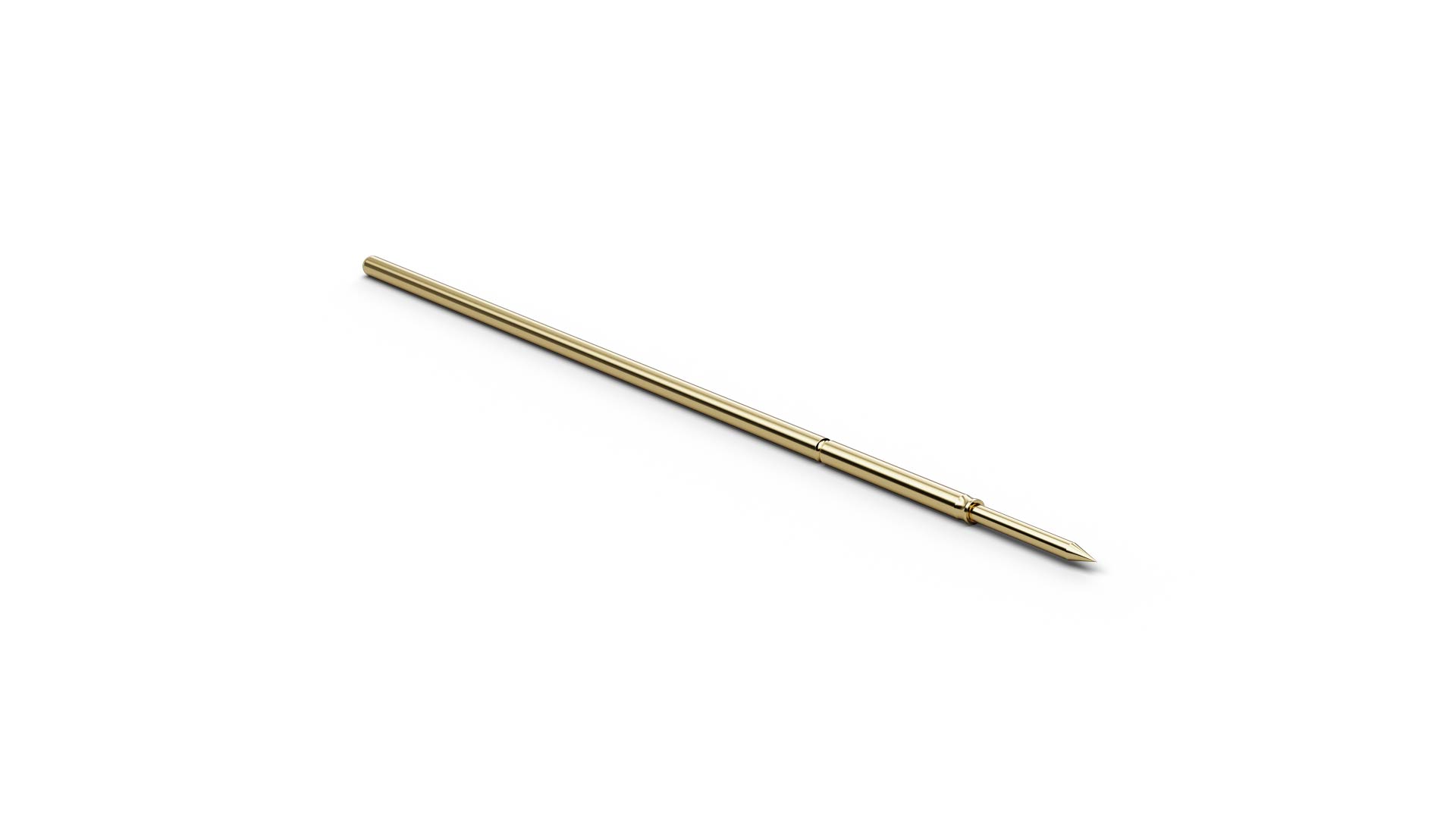

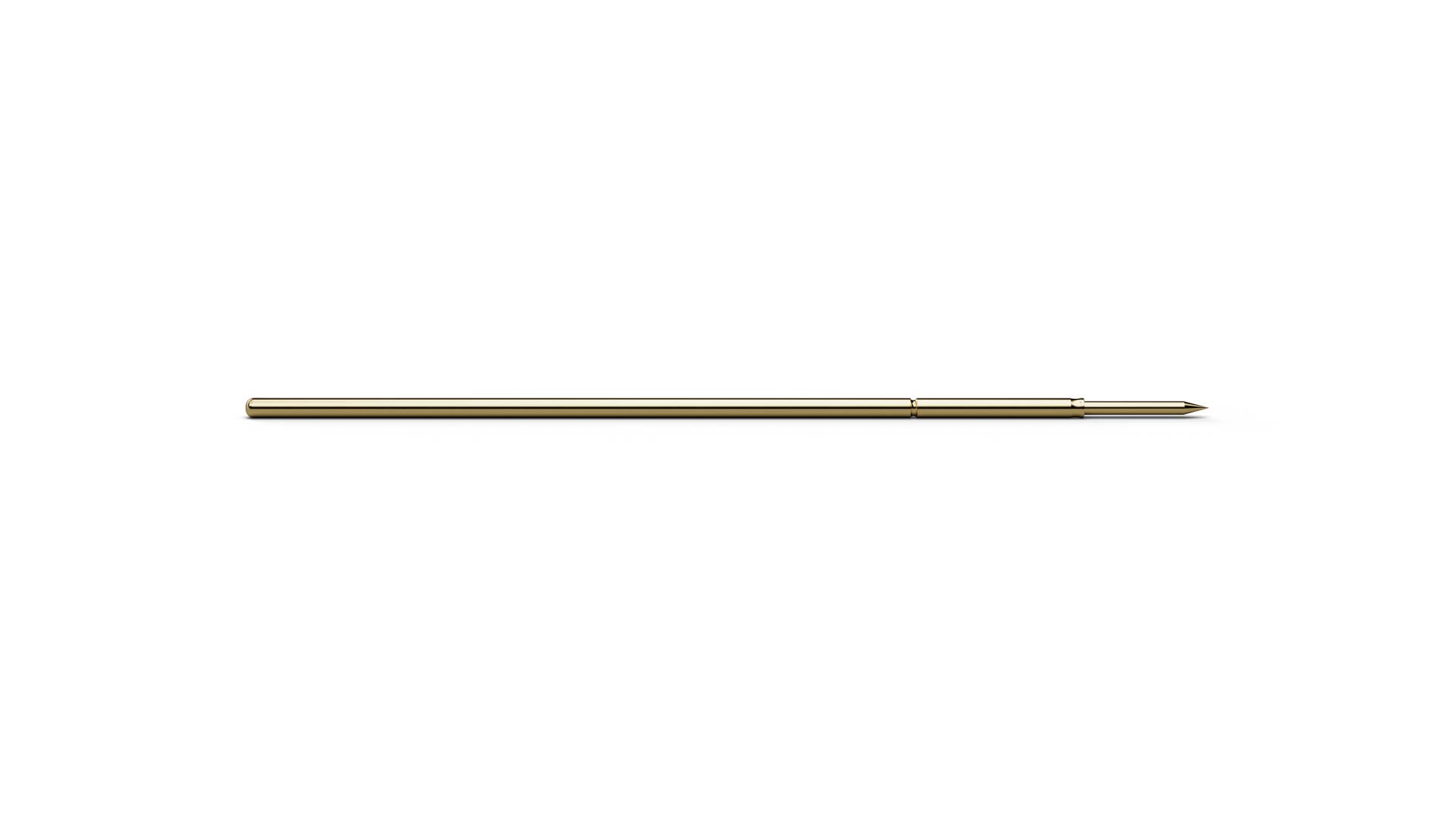

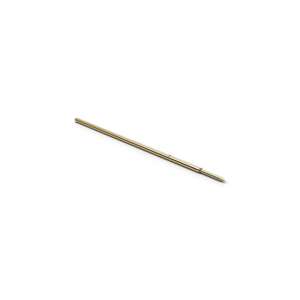

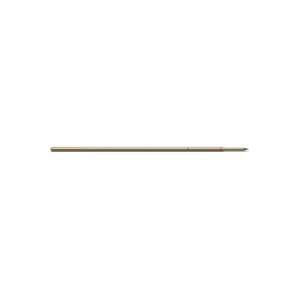

F08618B051G130 (item number 1023016) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 18 (Conical 30°), F08618B051G130 combines ICT/FCT use with a geometry intended for solder pads and vias. F08618B051G130 combines a pitch of 1.27 mm / 50 mil with tip style 18 (Conical 30°) and a tip diameter of 0.51 mm. For F08618B051G130, spring force is 130 cN at a nominal travel of 2 mm. The electrical rating of F08618B051G130 combines 3 A continuous current with 25 mΩ typical contact resistance. The plunger in F08618B051G130 is made of beryllium copper and is gold-plated.
