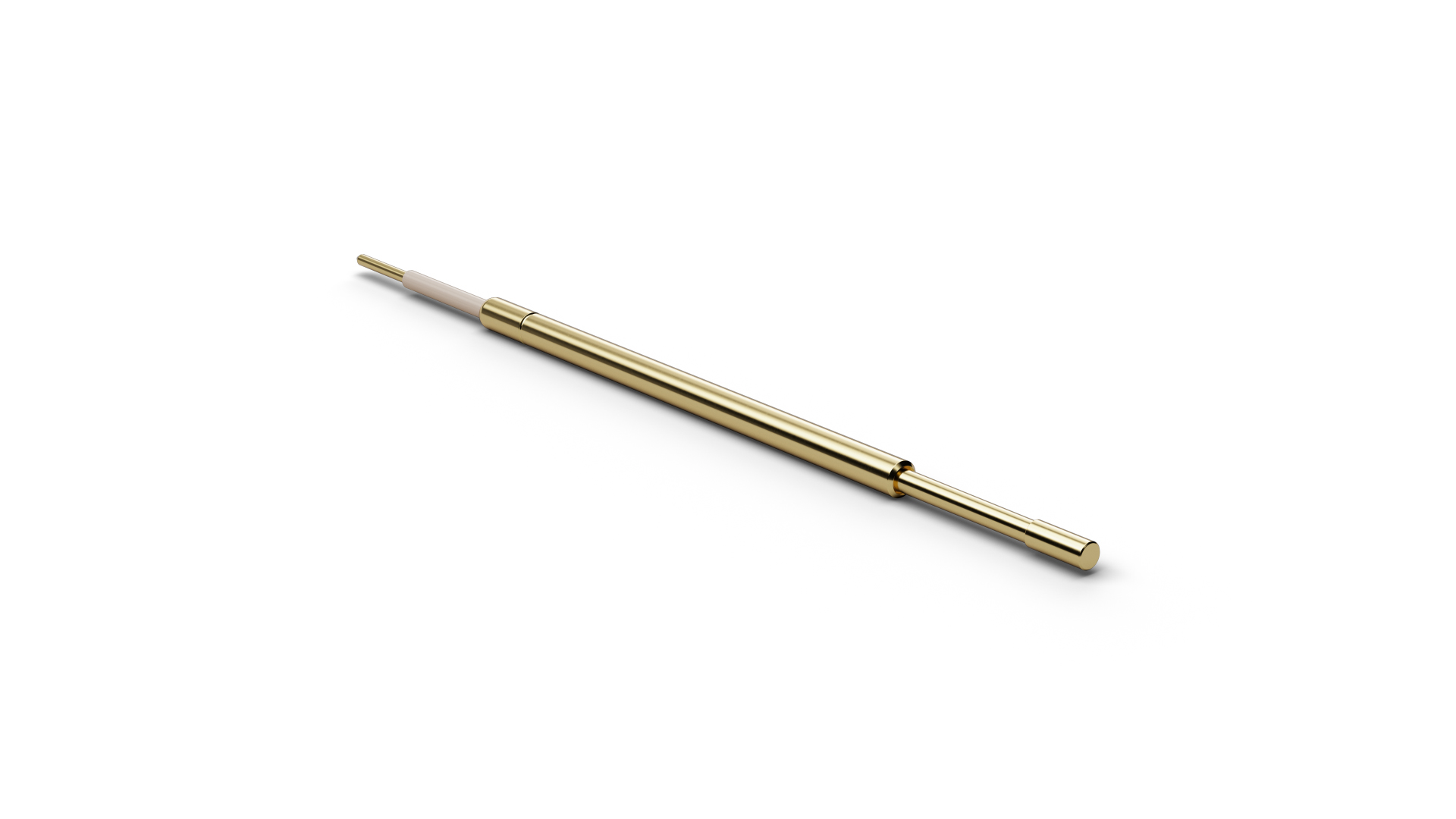

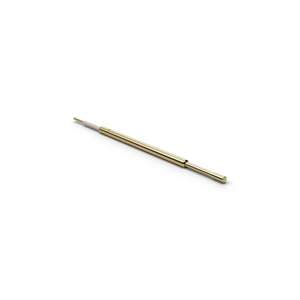

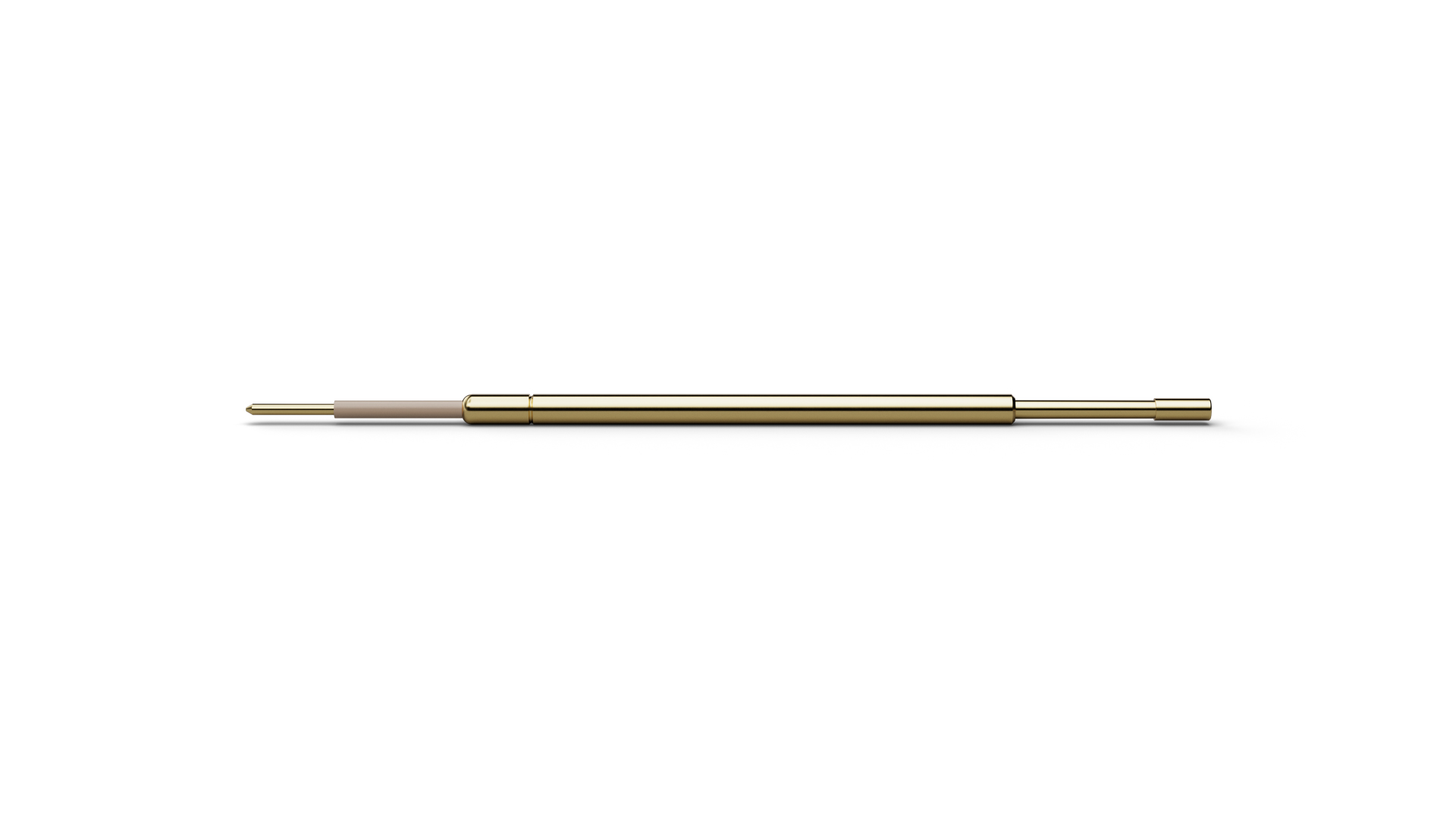

The Normally Open Switch Probe F86417B100G200 (item number 1018018) combines spring-loaded contacting with a defined switching or sensing function. F86417B100G200 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F86417B100G200, the normally open function closes the electrical contact at the defined actuation travel, combining contacting with presence or position information. For F86417B100G200, spring force is 200 cN at a nominal travel of 5 mm. The electrical rating of F86417B100G200 combines 1 A continuous current with 25 mΩ typical contact resistance. F86417B100G200 combines a pitch of 2.54 mm / 100 mil with tip style 17 (Flat stepped) and a tip diameter of 1 mm.
