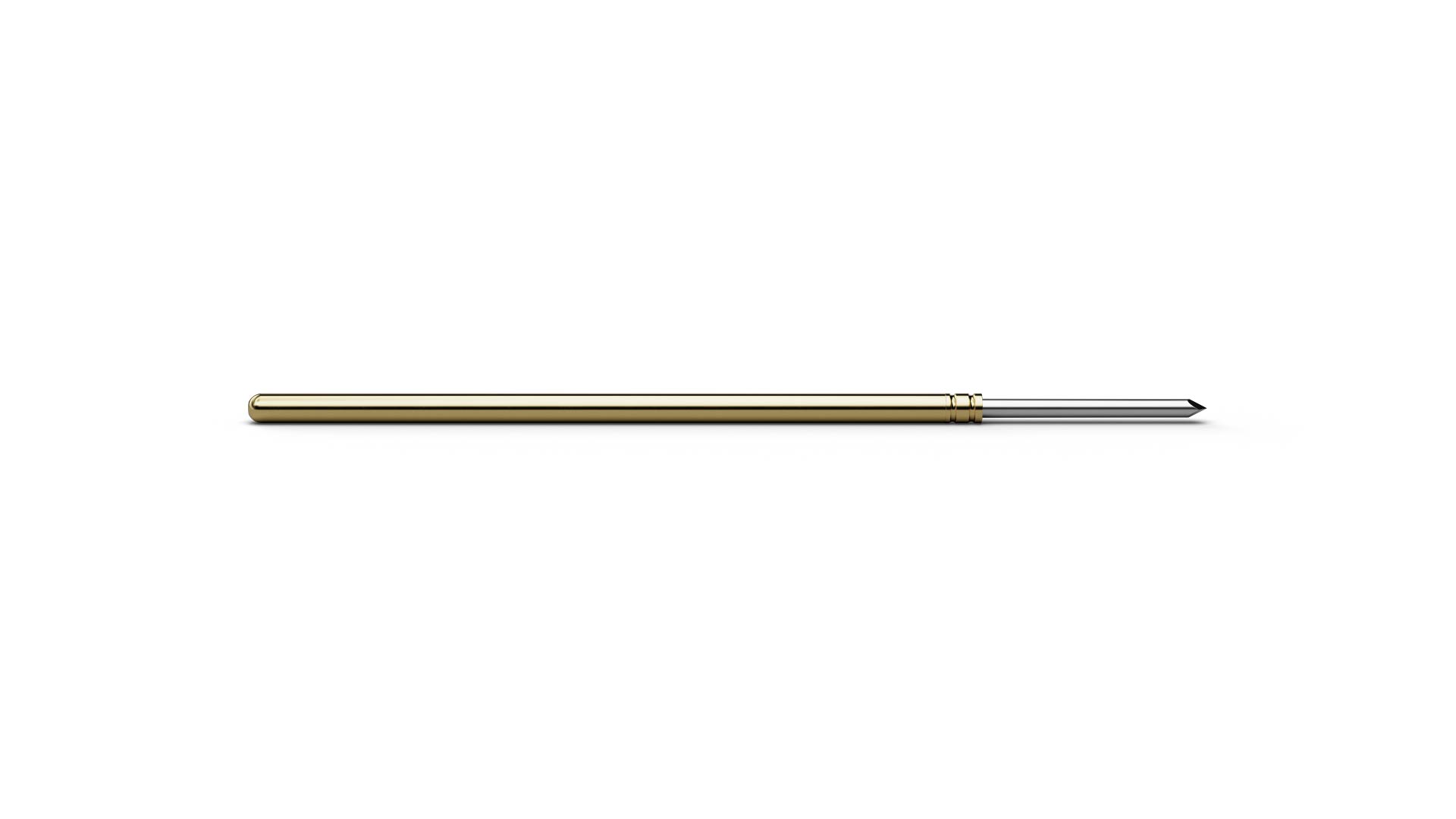

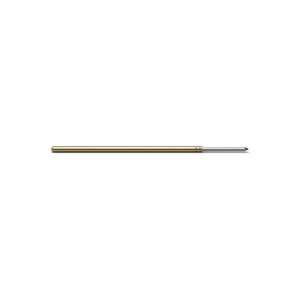

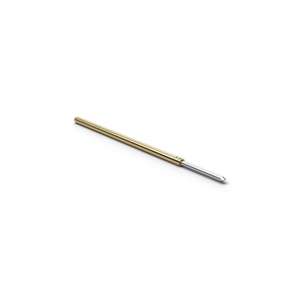

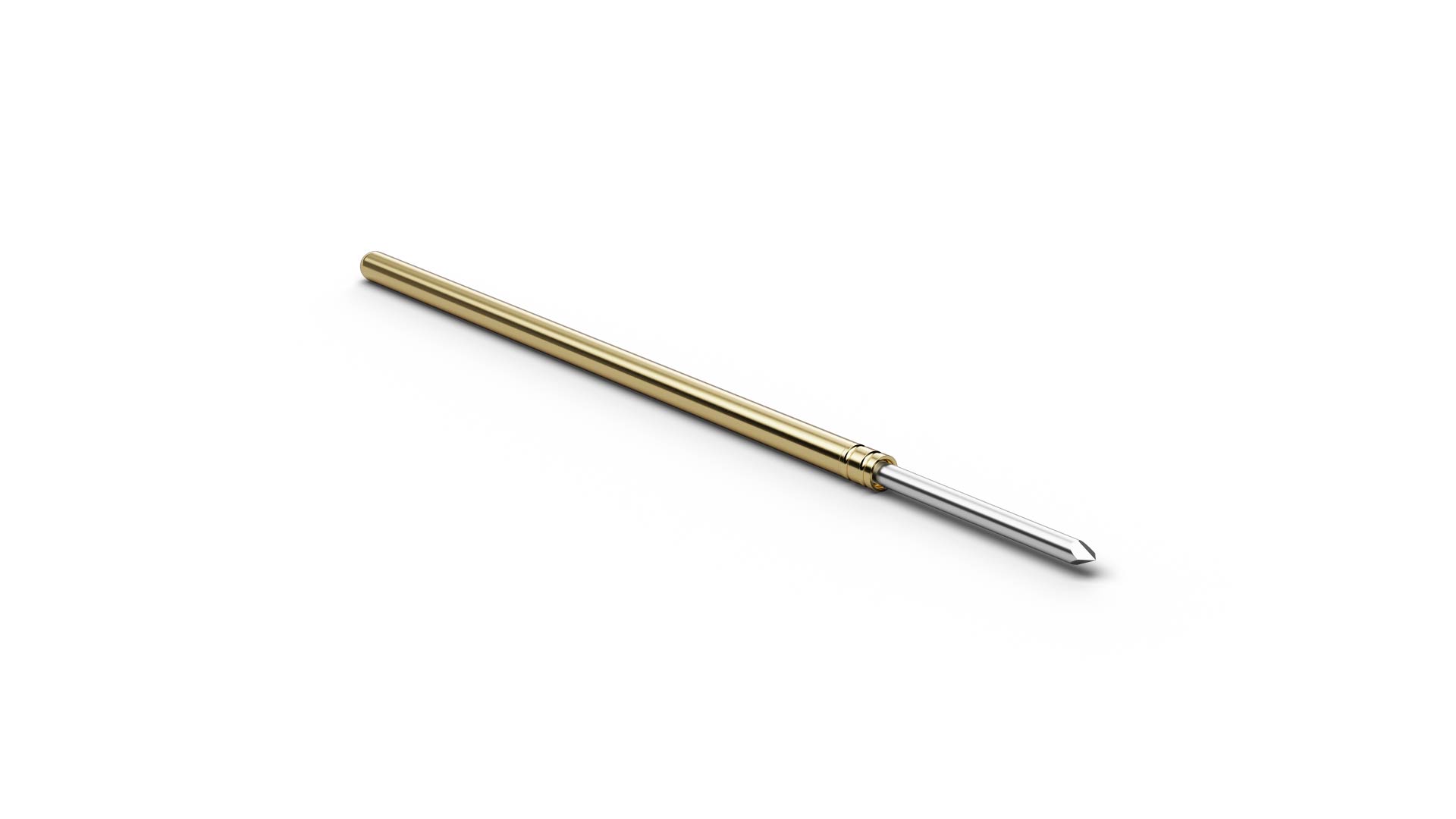

F07543S064P130HP (item number 1010388) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 43 (Square lance 90°), F07543S064P130HP combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F07543S064P130HP combines a pitch of 1.9 mm / 75 mil with tip style 43 (Square lance 90°) and a tip diameter of 0.64 mm. F07543S064P130HP operates with 130 cN spring force and 4.3 mm nominal travel. F07543S064P130HP is rated for 4 A continuous current with a typical contact resistance of 40 mΩ. On F07543S064P130HP, Progressive Coating and the increased spring preload of the HP version form a combined solution for difficult ICT/FCT contacting conditions involving OSP, flux residues, oxidation or contamination.
